ZONESUN ZS-SL25 Automatic Round Ovial Irregular Bottle Self-adhesive Sticker Wrap-around Labeling Machine for Liquor Whisky
Prix régulier
$9,799.10 USD
Prix régulier
Prix réduit
$9,799.10 USD
Épargnez $-9,799.10 USD
/
- Garantie d'un an
- Manuel d'utilisation
- Support de chat vidéo un à un
- Installer et déboguer la vidéo
- Solution de package personnalisé
- Emplacement de service local （Roumanie / Serbie / Kazakhstan / Mexique / Indonésie）

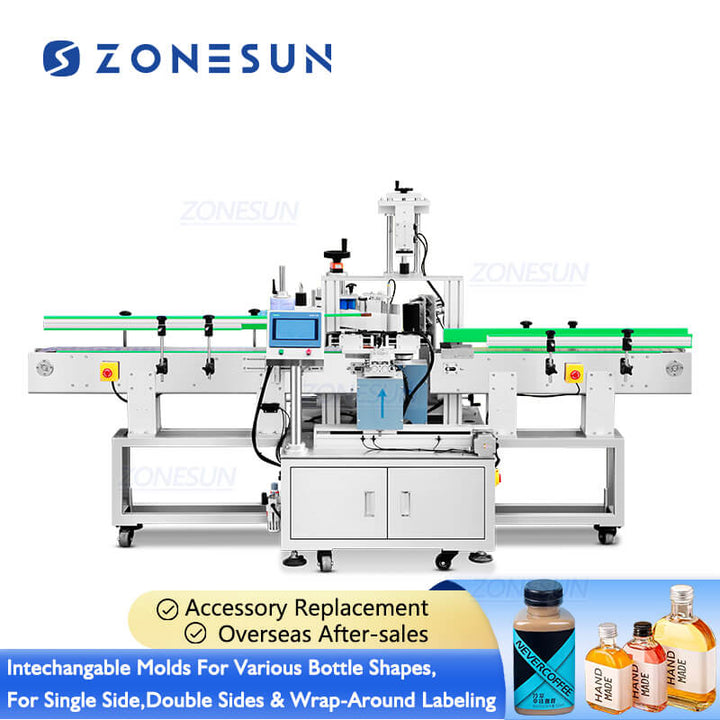

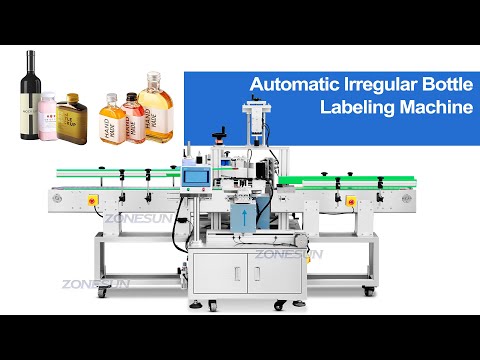

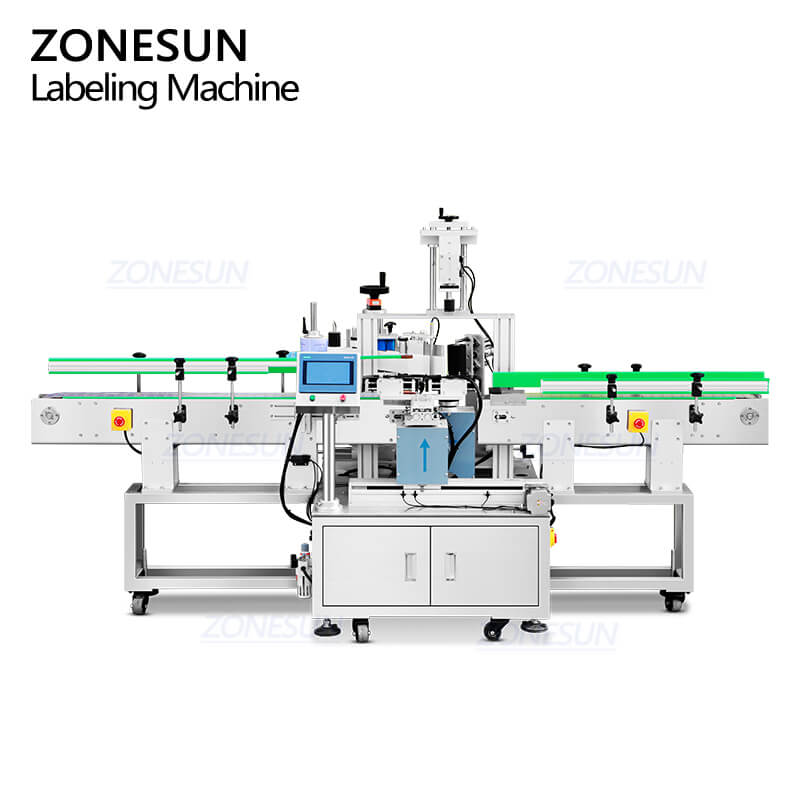

This irregular bottle labeling machine is designed for cylindrical and irregular column-shaped bottles, such as oval or specially shaped containers, by changing molds. It applies self-adhesive labels and supports single label, front-and-back label, and full wrap labeling. Optional date printing devices include ribbon coder, inkjet printer, or laser marker, making it suitable for food, beverage, and daily chemical packaging.
Irregular Bottle Labeling Machine Parameter
- Machine Model: ZS-SL25
- Power Supply: 220V 50-60 HZ (Customizable)
- Stepper Traction: 570 W
- Labeling Accuracy: ±1 mm
- Labeling Speed: 25-45 pcs/min(Stepper Motor) 30-60 pcs/min(Servo Motor)
- Conveying Speed: 5-18 m/min
- Suitable Label Size: 20-290 mm(W)*20-130 mm(H)
- Suitable Label Roll Inner Diameter: φ76 mm
- Suitable label Roll Outer Diameter: φ280 mm
- Suitable Product Dimensions: φ=25-110 mm* H= 25-150 mm (Customizable According to Product)
- Machine Size: 3030*1360*1570 mm(L*W*H)
- Machine Weight (kg): 200 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

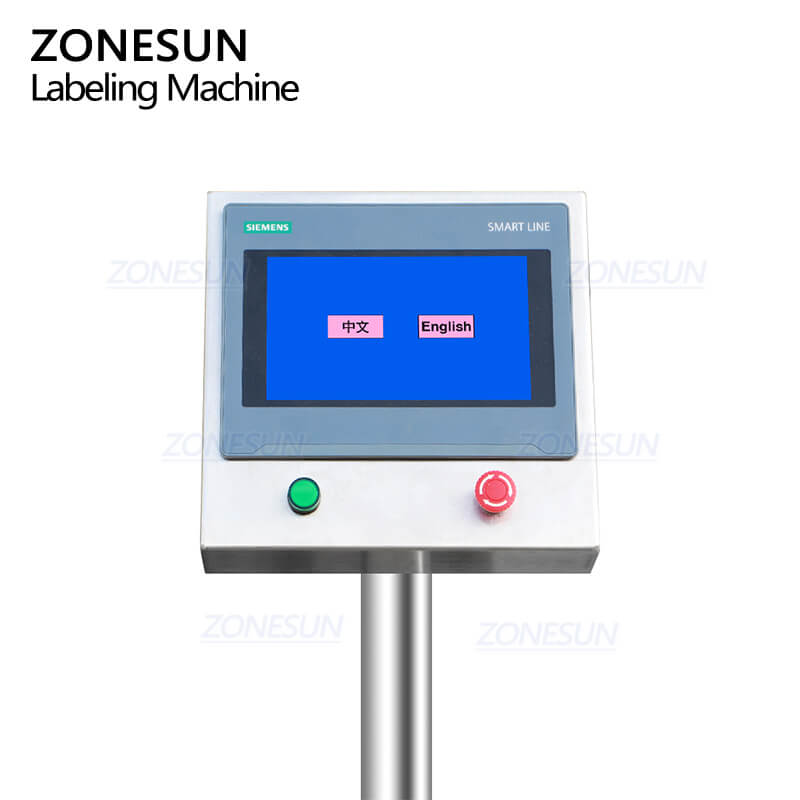

Control Panel
Offers a user-friendly interface, it allows intuitive parameter setting and real-time status monitoring.
Offers a user-friendly interface, it allows intuitive parameter setting and real-time status monitoring.

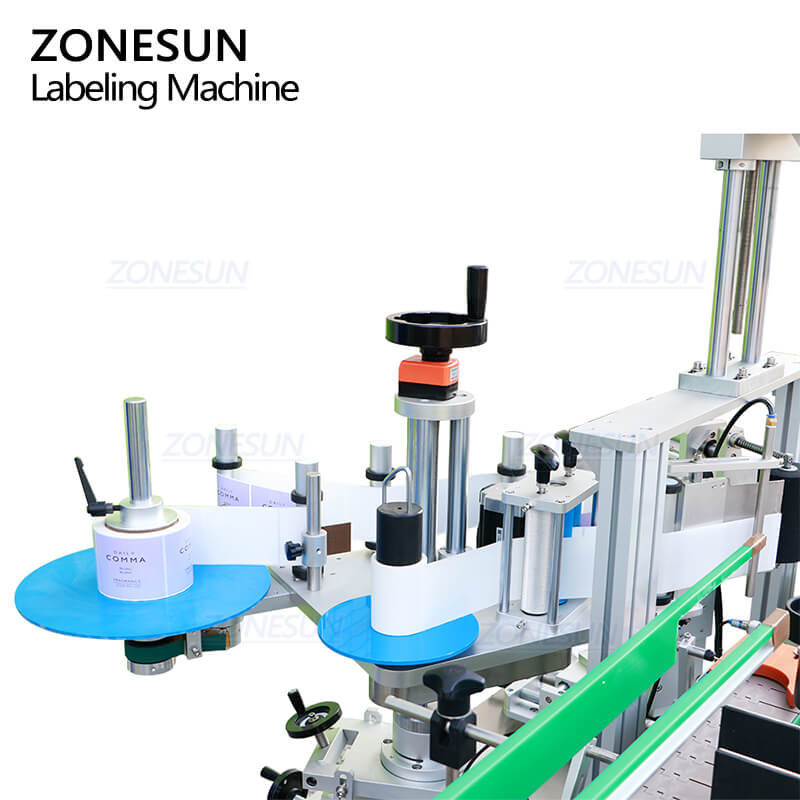

Label Roll Feeding Unit
Ensures smooth and stable dispensing of self-adhesive labels.
Ensures smooth and stable dispensing of self-adhesive labels.
Product Detection Sensor
Detects passing by bottle position accurately and trigger precise label operation.
Detects passing by bottle position accurately and trigger precise label operation.
Adjustment Hand wheel
Enable quick and precise manual adjustment of labeling angle and position.
Enable quick and precise manual adjustment of labeling angle and position.

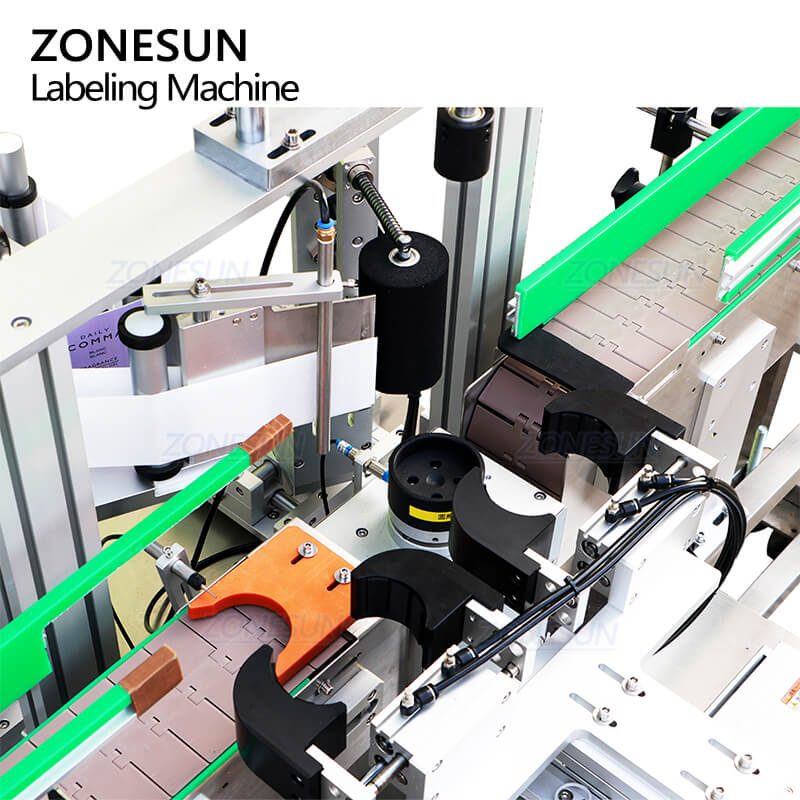

Labeling System
Allows fast mold replacement to accommodate oval and irregular bottle shapes.
Allows fast mold replacement to accommodate oval and irregular bottle shapes.

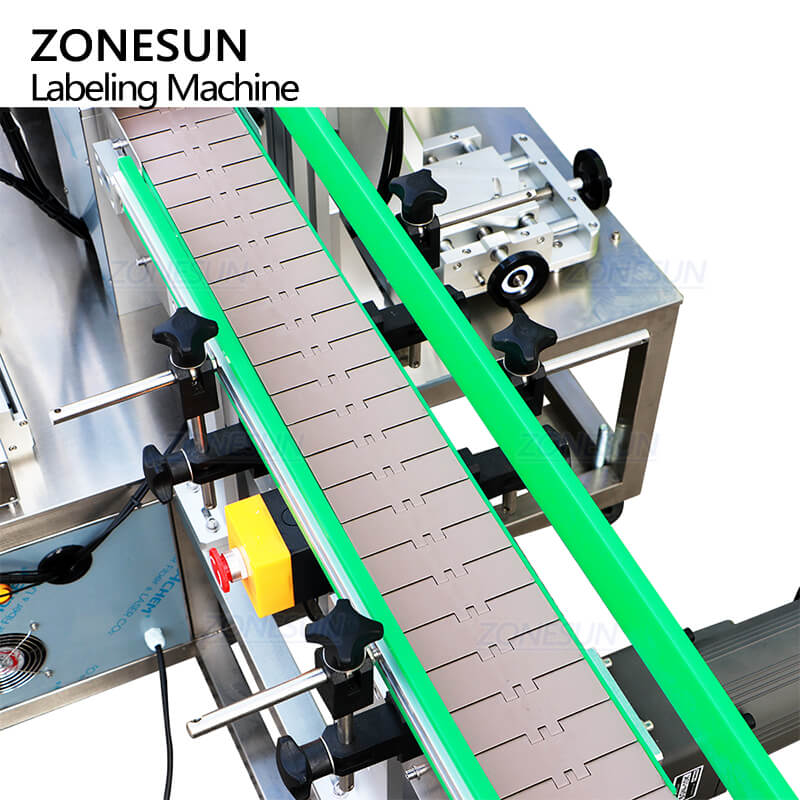

Conveyor System
Transports bottles steadily through the labeling process and connects to filling and capping machine.
Transports bottles steadily through the labeling process and connects to filling and capping machine.
