ZONESUN ZS-WP2000L Commercial High Flow Reverse Osmosis Water Purification System Water Treatment Plant

ZONESUN ZS-WP2000L Commercial High Flow Reverse Osmosis Water Purification System Water Treatment Plant

Regular price $6,299.00 USD
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

A water purification system is a setup or facility used to treat water and make it suitable for a specific end-use. The end-use can be drinking, industrial water supply, irrigation, river flow maintenance, water recreation, or other purposes. The primary aim of water purification is to remove contaminants or reduce their concentration so that the water becomes fit for its intended use.


  • Product model:ZS-WP2000L
  • Power supply:380V TN-S 3KW 50HZ
  • Product water conductivity:≤10us/cm25℃
  • Production capacity:2000L/H
  • Desalination rate:96-99%
  • Recovery rate:60-70%
  • Floor area:About 4000*2500mm

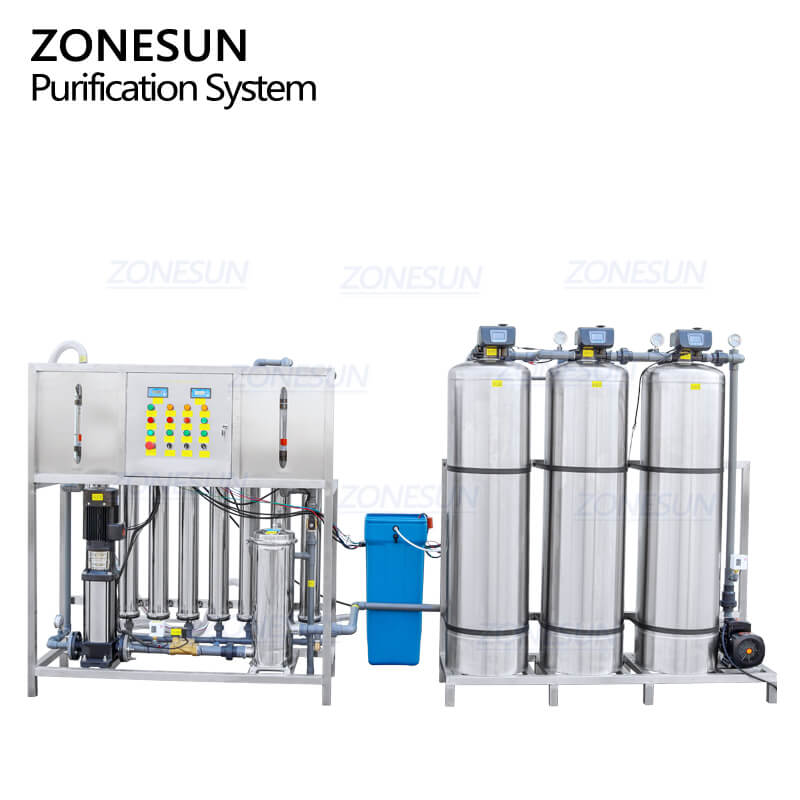

water purification system

working process of water purification system

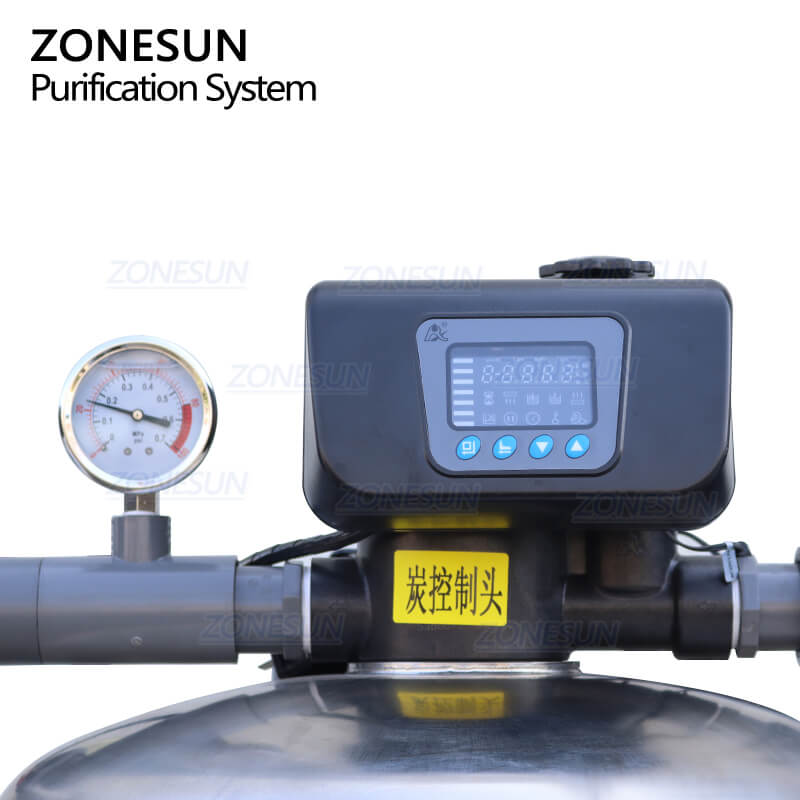

control valve of water purification system

Each of these stages requires a specific flow rate to achieve optimal performance. Automatic control valves help maintain consistent flow rates by adjusting the valve's opening and closing based on the system's requirements.

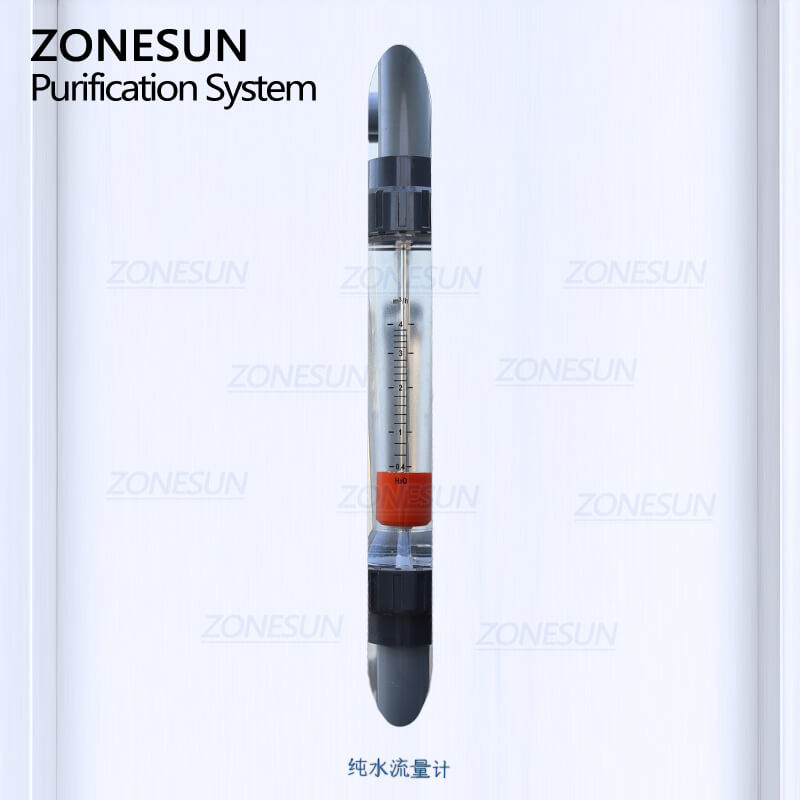

flowmeter of water purification system

Flowmeters provide real-time information about the rate of water flow within the system.By monitoring flow rates, operators can optimize the performance of different treatment stages and adjust system parameters as needed.

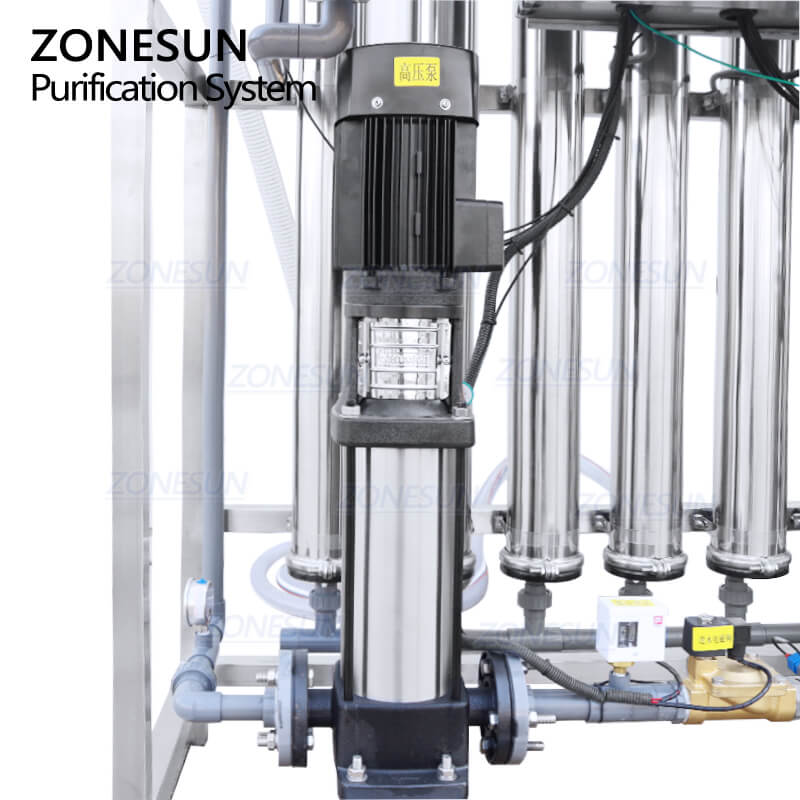

high pressure pump of water purification system

This pump is designed to generate the necessary pressure to drive water through semi-permeable membranes, separating impurities from the water and producing purified water.

filter of water purification system

Use quartz sand to physically remove large particles of impurities in the water, and then use activated carbon to absorb organic matter, residual chlorine, odor and some heavy metals in the water. Finally, water softener is used to remove the hardness ions in the water to prevent the formation of scale

4000L water purification system
1000L water purification system
500L water purification system500L water purification system
