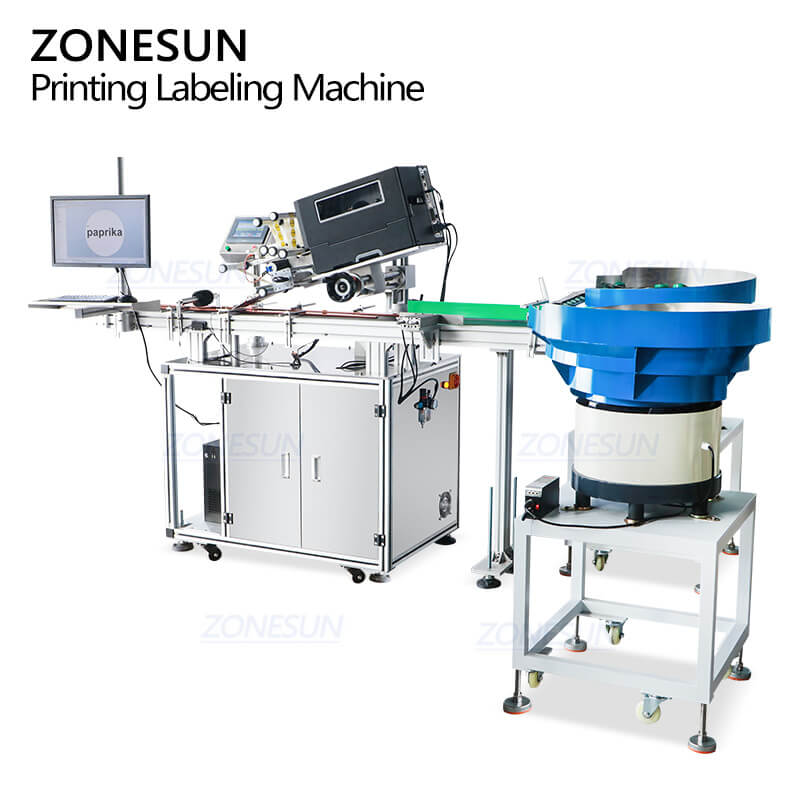

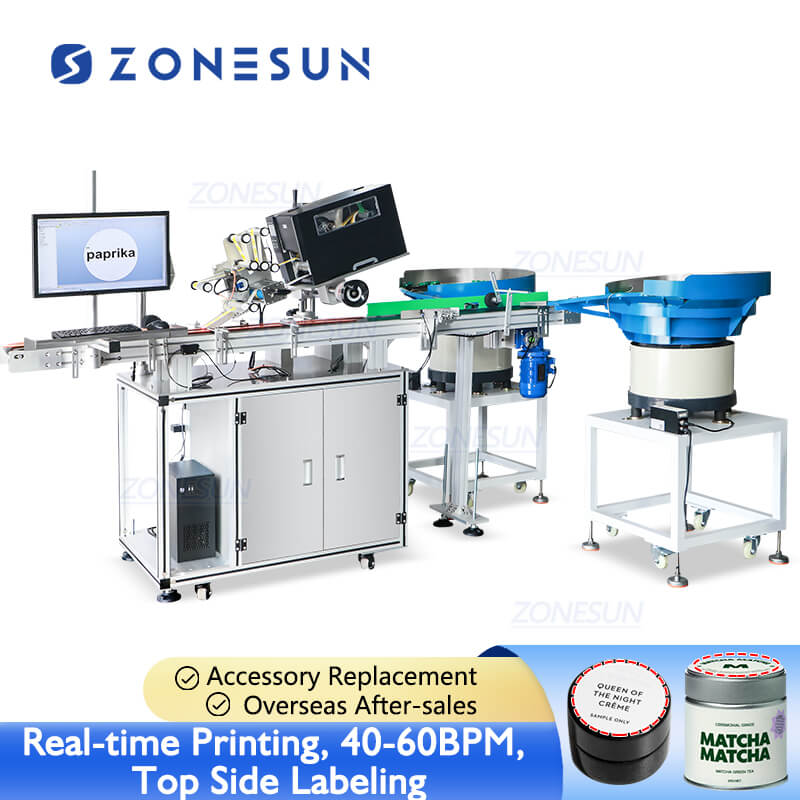

Top side real-time printing labeling machine — equipped with a real-time thermal transfer printer for clear and accurate label printing. Suitable for top-side labeling on bottle caps, pouches, and similar products. Features a vibratory bowl sorter for continuous and timely material feeding. High working capacity, reaching speeds of 40-60 bottles per minute, making it ideal for automated production lines.
Labeling Machine
- Machine Model: ZS-TB161PO
- Working Voltage: 110/220V 50-60HZ 1350W
- Labeling Accuracy: ±1 mm(based on label & product)
- Working Capacity: 40-60 BPM(based on label & product)
- Suitable Product Size: 40-400 mm*40-200 mm*0.2-150 mm(L*W*H)
- Suitable Label Size: 15-250 mm*15-100 mm(W*H)
- Machine Size: About 3130*2000*1760 mm(L*W*H)
- Machine Weight: About 180 KG
Vibrating Machine
- Machine Power: 110/220V 50-60HZ 1600*2=3200W
- Material: Stainless Steel
- Suitable Caps Diameter: Customized
- Working Speed: Customized
- Machine Size: Customized

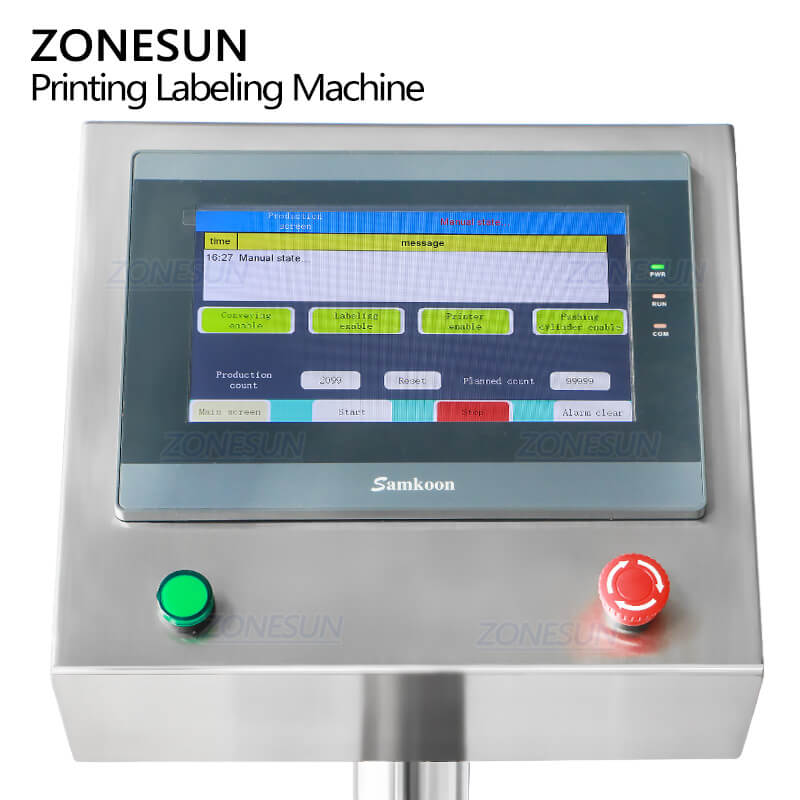

Touchscreen Control Panel
User-friendly interface for easy operation and quick parameter adjustment.
Computer Editing
Editing printed label information, such as product logos, graphics, etc., is easier through the computer.

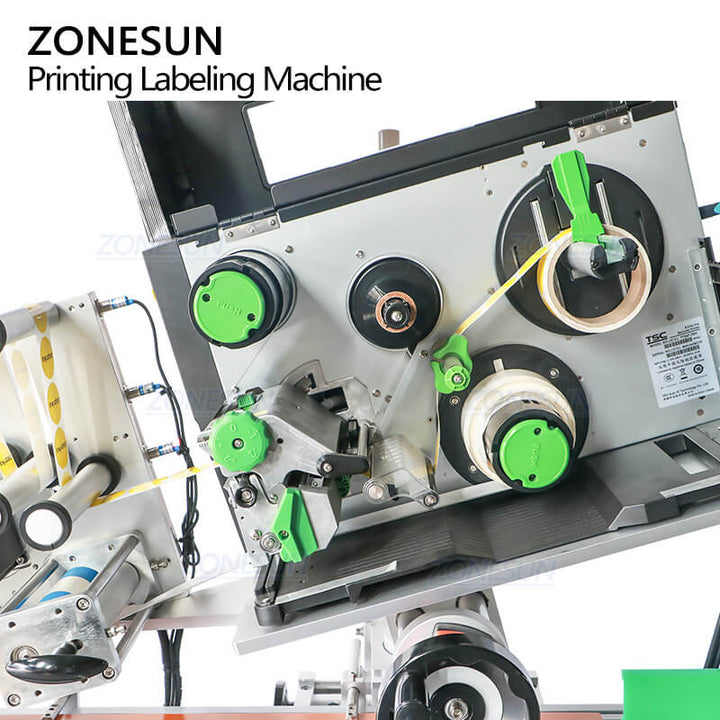

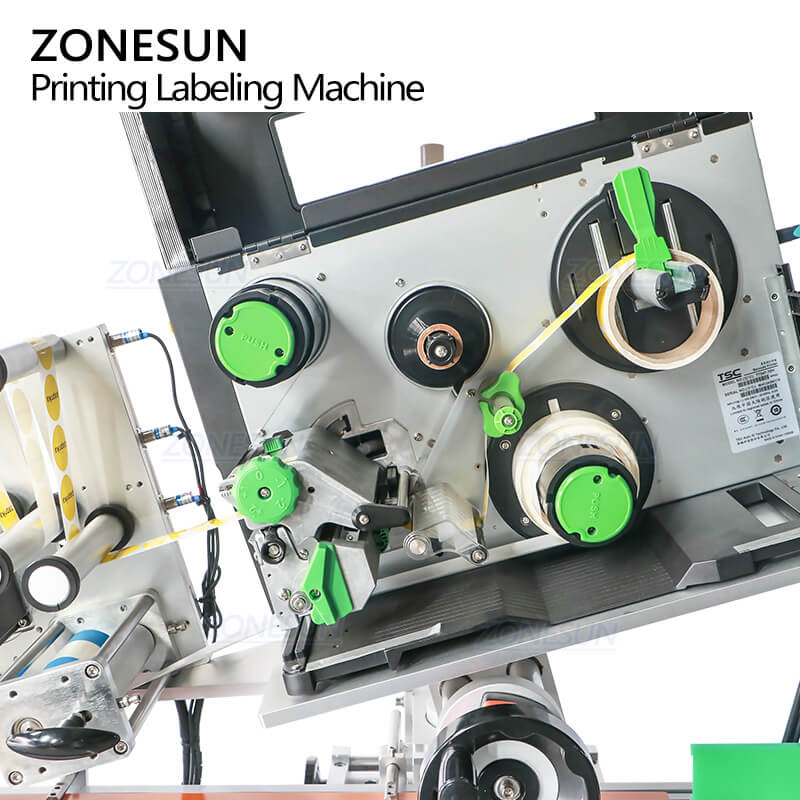

Real-Time Printer
Can be customized for ink ribbon printing or thermal transfer printing.
Vibratory Bowl Feeder
Ensures continuous and stable caps feeding for uninterrupted production.

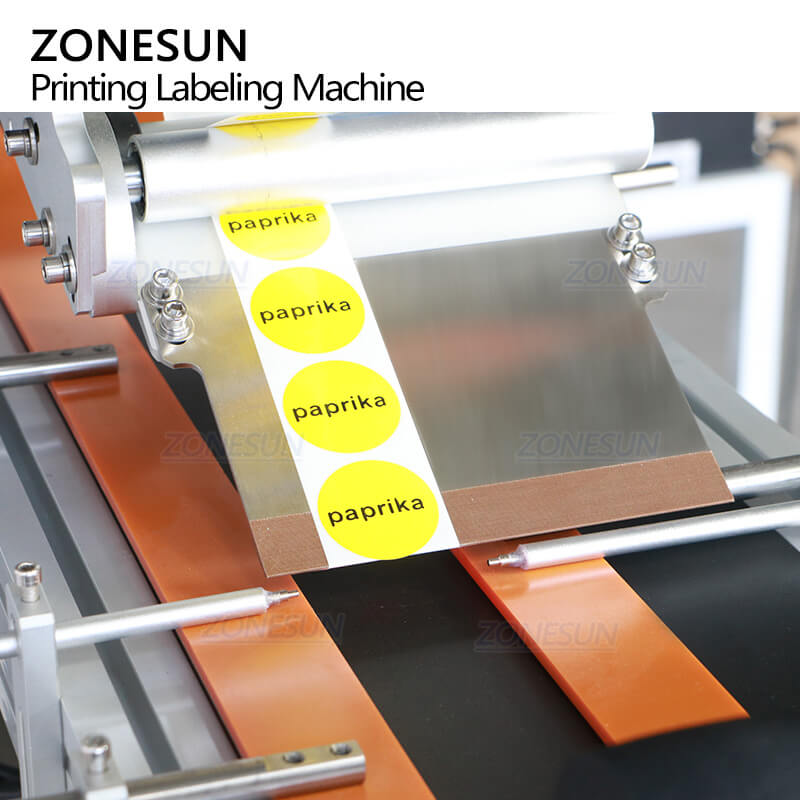

Labeling Structure
Supports flat surface labeling with an output of 40-60 bottles per minute.
Electrical Wiring
All circuits are well-arranged for safety, reliability, and easy maintenance.
