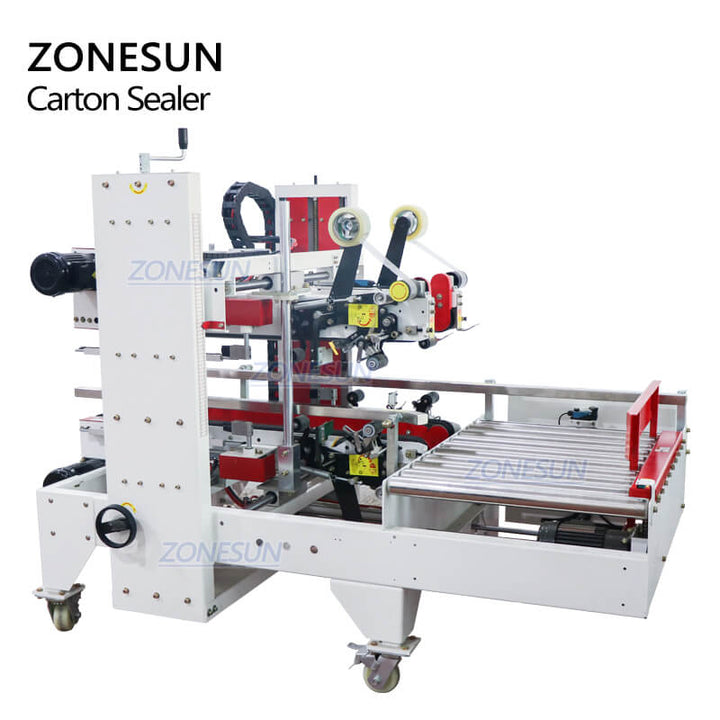

ZONESUN ZS-FK8001 Automatic Carton Sealing Machine Box Sealer Packing Machine

Description

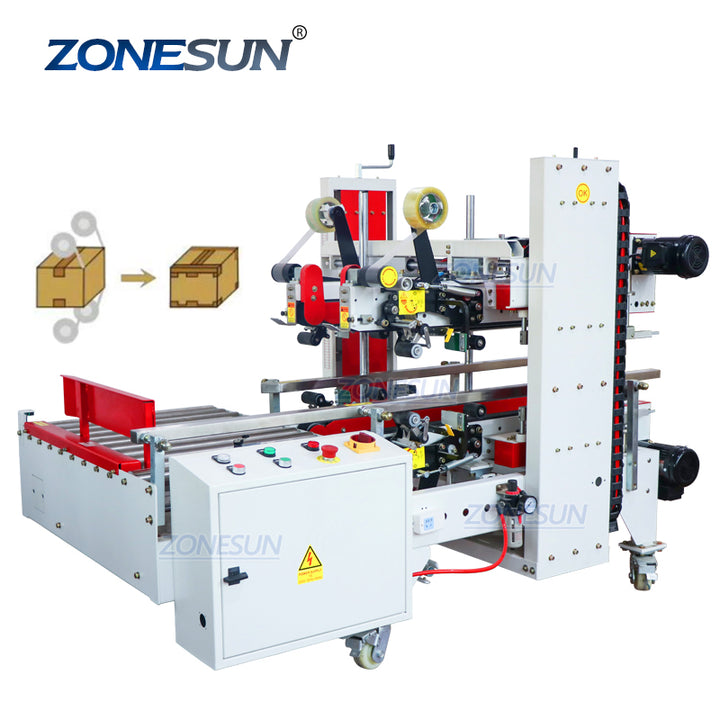

Designed for sealing carton automatically, the entire sealing operation is automatically performed and the machine can be operated together with automatic packaging line, can help to improve working efficiency and ensure the production quality

Parameter

• Model: ZS-FK8001

• Voltage: 220V 50-60Hz

• Power: 1000W

• Sealing Speed: 17.5 m/min

• Tape Width: 60-78 mm

• Tape Head: 50-70 mm(Adjustable)

• Sealing Length: 200-500 mm

• Sealing Width: 320-500 mm

• Sealing Height: 180-500 mm

• Height of the Work Surface: 660-740 mm(Adjustable)

• Air Pressure: 5-6 kg/cm²

• Dimension: About 1970*1100*1470 mm

• Weight: About 400 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

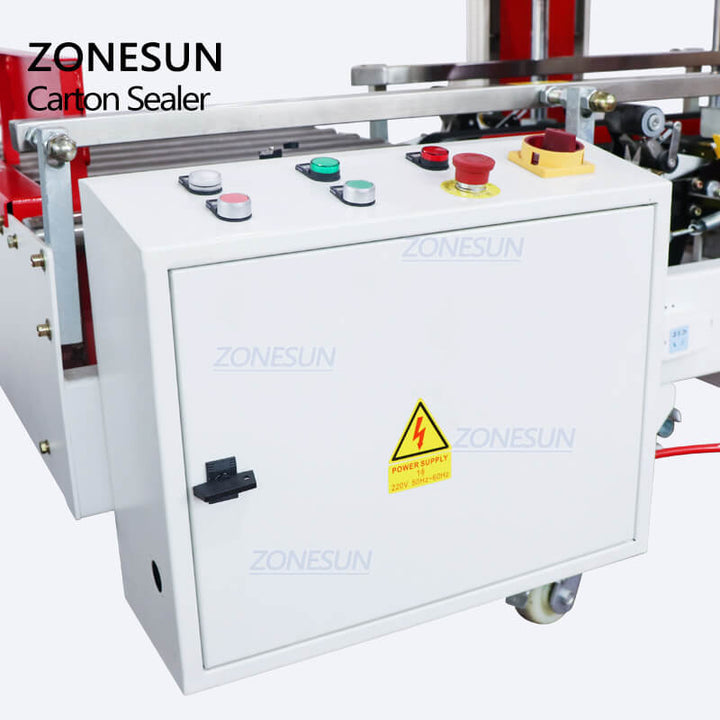

With these buttons, operator can easily operate the machine. If emergency happens, operator can press the emergency button to make it stop working. Ensure the safety.

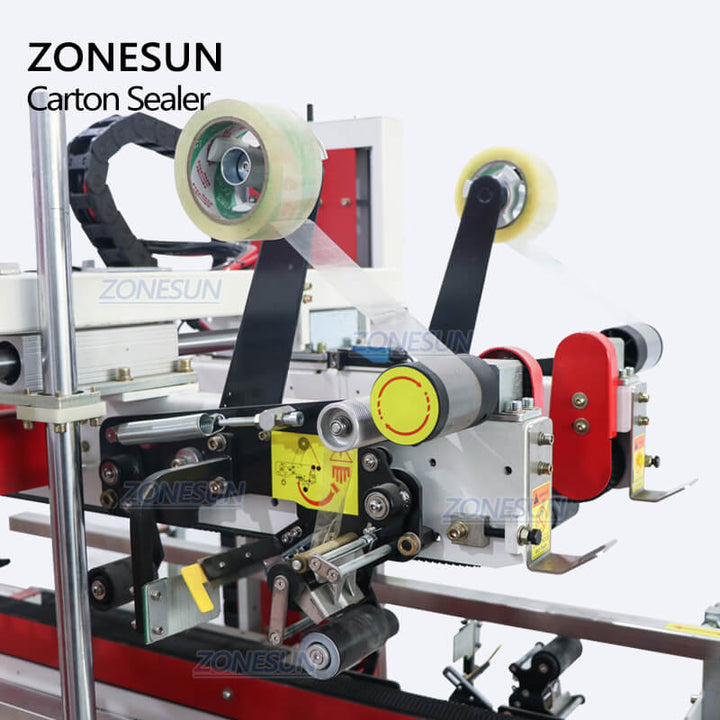

The operator can quickly adjust the height of the tape by using the ruler. Direct and precise.

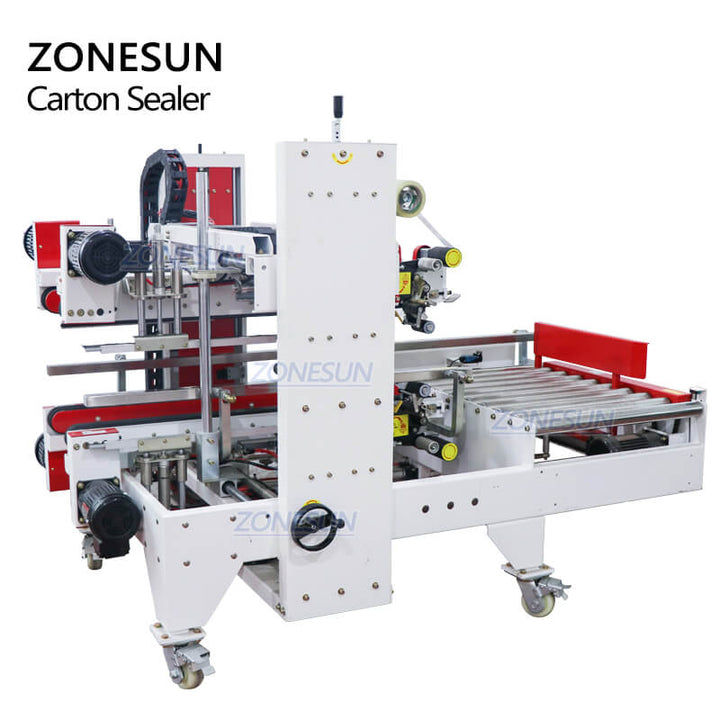

By rotating the handle,operator can change the width of the feed inlet, which makes it suitable for cartons of different sizes. Easy and convenient.

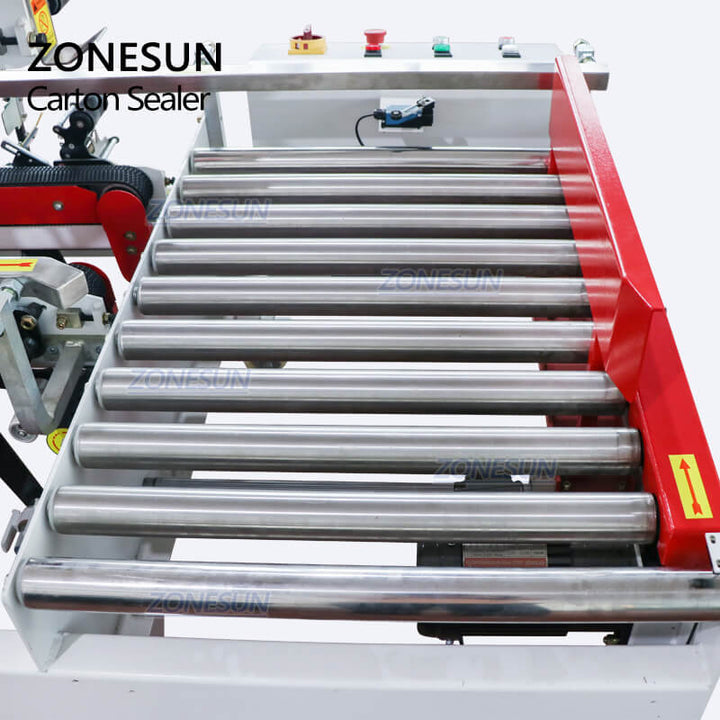

When the carton touches the microswitch, the red board will push the carton forward,making it enter into the sealing area. This machine can be used with one-line box sealing machine, greatly improving work efficiency.

The four high-quality motors can supply great power for the machine, helping to create products of better quality.

The Barometer is designed for watching air pressure in real time, ensuring the safety.This machine need to work with Air Compressor, which should be bought separately.Please contact us if you need this.
