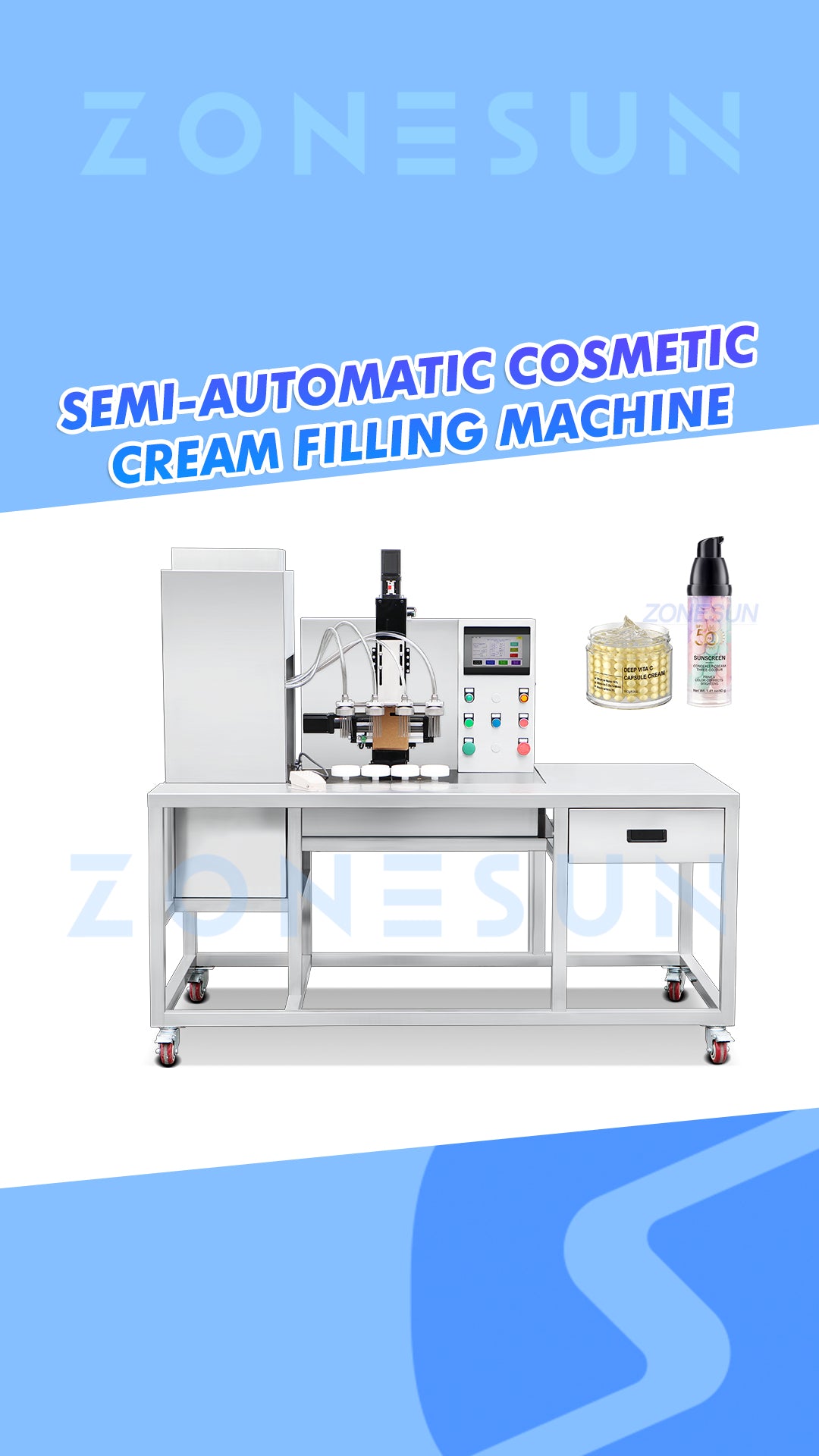

This semi-automatic decorative filling machine is designed for capsule gel cream, swirl cream, and multi-color cosmetic products. It supports one-to-four bottle simultaneous filling, piston pump filling, and flexible pattern adjustment, allowing customized designs for various cosmetic packaging needs.
Swirl Body Lotion Filling Machine Parameter
- Machine Model: ZS-PGF4
- Voltage: 220V/110V 50-60 Hz
- Power: 2.5 kW
- Filling Nozzles: 4
- Production Capacity: 200-1000 BPH
- Filling Pump: Piston Pump
- Machine Dimensions: 1610*830*1405 mm
- Package Size: 1700*900*1560 mm
- Package Weight: 252 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Feeding Hoppers
With four independent hoppers for multi-color filling. Suitable for filling 1/2/3/4-color creams.

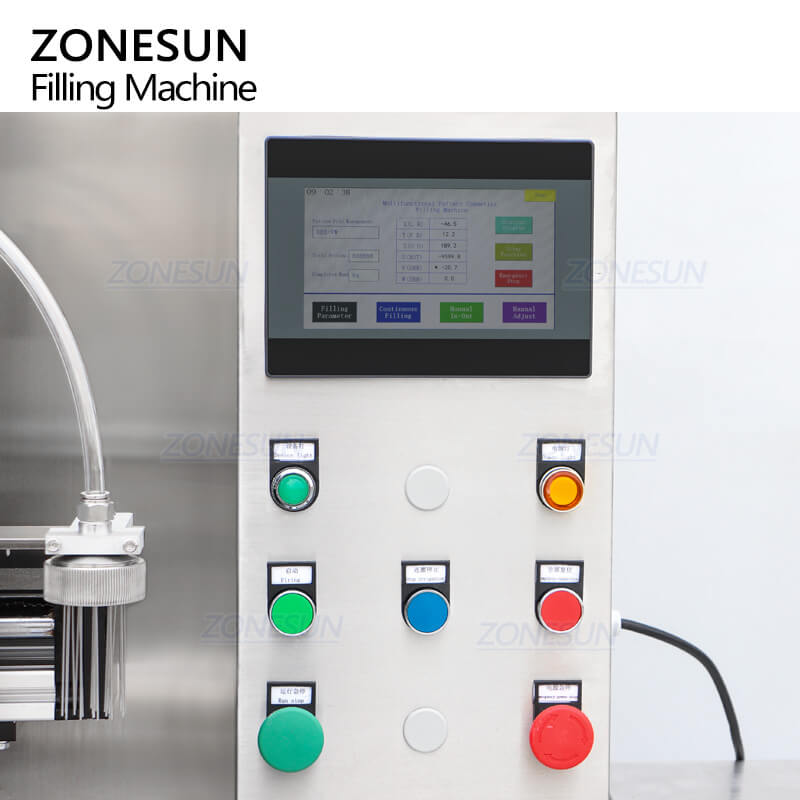

Control Panel
Enables easy operation, parameter setting, and monitoring of the filling process.
Filling Nozzles
Interchangeable nozzles allow different cream patterns, piston pump ensures higher filling accuracy.
Bottle Molds
Securely positions bottles.The size of bottle molds can be customized according to your need.
Pedal Switch
Activates the machine manually, freeing hands for precise operation.
