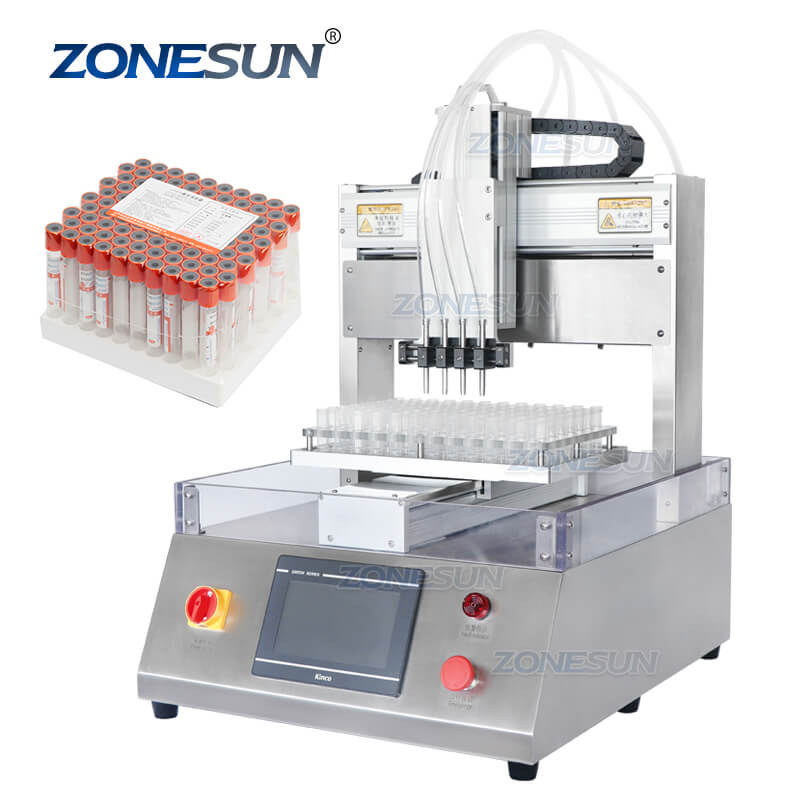

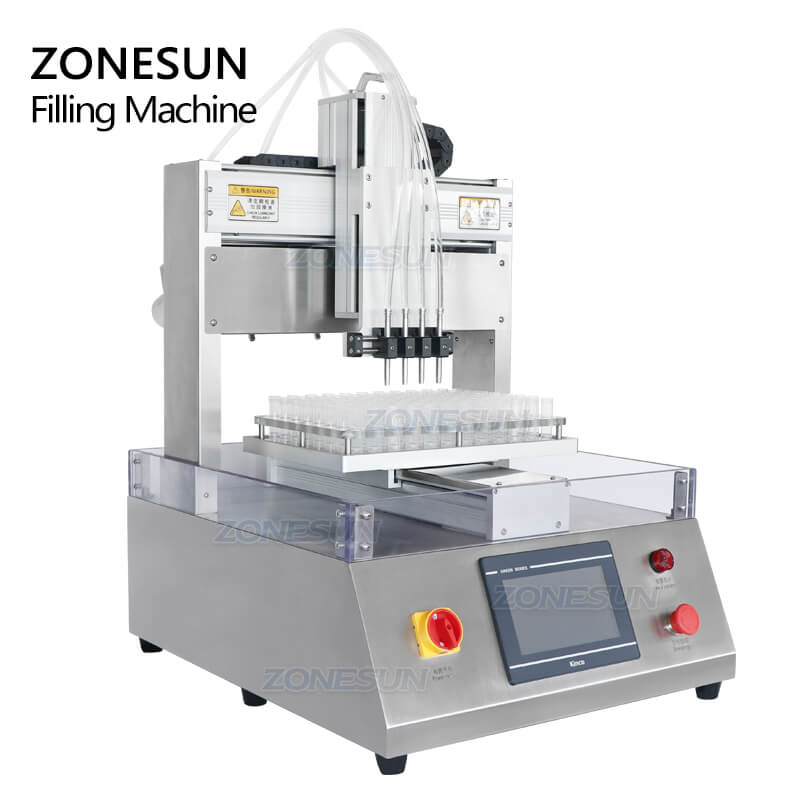

This machine is equipped with high quality ceramic plunger pump.Through the adjustment of the pump head angle to control the injection volume of each circle, it has extremely high metering accuracy and repeat consistency.It is widely used in chemical and advanced cosmetics industries.
Parameter
Machine model:ZS-XYZ4 Filling Machine
Machine power:110/220V 50-60HZ
Filling pump:Ceramic Plunger Pump
Filling nozzle quantity:4(can be customized)
Filling range:0.2-1.5ml/0.3-2.8ml/0.6-6ml/1-12ml/2-25ml
Working speed:0-200 bottles/min
Filling accuracy:About 0.25%
Machine size:About 545*650*790mm
Machine weight:About 69kg

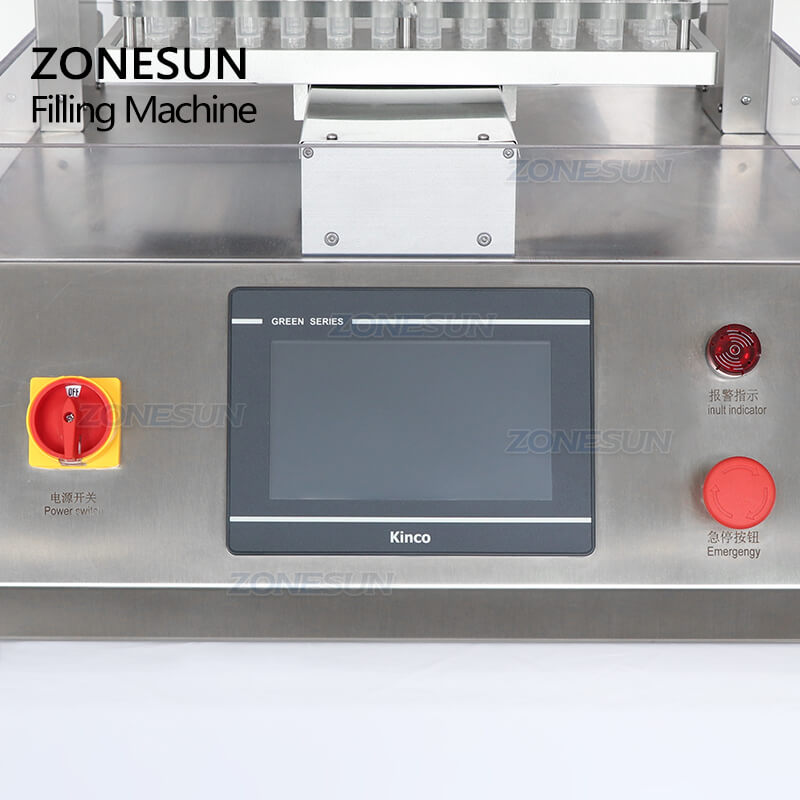

The touch screen control panel makes it more convenient to adjust working parameter,the visual working parameter is good for testing and adjusting machine in real time.Different kinds of operating language can be customized according to operation need.

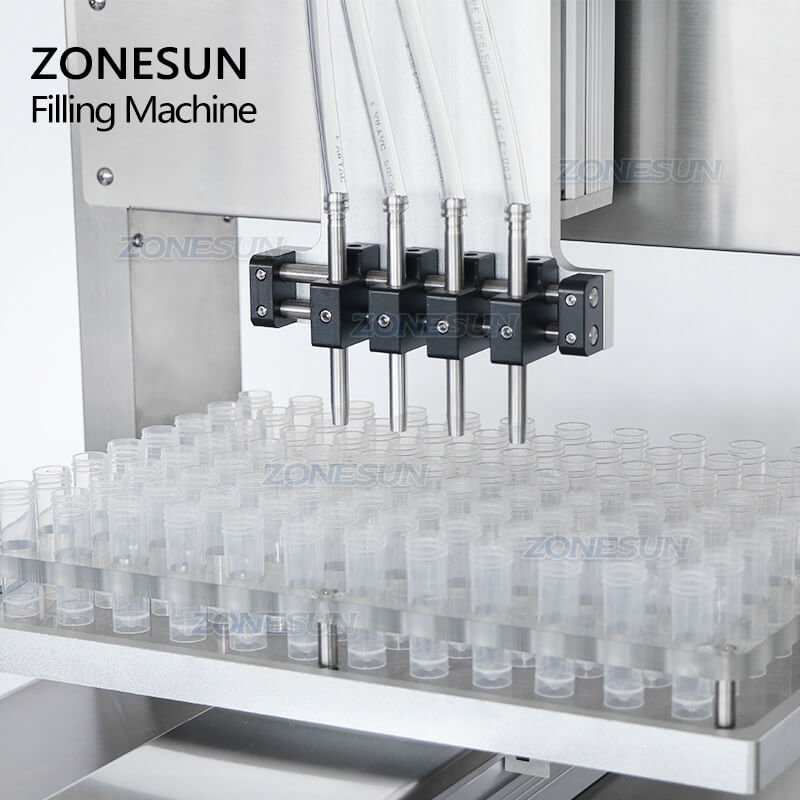

The small filling nozzle can prevent from spreading out liquid during filling.They will move and fill liquid into bottles accurately after setting working parameter.Multiple filling nozzle can be customized according to production need.

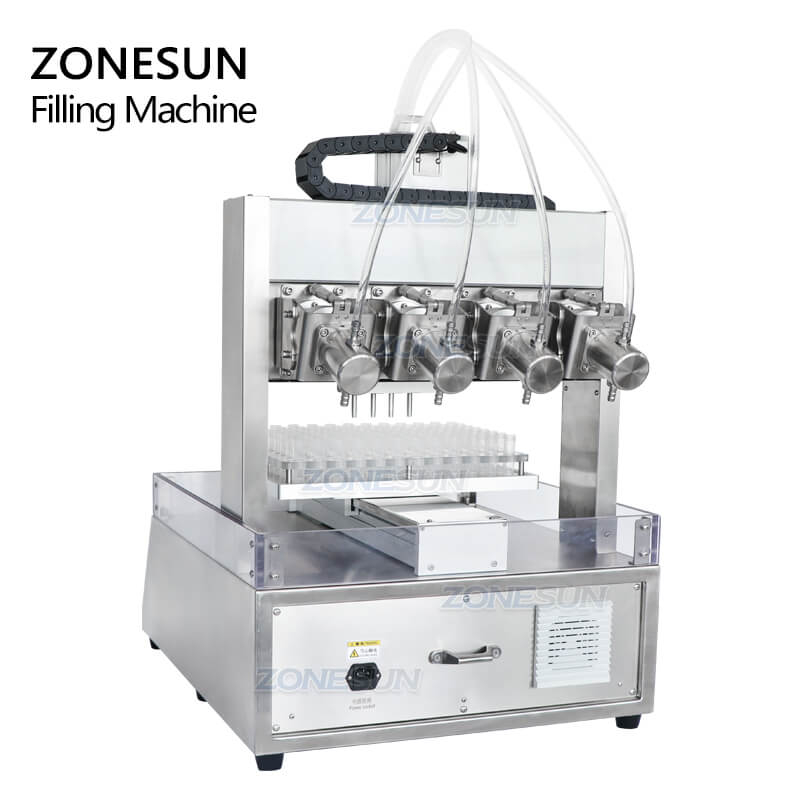

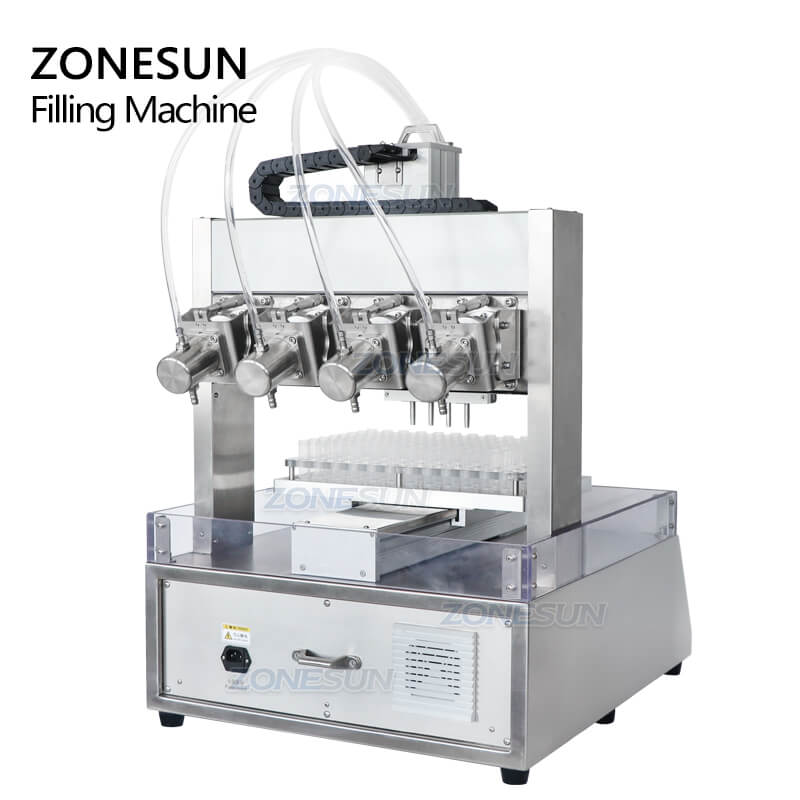

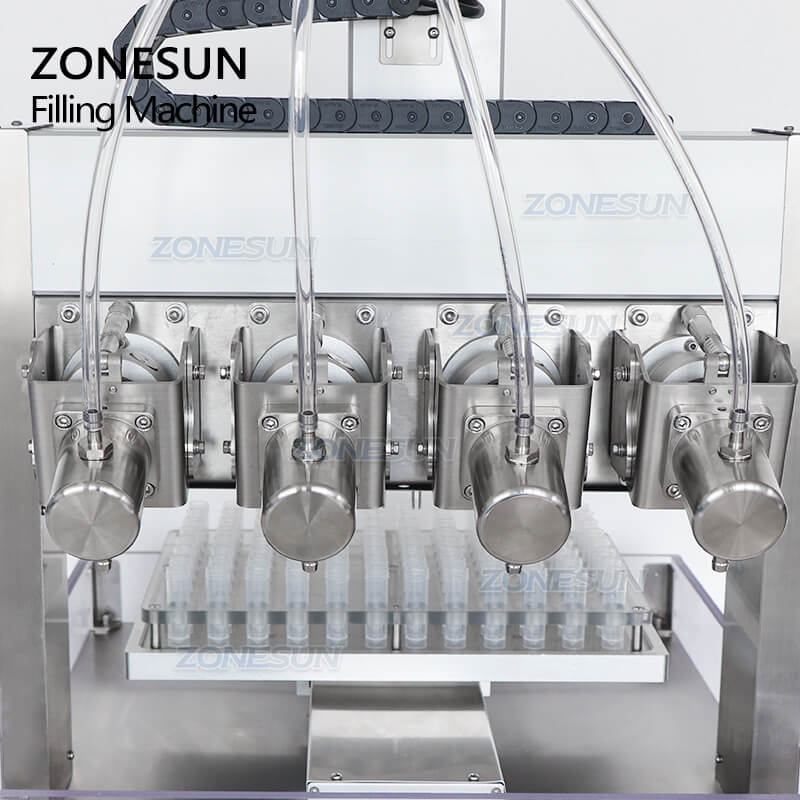

Equipped with ceramic plunger pump,this machine has extremely high metering accuracy and repeat consistency through the adjustment of the pump head angle to control the injection volume of each circle.

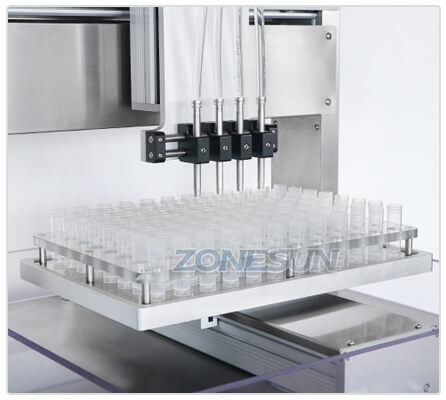

The bottle holding tray can move during filling,it improves filling accuracy.The holding tray will be customized according to bottle size.
Reasonable drawer type design,it makes it more convenient to maintain and adjust the machine.The neatly circuit design makes the machine can work stably and not easy to broken.
