ZS-XG16F Automatic Plastic Lid F-style Gallon Jugs Lubricating Oil Bottle Cap Tightening Screw Capping Machines

Size
Price
Regular price $4,799.00 USD
Regular price Sale price $4,799.00 USD
Save $-4,799 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For Automatic Bottle Capping Machine

The capping head of this machine can be customized according to cap height and diameter. This machine can work with automatic filling machine,labeling machine to realize automated production.It is widely used in food,cosmetics and daily chemical industries.

Parameter

  • Machine model:ZS-XG16F
  • Working voltage:AC220V/110V 50- 60HZ
  • Bottle height:30-300mm
  • Cap diameter:18-70mm
  • Bottle diameter:20-160mm
  • Working speed:20-60 bottles / minute (depending on bottle and cap size)
  • Working pressure:0.4-0.6MPa
  • Machine size:About 1930*650*1800mm
  • Machine weight:About 141kg
  • Package size:About 1970*360*1840mm
  • Gross weight:About 284kg

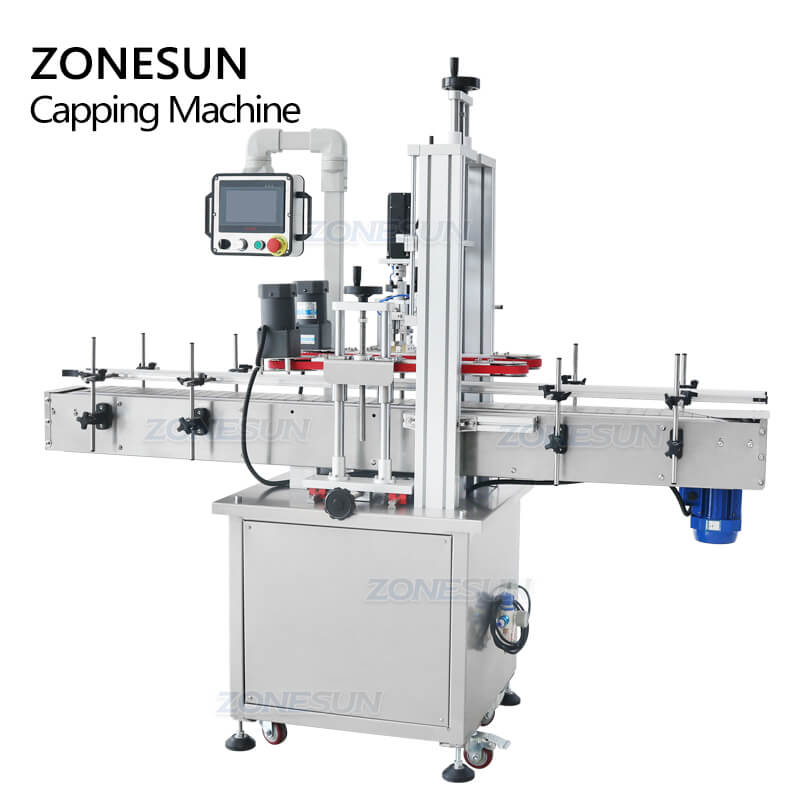

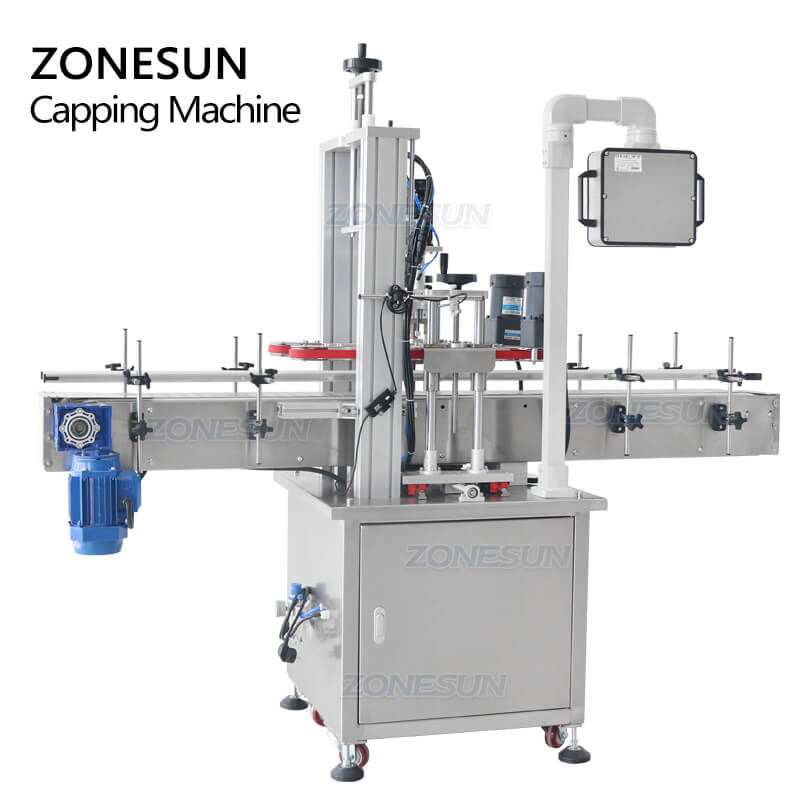

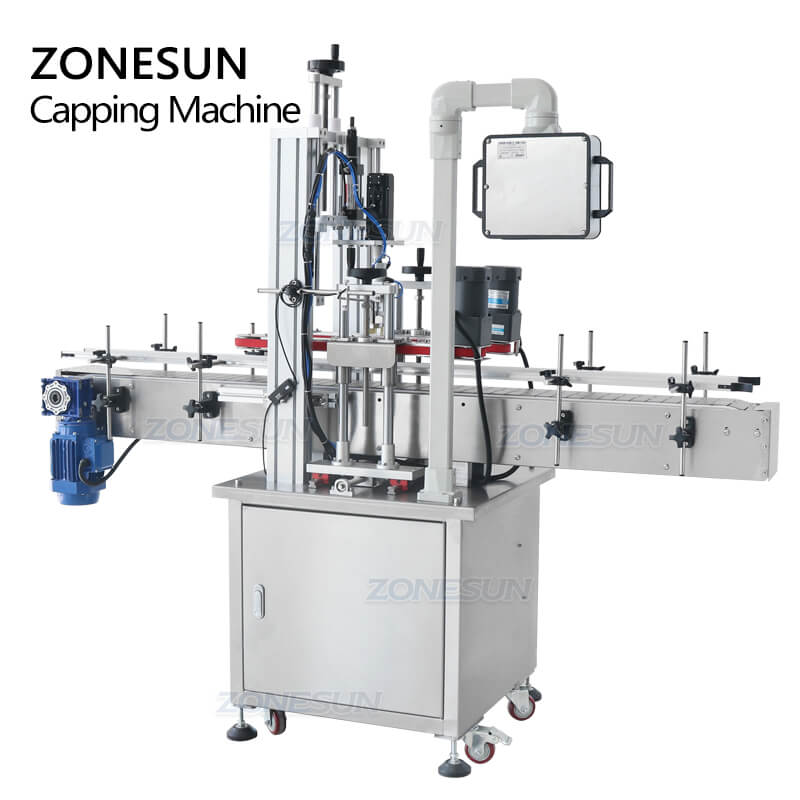

Automatic Bottle Capping Machine

Application of  Automatic Bottle Capping Machine

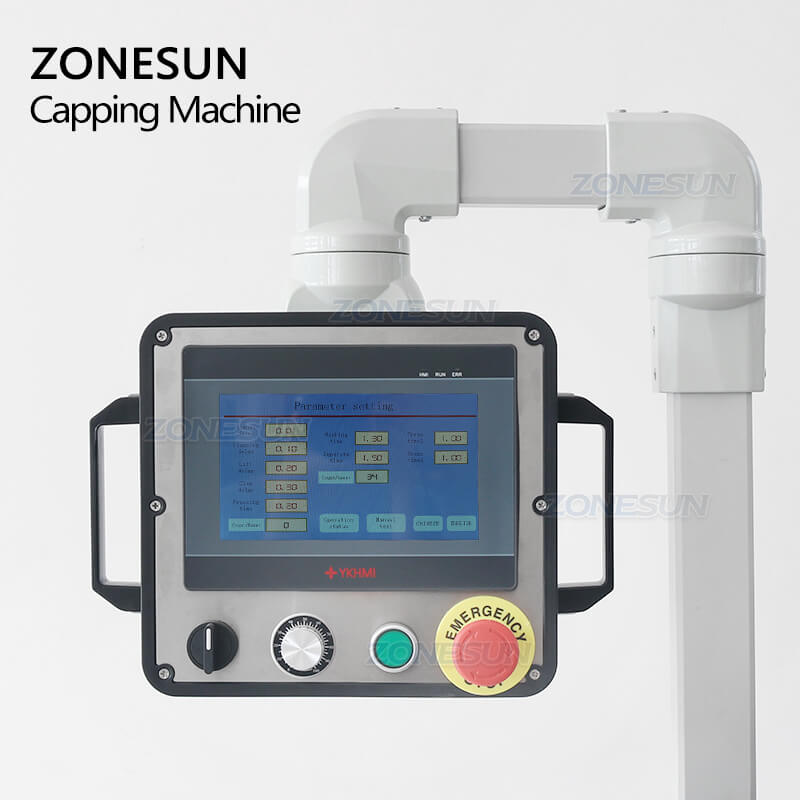

Operation Panel of Automatic Bottle Capping Machine

The touch screen control panel makes working parameter be visual,this is more convenient to test and adjust the machine.The operation language can be customized according to operation need.

Bottle Guiding Structure of Automatic Bottle Capping Machine

The touch screen control panel makes working parameter be visual,this is more convenient to test and adjust the machine.The operation language can be customized according to operation need.

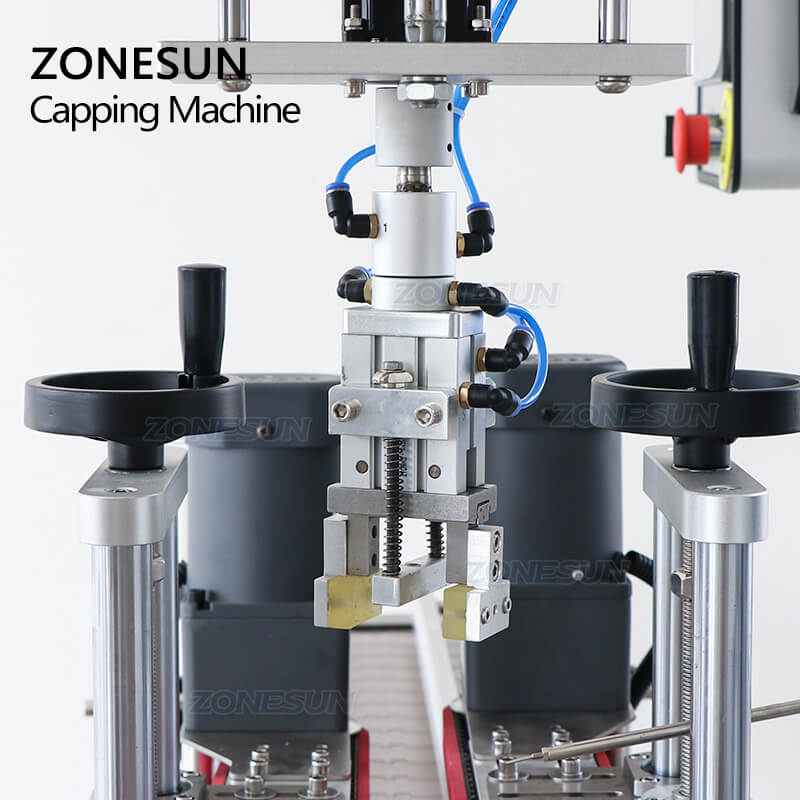

Capping Head of Automatic Bottle Capping Machine

The capping head will be customized according to bottle caps and height,this ensures the machine can work perfectly with products,improves working accuracy.

Electric Eye of Automatic Bottle Capping Machine

Equipped with high quality electric eye,it can used to detect bottles and send the signal to system to control the machine to cap bottles,with this,the machine can work automatically,it improves working accuracy.

Conveyor Belt of Automatic Bottle Capping Machine

Equipped with high quality electric eye,it can used to detect bottles and send the signal to system to control the machine to cap bottles,with this,the machine can work automatically,it improves working accuracy.

Automatic Bottle Capping Machine
Automatic Bottle Capping Machine
