ZONESUN ZS-XG16E Automatic Cuticle Oils Essential Oil Herbal Elixirs Glass Dropper Bottle Screw Capping Machine With Vibratory Bowl Sorter
Regular price
$6,399.00 USD
Regular price
Sale price
$6,399.00 USD
Save $-6,399 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

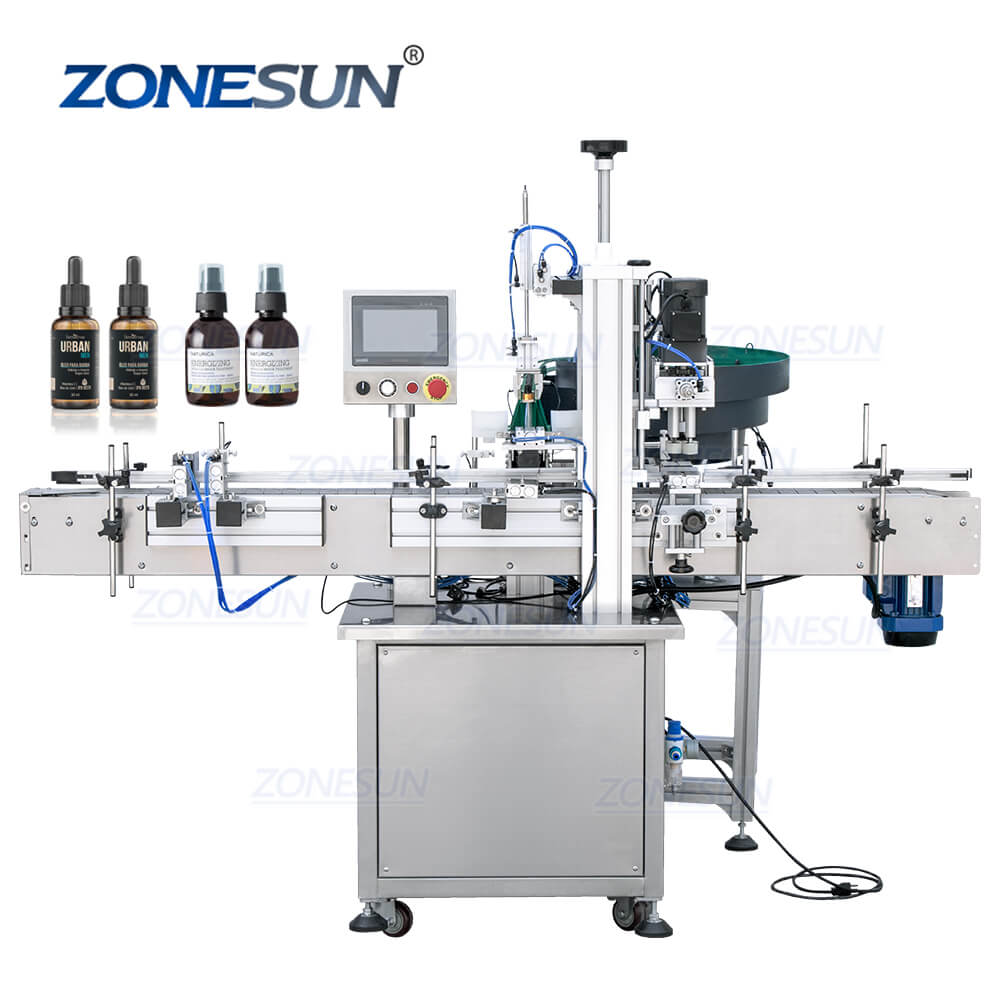

This automatic capping machine is designed to feed, clamp, insert, and tighten droppers into bottles with high efficiency. Equipped with a customizable vibratory bowl sorter to match different bottle sizes, it is ideal for capping essential oil bottles, nail polish bottles, and other small containers.
Parameter
- Machine Model: ZS-XG16E
- Bottle Height: 30-300 MM
- Cap Diameter: 18-70 MM
- Botle Diameter: 20-160 MM
- Working Speed: 20-60 Bottles/Minute
- Working Voltage: AC220V/110V 50-60HZ
- Wokingn Pressure: 0.4-0.6 MPa
- Machine Size: About 1930*740*1600 MM
- Machine Weight: About 150 KG
- Package Size: About 1970*990*1740 MM
- Package Weight: About 334 KG

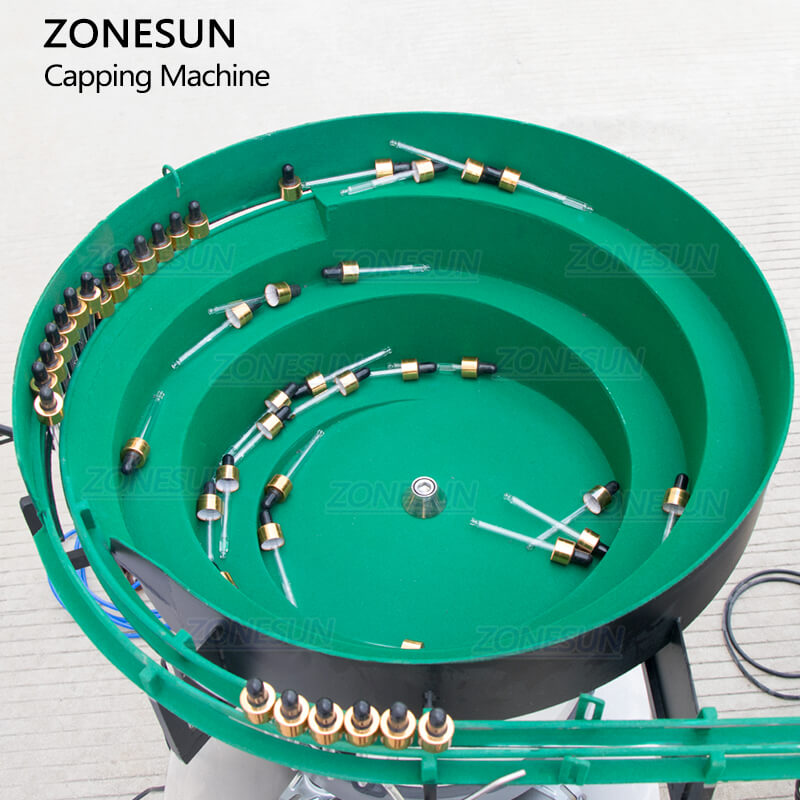

Vibratory Bowl
Equipped with vibratory bowl sorter, it can arrange bottle caps automatically before capping work, makes the production can be smooth. It is customized according to bottle cap size, improves working accuracy.
Equipped with vibratory bowl sorter, it can arrange bottle caps automatically before capping work, makes the production can be smooth. It is customized according to bottle cap size, improves working accuracy.

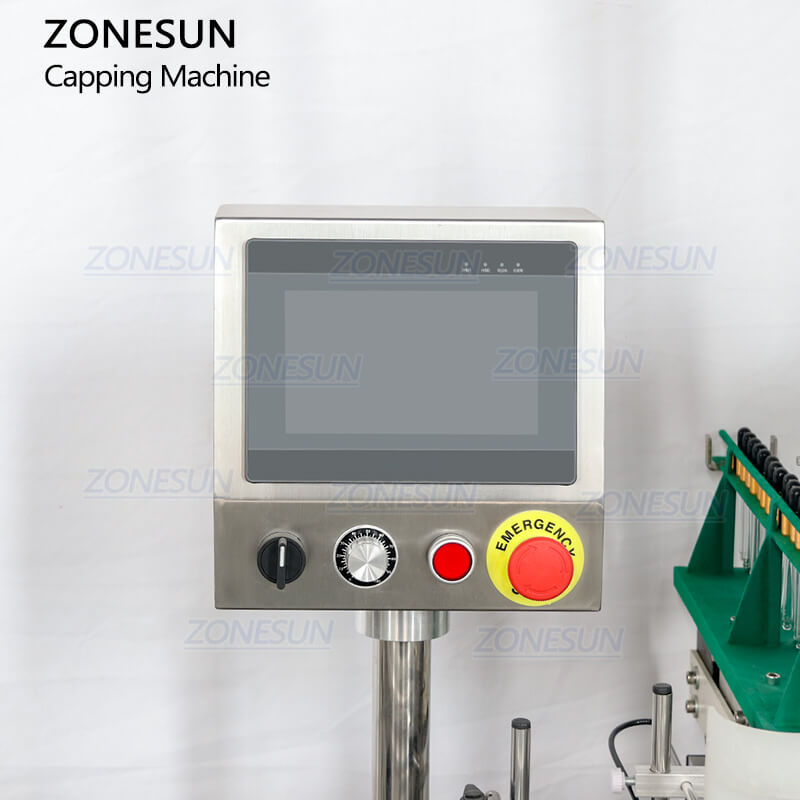

Control Panel
The touch screen control panel is user-friendly, allowing quick adjustment of working parameters. Real-time visual data provides clear monitoring of the machine’s operating status, and multiple interface languages can be customized to meet different production needs.
The touch screen control panel is user-friendly, allowing quick adjustment of working parameters. Real-time visual data provides clear monitoring of the machine’s operating status, and multiple interface languages can be customized to meet different production needs.
Electric Eye
The high-precision electric eye sensor detects passing bottles and automatically controls the start or stop of the capping process. This ensures fully automated production while minimizing errors and improving overall efficiency.
The high-precision electric eye sensor detects passing bottles and automatically controls the start or stop of the capping process. This ensures fully automated production while minimizing errors and improving overall efficiency.
Capping Structure
This machine uses four rubber wheels to tighten bottle caps, providing a stable and reliable capping method suitable for most cap types, such as spray bottles and dropper bottles. The distance between the rubber wheels can be easily adjusted to fit different cap sizes.
This machine uses four rubber wheels to tighten bottle caps, providing a stable and reliable capping method suitable for most cap types, such as spray bottles and dropper bottles. The distance between the rubber wheels can be easily adjusted to fit different cap sizes.

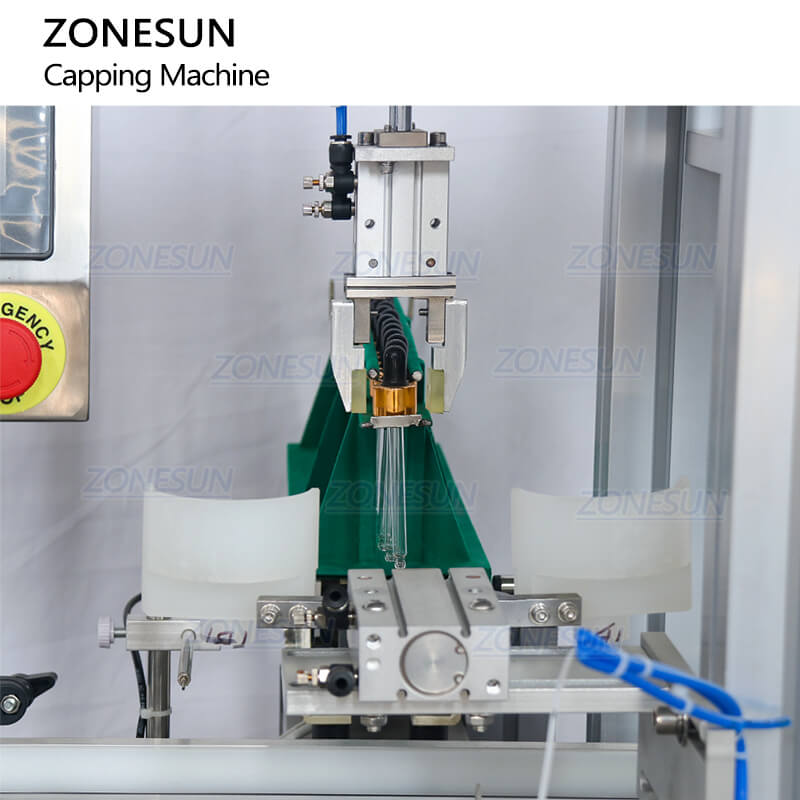

Caps Feeding Structure
The machine simulates the human hand to place dropper caps onto bottles, improving efficiency while minimizing the risk of damaging the caps.

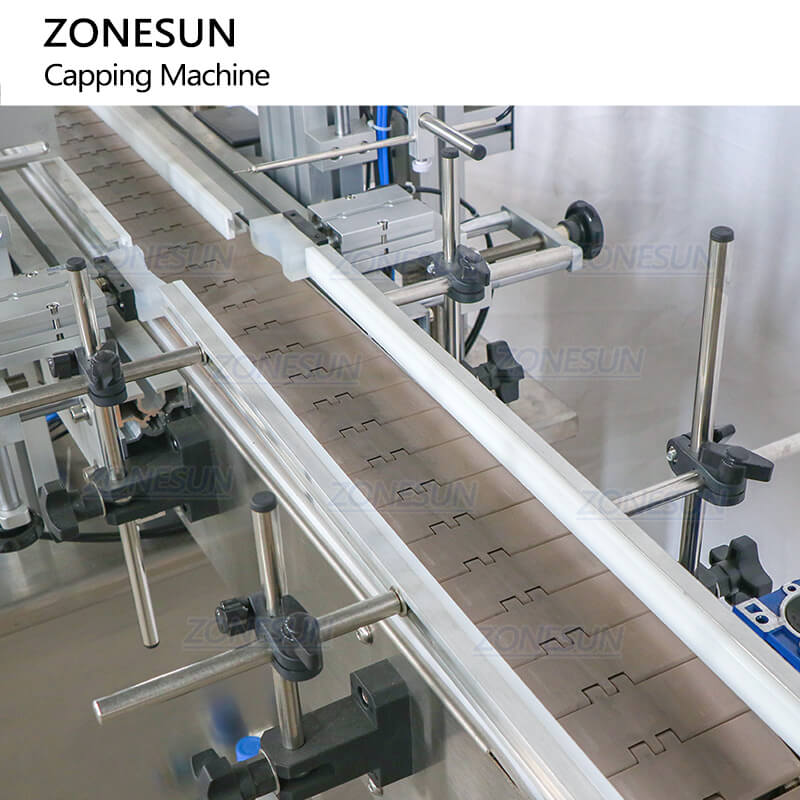

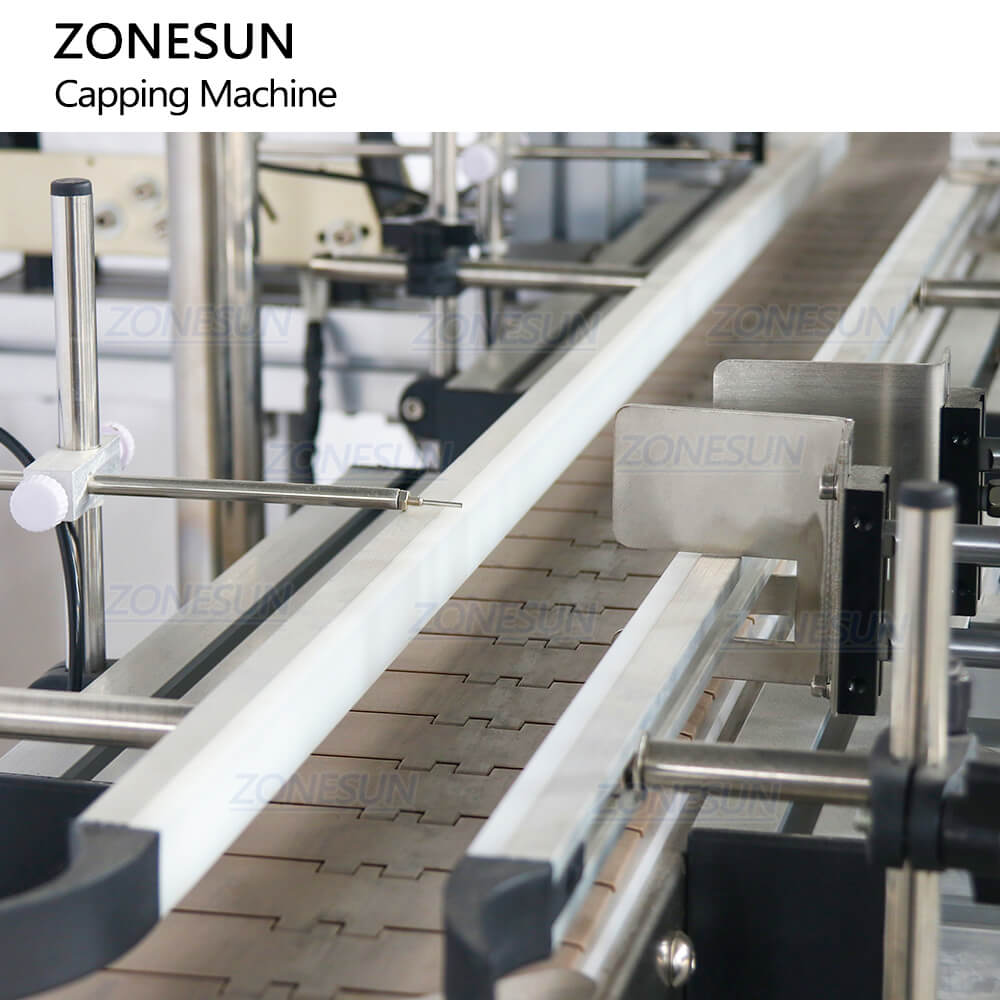

Conveyor Belt
Equipped with a durable chain conveyor belt, the machine offers high load capacity and ensures smooth, fast bottle transportation. The conveyor width can be customized to meet specific production requirements.
Equipped with a durable chain conveyor belt, the machine offers high load capacity and ensures smooth, fast bottle transportation. The conveyor width can be customized to meet specific production requirements.
