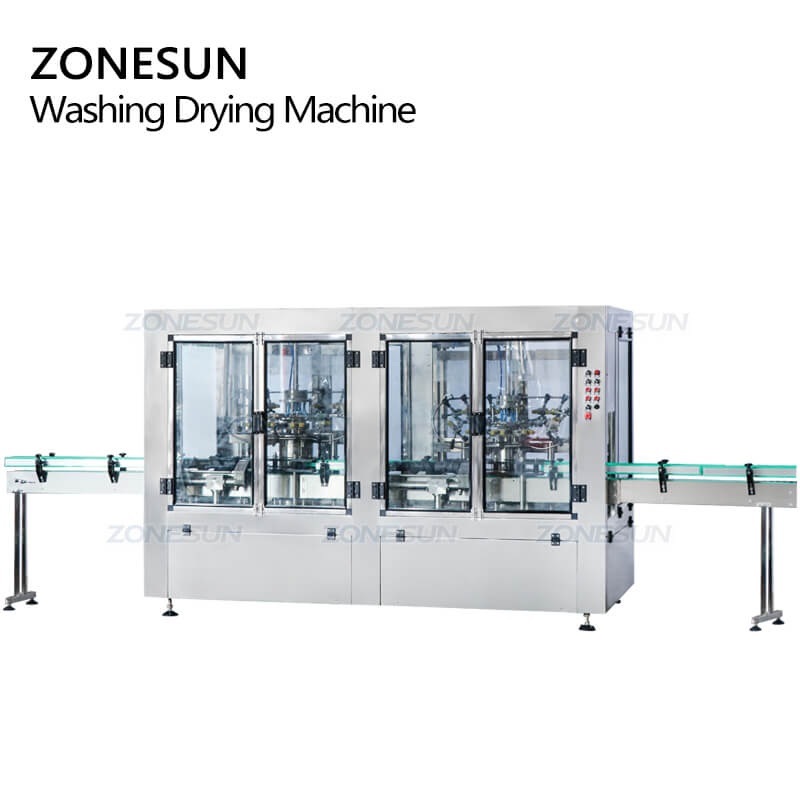

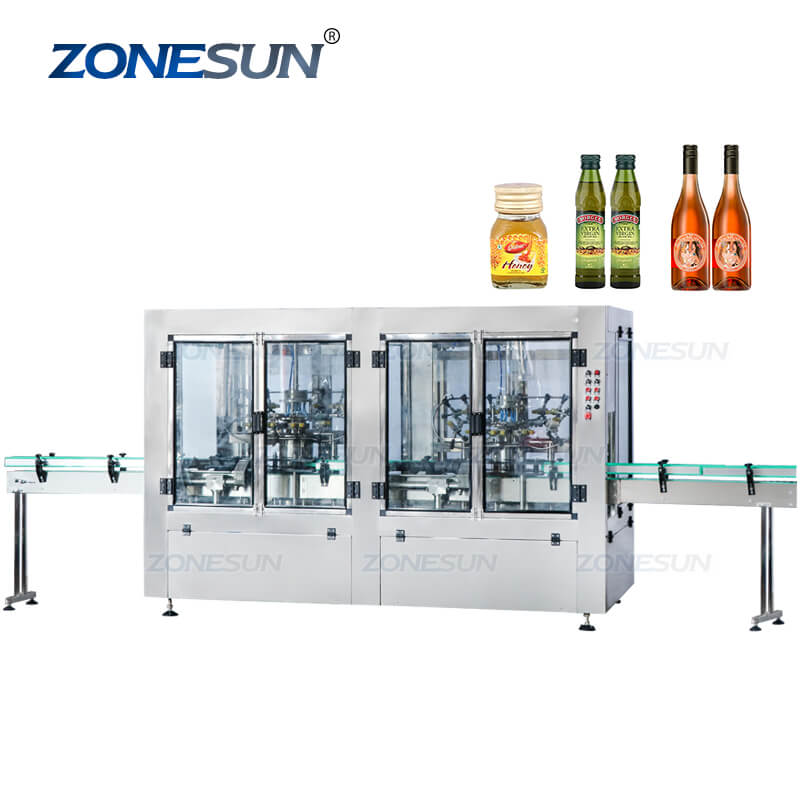

Automatic bottle washing drying machine is flushed with high-pressure water for a long time to rinse the inner bottle. After the flushing is completed, the water is shut off. At the same station, the high-pressure clean air source is used to dry the inner wall of water. The equipment is suitable for various bottle shapes such as round neck bottles, flat bottles and square bottles etc.

Parameter

Machine model:ZS-WB12A
Voltage:110/220V
Nozzle quantity:12+12(washing+drying)
Conveyor size:About 5080mm*90mm
Power:1.5KW
Working speed:About 500-2000 bottles/h
Machine size:About 5080*1460*1930mm
Package size:About 3410*1710*2100mm
Package weight:About 650kg

Simple control panel,the working process can be controlled and adjusted easily.It is no need to trade operator,improves working efficiency.

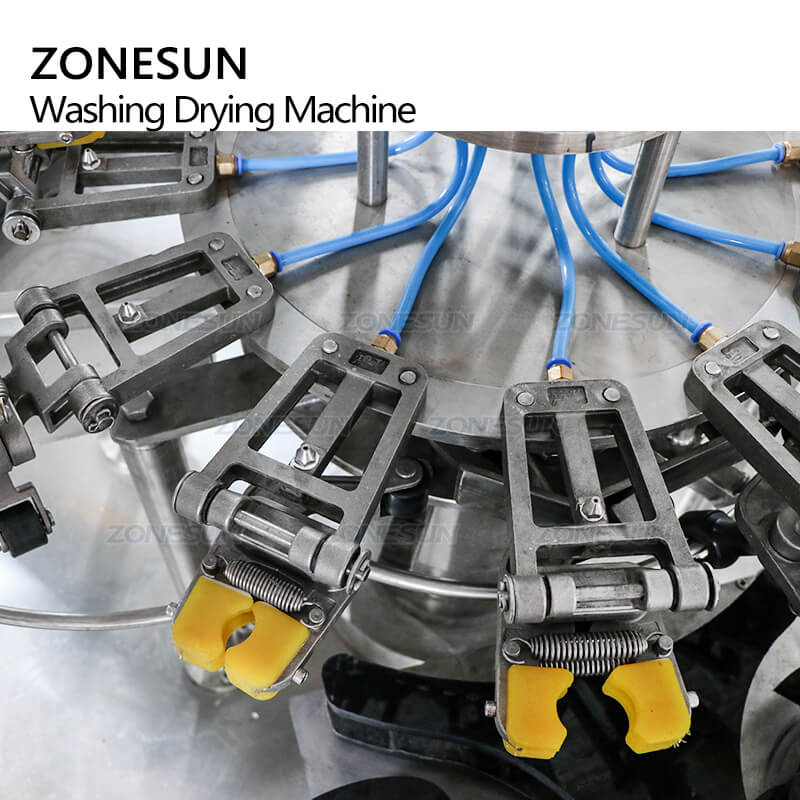

Each clamping head is designed with sprayer,the liquid or air will be ejected to bottle inside continuously to wash or dry bottles once bottles are overturned and place well.Improves production quality.

The black rotary plate can be customized according to bottle size,this can make it more accurate to clamp and place bottles,reduce production error.

The manipulator is made of high quality material,the clamping head is with cover which can prevent from scratching bottles during working.

The manipulator is made of high quality material,the clamping head is with cover which can prevent from scratching bottles during working.
