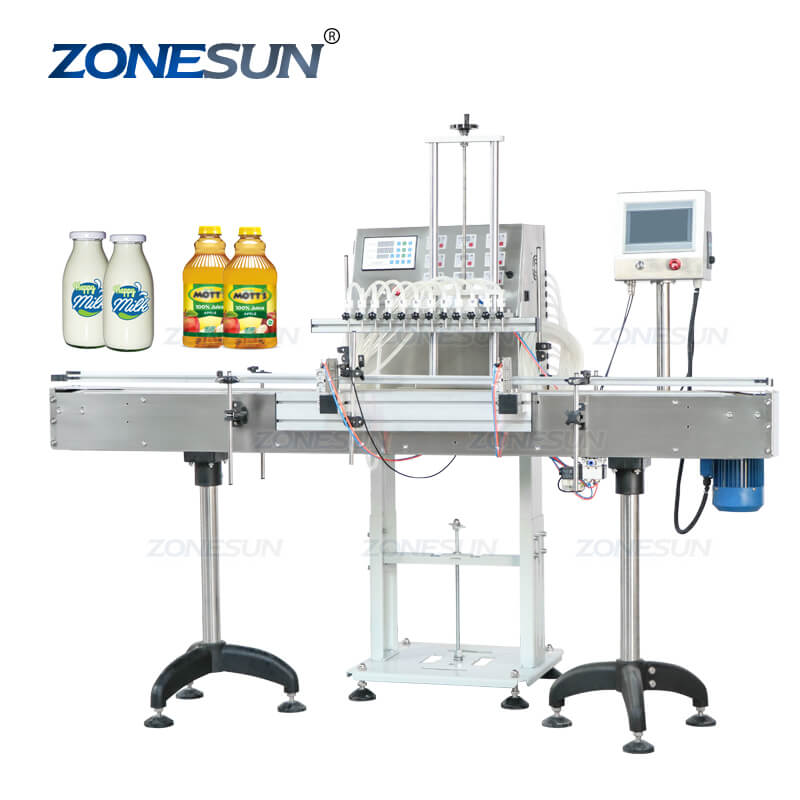

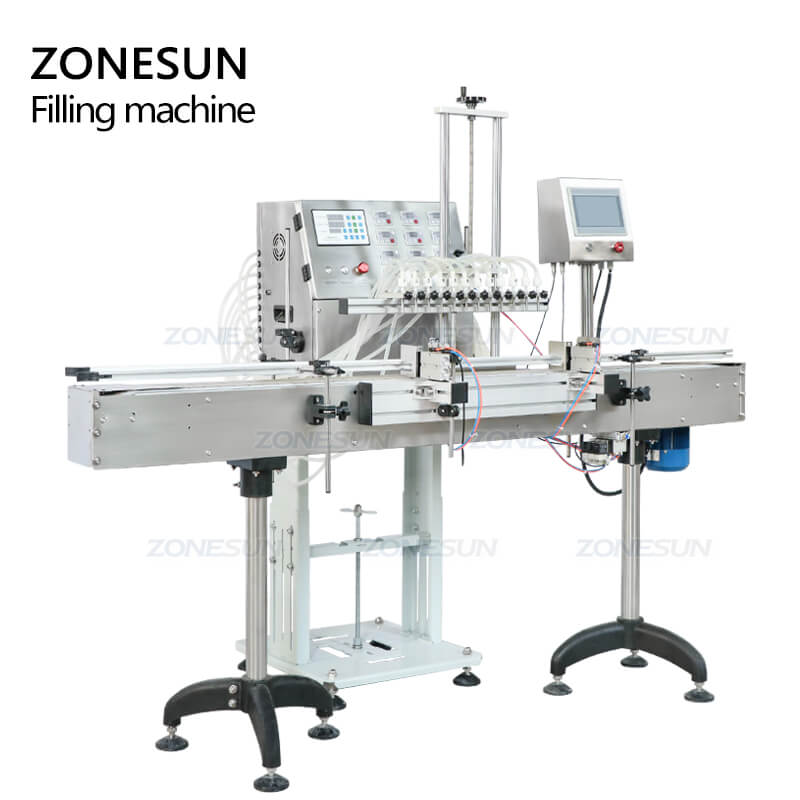

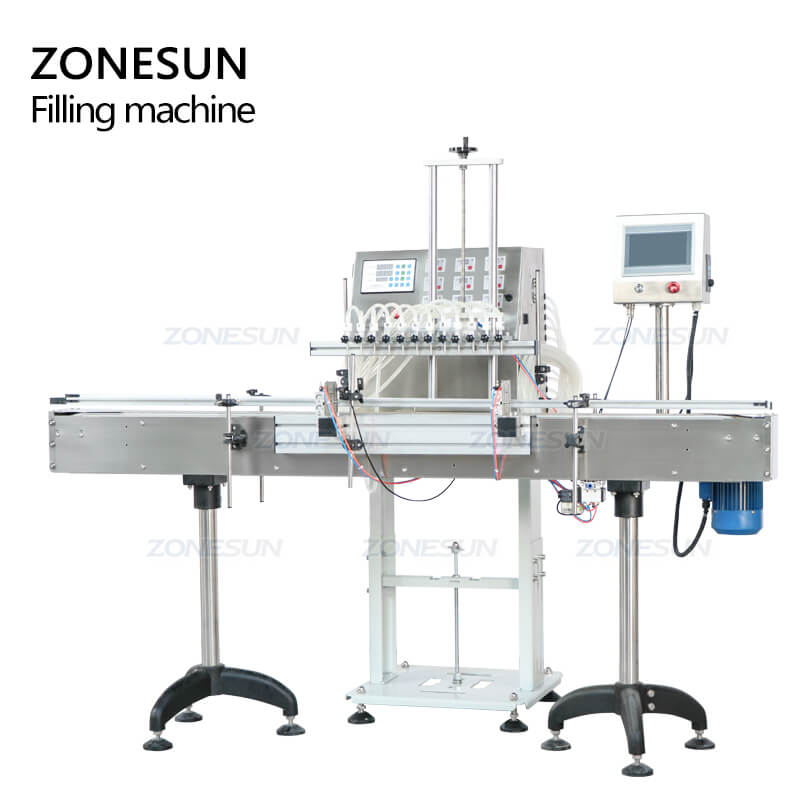

The machine is with multiple filling nozzle which can improve filling efficiency greatly.Each filling nozzle can be controlled separately.It is suitable for filling low viscosity liquid without particle like water,juice,milk,perfume etc.This machine is widely used in food,beverage,cosmetics and daily chemical industries.
Paramter
Machine model:ZS-VTDP12P
Voltage:220V/110V 50-60HZ
Rated power:700W
Filling range:30-4000ml(each pump)*12
Working speed:About 10-40 bottles/min(based on liquid and filling volume)
Maximum suction distance:1.5M
Maximum flow rate:4L/MIN(each pump)*12
Filling accuracy:±1% (depending on liquid)
OD of filling nozzle:OD 6mm
Conveyor size:About 114*1900mm(L*W)
Machine weight:About 131 kg
Machine size: About 500*250*580mm(filling machine)
About 1900*380*1600mm(conveyor 90mmH)
About 520*520*770mm(bracket for filling machine)
The touch screen makes it more easier to adjust the working parameter when testing the machine,the visual working data can reduce production error.

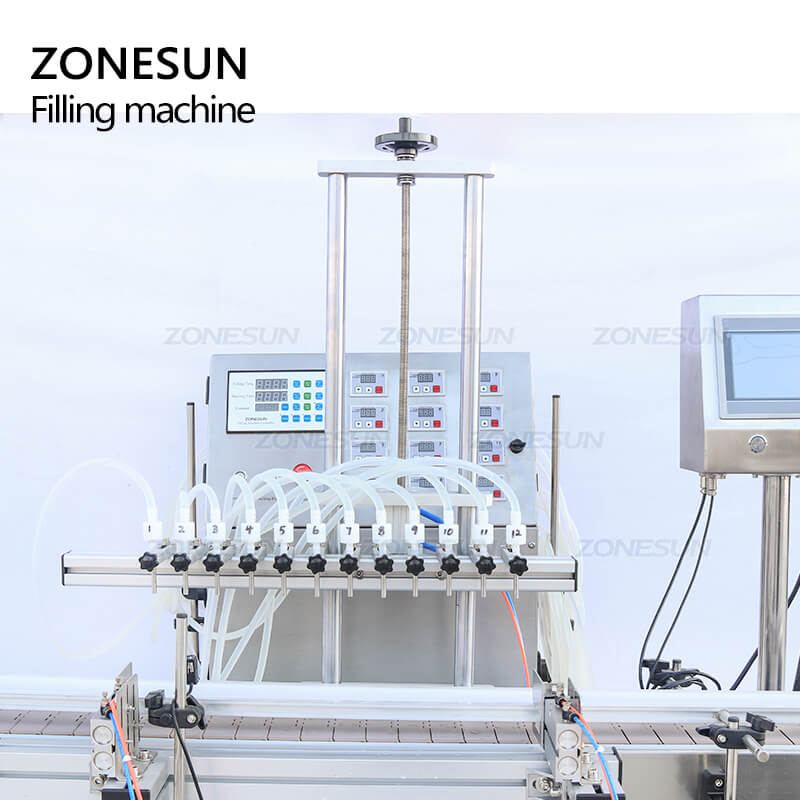

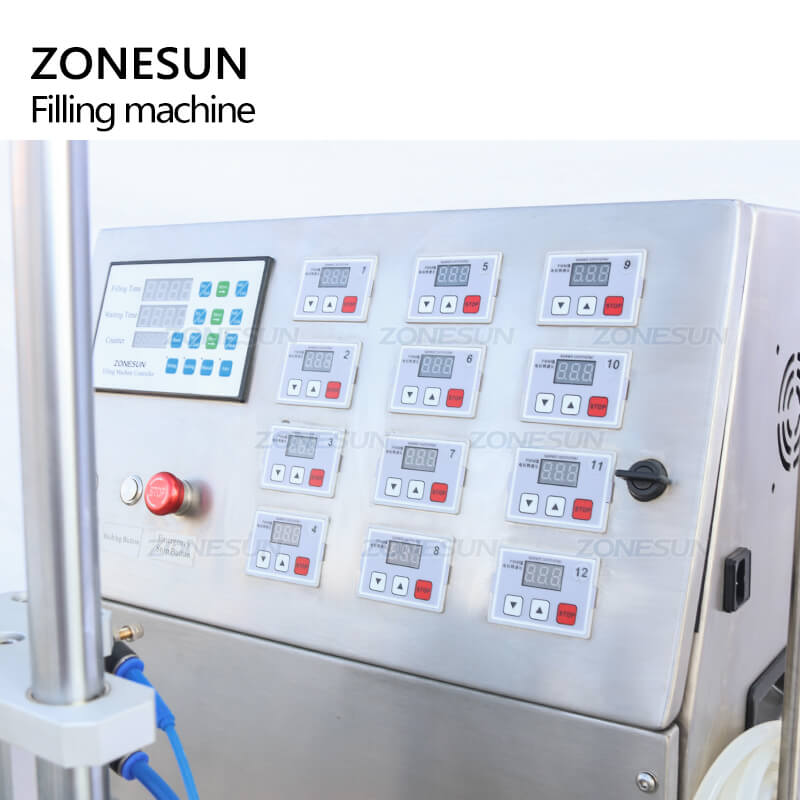

There are multiple filling nozzles which are good for improving working efficiency.each filling nozzle can be controlled separately.This is good for producing different kinds of filling materials.

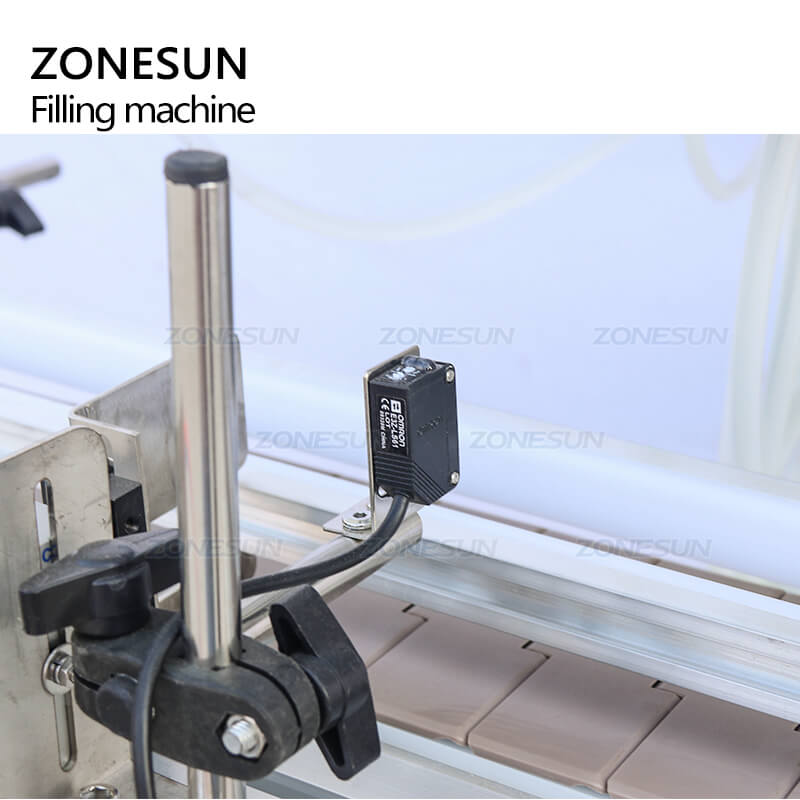

Equipped with high quality electric eye,it can detect pass by bottles/objects and help to control the machine to work,improves working efficiency.
The chain conveyor is with larger weight capacity,this can help to transport product smoothly ,improves working efficiency.
Drawer type design makes it more convenient to check and maintain the machine machine,enhances the user experience
