ZONESUN ZS-TD280 Automatic 3D Cosmetics Perfume Cellphone Soap Paper Box BOPP Film Wrapping Packaging Machine With Tear Tape

3D film wrapping machine
control panel of 3D film wrapping machine
feeding inlet of 3D film wrapping machine
folding structure of 3D film wrapping machine
sealing structure of 3D film wrapping machine-2
heating structure of 3D film wrapping machine
outlet of 3D film wrapping machine

ZONESUN ZS-TD280 Automatic 3D Cosmetics Perfume Cellphone Soap Paper Box BOPP Film Wrapping Packaging Machine With Tear Tape

Voltage
Regular price $7,799.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

This machine is mainly suitable for packaging square boxed items in industries such as food, health care products, cosmetics, and audio-visual products. Such as mobile phone boxes, chewing gum, magnetic tapes, VCD (CD) discs, playing cards, soap, cosmetic facial mask boxes, etc, which play a role of anti-counterfeiting and moisture-proof.

Parameter

  • Machine model:ZS-TD280

  • Voltage:110V/220V/380V
  • Heating power:3.2KW
  • Motor power:0.75W
  • Working speed:30-80 pcs/min
  • Suitable film:BOP/OPP film
  • Suitable package size:L40-200*W20-100*H8-50(mm)
  • Machine size:About 2200*900*1600mm
  • Package size:About 2210*1010*1660mm
  • Package weight:About 712kg

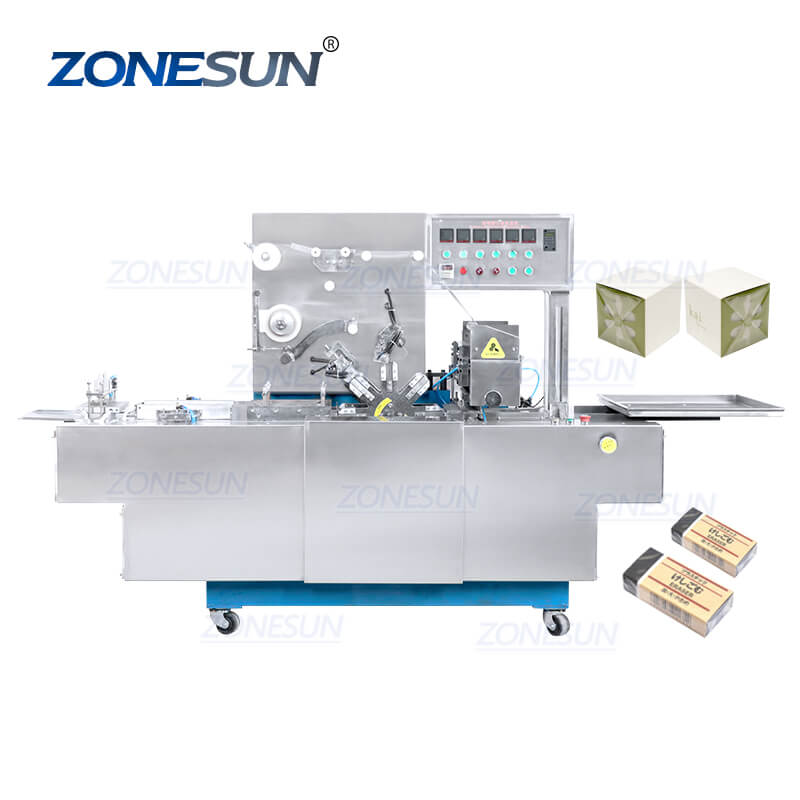

3D film wrapping machine
application of 3D film wrapping machine
film wrapping machine

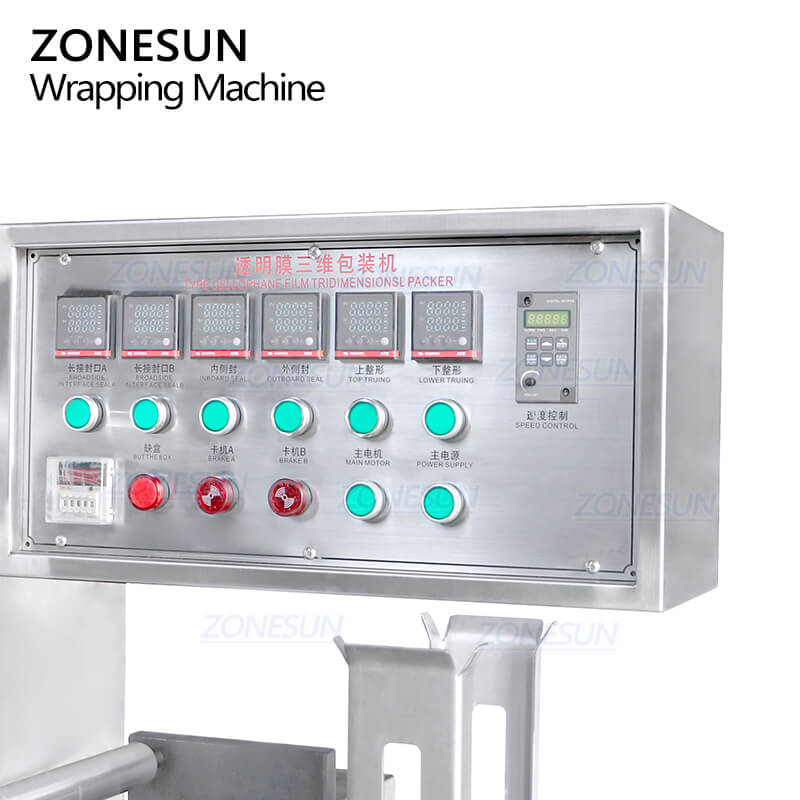

control panel of 3D film wrapping machine

Simple control panel makes it easy to adjust and test the machine.There are two caution light,when the film or boxes can not be placed well,the light will be on.Ensure the safety operation.

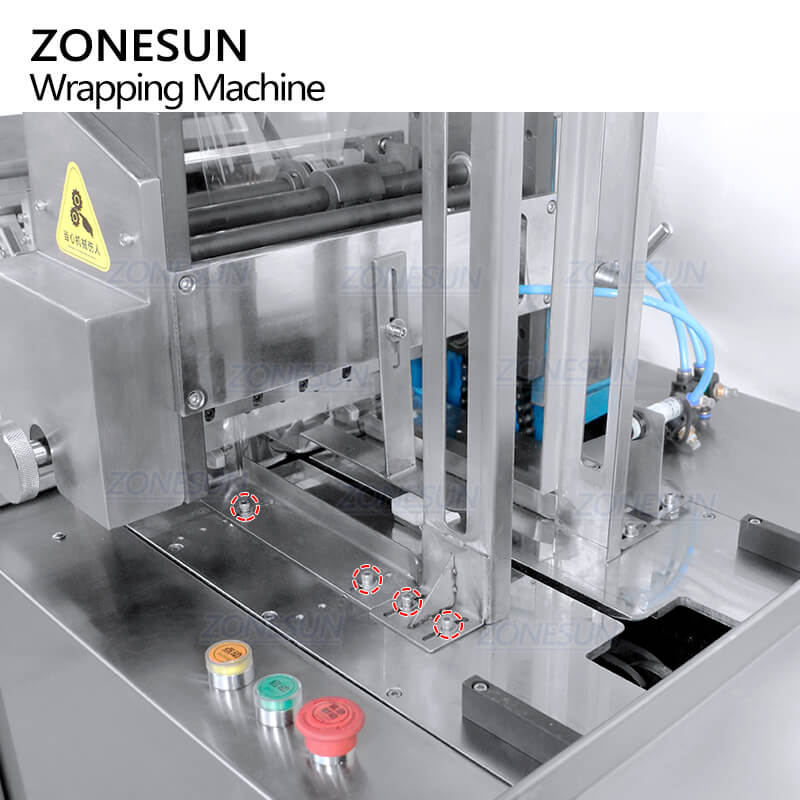

feeding inlet of 3D film wrapping machine

The feeding inlet of the machine can be adjusted according to boxes sizes,make the machine can work perfectly for different sizes of boxes.

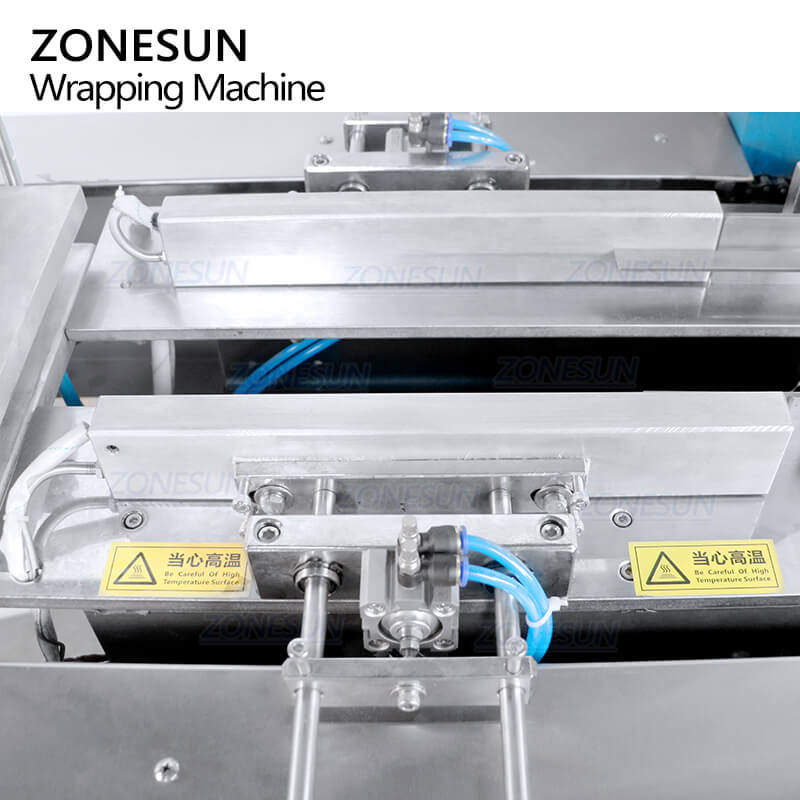

heating structure of 3D film wrapping machine

The heating temperature can be set according to different kinds of film,this ensures the film can be sealed well and improve wrapping quality.

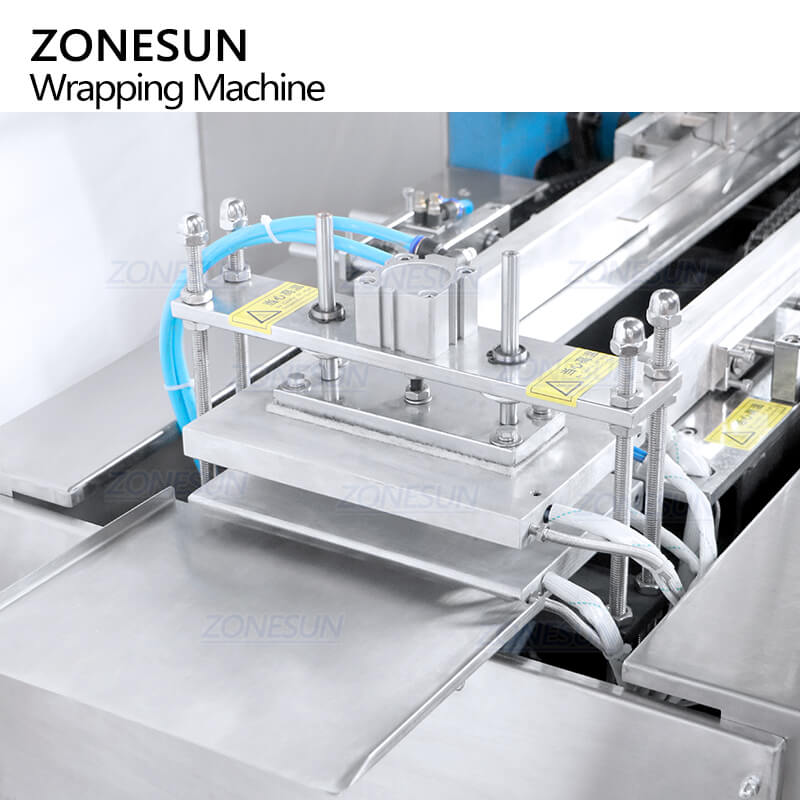

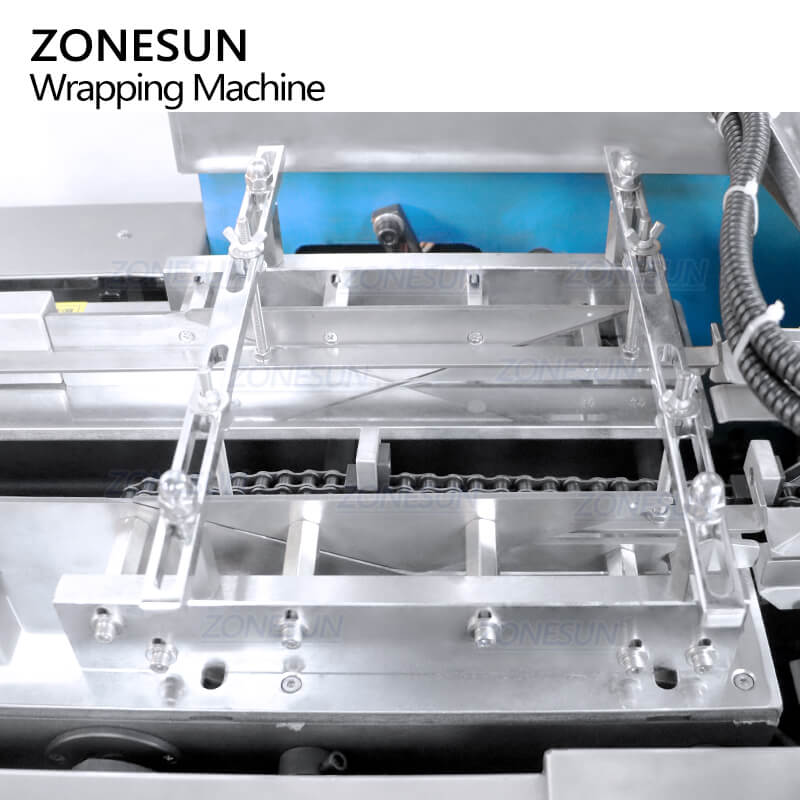

sealing structure of 3D film wrapping machine-1

This sealing structure can help to fold the film on the both side,make the film can be folded faster and neatly,improve working efficiency.

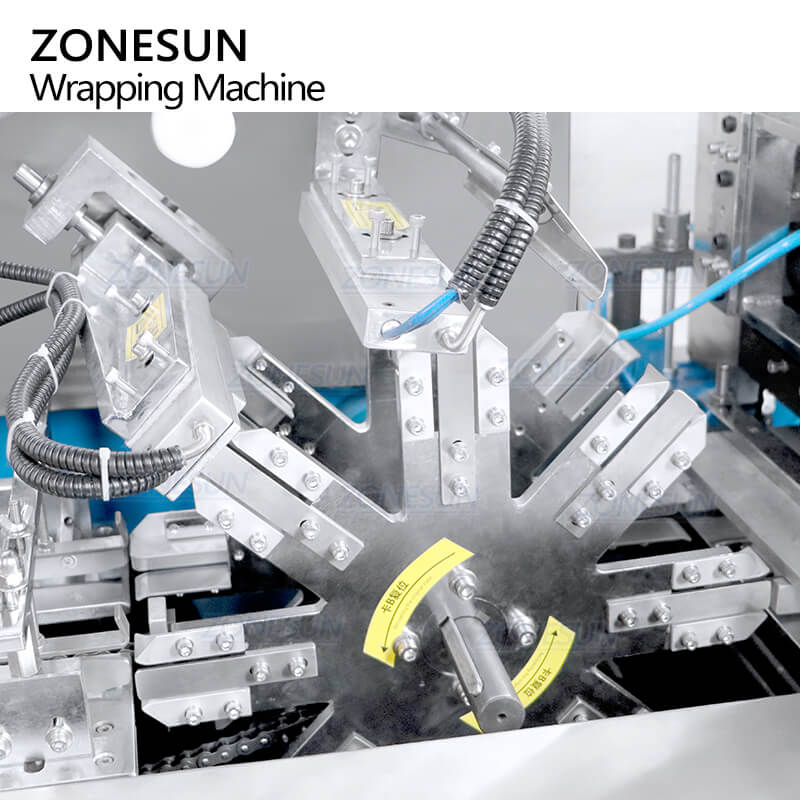

sealing structure of 3D film wrapping machine-1

After folding the film,the box will be sent to the next structure to seal the film.The heating temperature can be adjusted according to operation need.

sealing structure of 3D film wrapping machine

Using high quality material which are in high heat conductivity,this ensures the film of top and bottom side can be heated and sealed well at the last process.

3D film wrapping machine for perfume box
