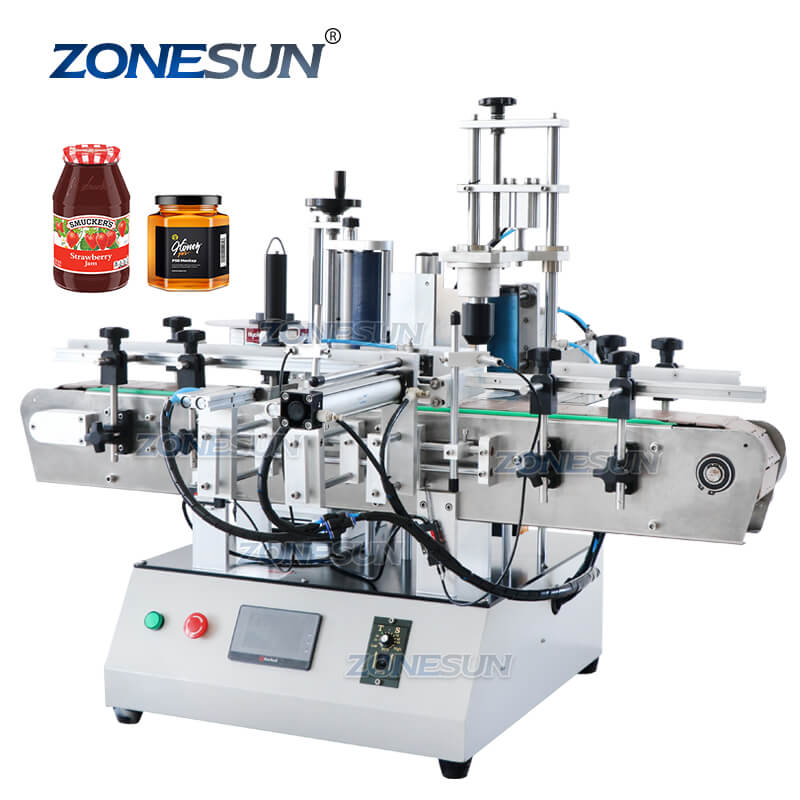

ZS-TB550 Automatic Glass Jar Square Hexagon Round Bottle Self-adhesive Sticker Labeling Machine

Voltage
Price
Regular price $3,549.00 USD
Regular price Sale price $3,549.00 USD
Save $-3,549 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

Designed for label stickers on regular bottles(includes hexagon bottles,round bottle,square bottles).It is widely used in food,daily chemical and cosmetics industries.

Parameter

Machine model:ZS-TB550
Machine voltage:110/220V 50-60HZ
Machine power:About 1000W
Labeling accuracy:±1mm (excluding bottle and positioning error)
Working speed:15-25bottles/min
Suitable bottles size:H≤150mm, φ≤100 (customized)
Suitable label size:H≤150mm
Machine size:About 600*600*1000mm
Machine weight:About 104kg

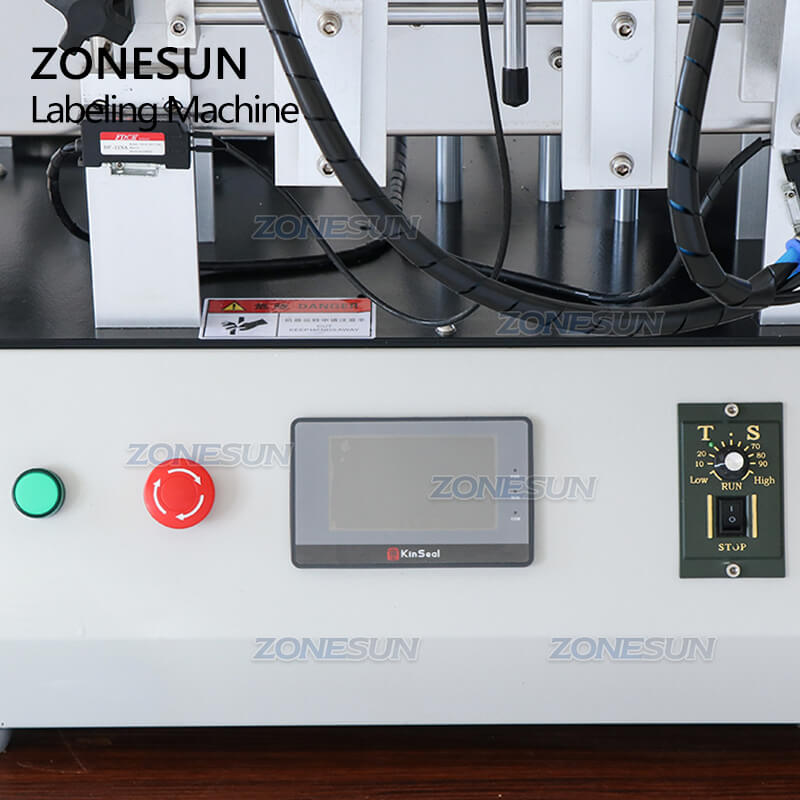

Automatic Hexagon Bottle Labeling MachineApplication of Automatic Hexagon Bottle Labeling MachineDetails of Automatic Hexagon Bottle Labeling MachineOperation Panel of Automatic Hexagon Bottle Labeling Machine

The touch screen control panel,it can helps to adjust working parameter more convenient,the visual data makes it possible to watch the working condition in real time.

Electric Eye of Automatic Hexagon Bottle Labeling Machine

The electric eye can be used to passing by bottles and send signal back to system to control the machine label stickers.With this,the machine can work automatically.The sensitivity of the electric eye can be adjusted by adjusting components,this can improves labeling accuracy.

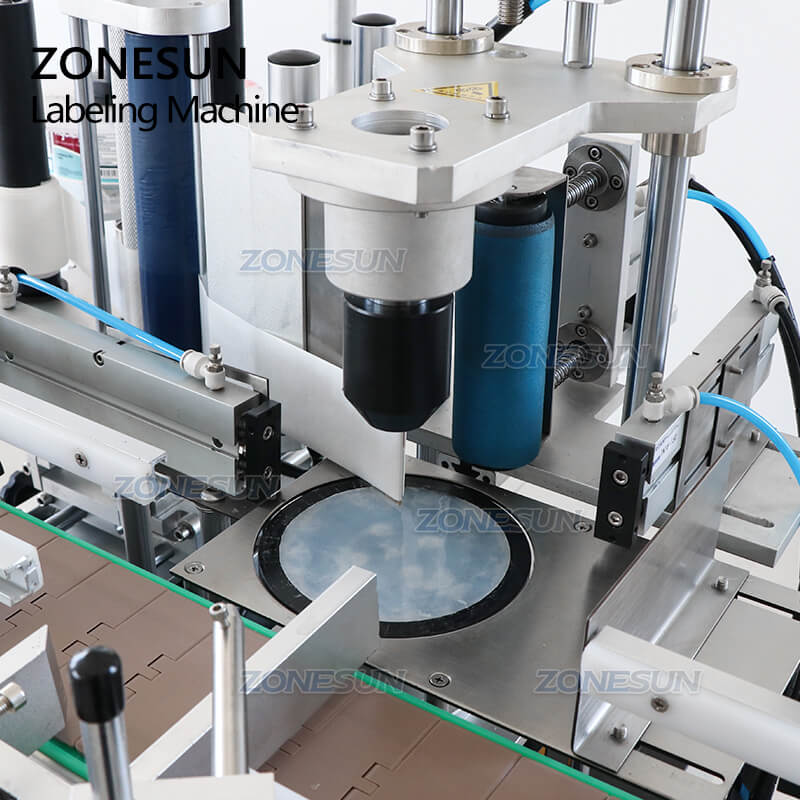

Labeling Structure of Automatic Hexagon Bottle Labeling Machine

The bottle will be pushed and rotated to label stickers.This kind of labeling method is suitable for regular bottles includes round bottles,square bottles and hexagon bottles.

Conveyor Belt of Automatic Hexagon Bottle Labeling Machine

The chain conveyor belt is with large weight capacity,it can ensures that bottles will be transported stably and fast.It can be connected to automatic filling and capping machine to realize automated production.

Adjusting Knob of Automatic Hexagon Bottle Labeling Machine

The labeling heads can be adjusted in different directions,this can ensures the self-adhesive stickers can be labeled better,improves labeling accuracy.

Electric Box of Automatic Hexagon Bottle Labeling Machine

Drawer type design makes it more convenient to adjust and maintain the machine during working,this extends the service life of the machine.

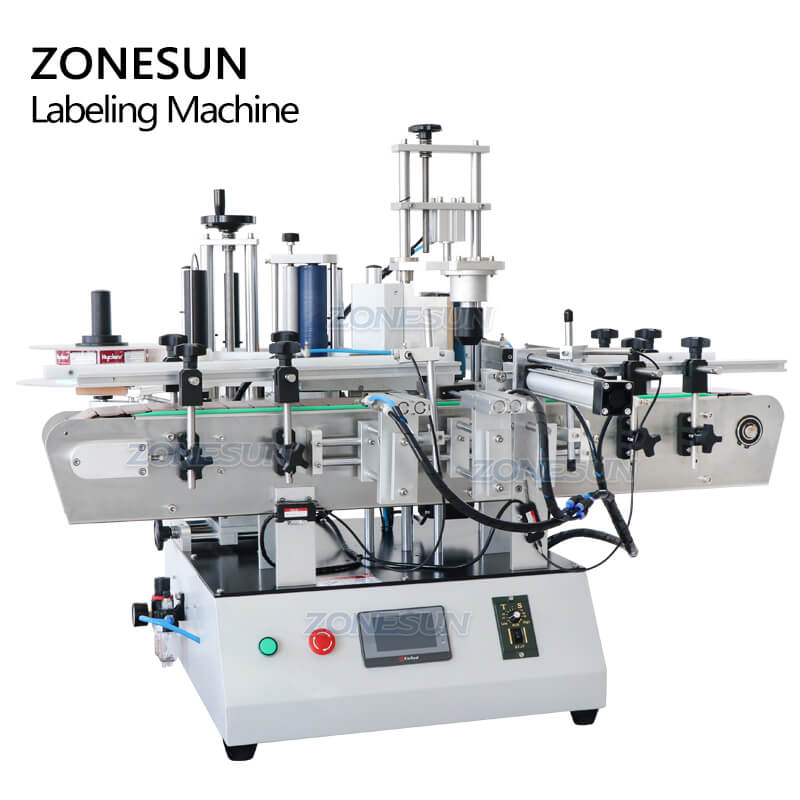

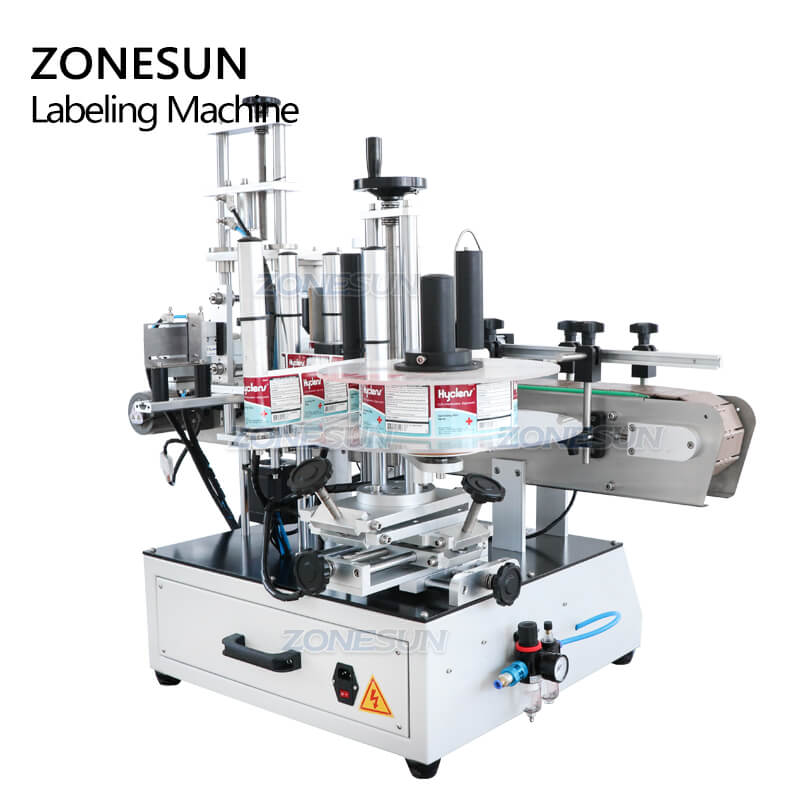

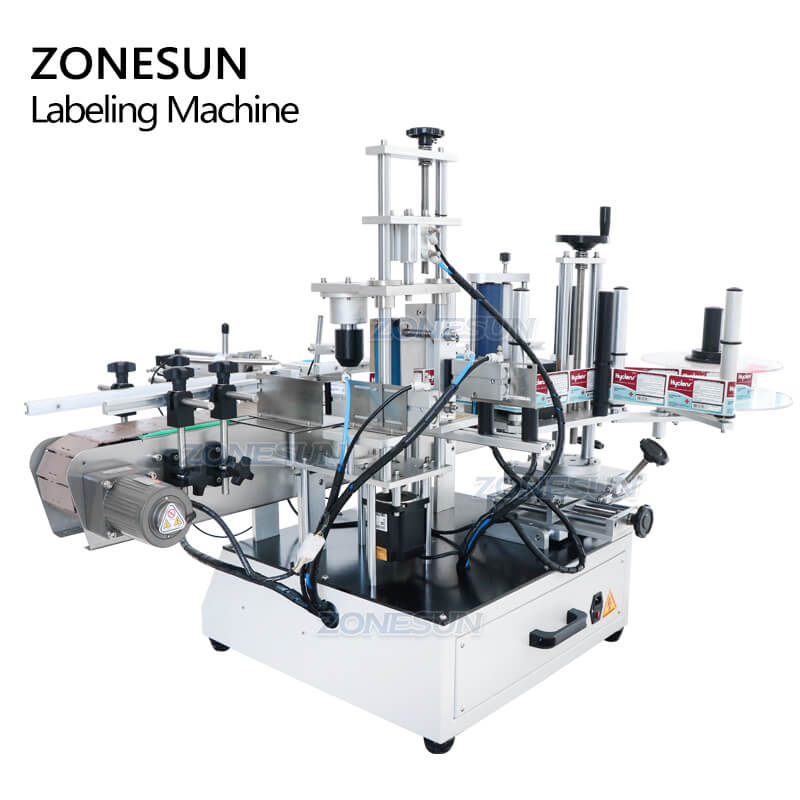

Automatic Hexagon Bottle Labeling Machine

Automatic Hexagon Bottle Labeling Machine
