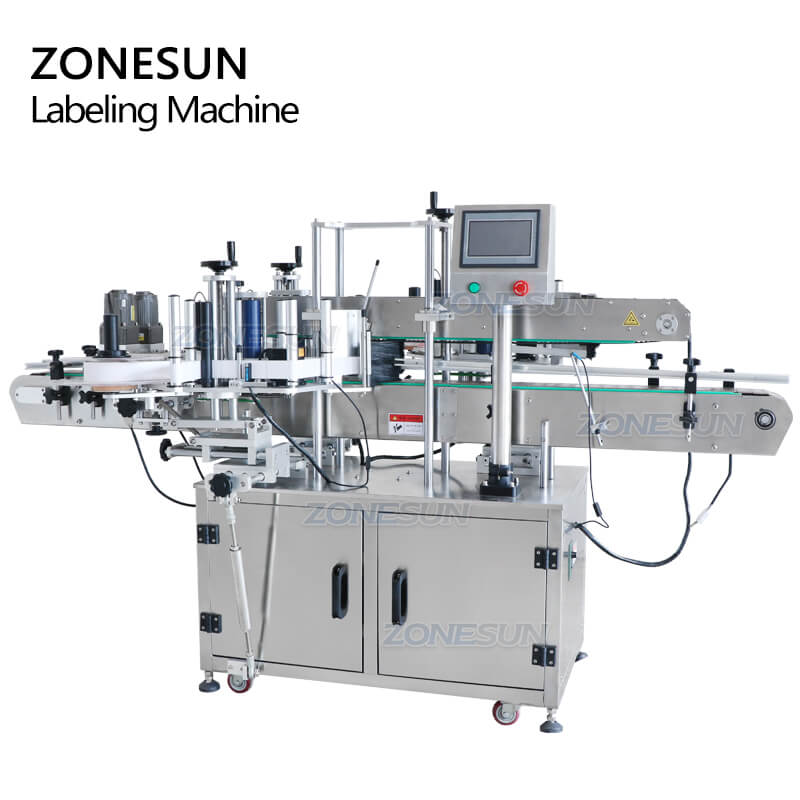

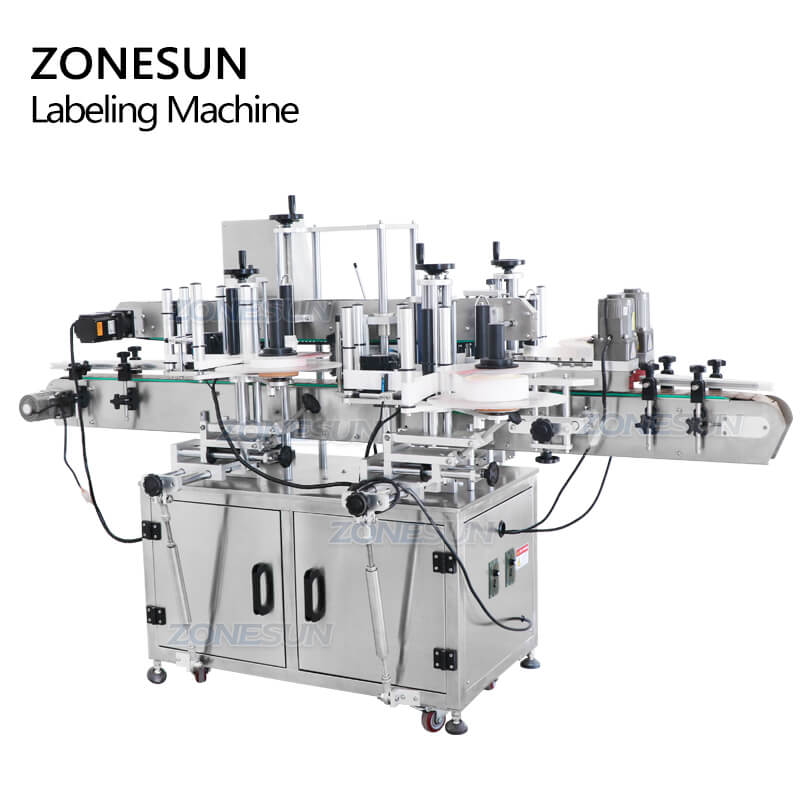

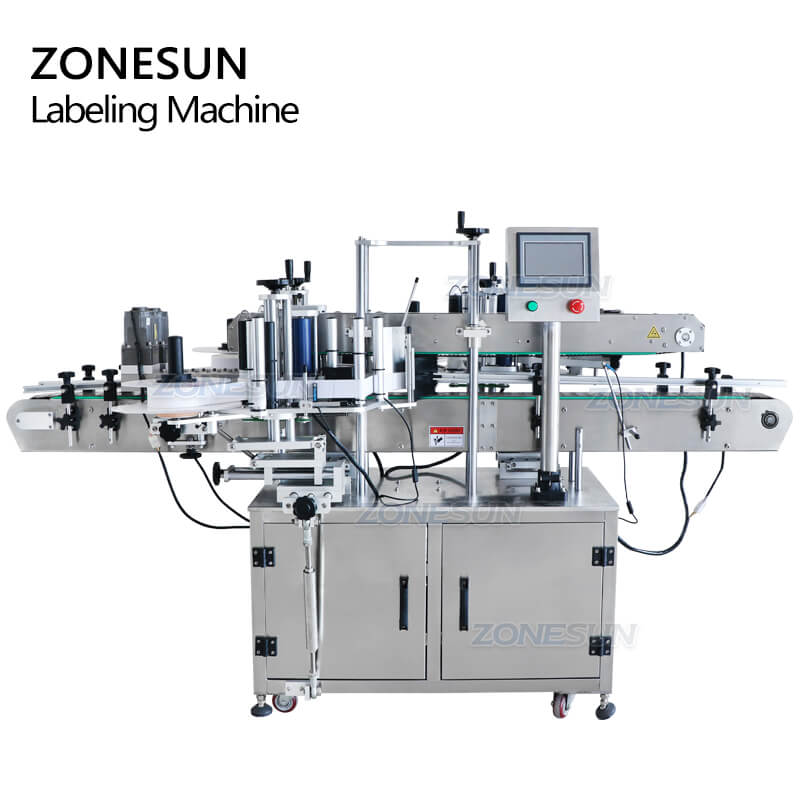

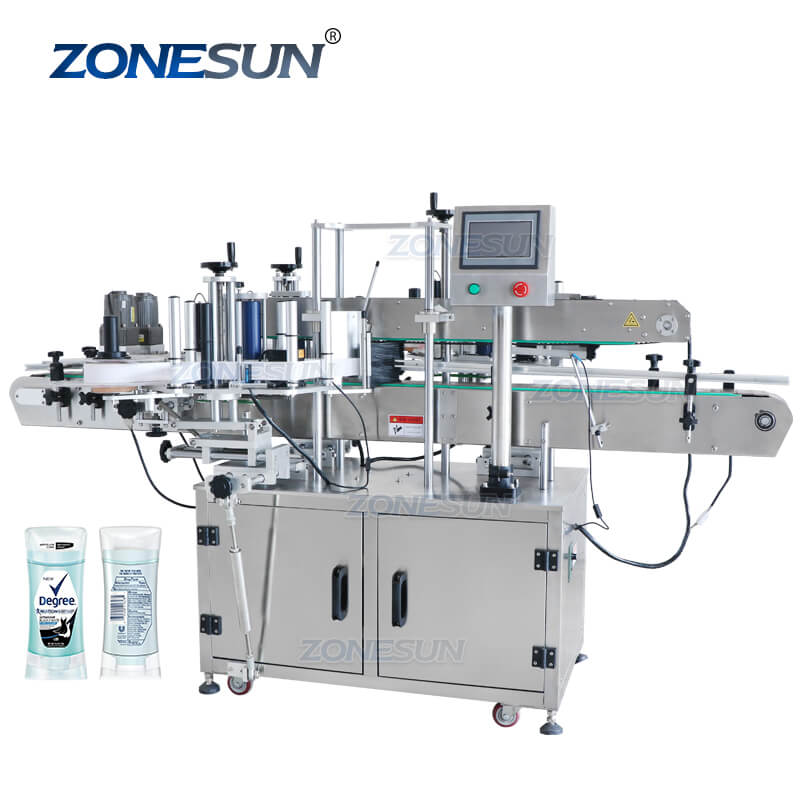

Name: ZS-TB301 Automatic Shampoo Flat Oval Glass Square Bottles Self Adhesive Sticker Bottle Labeling Machines
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 01200400046-0023
Price: 7599.0 USD
Availability: InStock

This machine is designed for one side with two stickers,it is good for for flat bottles.And it can work with automatic filling and capping machine to realize automated production.This machine is widely used in food,beverage,daily chemical,and cosmetics industries.

Parameter

Machine Model:ZS-TB301
Machine Power:110/220V 2000W
Working Speed:40-120 bottles/min(based on bottle size)
Labeling Accuracy:±1mm
Suitable Labeling Object:40-500mm(L)*40-100mm(W)*50-350mm(H)
Suitable Label Size:6-300mm(L)*15-150mm(W)
Label Roll OD:Φ250mm
Label Roll ID:Φ76mm
Machine Size:2300*585*1380mm(L*W*H)
Machine Weight:258kg
Package Size:2370*1060*1555mm(L*W*H)
Package Weight:368kg

Automtiac Bottle Labeling Machine Application of Bottle Labeling Machine

Label Roll Size of Automatic Bottle Labeling Machine Details of Automatic Bottle Labeling Machine Operation Panel of Automatic Bottle Labeling Machine

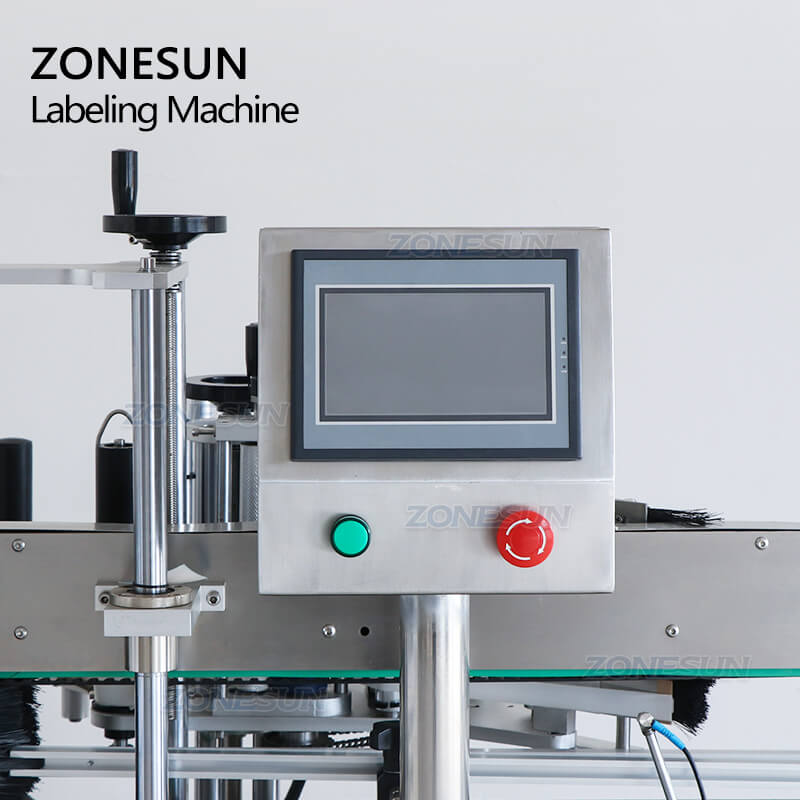

The touch screen control panel makes the working parameter is visual,it is more convenient to test and adjust the machine.The setting language can be customized according to operation need.

Electric Eye of Automatic Bottle Labeling Machine

Equipped with electric eye,it is used for detecting passing by bottles and control the label structure to label stickers. These improves labeling accuracy.

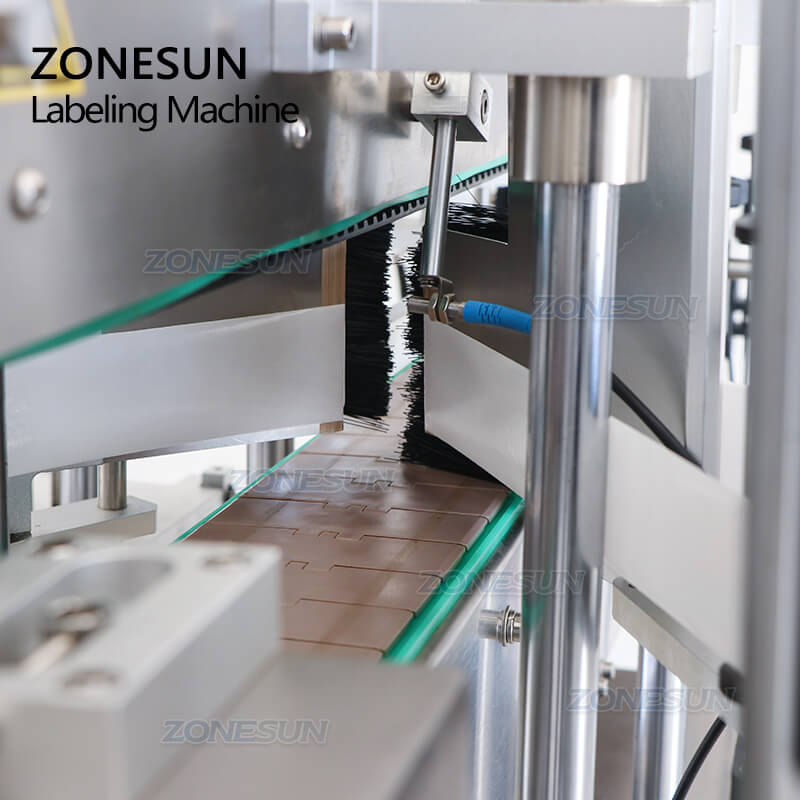

Bottle Guiding Structure of Automatic Bottle Labeling Machine

Designed with bottle guiding structure, this is suitable for thin and flat bottles,prevents that bottles fall down during transporting,ensures the production can be more smooth.

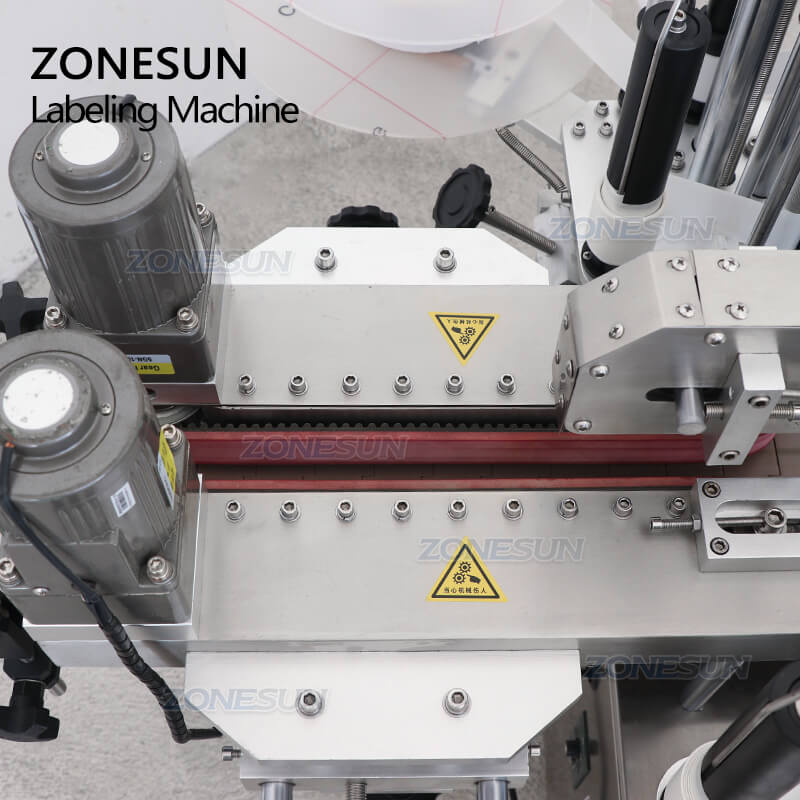

Labeling Head of Automatic Bottle Labeling Machine

Customized labeling structure and label winding structure makes it suitable for labeling separate stickers on the same side.Makes the machine can work perfectly.

Conveyor Belt of Automatic Bottle Labeling Machine

The chain conveyor belt is with large capacity and can transport product faster and more stably.The width of it can be customized according to operation need.
