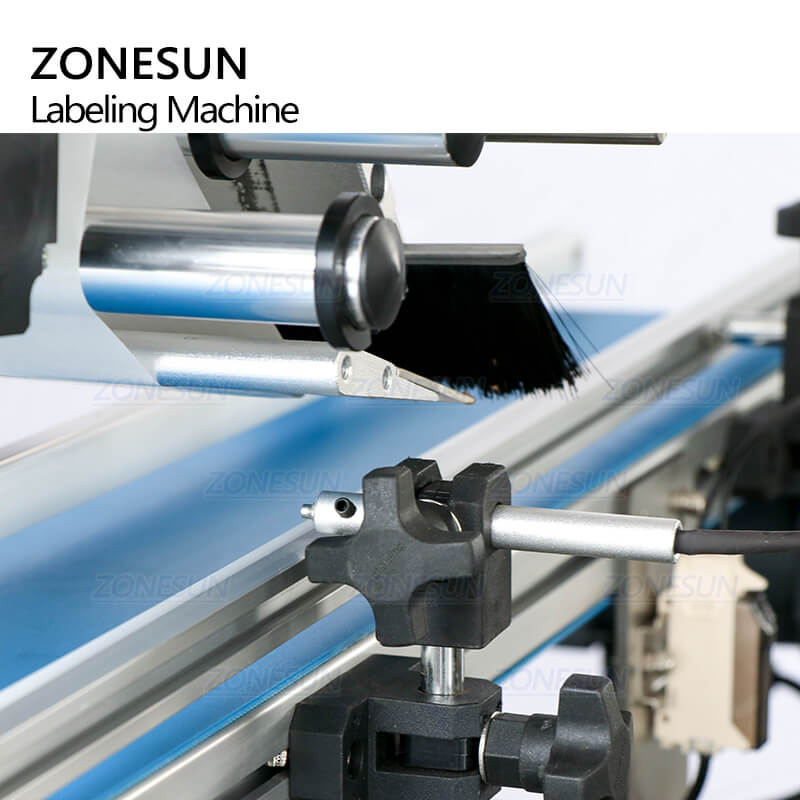

Brush of TB150P Automatic Flat Surface Labeling Machine

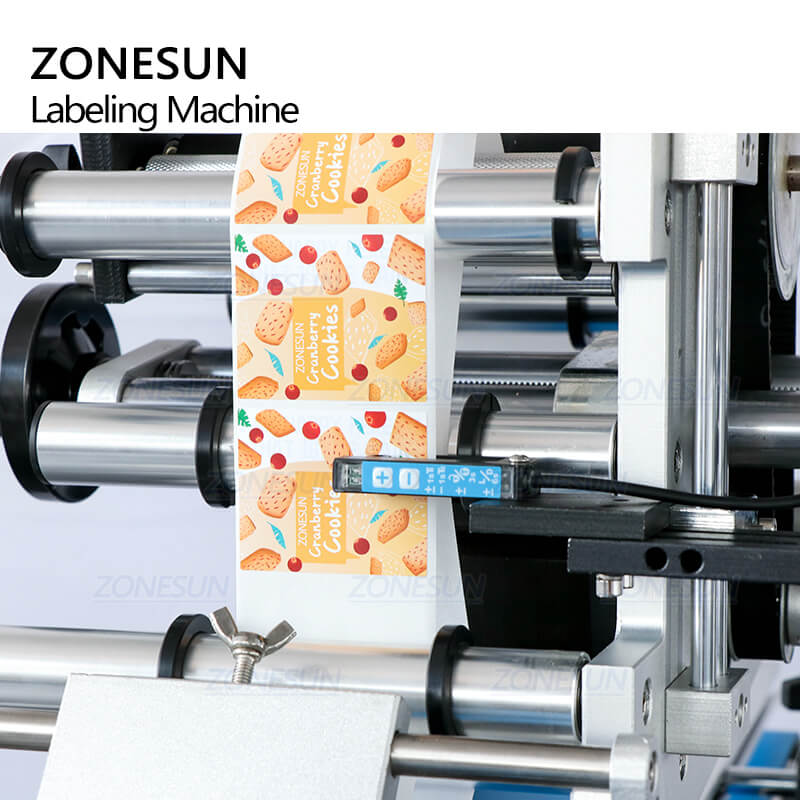

Label Sensor of TB150P Automatic Flat Surface Labeling Machine

Size

110V

220V

Price

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":40502739075221,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"00300400013-0002","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-TB150P Desktop Automatic Topp Side Paper Box Bottle Caps Flat Surface Labeling Machine - 110V","public_title":"110V","options":["110V"],"price":239900,"weight":183500,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40502739107989,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"00300400014-0002","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-TB150P Desktop Automatic Topp Side Paper Box Bottle Caps Flat Surface Labeling Machine - 220V","public_title":"220V","options":["220V"],"price":239900,"weight":183500,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Click For Video

Name: ZS-TB150P Desktop Automatic Topp Side Paper Box Bottle Caps Flat Surface Labeling Machine
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00300400013-0002
Price: 2399.0 USD
Availability: InStock

This automatic bottle labeling machine is with a conveyor and it has similar functions like the full automatic labeling machine.It is with a reasonable design and the dimension is not that large as the full automatic labeling machine.It is the ideal choice for most of suppliers.

Parameter

Working speed(pcs/min):20-200pcs/min
Labeling accuracy(mm):+1.0mm
Label size(mm):(L)25-300mm (H)15-150mm
Labeling material size:φ30-φ120mm (H)20-200mm
Roll inside diameter(mm):φ75mm
Roll outside diameter(mm):φ275mm
Voltage:220/110V 50-60HZ
Power:1.5kW
Package size:1280*730*980mm
Package weight:109kg

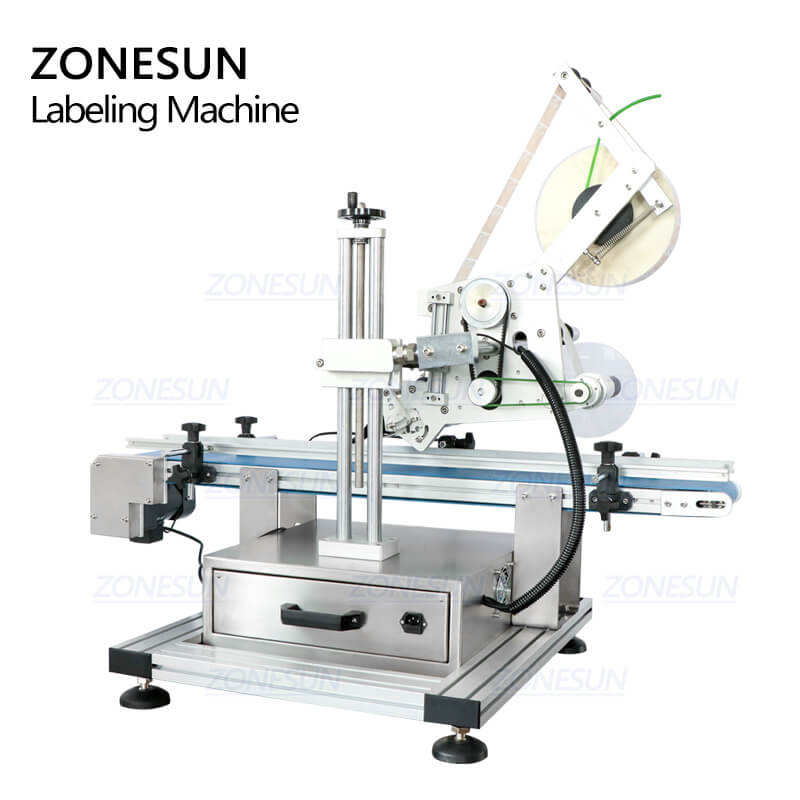

ZS-TB150P Automatic Top Side Flat Surface Labeling Machine

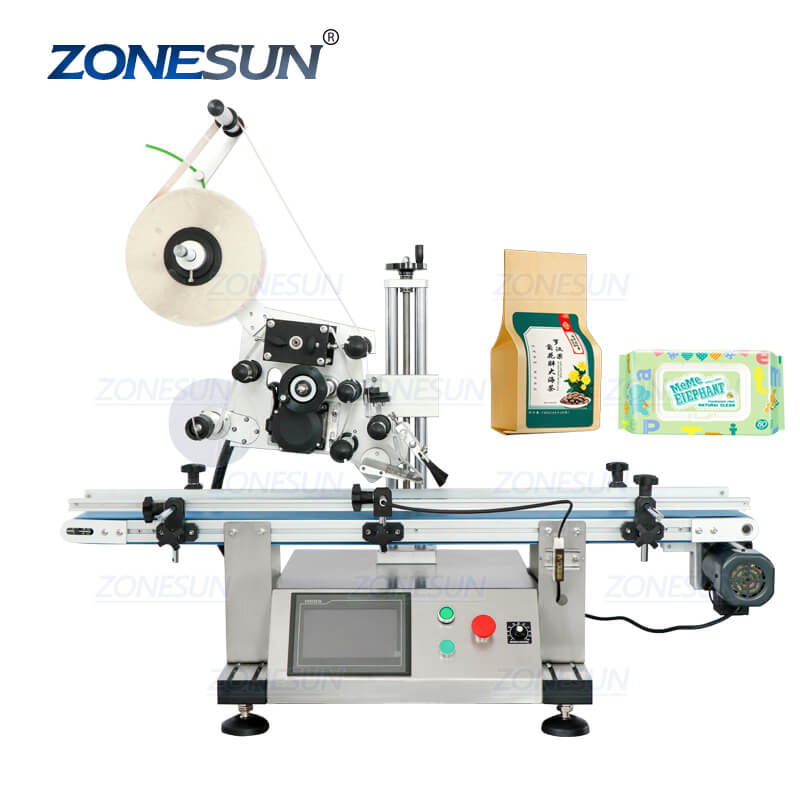

Application of ZS-TB150P Automatic Top Side Flat Surface Labeling Machine

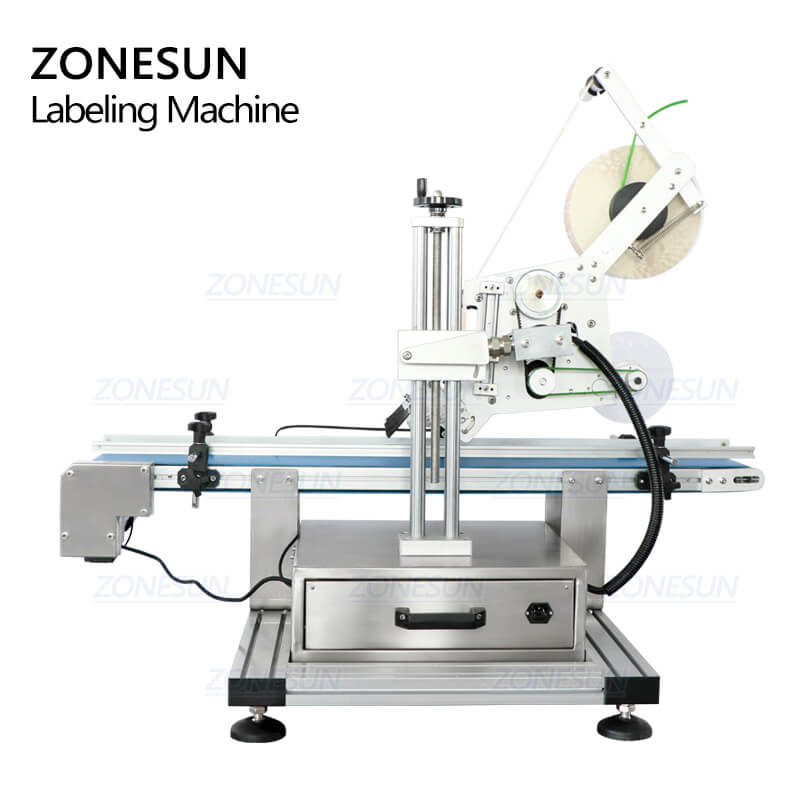

Dimension of ZS-TB150P Automatic Flat Surface Labeling Machine

Suitable Label Size of ZS-TB150P Automatic Top Side Flat Surface Labeling Machine

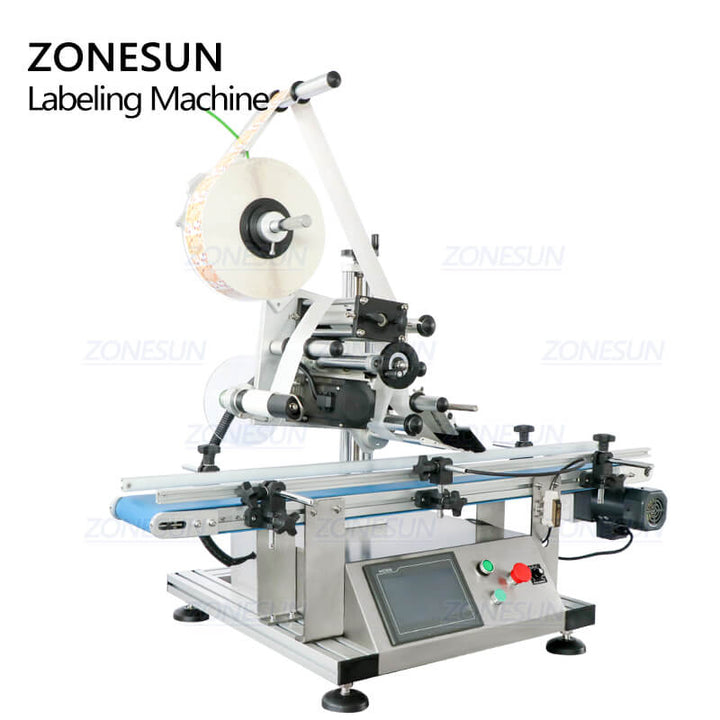

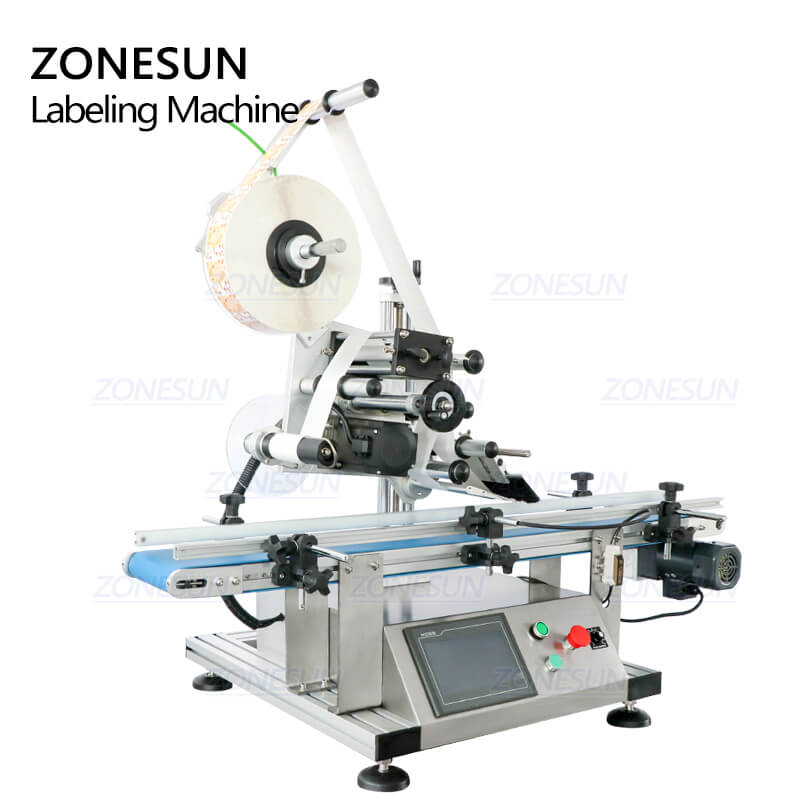

Operation Panel of ZS-TB150P Automatic Flat Surface Labeling Machine

The English operation panel make it easy to test and use the machine,the label separating speed is adjustable. And can set the delay time of label separating.The beside two knobs can control the labeling speed and conveyor speed as your need.

Conveyor Belt of ZS-TB150P Automatic Flat Surface Labeling Machine

The conveyor width can be adjusted according to the bottle diameter.It is better to be smaller than 120mm Dia.

Adjusting Component of ZS-TB150P Automatic Flat Surface Labeling Machine

Automatic fiber amplifier, automatic induction product labeling, simple and intelligent operation.

Motor of ZS-TB150P Automatic Flat Surface Labeling Machine

Speed-regulating motor, good stability, no slip loss, stable running at high roads, reliable use and convenient maintenance.

Machine Body of ZS-TB150P Automatic Flat Surface Labeling Machine

Made of high-quality stainless steel, the whole machine is beautiful and elegant, with long service life.

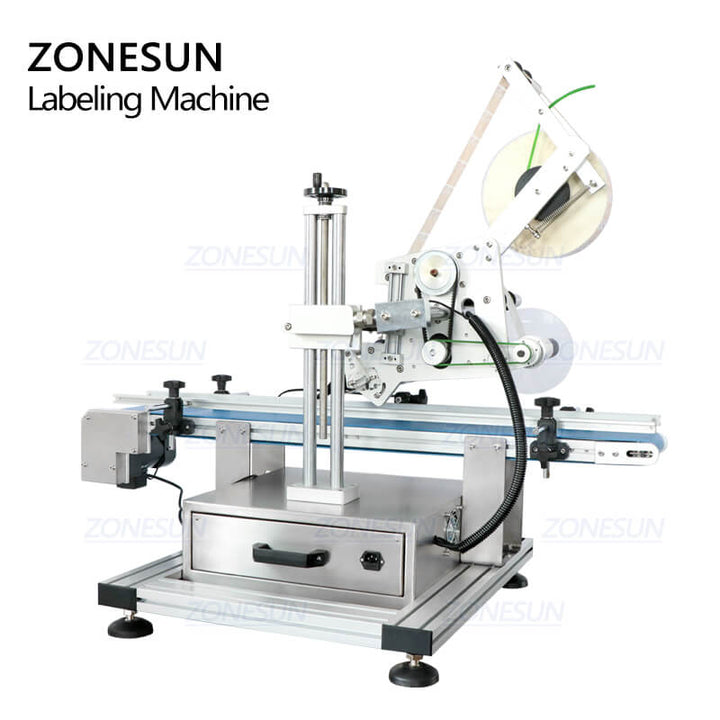

Real Shot of ZS-TB150P Automatic Top Side Flat Surface Labeling Machine
