ZONESUN ZS-SV4GB Cream Ketchup Bottle Chili Sauce Jam Servo Quantitative Filling Machine

ZONESUN ZS-SV4GB Cream Ketchup Bottle Chili Sauce Jam Servo Quantitative Filling Machine

Regular price $6,269.00 USD
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

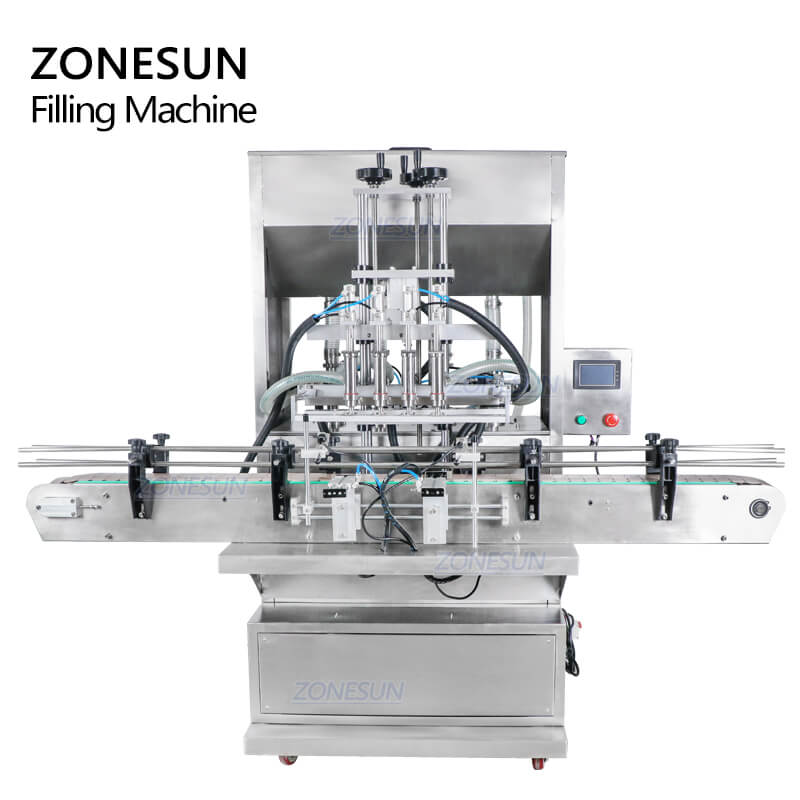

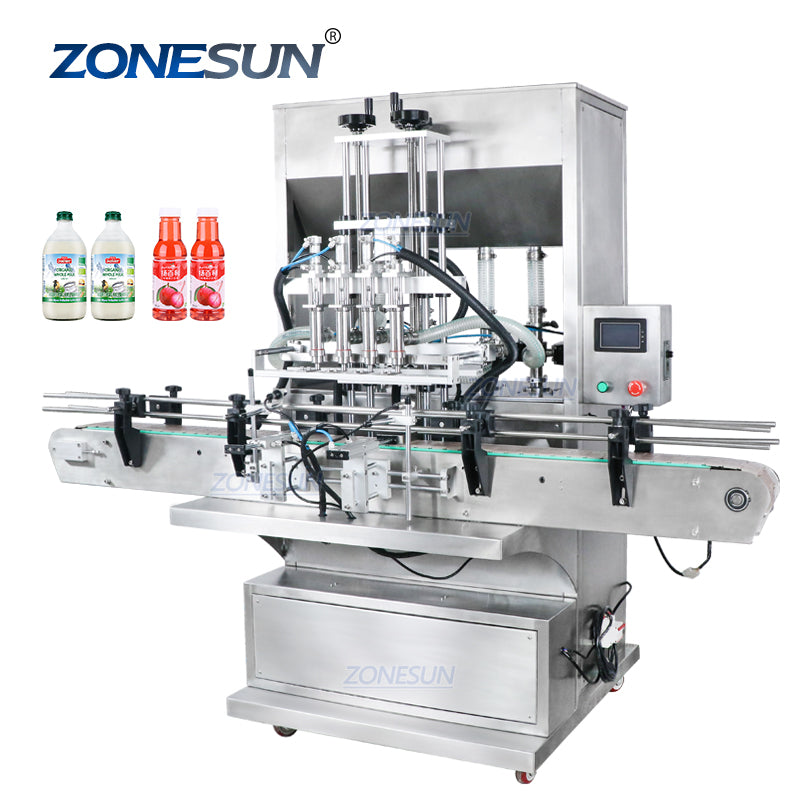

The full automatic quantitative liquid filling machine is designed for saving time on adjusting and testing machine,it can fill liquid or paste accurately by entering a certain filling volume.The PLC control method makes it easy to operate,the high speed working efficiency is ideal for medium or large scale production.It can work with the automatic capping machine and labeling machine to form a complete production line and realize high speed packaging work.

This machine is suitable for filling liquid and paste like juice,beverage,drinks,milk,makeup remover etc.It is widely used in drinks,cosmetics,daily chemical industries.


  • Model:ZS-SV4GB
  • Voltage:110/220V 50-60HZ
  • Filling Range:5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
  • Working Speed(base on water):20-80 bottles/min
  • Filling Accuracy:≤2%
  • Machine dimension:About 905*1100*1760mm
  • Conveyor size:2000*100mm(L*W)
  • Size of filling nozzle:OD15mm
  • Size of air compressor connector:Φ8mm
  • Machine weight: 248kg
  • Power of whole machine: 800W

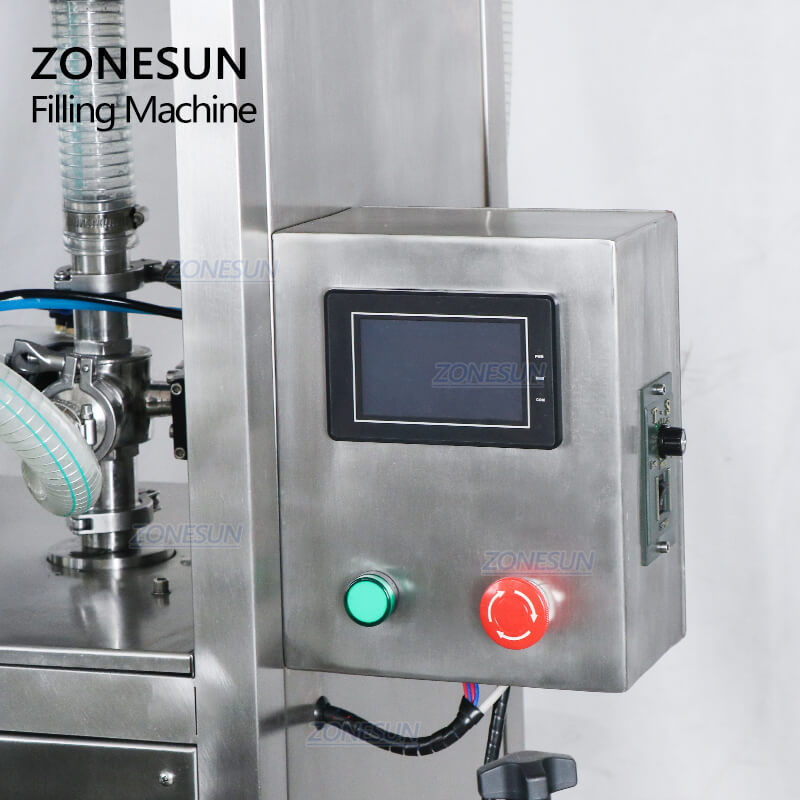

The touch screen make it easier to control and watch the working data in real time.The filling volume and filling speed can be controlled according to production needs.The PLC panel makes it possible to set control panel language into other kinds of language,please contact us for custom if you need this.

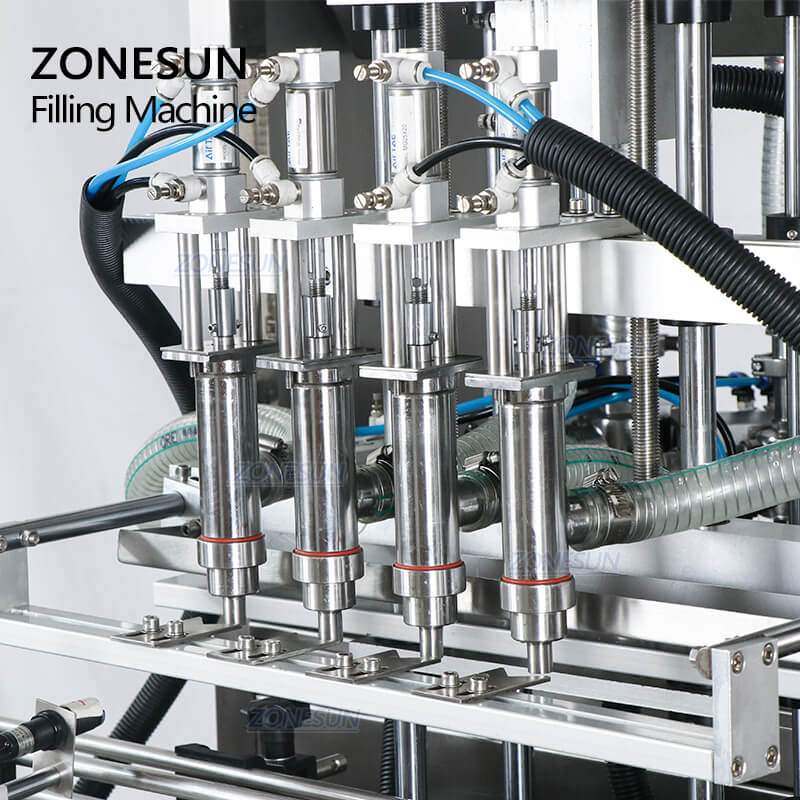

The pneumatic filling nozzle can ensure filling paste faster,it is with anti-dripping design which ensure the machine and production cleanliness.

High quality conveyor belt can transfer bottles automatically , it is designed with protective guard which can make products will be transferred stably.The size of the conveyor is 2000mm*125mm. we can customize the size according to your needs.

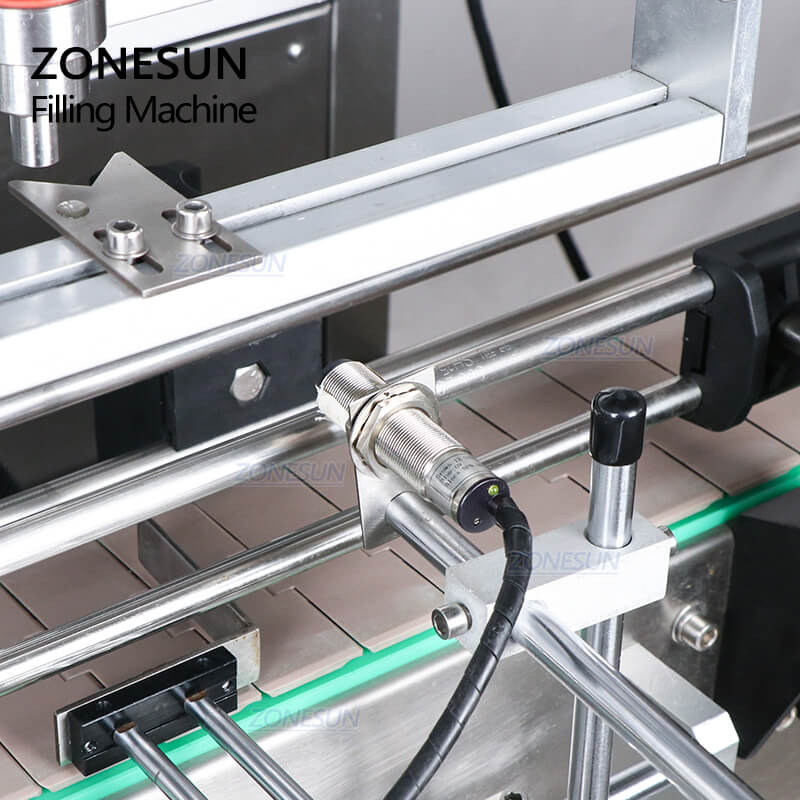

The machine is equipped with high quality electric eye,can detect passing by container accurately and realize the automated work,reduce the production error and improve working efficiency.

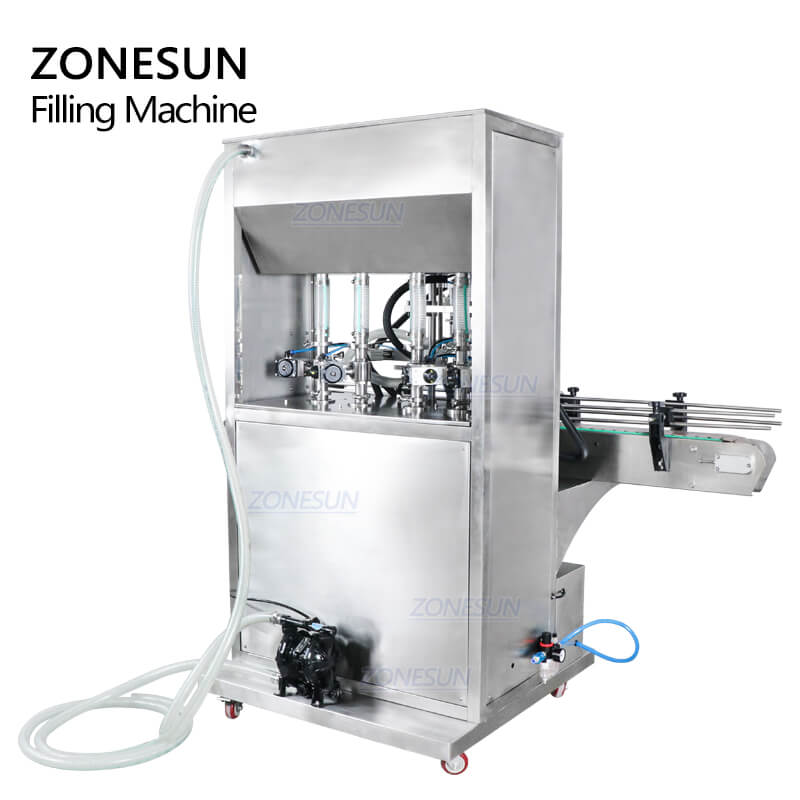

This machine is equipped with pneumatic diaphragm pump,it is with great power,can pump paste and liquid,make the machine work faster.
