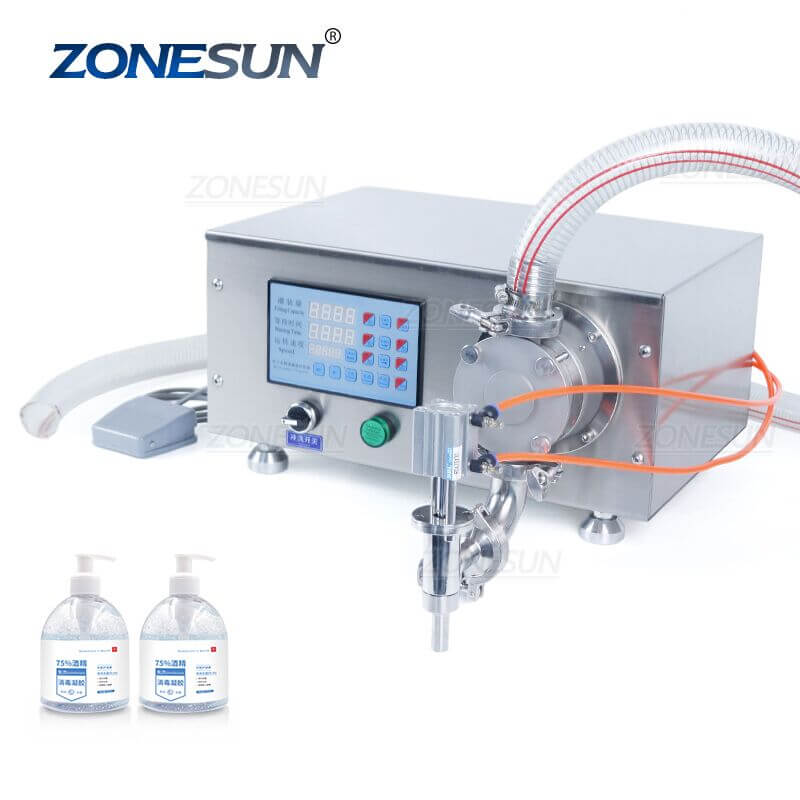

Name: ZS-RPYT900 Rotor Pump Glass Bottle Ketchup Juice Honey Jam Paste Lotion Filling Machine
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00100800048-0189
Price: 1079.0 USD
Availability: InStock

Filling Nozzle of ZS-RPYT900 Rotor Pump Filling Machine

Operation Panel of ZS-RPYT900 Rotor Pump Filling Machine

ZS-RPYT900 Rotor Pump Glass Bottle Ketchup Juice Honey Jam Paste Lotion Filling Machine

Voltage

110V

220V

Price Save $500 USD

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":40529237803157,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"00100800048-0189","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-RPYT900 Rotor Pump Glass Bottle Ketchup Juice Honey Jam Paste Lotion Filling Machine - 110V","public_title":"110V","options":["110V"],"price":107900,"weight":34000,"compare_at_price":157900,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40529237835925,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"00100800047-0189","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-RPYT900 Rotor Pump Glass Bottle Ketchup Juice Honey Jam Paste Lotion Filling Machine - 220V","public_title":"220V","options":["220V"],"price":107900,"weight":34000,"compare_at_price":157900,"inventory_quantity":664,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Designed for filling paste or liquid with particle like tomato paste,jam,shampoo etc.This machine has two working mode,one is pedal switch control working mode ,another one is automatic working mode.This can help you improve working efficiency.

Parameter

Machine Model:ZS-RPYT900
Machine Pump:Rotor Pump
Voltage:220V/110V 50-60Hz
Recommended Filling Range:100-5000mL
Filling Speed:30-80bottles/min(depend on material and bottle size)
Filling Accuracy:±1g
Air Pressure:0.4-0.9MPa
Air Consumption:≤0.1m³/min(Anti-dripping valve)
Max Flow Rate:30L/min(based on water)
Filling Nozzle Diameter:OD13.6mm&6mm
Machine Weight:About 4kg
Machine Size:About 455*310*200mm(L*W*H)
Package Weight:About 34kg
Package Size:About 560*660*500mm

Rotor Pump Paste Filling Machine Application of Rotor Pump Paste Filling Machine

Dimension of Rotor Pump Paste Filling Machine

Filling Nozzle of Rotor Pump Paste Filling Machine

Pedal Switch of Rotor Pump Paste Filling Machine

Switch of Rotor Pump Paste Filling Machine

Real Shot of Rotor Pump Paste Filling Machine
