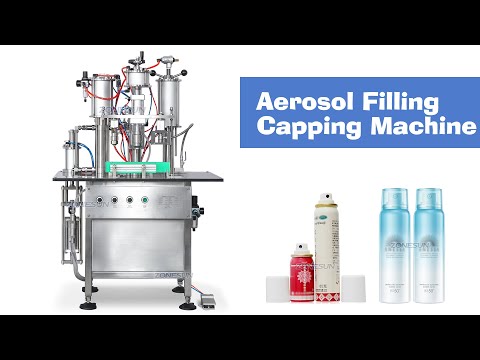

This machine is designed for packaging aerosol.It can fill liquid,cap bottles and fill aerosol propellants at the same time.Each working structure can be controlled separately.It is widely used in the packaging of aerosol products such as food,hygiene,automobiles,environmental protection,fire protection and daily chemical products.

Parameter

• Machine model:ZS-QW254
• Applicable bottle mouth size:1 inch (25.4 mm)
• Filling capacity:20-450ml
• Filling material input connector:OD 20mm
• Propellant filling capacity:20-450 ml
• Propellant input connector:M22*1.5 anti-thread
• Filling accuracy:±1%
• Applicable aerosol can height:70-330 mm
• Applicable aerosol can diameter:φ35 to φ65mm
• Working pressure:0.5-1.0 MPa
• Maximum air consumption:1 m³/min
• Production capacity:1200 bottles/hour(based on liquid and volume)
• Packing size:About 1220mm*590mm*1550mm
• Package weight:About 180kg

The working height of the machine can be adjusted by rotating the knob,makes the machine can work with bottles perfectly,improves production quality.

This machine can fill liquid,cap aerosol bottles and fill aerosol propellants at the same time,each working structure can be controlled separately.
