ZONESUN ZS-MSZH50 Automatic Horizontal Eye Drops Lip Gloss Essential Oil Bottle Cartoning Packaging Machine Cosmetics Facial Mask Sheet Boxing Machine

automatic bottle boxing machine
Control Panel of Automatic Essential Oil Bottle Boxing Machine
Conveyor of Automatic Essential Oil Bottle Boxing Machine
Carton Feeding Structure of Automatic Essential Oil Bottle Boxing Machine
Pushing Device of Automatic Essential Oil Bottle Boxing Machine
Fixing Component of Automatic Essential Oil Bottle Boxing Machine

ZONESUN ZS-MSZH50 Automatic Horizontal Eye Drops Lip Gloss Essential Oil Bottle Cartoning Packaging Machine Cosmetics Facial Mask Sheet Boxing Machine

Voltage
Regular price $22,999.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

This machine is suitable for boxing and packaging of various types of products such as facial mask, skincare products.The boxing machine has functions of box opening, filling, box folding and box sealing. It can be used separately or work with other equipment (such as Weighing machine,filling machine,sorting machine) to realize automted production.

Parameter

  • Machine model:ZS-MSZH50
  • Power supply:220V/380V
  • Power:About 0.75KW
  • Work flow:Convey material→Put in the box manually→Automatically take out the box→Automatic folding box→Automatically load materials into the box→Convey finished product
  • Work efficiency:1800-3000PCS/H
  • Paper box quality requirements: 300-450g/m3,carton indentation is not less than 0.4MM,with pre-folding effect,no glue leakage in the box
  • Suitable box specifications :Skincare product:120-200* 30-70 *20-60mm (L*W*H)
  • Facial mask:135-200*20-150 *20-40mm (L*W*H)(Can be ordered according to customer requirements)
  • Air pressure:0.6-0.8Mpa
  • Air consumption:130 L/H
  • Equipment size:About 2800mm *1360mm*1600mm(L*W*H)
  • Net weight:About 1200kg

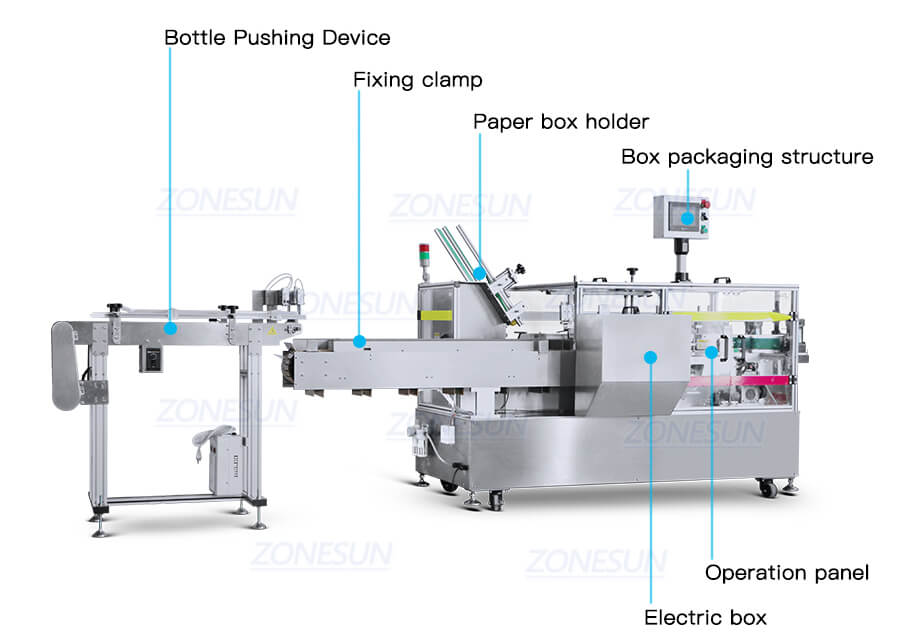

bottle & facial mask boxing machine

Application of bottle & facial mask boxing machine
box size of bottle & facial mask boxing machine
bottle & facial mask boxing machine

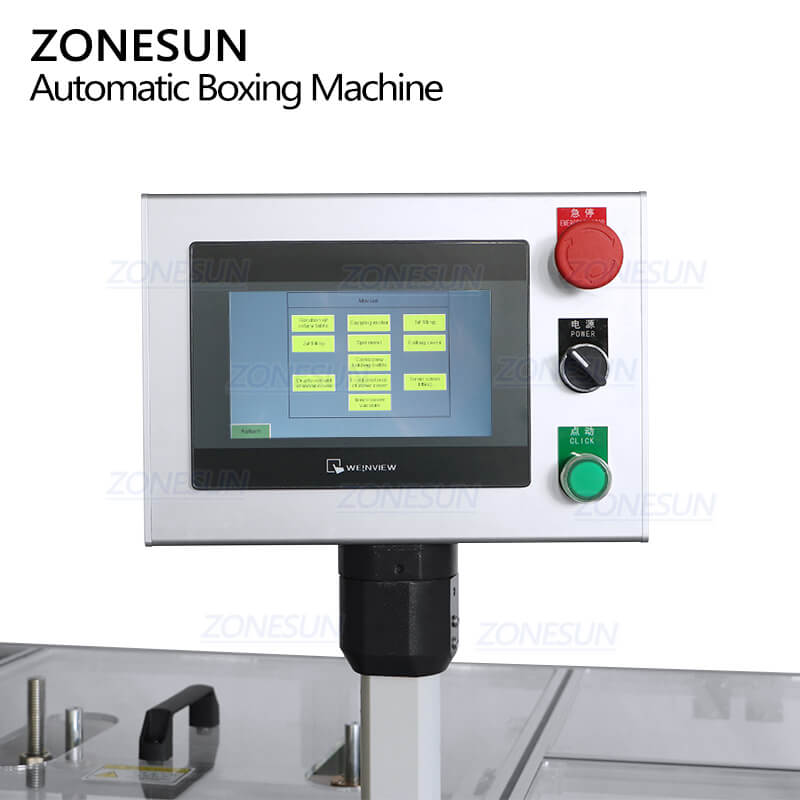

control panel of bottle & facial mask boxing machine

Equipped with touch screen control panels,this is more convenient to test and adjust working parameter for operators.The operating language can be customized as production need.

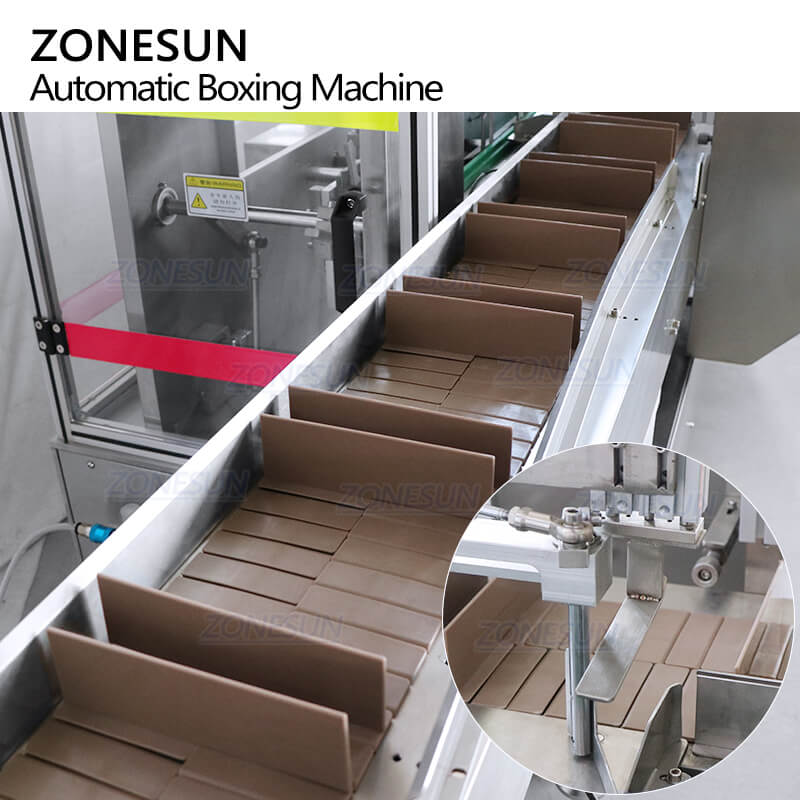

Conveyor of Bottle & Facial Mask Boxing Machine

There are some fixing clamp,these can fix packaging materials in a certain position to avoid displacement.

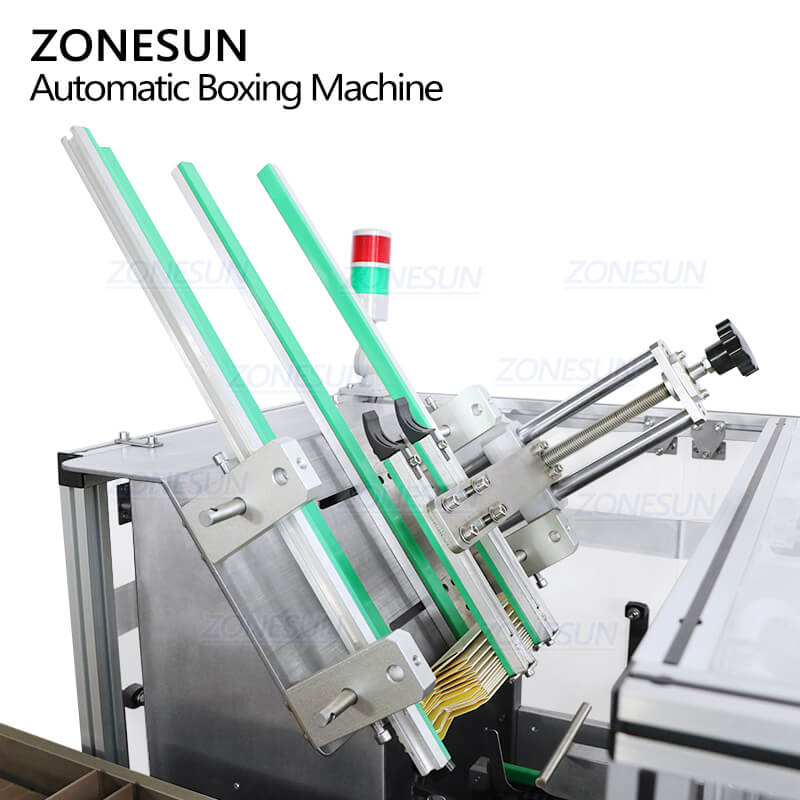

Box Feeding Component of Bottle & Facial Mask Boxing Machine

The box holder can be adjusted according to package box size.there is a componet under box holder with an air suction nozzle,it can help to pull folded box and realize automated work.

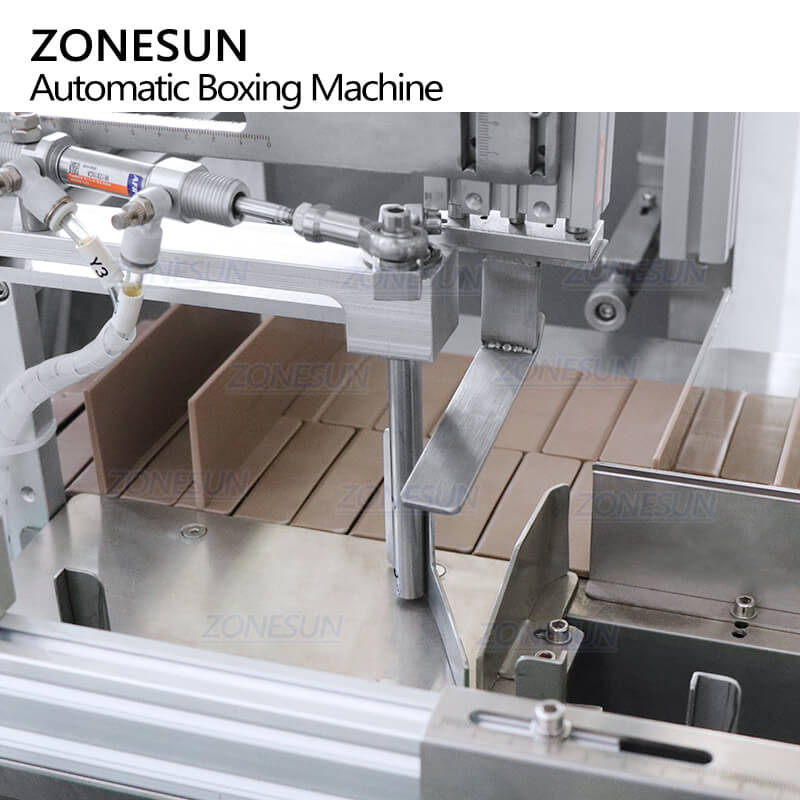

Pushing Component of Bottle Boxing Machine

The ①pressing handle will compress package materials and the ②pushing component will push them into paper box to finish packaging.These improves packaging quality.

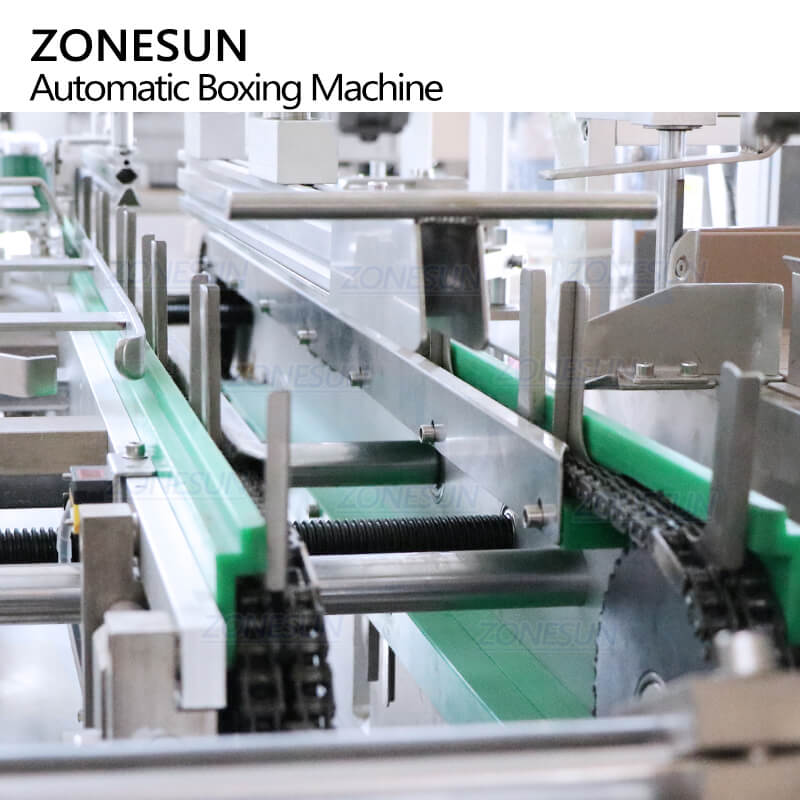

Fixing Component of Bottle & Facial Mask Boxing Machine

The finished product will be separated by fixing clamp and transporting to next production process.This can prevent finished product from falling off.

automatic bottle cartoning machine
