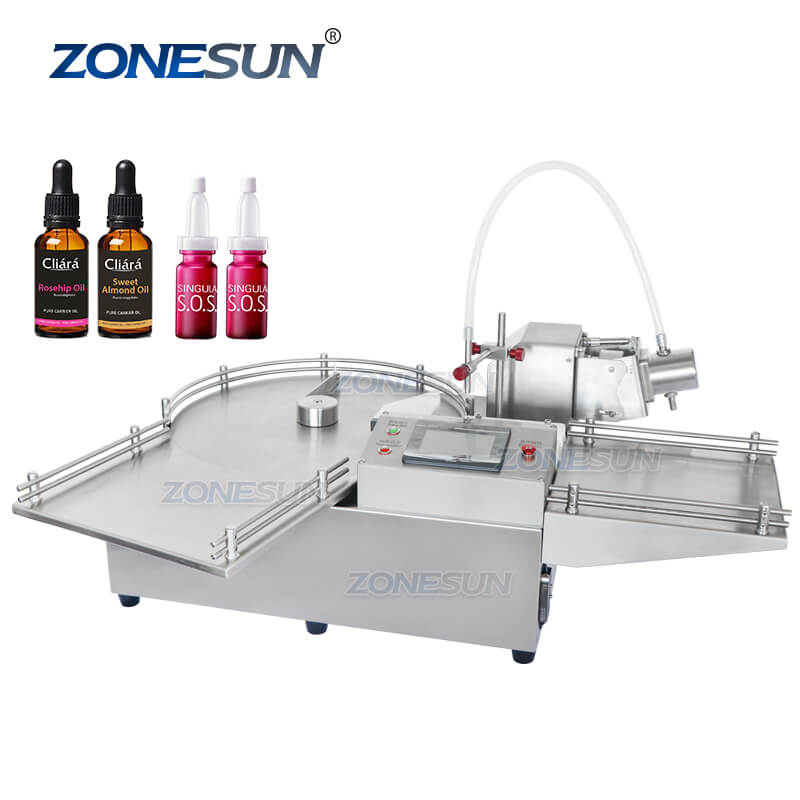

ZS-LPG1 Automatic Ceramic Plunger Pump Small Glass Vial Perfume Reagent Liquid Bottle Filling Machine With Bottle Unscrambler

SKU: 00100500017-0219
Automatic Liquid Filling Machine With Bottle Sorter
Automatic Liquid Filling Machine With Bottle Sorter
Automatic Liquid Filling Machine With Bottle Sorter
Bottle Sorter of Automatic Liquid Filling Machine
Automatic Liquid Filling Machine With Bottle Sorter
Automatic Liquid Filling Machine With Bottle Sorter
Automatic Liquid Filling Machine With Bottle Sorter

ZS-LPG1 Automatic Ceramic Plunger Pump Small Glass Vial Perfume Reagent Liquid Bottle Filling Machine With Bottle Unscrambler

SKU: 00100500017-0219
Size
Regular price $6,849.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

Compared with other desktop filling machine,this one has the function of sorting bottles before and after filling work.This can help to save production process.It is equipped with high quality ceramics plunger pump which is good for filling small volume liquid.It is widely used in daily chemical,cosmetics industries.

Parameter

Machine model:ZS-LPG1
Machine power:110/220V 50-60HZ
Pump:Ceramic plunger pump
Filling accuracy:About 0.25%
Filling range:0.2-1.5ml/0.3-2.8ml/0.6-6ml/1-12ml/2-25ml
Suitable bottle diameter:16-60mm
Working speed:0-45 bottles/min
Machine size:About 980*750*410mm
Machine weight:About 52.5kg

Automatic Liquid Filling Machine With Bottle UnscramblerApplication of Automatic Liquid Filling Machine With Bottle UnscramblerDetails of Automatic Liquid Filling Machine With Bottle Unscrambler

Working Principle of Ceramic Pump Filling Machine

Bottle Sorting Unscrambler

The machine can sort bottles and make them be in order before filling work, reduces production error.This helps to save production labor.

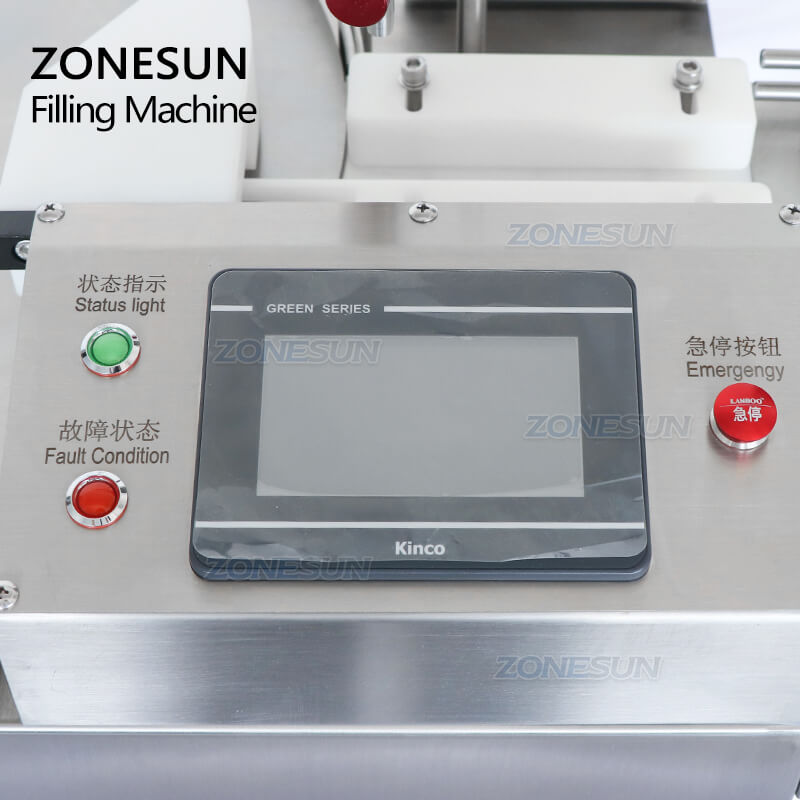

Operation Panel of Ceramic pump liquid filling machine

The touch screen control panel shows the current working parameter,this more convenient to control or adjust the machine in real time.Different kinds of operating language can be customized according to operation need.

Electric Eye of Automatic Liquid Filling Machine

Equipped with high quality electric eye,it can detect passing by bottles and send the signal to the system to control the machine to work or not.This makes it possible to realize automated production and improves production quality.

Ceramic pump of Automatic Liquid Filling Machine

The advantage of ceramic plunger pump is high filling accuracy.It is suitable for filling chemical reagent or advanced cosmetics.Different filling range can be chosen according to production need.

Bottle Unscrambler of Ceramic Pump Filling Machine

Equipped with collecting plate,this can sort and arrange bottles before next production process,improves working efficiency.

Electric Box of Liquid Filling Machine

The whole machine is made of high quality stainless steel,the reasonable design makes it easier to operate and maintain the machine.

Automatic Liquid Filling Machine With Bottle Unscrambler

Automatic Liquid Filling Machine
