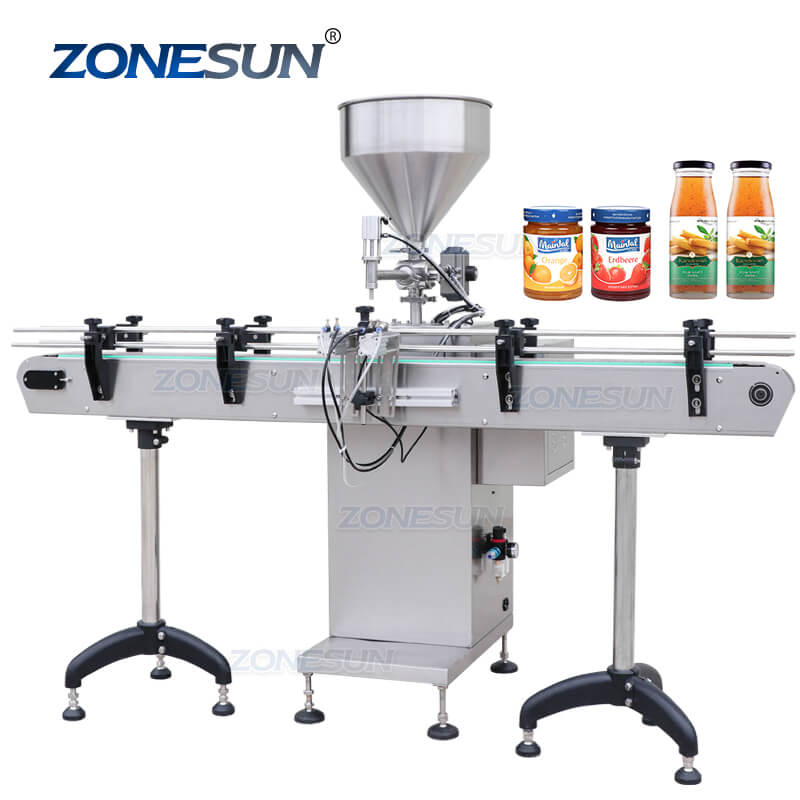

ZS-GY1SM Automatic Servo Motor Hot Sauce KetchupJam Jar Lotion Cosmetic Cream Shampoo Honey Bottle Liquid Paste Filling Machine

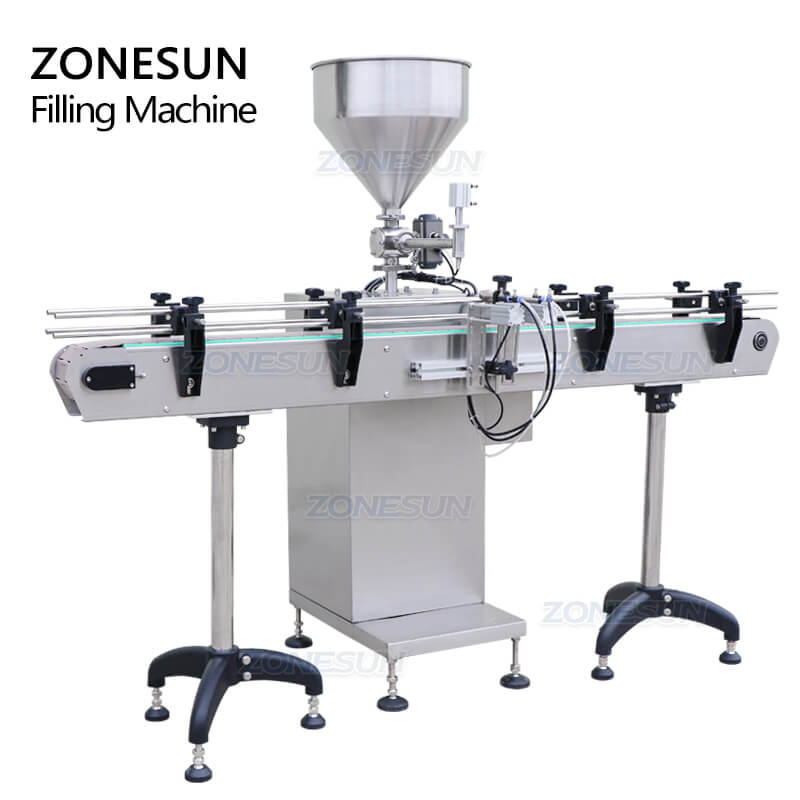

Servo Motor Filling Machine With Conveyor

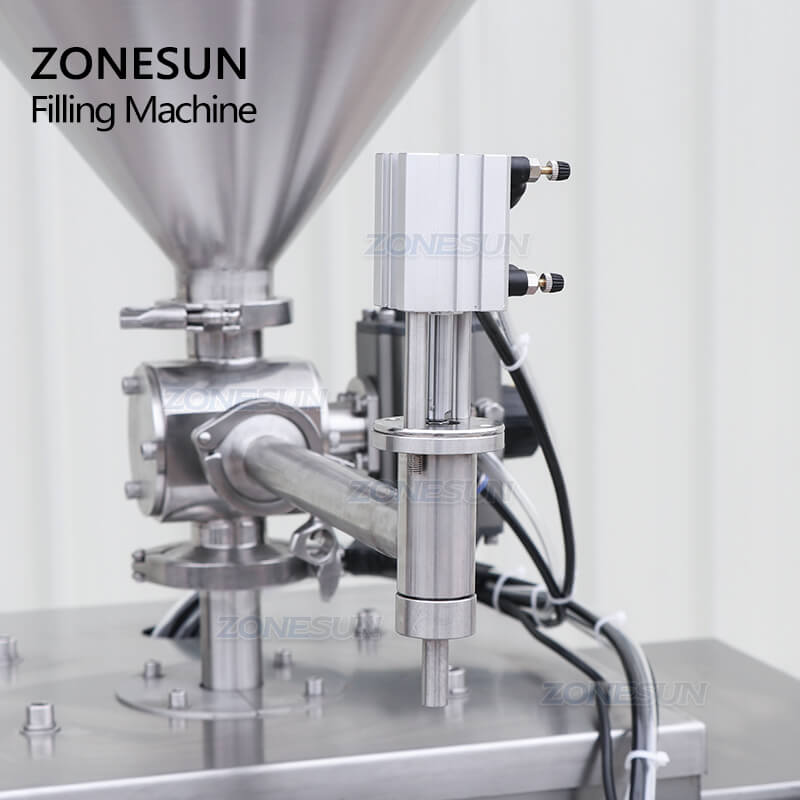

Filling Nozzle of Servo Motor Filling Machine With Conveyor

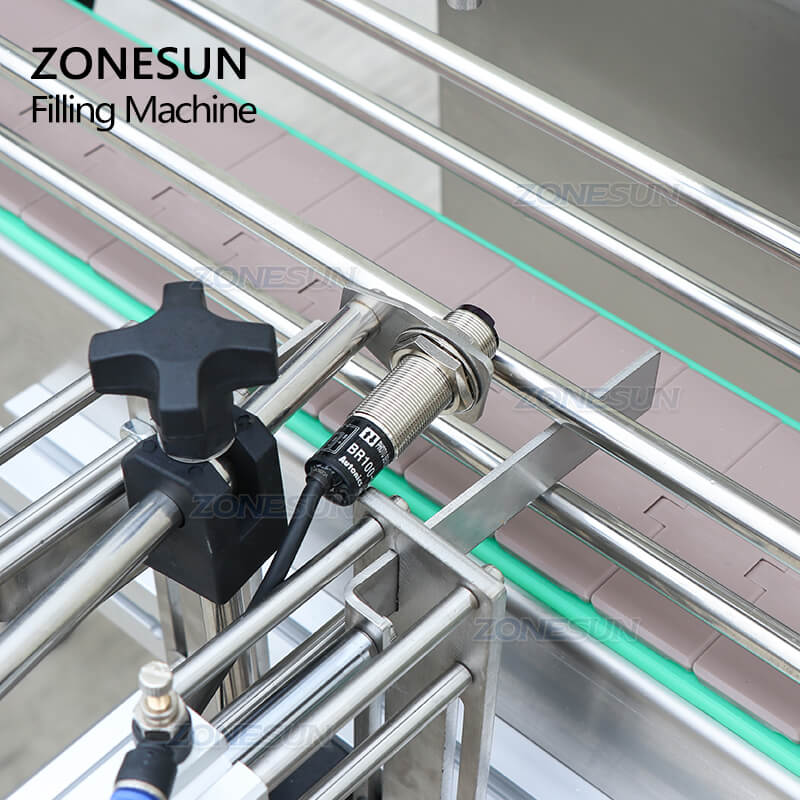

Electric Eye of Servo Motor Filling Machine With Conveyor

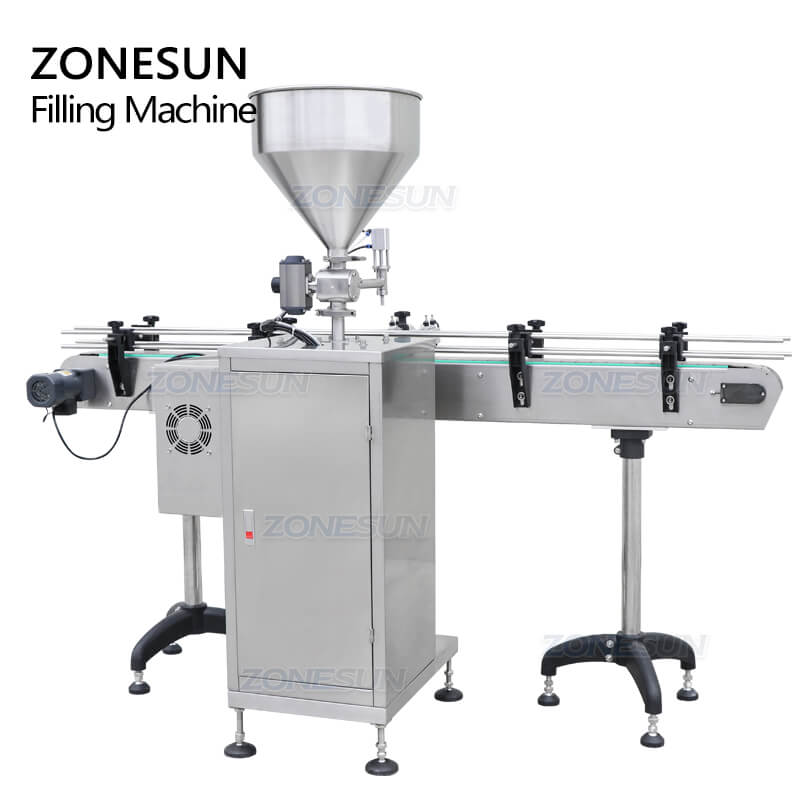

Servo Motor Filling Machine With Conveyor

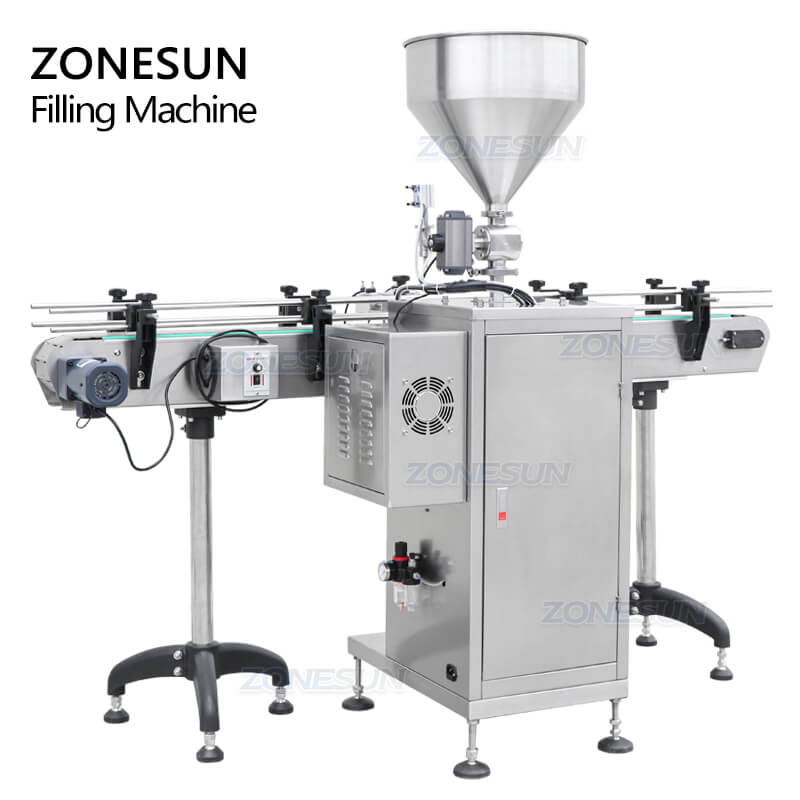

Servo Motor Filling Machine With Conveyor
Servo Motor Filling Machine With Conveyor

ZS-GY1SM Automatic Servo Motor Hot Sauce KetchupJam Jar Lotion Cosmetic Cream Shampoo Honey Bottle Liquid Paste Filling Machine

Voltage
Regular price $3,749.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

Compared with other piston pump filling machine,this one is controlled by servo motor,and operator just need to enter certain number to control filling volume,this is more convenient and easier to operate.This machine is good for filling paste and liquid,it is widely used in food,daily chemical,and cosmetics industries.

Parameter

Model:ZS-GY1SM
Voltage supply:220/110V 50/60Hz
Power:900w
Filling accuracy:≤±0.5%
Filling speed:10-25 bottles/min
Filling volume:5-100/10-300/50-500/100-1000ml
(choose based on your requirement)
Conveyor size:2m*10cm(L*W)
Air pressure:0.4-0.6 MPa
Air consumption:≥0.1m³/min
Machine weight:82kg(Filling machine)+36kg(Conveyor belt)
Package weight:108kg(Filling machine)+59kg(Conveyor belt)
Package size:65*70*132cm(Filling machine)+45*45*48cm(Hopper)
209*45*50cm(Conveyor belt)

Paste Filling Machine With ConveyorApplication of Servo Motor Paste Filling Machine With Conveyor

Details of Servo Motor Paste Filling Machine With Conveyor

Operation Panel of Servo Motor Paste Filling Machine With Conveyor

The machine is equipped with high quality touch screen control panel, it is more convenient to adjust and test working parameter in real time,this is good for control the machine and can prevent from machine error

Valve of Servo Motor Paste Filling Machine With Conveyor

Pneumatic filling nozzle is with larger great power,It also equipped with three-way valve which is good for filling liquid/paste with particles. Multiple filling nozzles can be customized to help you improves working efficiency.

Electric Eye of Servo Motor Paste Filling Machine With Conveyor

The electric eye is designed to detecting passing by bottles and control the machine to fill liquid into bottles.With this,the machine can work automtically and can work with automatic capping/labeling machine to realize automated production.

Piston Pump of Servo Motor Paste Filling Machine With Conveyor

The electric eye is designed to detecting passing by bottles and control the machine to fill liquid into bottles.With this,the machine can work automtically and can work with automatic capping/labeling machine to realize automated production.

Conveyor Belt of Servo Motor Paste Filling Machine With Conveyor

High quality conveyor belt is with large weight capacity,this is good for transporting bottles,the width of conveyor blet can be customized as operation need.

Servo Motor Paste Filling Machine With Conveyor

Servo Motor Paste Filling Machine With Conveyor
