ZS-GTSM1 Servo Motor Piston Pump Liquid Jam Honey Cream Hot Sauce Paste Bottle Filling Machine

SKU: 00100700082-0002

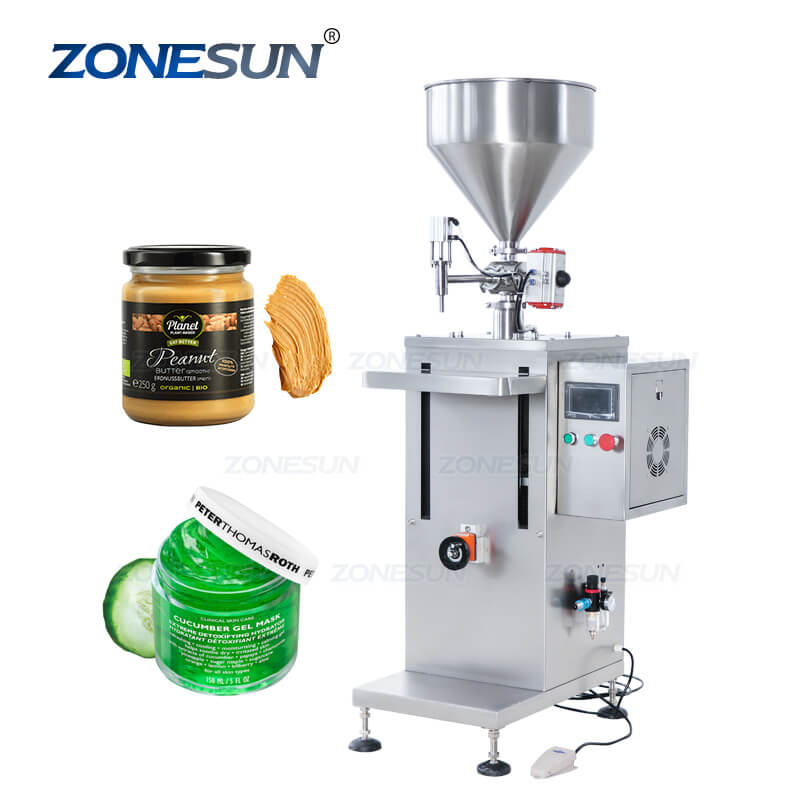

Semi-automatic Servo Motor Filling Machine

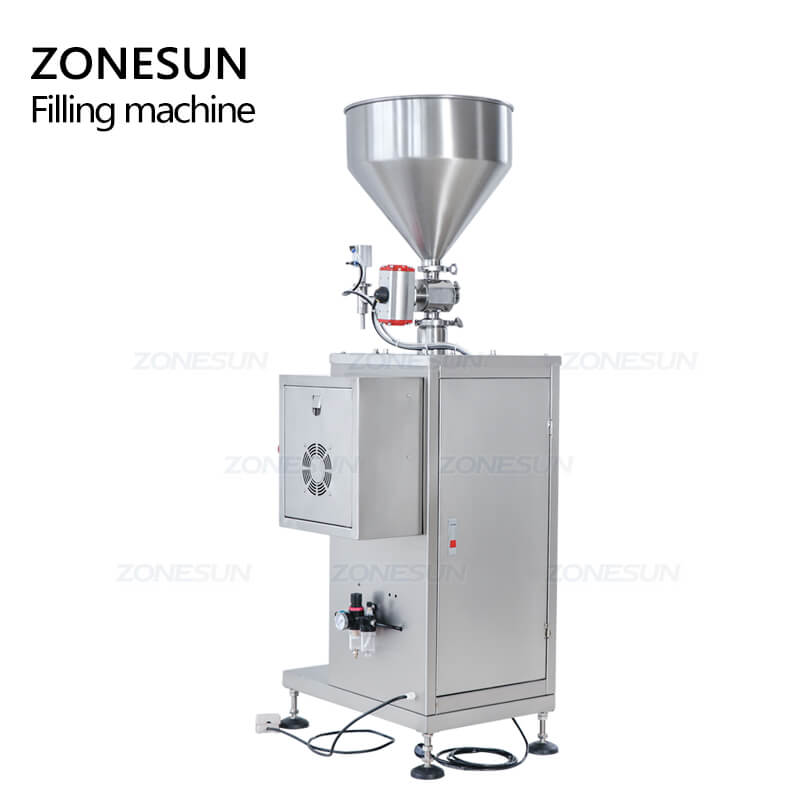

Semi-automatic Servo Motor Filling Machine
Control Panel of Semi-automatic Servo Motor Filling Machine

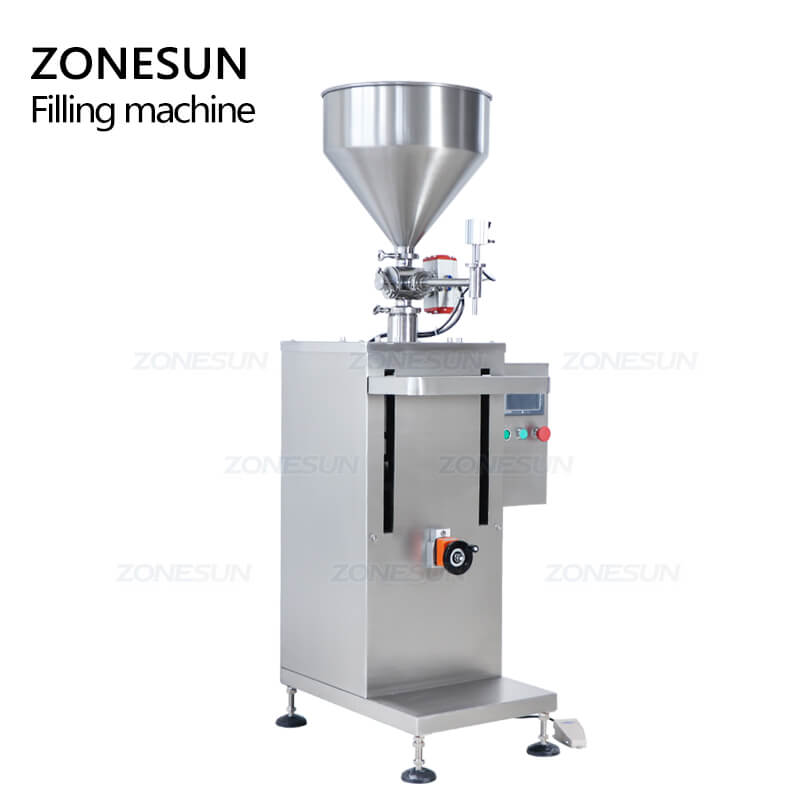

Semi-automatic Servo Motor Filling Machine

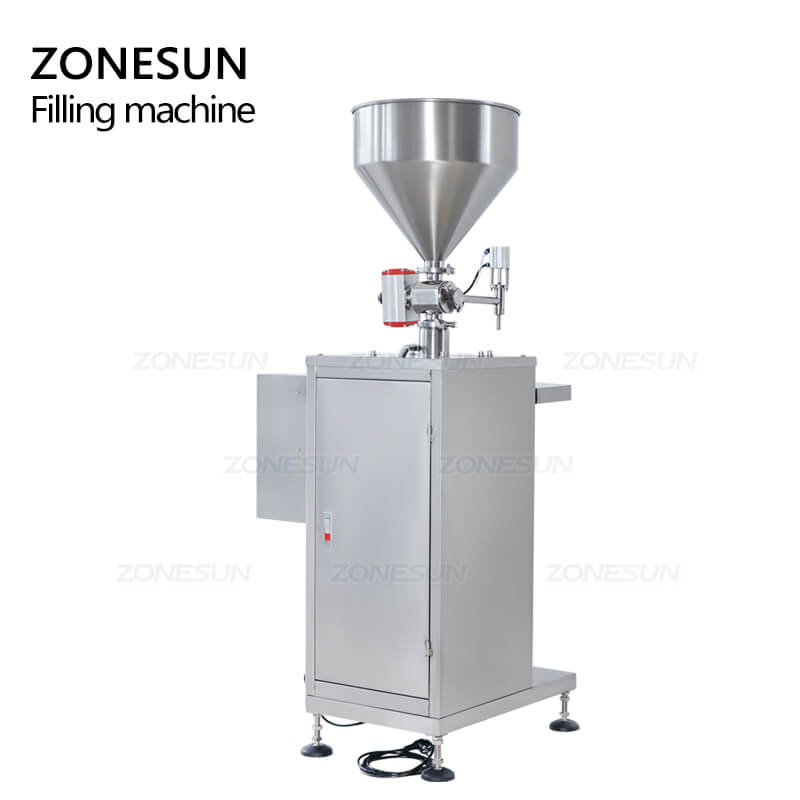

Semi-automatic Servo Motor Filling Machine
Semi-automatic Servo Motor Filling Machine

ZS-GTSM1 Servo Motor Piston Pump Liquid Jam Honey Cream Hot Sauce Paste Bottle Filling Machine

SKU: 00100700082-0002
Voltage
Regular price $2,699.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

Compared with other paste filling machine,this one is controlled by the servo motor,the filling volume can be controlled by entering certain parameter,this is more convenient to test or adjust the machine.It is widely used in food,daily chemical,and cosmetics industries.

Parameter

Model:ZS-GTSM1
Voltage supply:220/110V 50/60Hz
Power:About 950W
Filling accuracy:≤±0.5%
Filling speed:About 10-25 bottles/min
Filling volume:5-100/10-300/50-500/100-1000ml(choose based on your requirement)
Equipped with air pressure :0.4-0.6 MPa
Air consumption:≥0.1m³/min
Machine size:About 580*590*1590
Machine weight:About 92kg
Package size:About 700*1520*700mm
Package weight:About 116kg

Semi-automatic Servo Motor Filling Machine

Application of Semi-automatic Servo Motor Filling Machine

Machine Details of Semi-automatic Servo Motor Filling Machine

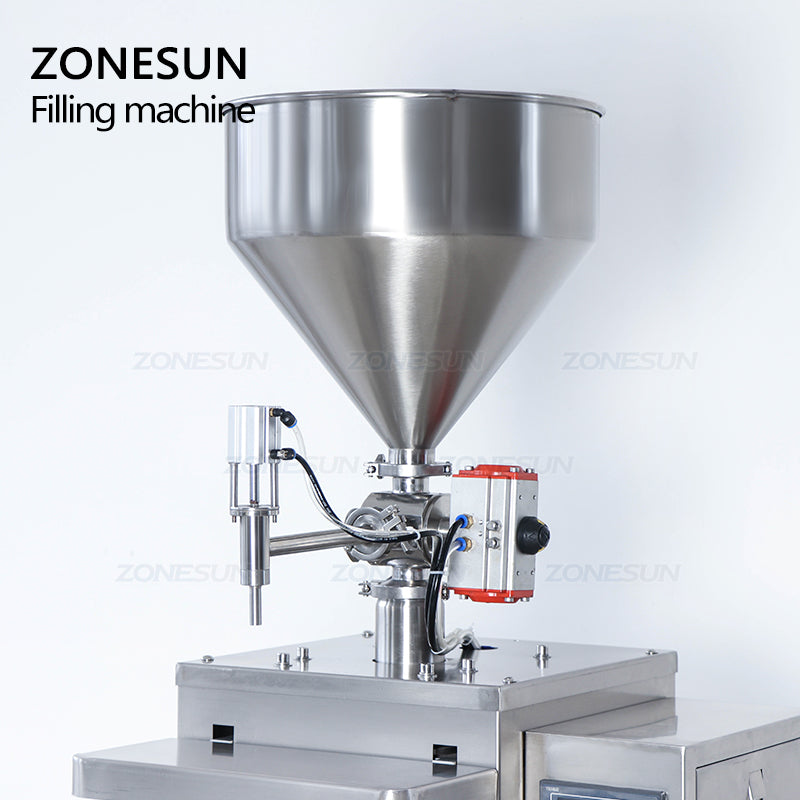

Hopper of Semi-automatic Servo Motor Paste Filling Machine

The large filling hopper is good for pouring materials,it can make the liquid or paste flow more smoothly,improves working speed.

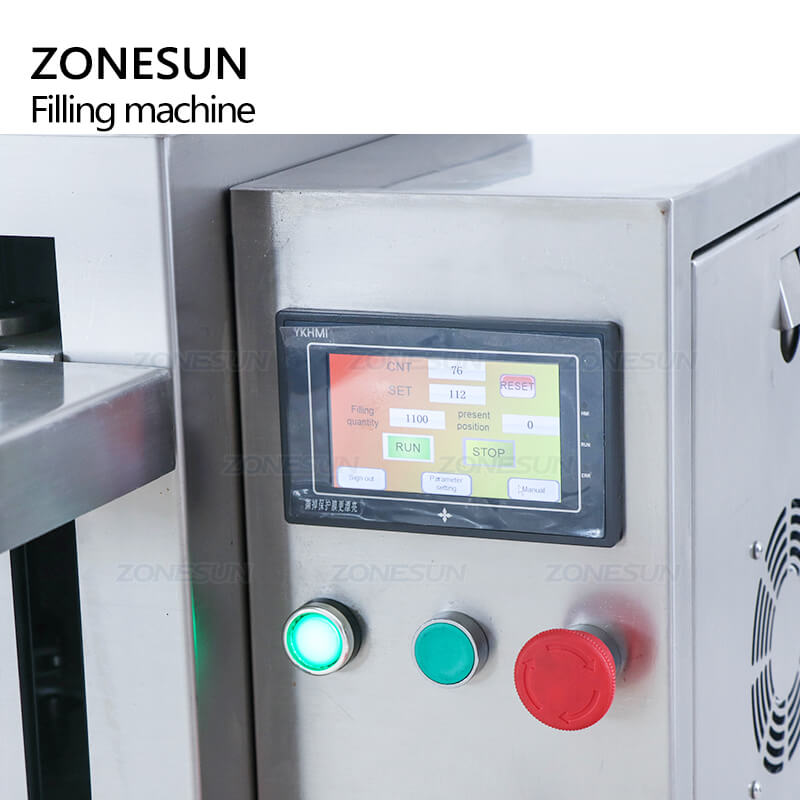

Control Panel of Semi-automatic Servo Motor Filling Machine

The touch screen control panel can show the working parameter in real time.this is more convenient to adjust the machine.The operation language of the control panel can be customized according to operation need.

Filling Nozzle of Semi-automatic Servo Motor Filling Machine

Pneumatic filling nozzle is with larger power,this is good for filling thick liquid or paste and can improve filling speed.The filling speed can be adjusted according to the operation panel.

Piston Pump of Semi-automatic Servo Motor Filling Machine

Equipped with high quality servo motor,the machine fill liquid more accurately and stably.The piston pump is suitable for filling liquid or paste with particle like fruit grains.

Rotary Knob of Semi-automatic Servo Motor Filling Machine

The height of workbench can be adjusted by the rotay knob,it is suitable for different height of bottles,make sure the liquid or paste will not spray out during filling,improves production quality.



Semi-automatic Servo Motor Filling Machine
