ZS-GFYT320 Automatic Bagged Oil Water Milk Small Pouch Sachet Liquid Pouch Filling And Back Side Sealing Packing Machine

SKU:
Size
Regular price $9,899.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

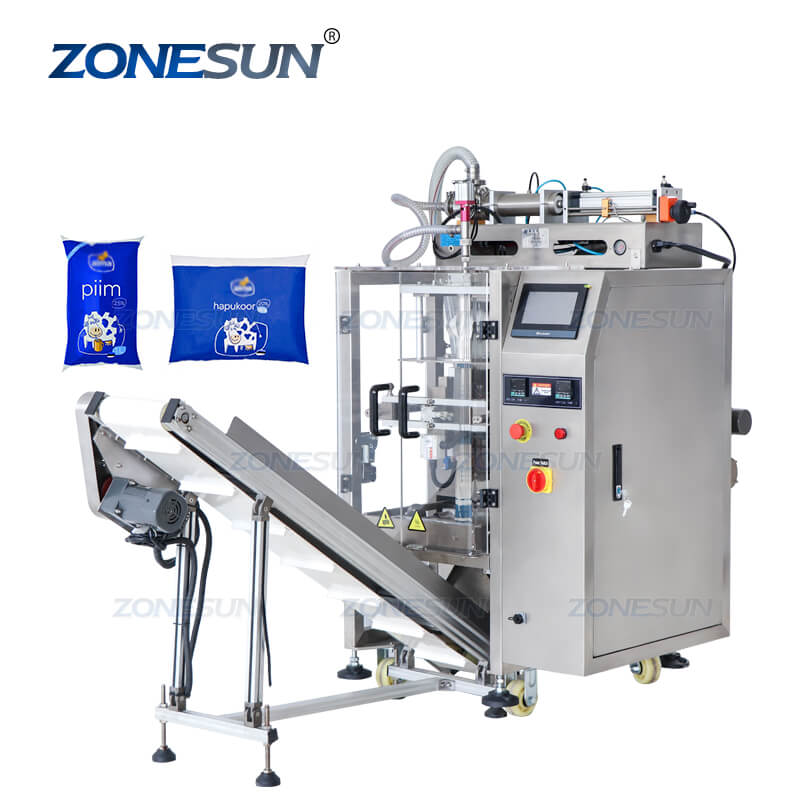

This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.

Parameter

Machine model:ZS-GFYT320
Machine voltage:110/220/380V 50-60HZ
Suitable film:OPP/CPP OPP/PE NILO PE
Filling range:50-500ml(offer different filling range)
Package speed:5-60bags/min
Width of film:Max 320mm
Size of package bags:(W)50-150mm*(L)50-400mm
Sealing method:Back side/Three sides/Four sides(Customize)
Filling accuracy:≤0.3-1%
Film thickness:0.06-0.12mm
Air Pressure:0.65Mpa 0.7m³/min
Lifting height:About 1200mm
Conveying speed:50-300mm/s(adjustable)
Machine size:About 830*1080*1450mm
Machine weight:About 289kg

Bagged Liquid Filling Sealing MachineApplication of Bagged Liquid Filling Sealing Machine

Details of Pouch Liquid Filling Sealing Machine

Operation Panel of Pouch Liquid Filling Sealing Machine

Simple control panel,it can adjust the working parameter like the temperature and sealing time easily.It can be customized in different kinds of language according to operation needs.

Details of Pouch Liquid Filling Sealing Machine

These two parts is designed for prevent from that the dripping liquid pollute the film and makes it hard to seal,with this part,the machine can improve production quality greatly.

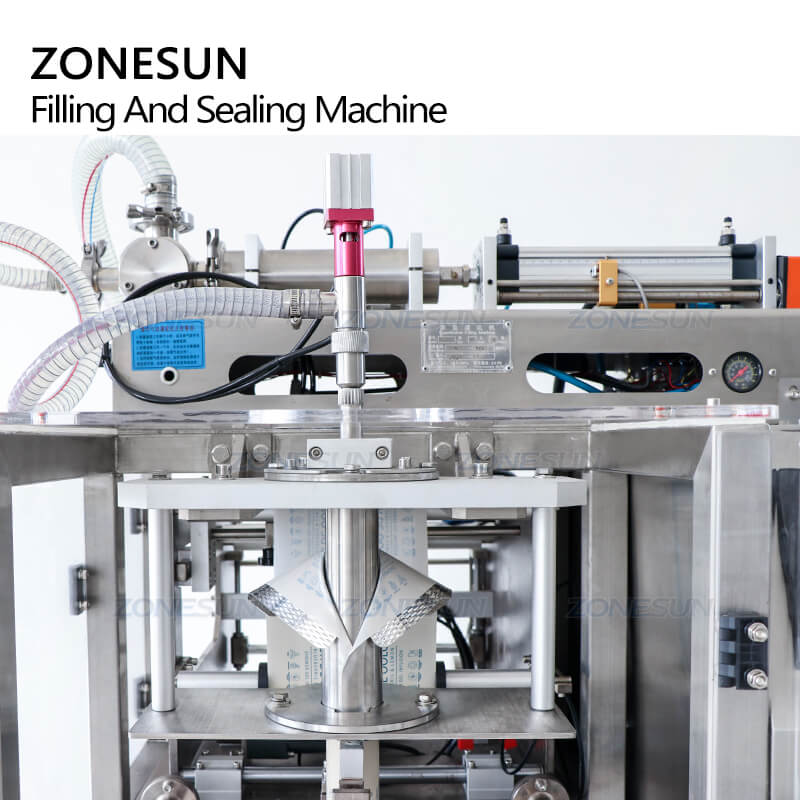

Filling Structure of Pouch Liquid Filling Sealing Machine

Equipped with piston filling machine,the filling speed and waiting time can be controlled as need.We offer different kinds of filling range.We also offer other bag filling sealing machine for different kinds of materials like granule,paste and powder.

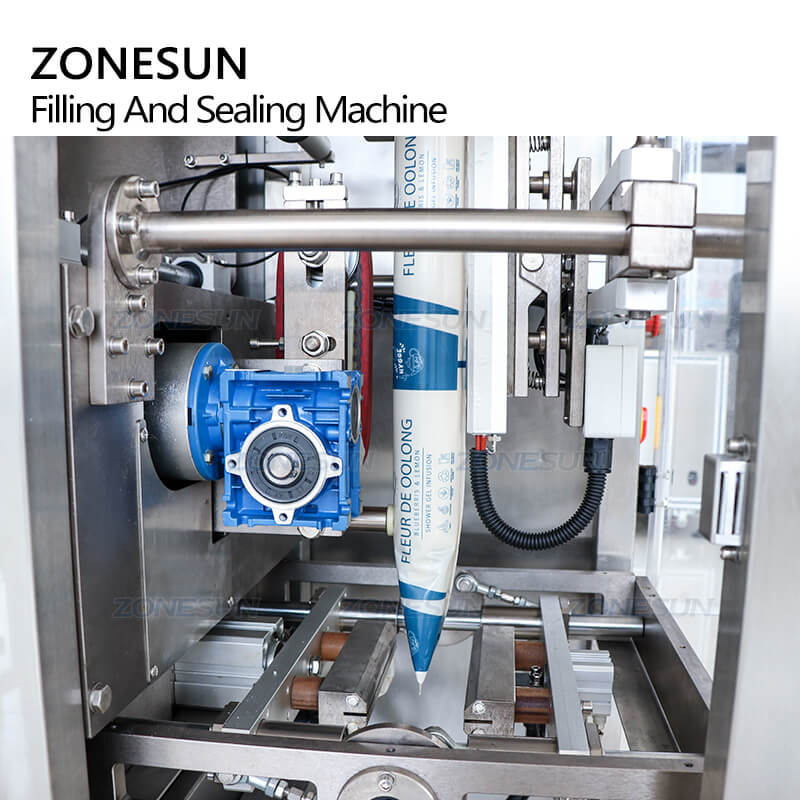

Sealing structure of Pouch Liquid Filling Sealing Machine

The sealing length and temperature can be set by touch screen control panel.High quality sealing component ensures the sealing effect.We can also customize the machine for different sealing method like three sides sealing,four sides sealing as well.

Date coder of Pouch Liquid Filling Sealing Machine

Equipped with date coder,it can print production date or batch number as operation need.We also offer multiple colors of ribbon,please contact us if you need this.

Pouch Liquid Filling Sealing Machine

Pouch Liquid Filling Sealing Machine
