ZS-FP220 Automatic Plastic Bag Sriracha Jam Ketchup Hot Sauce Rotor Lobe Pump Filling Back Side Sealing Machine VFFS Packaging Equipment

Voltage
Price
Regular price $11,999.00 USD
Regular price Sale price $11,999.00 USD
Save $-11,999 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For High Speed Sachet Packaging Machine

Compared with other filling sealing machine, this liquid/paste VFFS packing machine has high working speed, the packing speed can reach 60-130 bags/min. It is suitable for bagged liquid and paste.It is widely used in packaging food like honey, ketchup, and personal care products like shampoo.

Parameter

  • Machine model:ZS-FP220
  • Voltage:110/220V 50-60HZ 2KW
  • Filling range:1-10ml(Can be customized)
  • Sealing type:Back side sealing(Can be customized)
  • Filling pump:Rotor pump
  • Packaging speed:30-60bags/min
  • Bag size:20-145mm(L)*20-110mm(W)
  • Packaging size:About 1070*780*1740mm
  • Packaging weight:About 336kg

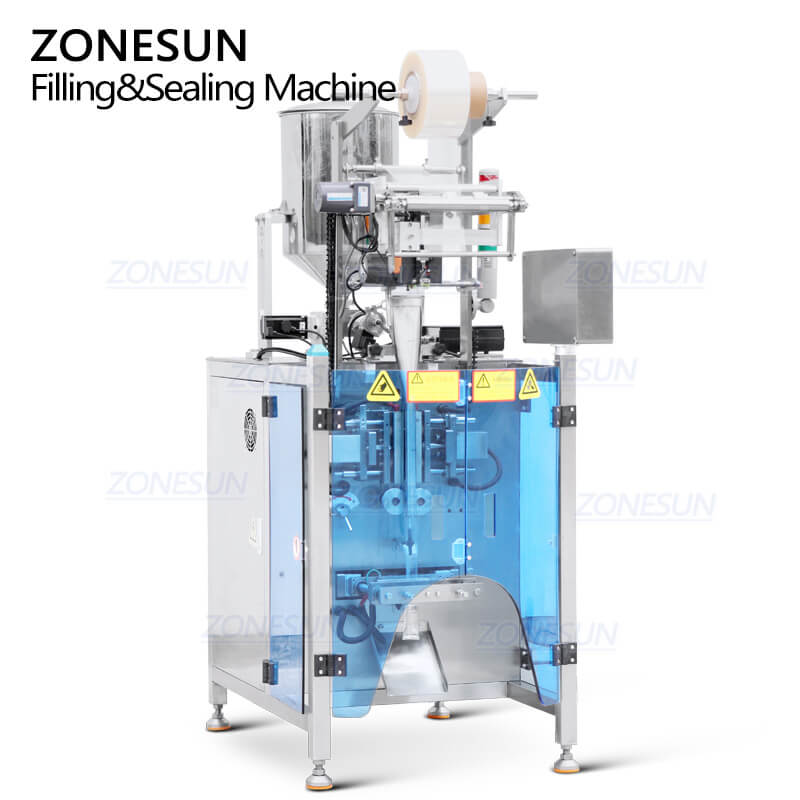

high speed VFFS packaging machine

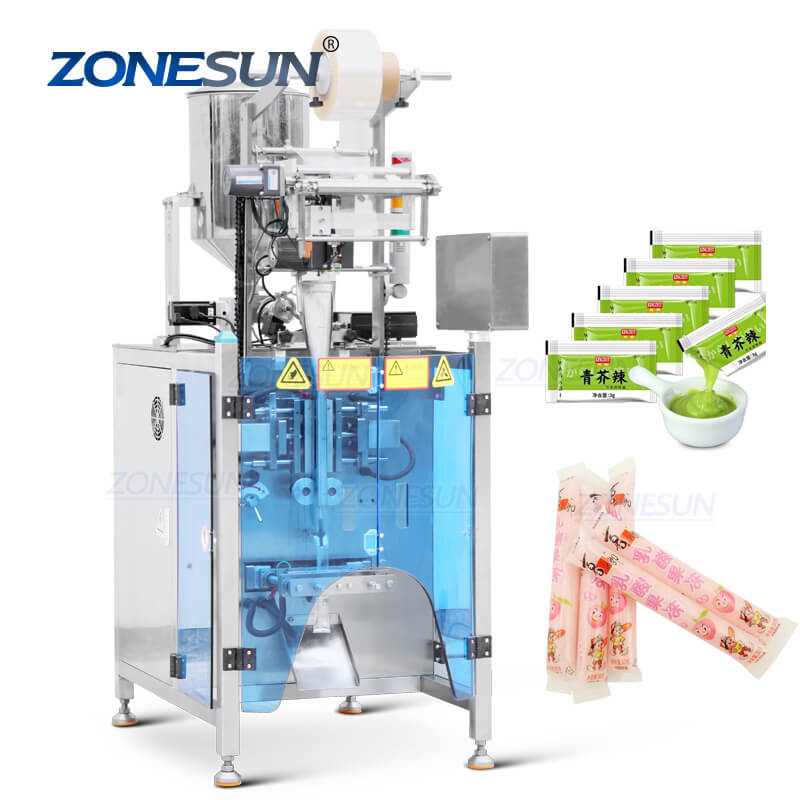

application of high speed vffs packaging machine

ketchup filling sealing machine

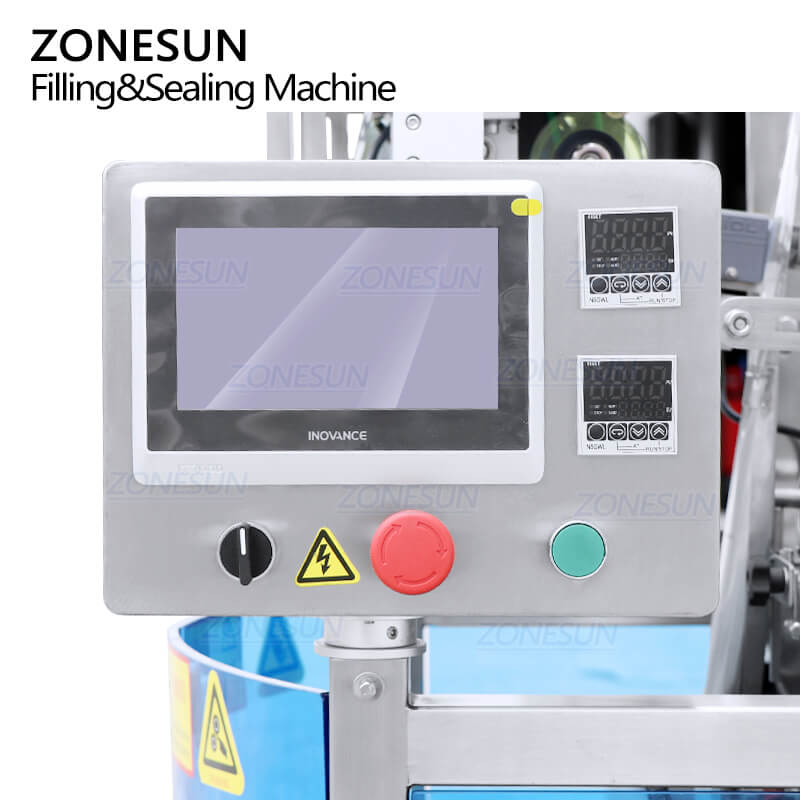

control panel of ketchup filling sealing machine

Equipped with PLC touch screen control panel, working parameter like bag length, packing speed can be set by visual data, this is more convenient when adjusting machine.

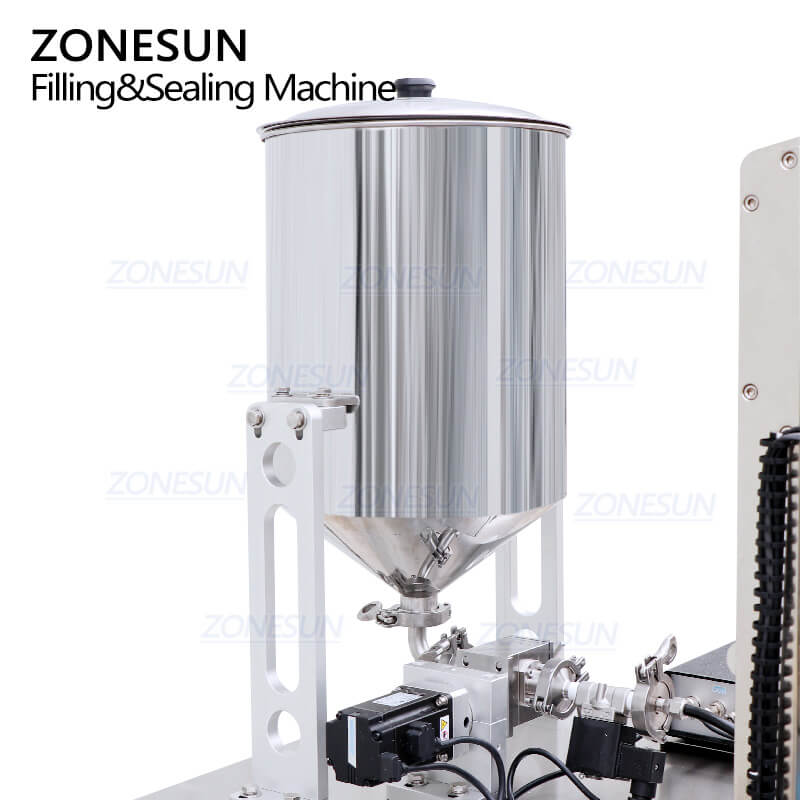

hopper of ketchup filling sealing machine

Large hopper can ensure filling material can be pumped more smoothly.Extra heater & mixer can be equipped with to process pre-treatment of filling material.Feeding pump is optional to realize automatic material feeding.

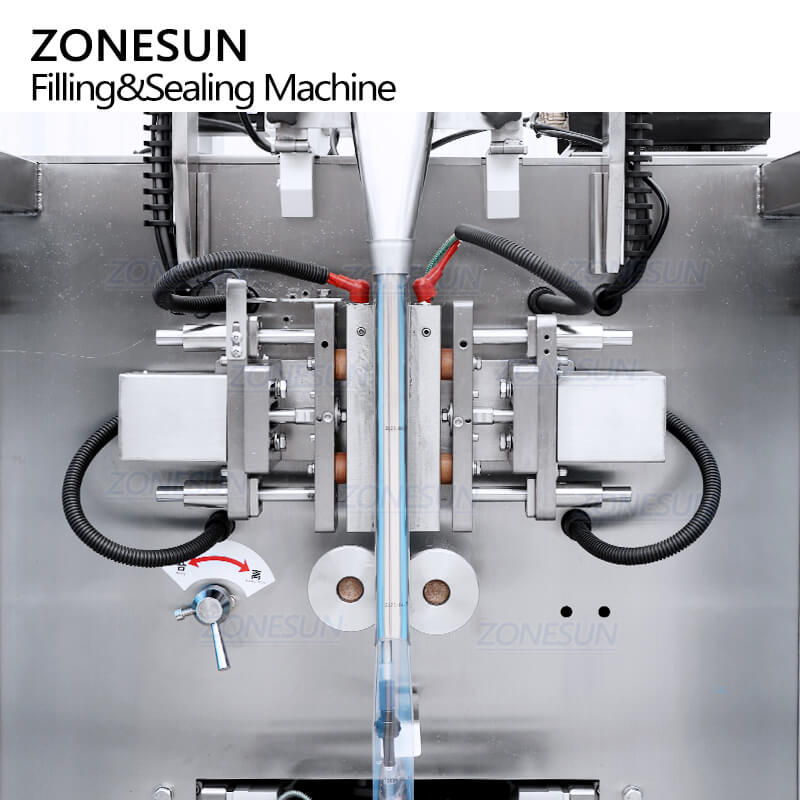

sealing structure of ketchup filling sealing machine

Sealing temeprature can be adjusted according to packaging film.It is suitable for heat sealable packaging film, different kinds of sealing type can be customized as production need.

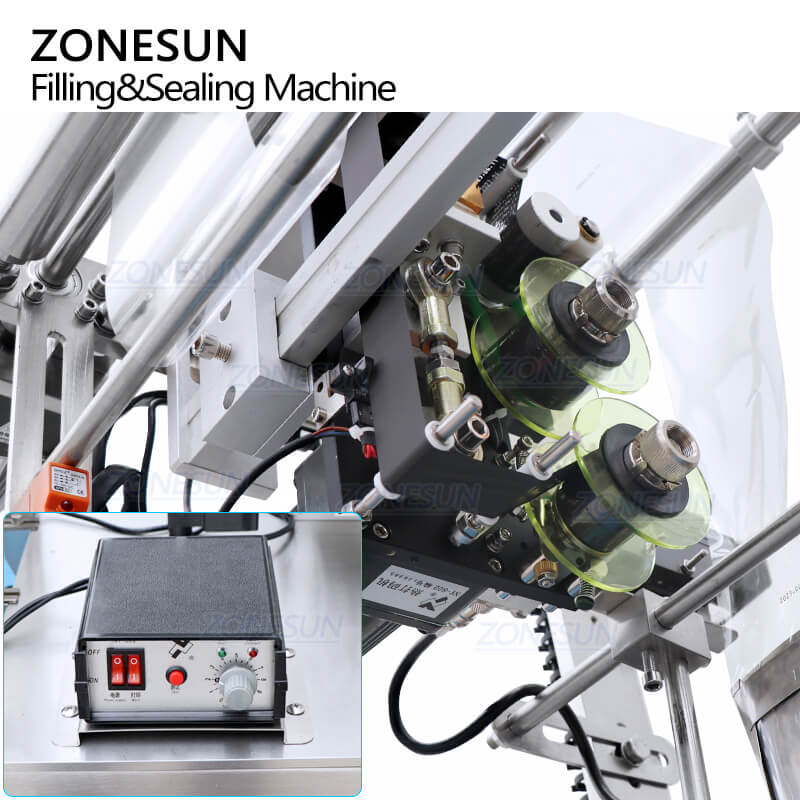

date coder of ketchup filling sealing machine

Extra date coder can be equipped with to print batch number or production date.This can save production process and improve packaging quality.

hot sauce filling sealing machine
