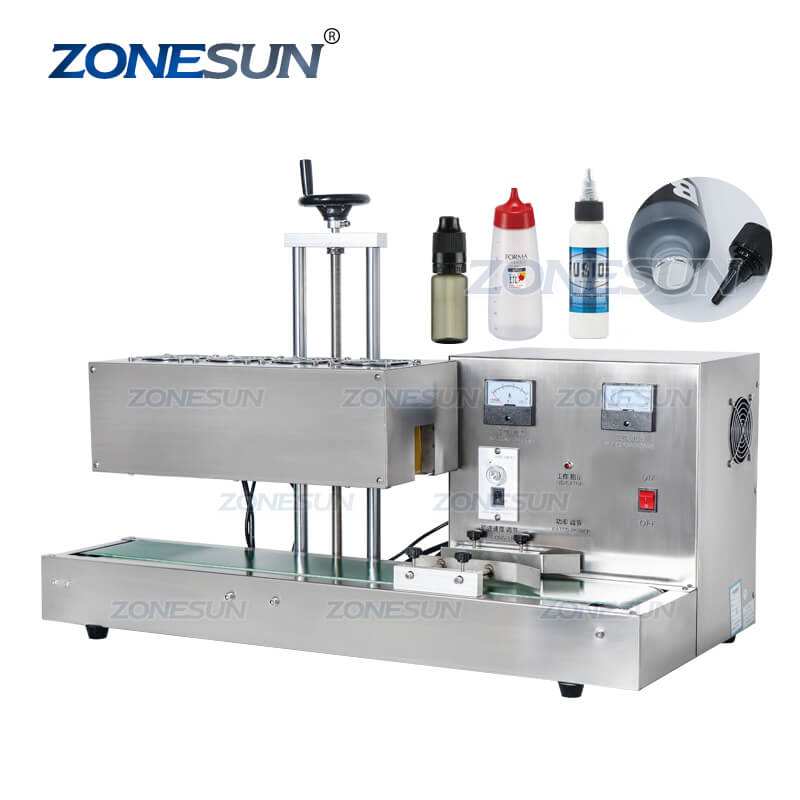

ZS-FK2200 Automatic Sharp Mouth Bottles Cap Continous Electromangetic Induction Aluminium Foil Sealing Machine

Sharp Pointed Bottle Cap Sealing Machine
Rotary Knob of Sharp Pointed Bottle Cap Sealing Machine
Bottle Inlet of Sharp Pointed Bottle Cap Sealing Machine
Sealing Structure of Sharp Pointed Bottle Cap Sealing Machine
Sharp Pointed Bottle Cap Sealing Machine
Sharp Pointed Bottle Cap Sealing Machine

ZS-FK2200 Automatic Sharp Mouth Bottles Cap Continous Electromangetic Induction Aluminium Foil Sealing Machine

Size
Regular price $969.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

This machine is designed for sealing plastic caps of sharp mouth bottle.The working height of this machine can be adjusted according to bottle size.It is widely used in food industries.

Parameter
Machine model:ZS-FK2200
Machine voltage:110/220V 50-60Hz
Machine power:2200W
Sealing diameter:Φ15-85mm
Suitable bottle height:10-350mm
Conveyor belt speed:0-10m/min
Sealing speed:20-50 bottles/min
Machine weight:About 25kg
Package size:About 1000*585*550mm
Package weight:About 49kg

Bottle Cap Sealing MachineApplication of Bottle Cap Sealing MachineMachine Part of Bottle Cap Sealing MachineRotary Knob of Bottle Cap Sealing Machine

The working height of this machine can be adjusted according to bottle height by rotating the knob.This can help to improve production quality.

Operation Panel of Bottle Cap Sealing Machine

The simple control panel can help you watch working voltage and current in real time,ensures the safety operation.The sealing temperature can be adjusted according to operation need.

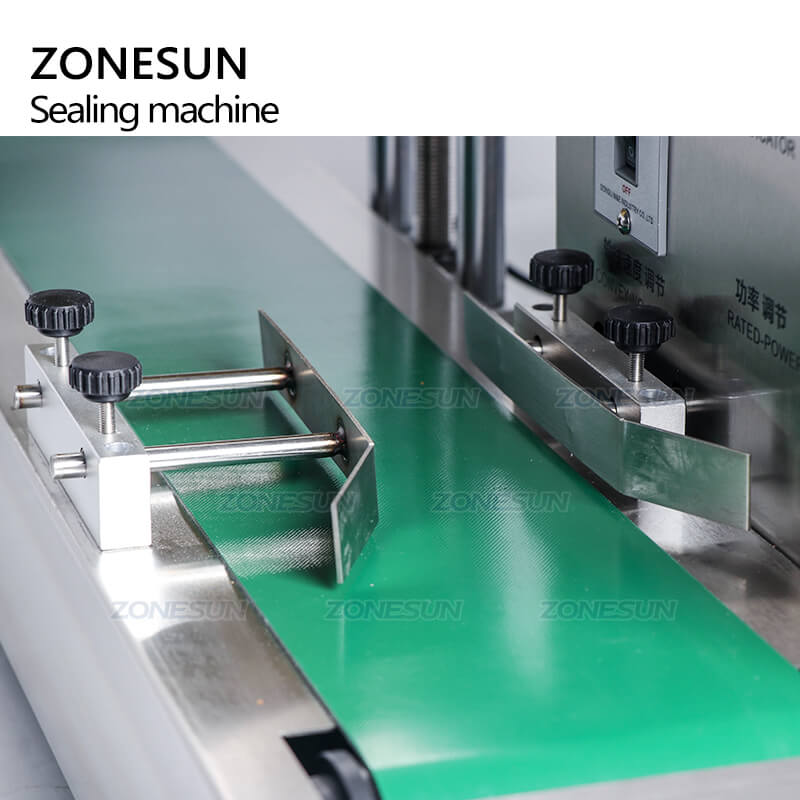

Bottle Inlet of Bottle Cap Sealing Machine

The feeding inlet can be adjusted according to bottle diameter.This can help to arrange bottle before sealing.Makes sure the production can be in order.

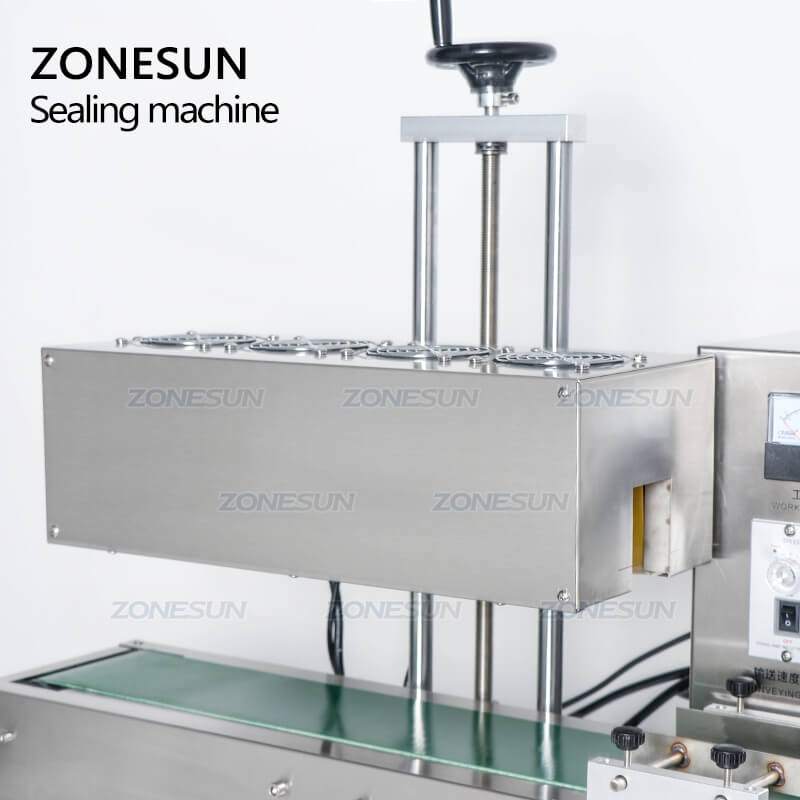

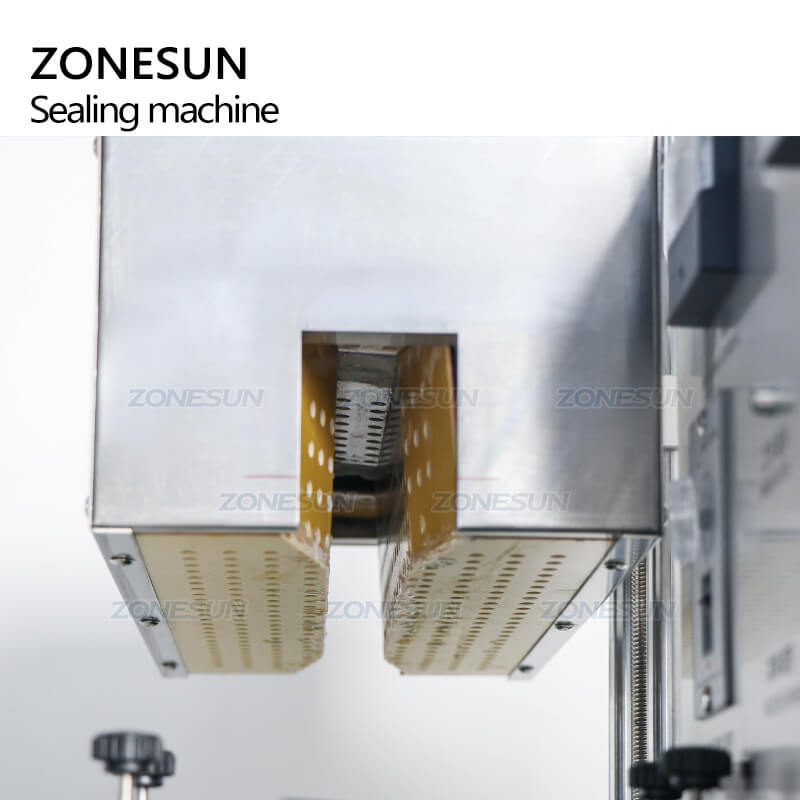

Sealing Structure of Bottle Cap Sealing Machine

The host sends the audio current to the sensor head, and the aluminum foil is electromagnetically induced to generate super-audio current, which instantly reaches high temperature, so that the composite film is bonded to the bottle mouth.This design is good for sharp mouth bottles.
