ZONESUN ZS-DTMP4C 4 Heads Automatic Desktop Wine Perfume Liquid Juice Glass Bottle Filling Machine
Regular price
$2,189.00 USD
Regular price
Sale price
$2,189.00 USD
Save $-2,189 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

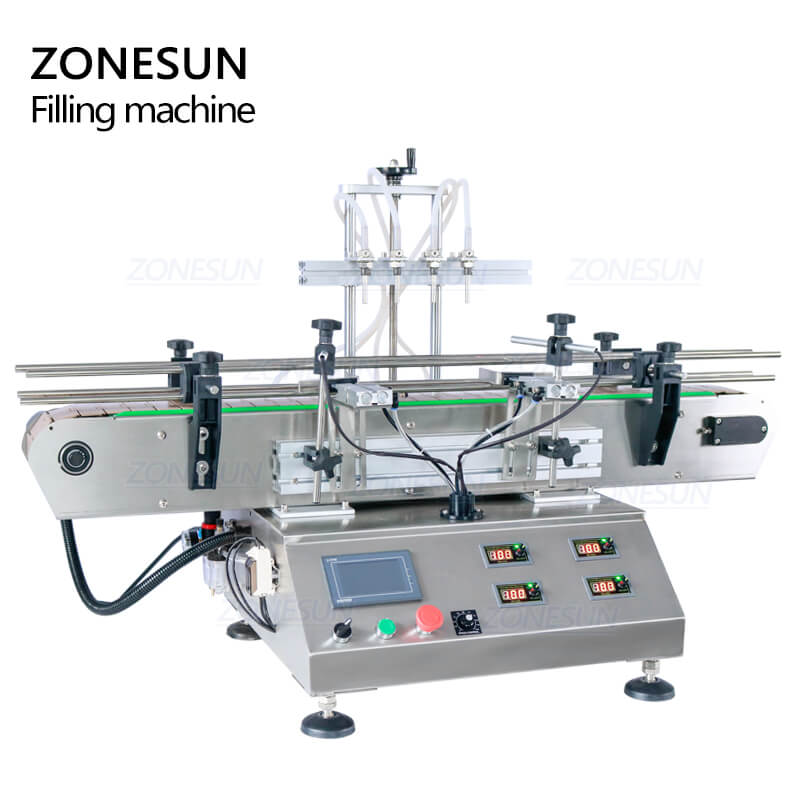

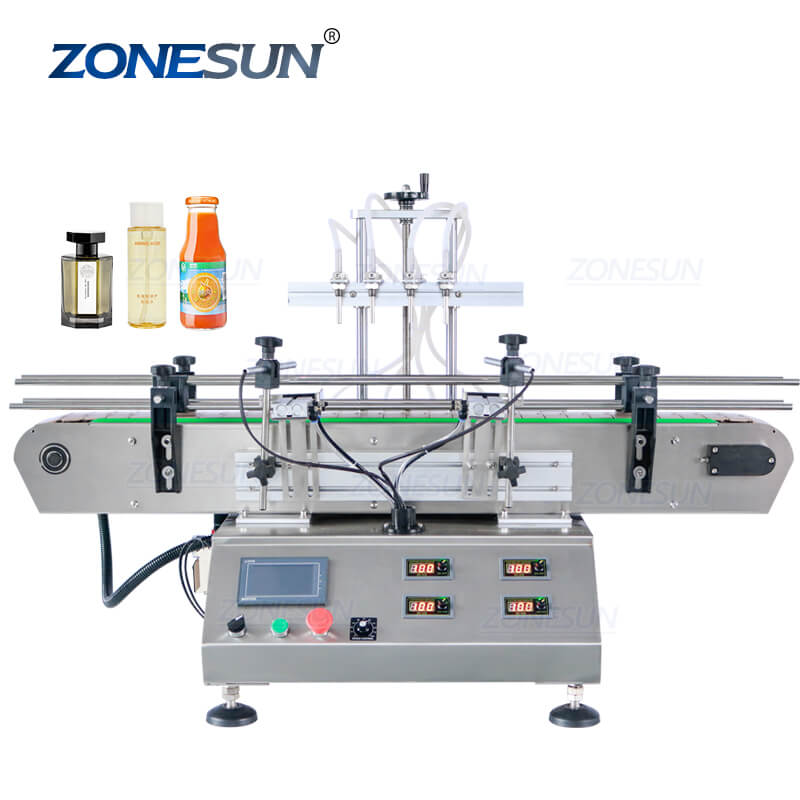

This desktop filling machine is equipped with chain conveyor belt, compared with the leather conveyor belt, this one is with larger capacity, this makes it suitable for filling larger volume and transport them faster and more smooth. The magnetic pump filling machine is high precision that it can be used to fill essential oil, solution, eye drops, inks, perfume etc.
Desktop Filling Machine Parameter
- Machine Model: ZS-DTMP4C
- Power Supply: 220V/110V 50-60Hz 400 W
- Machine Pump: 316L Stainless Steel Magnetic Pump
- Recommended Filling Range: 5-1000 mL
- Filling Speed: 20-30 bottles/min(depend on material and bottle size)
- Filling Flow: 3200 ml/min(Each nozzle and depend on water)
- Suitable Bottle Size: H: 100-200 mm
- Conveyor Size: 1200 mm*100 mm(L*W)
- Diameter of Filling Nozzle: OD 6/8 mm
- Filling Time Range: 0.01-999.9 s
- Filling Accuracy: ±0.5 %
- Size of Air Compressor Connector: OD 8 mm
- Machine Size: About 1200*700*850 mm
- Package Size: About 1400*900*950 mm
- Net Weight: About 65 kg
- Gross Weight: About 100.5 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required

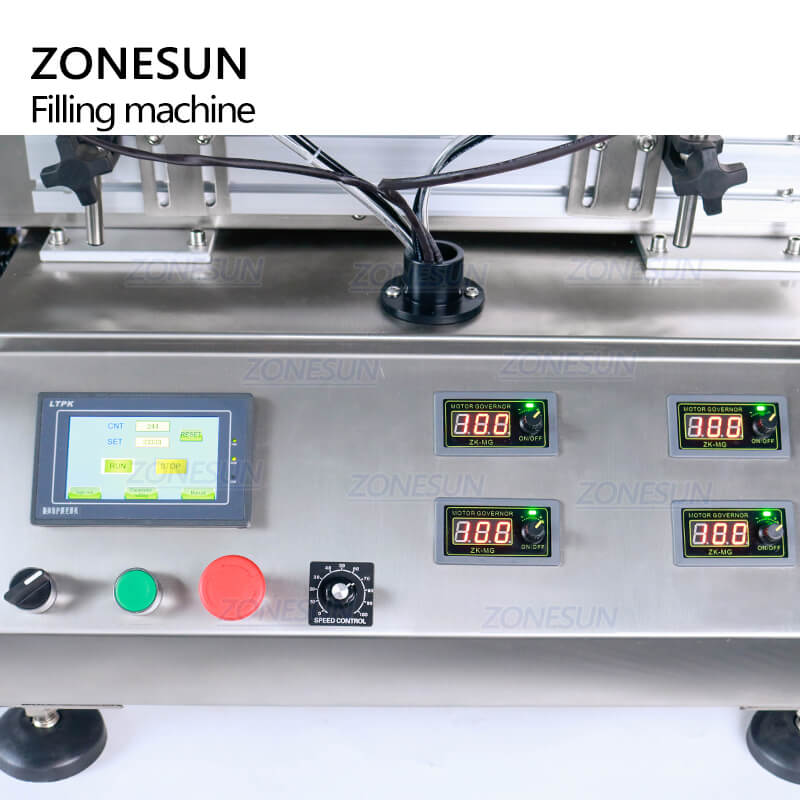

Through PLC control panel, you can set parameters like filling time and delay time. It has automatic counting function and the number of filled bottles will display on the panel. Visual and accurate. The language of the panel can be customized as needed.

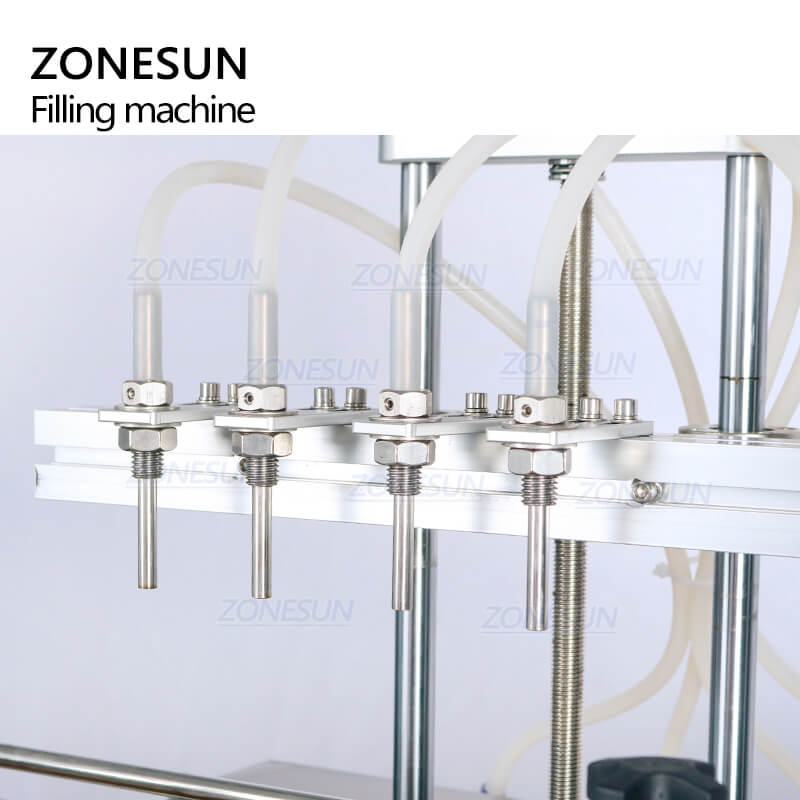

The filling speed and time of four heads can be controlled separately. Easy to operate. With anti-dripping function, they can fill liquid accurately. The height of the heads can be adjusted as needed, making it suitable for bottles of different heights.
They are designed for detecting the bottles and controlling the machine to fill liquid automatically, saving labor cost. The sensitivity of electric eyes can be adjusted by the sensitivity regulator. Easy and convenient.

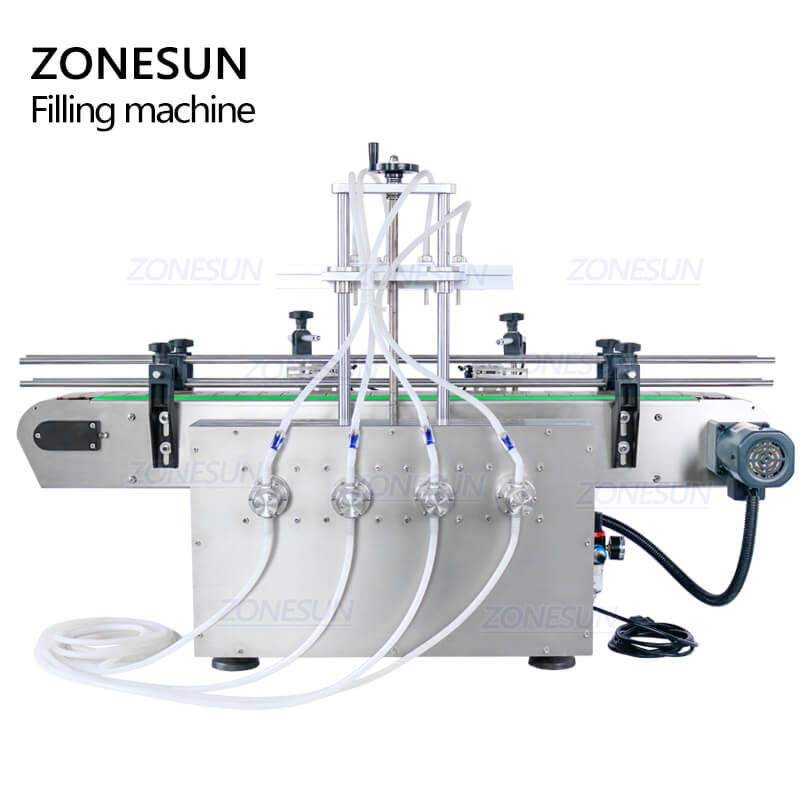

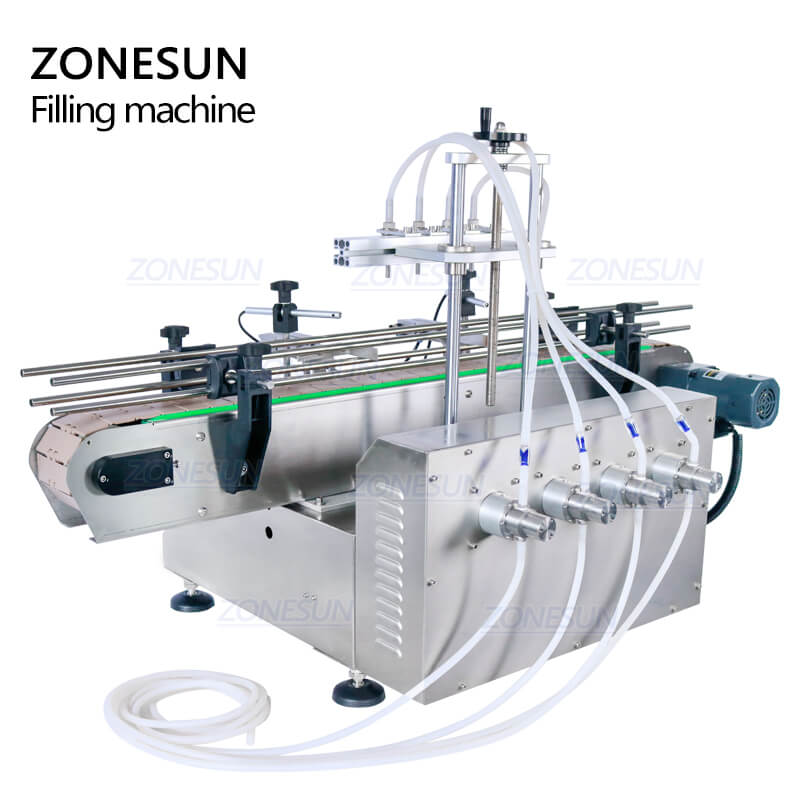

Equipped with stainless steel magnetic pumps, it can fill liquid accurately, ensuring production quality. The pumps have the advantage of high temperature resistance and corrosion resistance. Durable and reliable.
With chain conveyor belt, it has a large bearing capacity, which can transport heavy containers smoothly and stably. Improve work efficiency. The conveying speed can be adjusted by the black knob.
