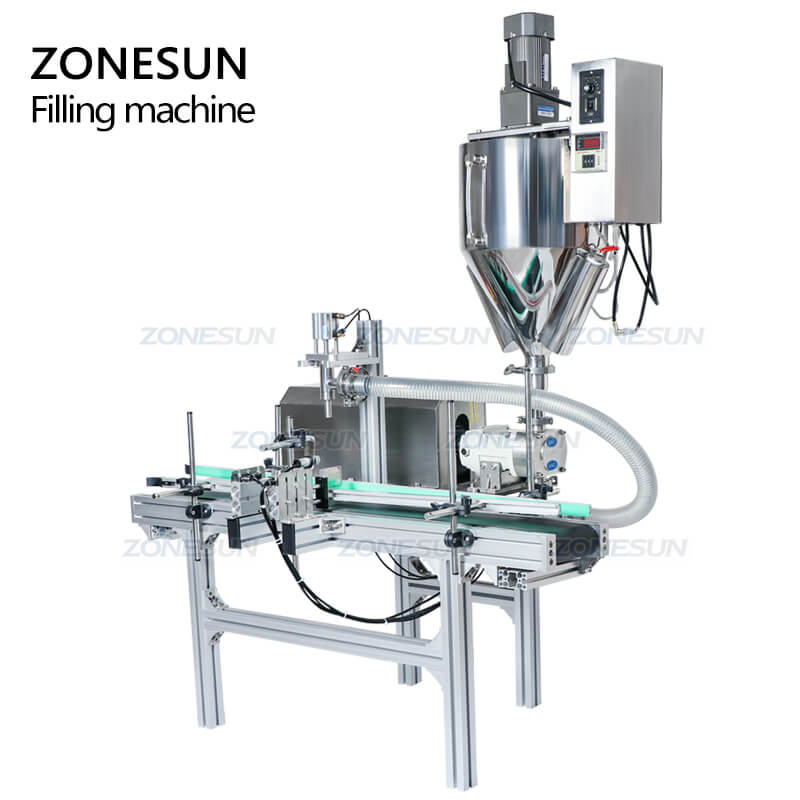

ZS-DTGT900M Automatic Rotor Lobe Pump Honey Chocolate Peanut Butter Lotion Jam Bottle Paste Filling Machine

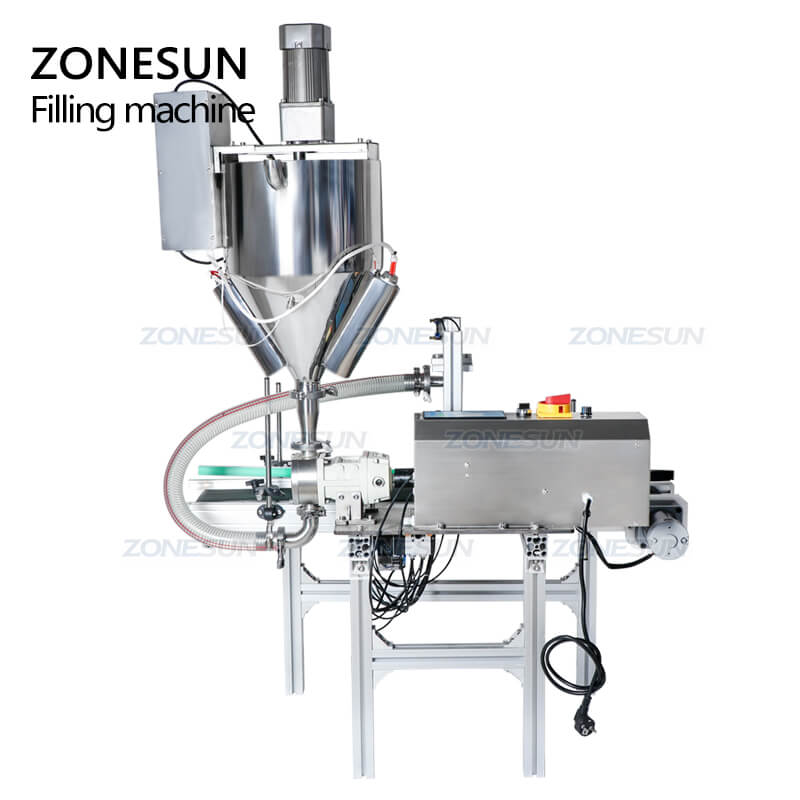

Paste Filling Machine With Heater Mixer
Filling Nozzle of Paste Filling Machine With Heater Mixer
Hopper of Paste Filling Machine With Heater Mixer

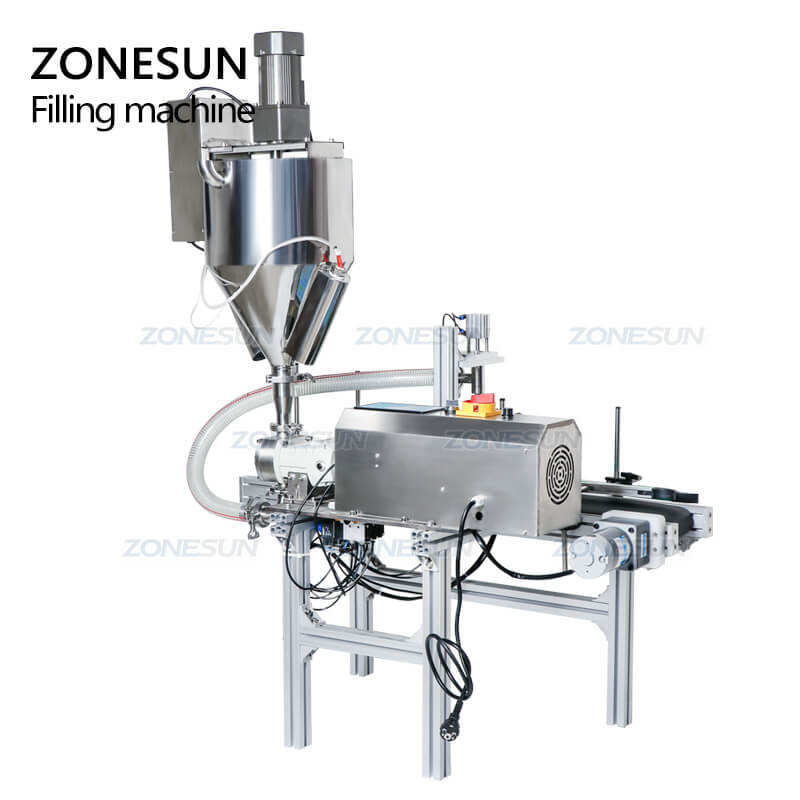

Paste Filling Machine With Heater Mixer
Paste Filling Machine With Heater Mixer
Paste Filling Machine With Heater Mixer

ZS-DTGT900M Automatic Rotor Lobe Pump Honey Chocolate Peanut Butter Lotion Jam Bottle Paste Filling Machine

Size
Regular price $2,719.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

This machine is with mixing and heating function,it is good for filling paste like chocolate,pepper sauce,jam,honey etc.It is equipped with high quality rotor pump,which can fill paste precisely.This machine is widely used in food,drinks and daily chemical industries.

Parameter

  • Machine model:ZS-DTGT900M
  • Machine power:1500W
  • Recommend filling volume:5-5000ml
  • Filling accuracy:≤±1%(When the filling volume is less than 100 ml, there will be an error of 2-5 ml. Please consult customer service for specific materials.)
  • Bottle opening size:φ>20mm
  • Mixing speed:0-100r/min
  • Heating temperature:≤399℃
  • Hopper size:30L
  • Working speed:10-60bottles/min(based on 250ml jam)
  • Machine size:About 1090*700*680mm
  • Machine weight:About 54kg

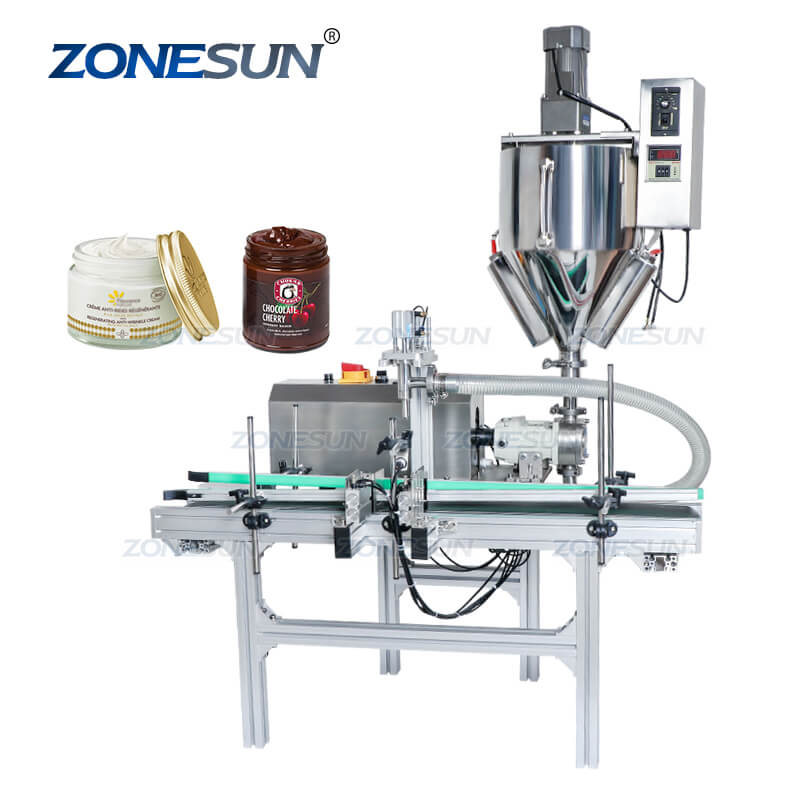

Paste Filling Machine With Mixer HeaterApplication of Paste Filling Machine With Mixer HeaterMachine Part of Paste Filling Machine With Mixer HeaterOperation Panel of Paste Filling Machine With Mixer Heater

Designed with simple control panel,the filling time and filling speed can be adjust easily.The working mode can be adjusted according to operation need as well.

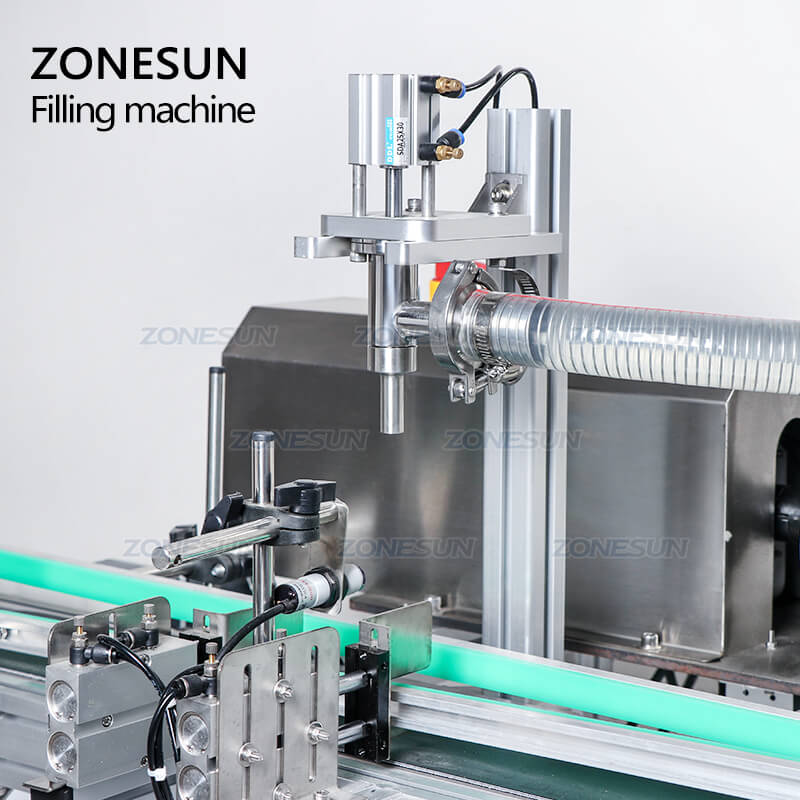

Filling Nozzle of Paste Filling Machine With Mixer Heater

Equipped with pneumatic filling nozzle,this is with larger power and can fill paste faster.The height of filling nozzle can be adjusted according to bottle size.

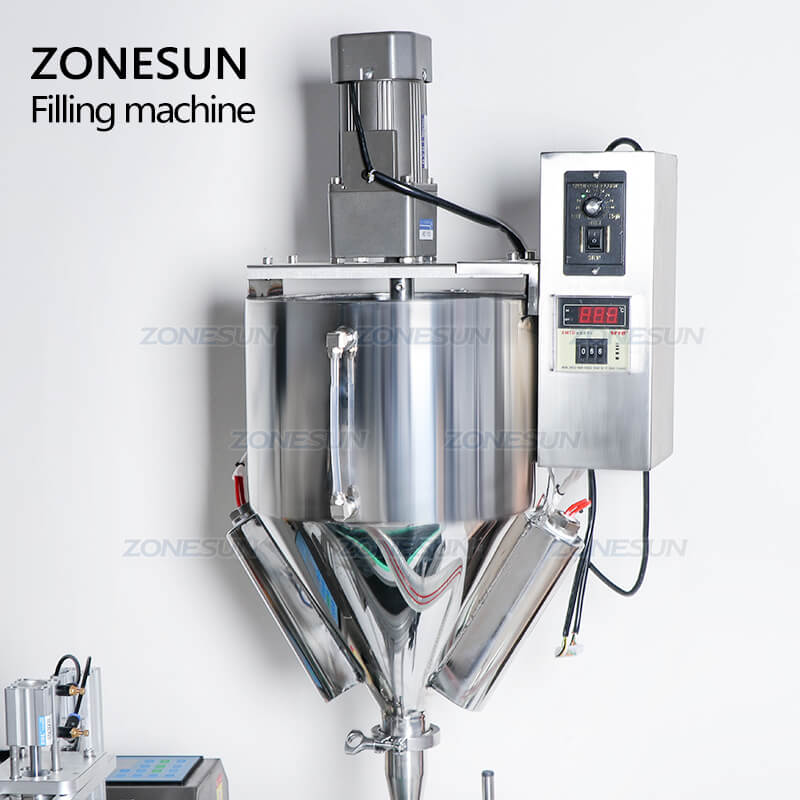

Hopper of Paste Filling Machine With Mixer Heater

The hopper is with mixing and heating function,the mixing speed and heating temperature can be adjusted according to operation need.Makes sure the filling material can be mixed evenly before filling,improves production quality.

Electric Eye of Paste Filling Machine With Mixer Heater

The machine is equipped with high quality electric eye,it is used to detect passing by bottles and control the machine to fill paste or not.This improves filling accuracy.

Rotor Pump of Paste Filling Machine With Mixer Heater

Equipped with high quality rotor pump,this filling machine is a filling equipment composed of a servo motor and a cam rotor pump. The pump head is a metering pump with a positive displacement structure. The displacement per revolution is a fixed value. The servo motor can accurately control the speed for metering and filling.

Paste Filling Machine With Mixer Heater

Paste Filling Machine With Mixer Heater
