ZS-DTGT900 Automatic Ketchup Jam Jar Lotion Cream Chili Sauce Filling Machine

Automatic Rotor Pump Paste Filling Machine
Filling Nozzle of Automatic Rotor Pump Paste Filling Machine
Hopper of Automatic Rotor Pump Paste Filling Machine
Automatic Rotor Pump Paste Filling Machine
Automatic Rotor Pump Paste Filling Machine
Automatic Rotor Pump Paste Filling Machine
Automatic Rotor Pump Paste Filling Machine

ZS-DTGT900 Automatic Ketchup Jam Jar Lotion Cream Chili Sauce Filling Machine

Voltage
Regular price $2,289.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

Click Video Link For Video

This desktop filling machine is equipped with rotor pump which is good for filling thick liquid or paste like pepper sauce,tomato paste,curry paste,jam.It can filling material accurately and automatically,helps you improve working efficiency.It is widely used in food,daily chemical and cosmetics industries.

Parameter

Machine model:ZS-DTGT900
Machine power:840W
Recommend filling volume:5-5000ml
Filling accuracy:≤±1%
Bottle opening size:φ>20mm
Hopper size:30L
Working speed:10-60bottles/min(based on 250ml jam)
Machine size:About 1090*700*680mm
Machine weight:About 54kg

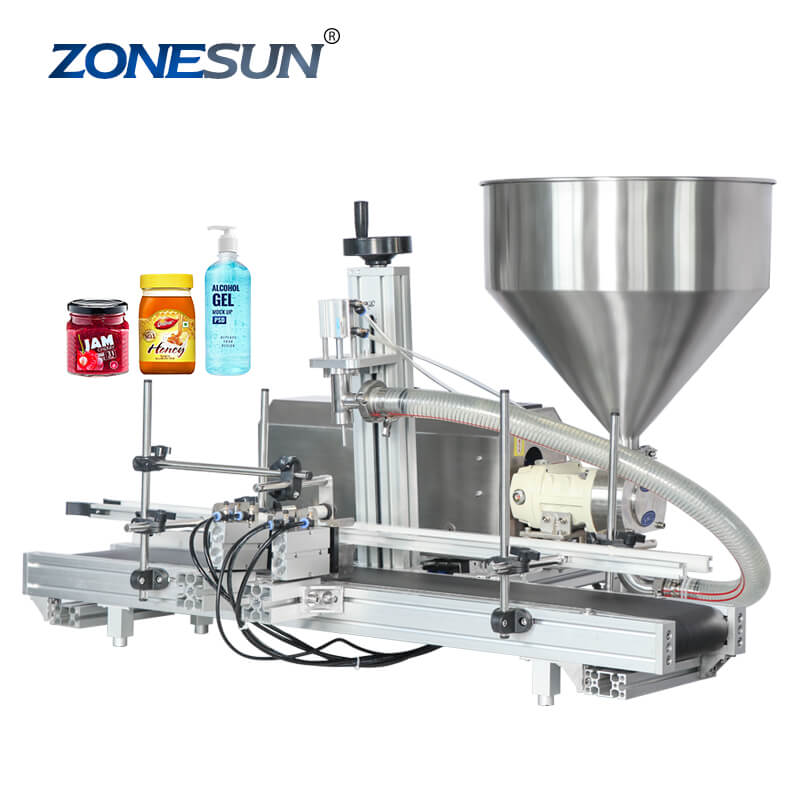

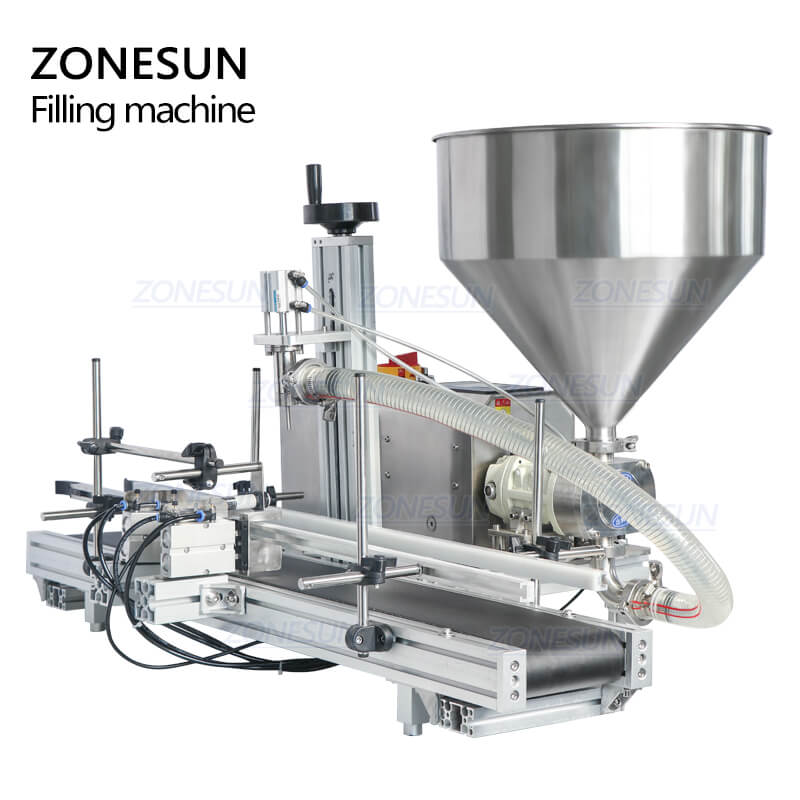

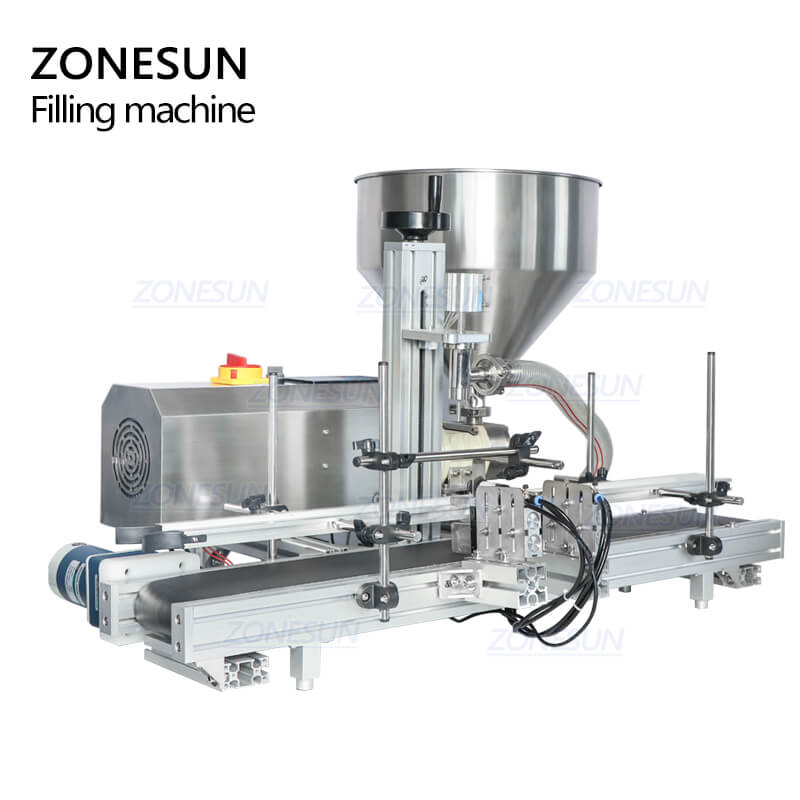

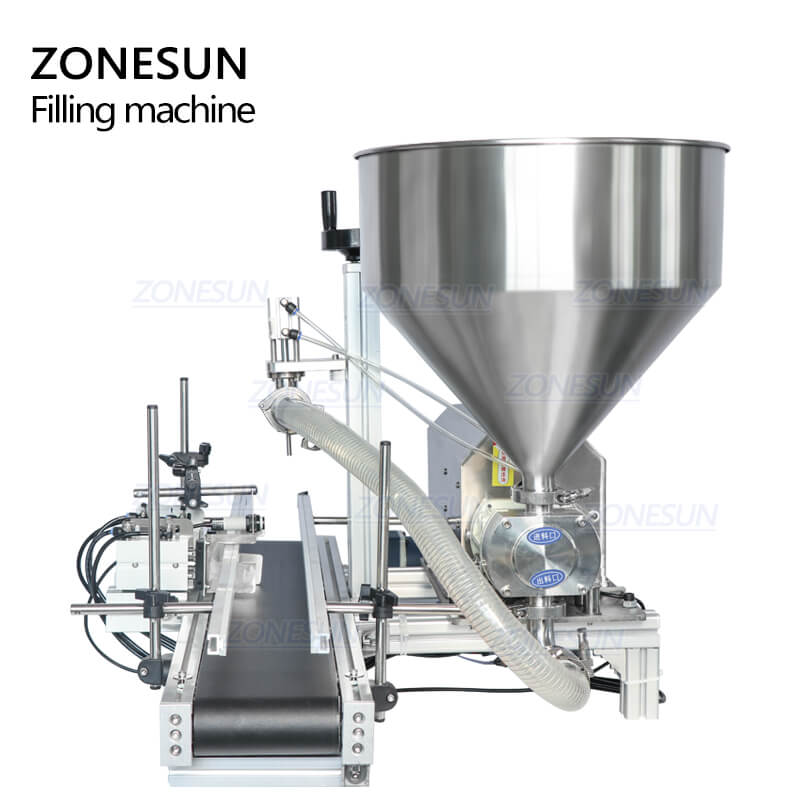

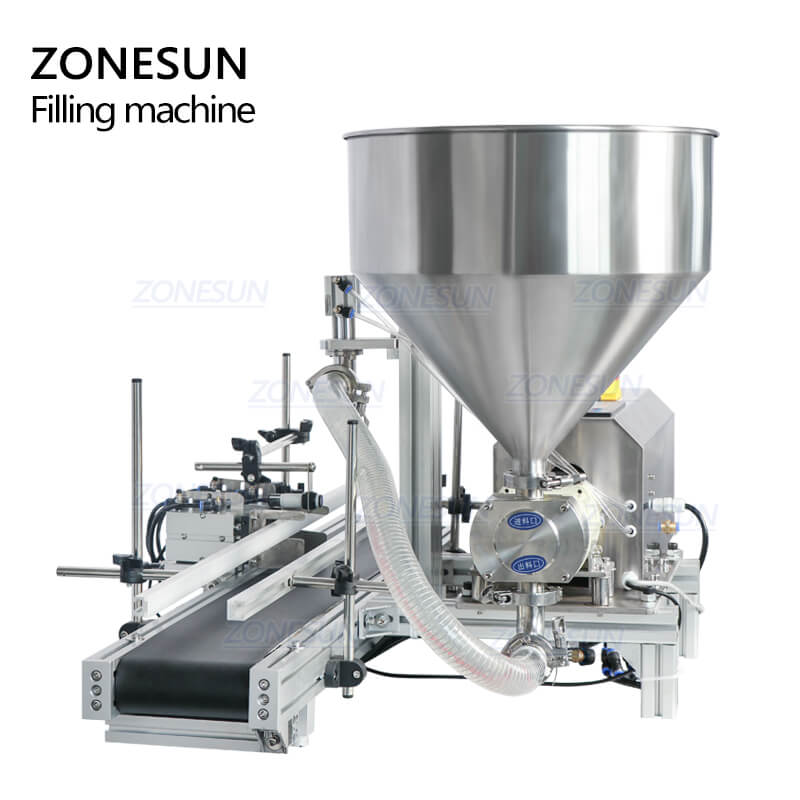

Desktop Automatic Rotor Pump Paste Filling Machine

Application of Desktop Automatic Rotor Pump Paste Filling Machine

Dimension of Desktop Automatic Rotor Pump Paste Filling Machine

Operation Panel of Desktop Automatic Rotor Pump Paste Filling Machine

Designed with simple control panel,the filling time and filling speed can be adjust easily.The working mode can be adjusted according to operation need as well

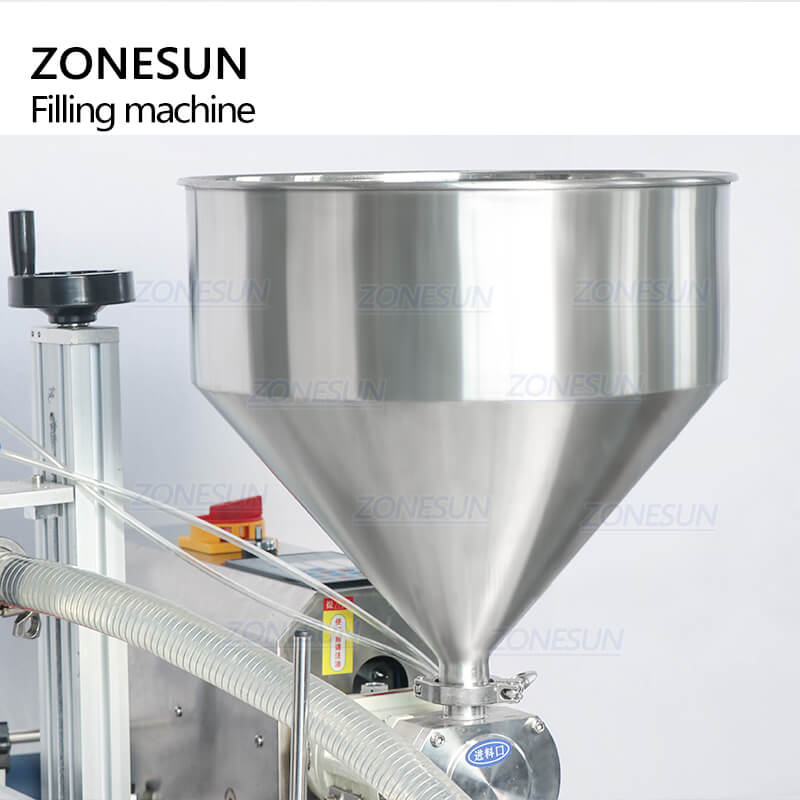

Hopper of Desktop Automatic Rotor Pump Paste Filling Machine

The large hopper makes it easier to pour filling materials,improve working efficiency.

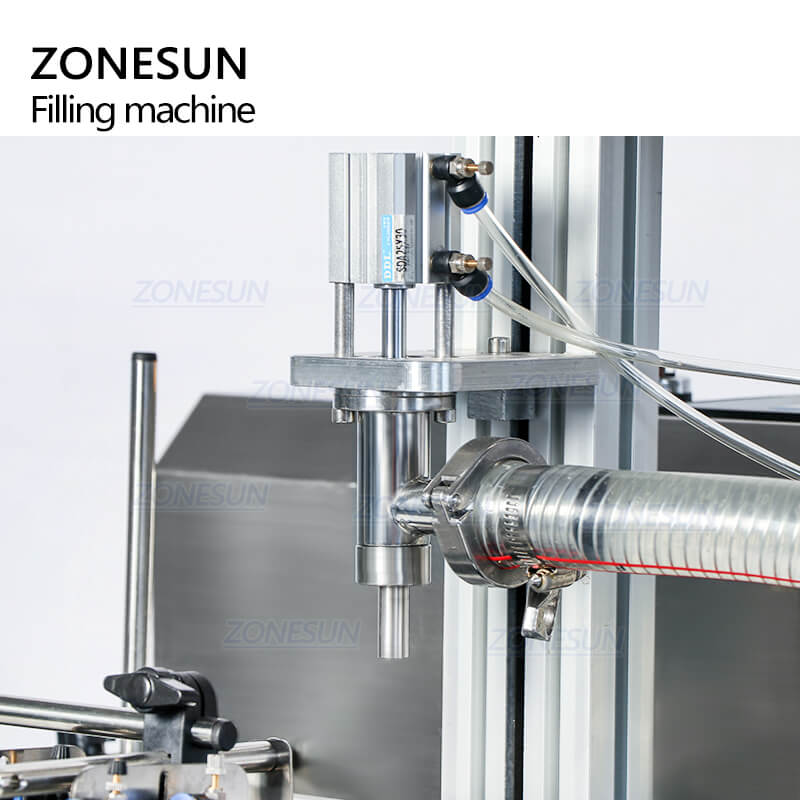

Filling Nozzle of Desktop Automatic Rotor Pump Paste Filling Machine

With pneumatic filling nozzle,it has large power,and the pump can suck filling material back,ensures the filling accuracy.The rotary knob can be used to adjust the working height of the filling nozzle according to bottle height

Electric Eye of Desktop Automatic Rotor Pump Paste Filling Machine

Equipped with high quality electric eye,this can detect passing by bottles and control the machine to work or not.Improve working accuracy.

Rotor Pump of Desktop Automatic Paste Filling Machine
Equipped with high quality rotor pump,this filling machine is a filling equipment composed of a servo motor and a cam rotor pump. The pump head is a metering pump with a positive displacement structure. The displacement per revolution is a fixed value. The servo motor can accurately control the speed for metering and filling.

Conveyor Belt of of Desktop Automatic Rotor Pump Paste Filling Machine

The conveyor belt can transport bottles smoothly and stably,reduce production process and labor.

Automatic Rotor Pump Paste Filling Machine

Automatic Rotor Pump Paste Filling Machine



We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
