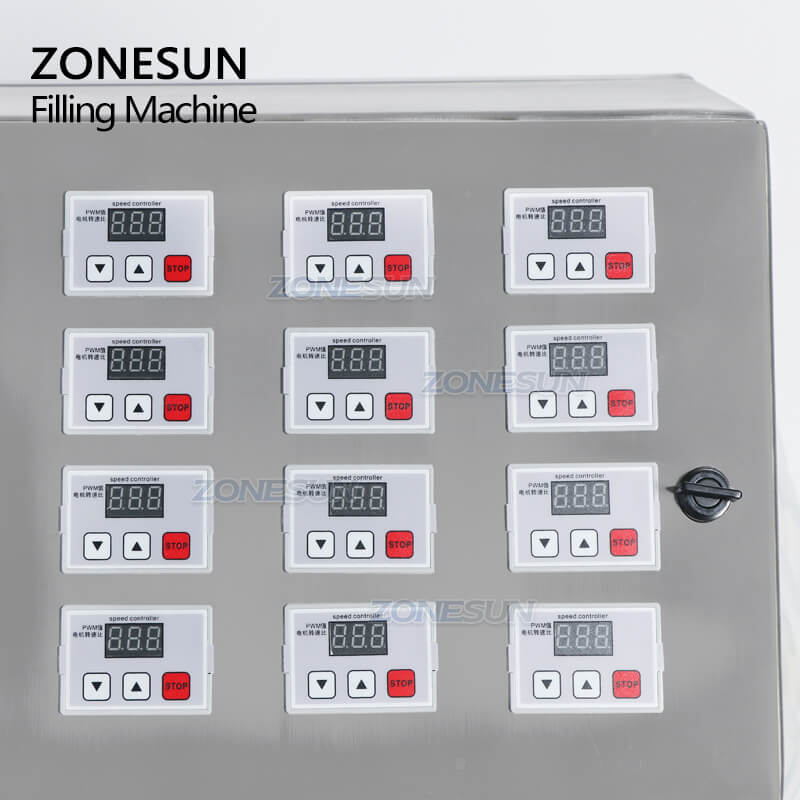

Speed Regulator of 12 Head Liquid Filling Machine

Filling Nozzle of 12 Head Liquid Filling Machine

Operation Panel of 12 Head Liquid Filling Machine

Voltage

110V

220V

Price

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":41042994987157,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"00100200086-ZS","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ZS-DPYT12P 12 Heads Semi-automatic Bottle Juice Olive Oil Liquid Filling Machine - 110V","public_title":"110V","options":["110V"],"price":94900,"weight":49000,"compare_at_price":16000,"inventory_quantity":665,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41042995019925,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"00100200085-ZS","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ZS-DPYT12P 12 Heads Semi-automatic Bottle Juice Olive Oil Liquid Filling Machine - 220V","public_title":"220V","options":["220V"],"price":94900,"weight":49000,"compare_at_price":16000,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Click For Video

Name: ZS-DPYT12P 12 Heads Semi-automatic Bottle Juice Olive Oil Liquid Filling Machine
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00100200086-ZS
Price: 949.0 USD
Availability: InStock

Description

The machine is with multiple filling nozzle which can improve filling efficiency greatly.Each filling nozzle can be controlled separately.It is suitable for filling low viscosity liquid without particle like water,juice,milk,perfume etc.This machine is widely used in food,beverage,cosmetics and daily chemical industries.

Paramter

Machine model:ZS-DPYT12P
Voltage:220V/110V 50-60HZ
Rated power:300W
Rated current:2.5A
Filling range:30-4000ml(each pump)
Maximum suction distance:1.5M
Maximum flow rate:4L/MIN(each pump)
Repetitive error:smaller than 0.5% (depending on the density of product)
OD of filling nozzle:OD 6mm
Machine weight:42 kg
Machine size:500*250*580mm
Package size:650*650*450mm
Package weight:49kg

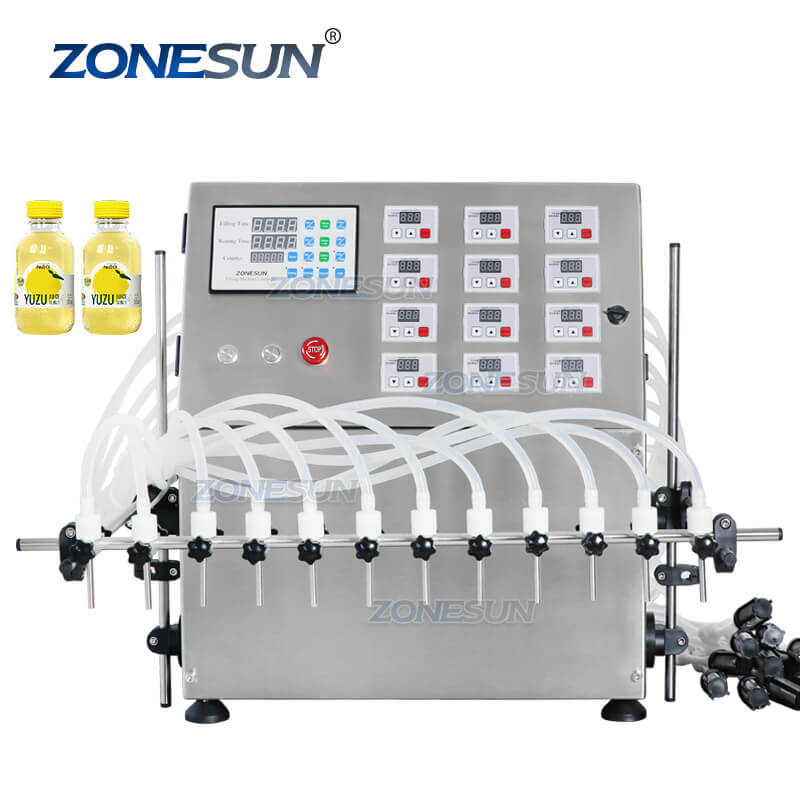

ZS-DPYT12P Liquid Filling Machine Application of ZS-DPYT12P Liquid Filling Machine Machine Part of ZS-DPYT12P Liquid Filling Machine

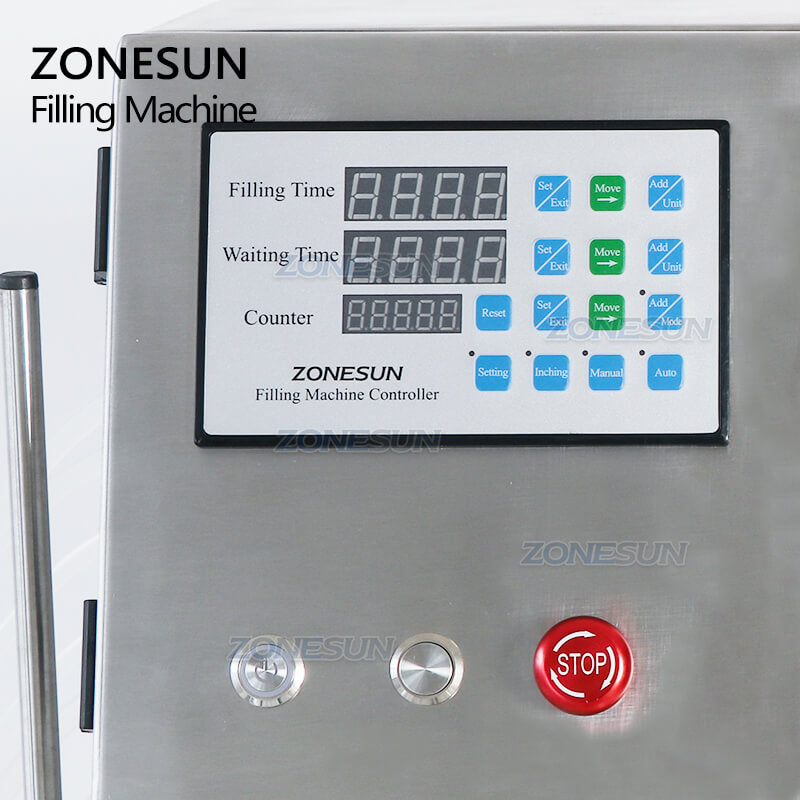

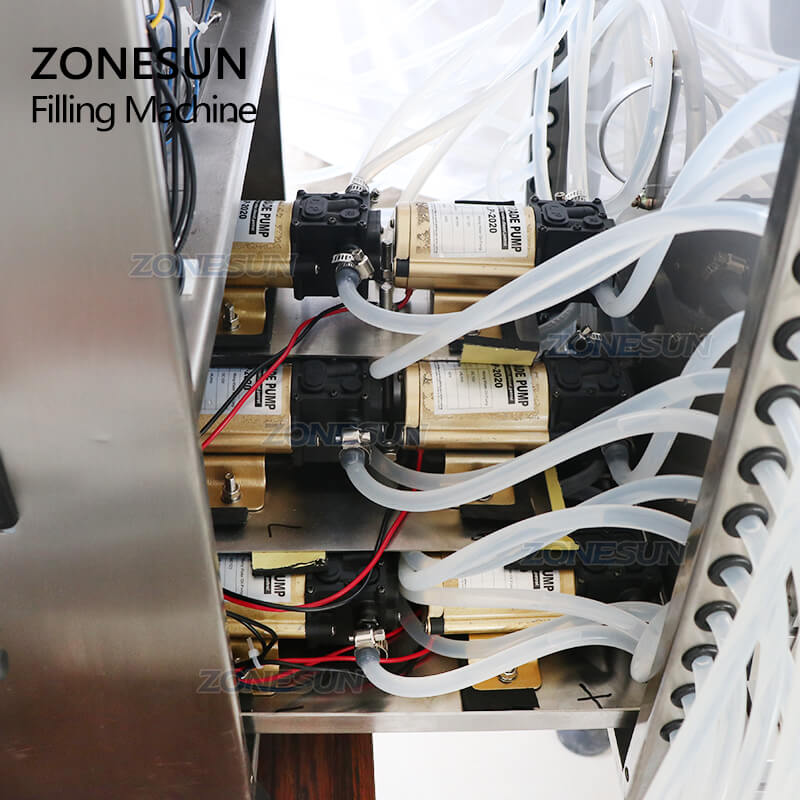

Pump of ZS-DPYT12P Liquid Filling Machine Operation Panle of ZS-DPYT12P Liquid Filling Machine

Designed with simple operation panel,this is more convenient to adjust working parameter like filling time and filling speed,the visual working data is good for testing machine.

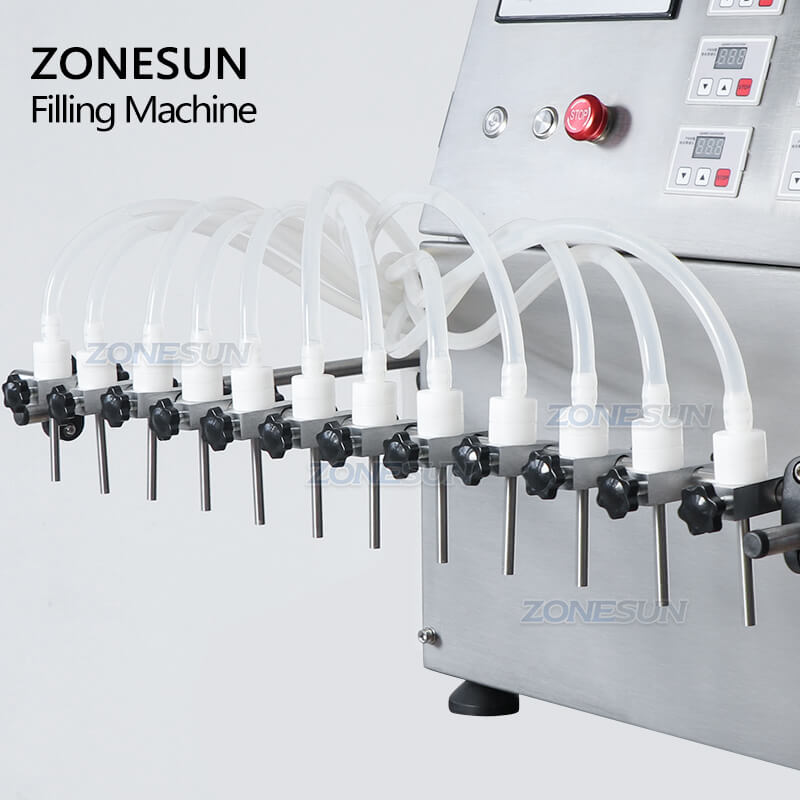

Filling Nozzle of ZS-DPYT12P Liquid Filling Machine

There are multiple filling nozzles which are good for improving working efficiency.each filling nozzle can be controlled separately.This is good for producing different kinds of filling materials.

Details of ZS-DPYT12P Liquid Filling Machine

This machine is made of high quality components and the wire are connected well,ensures that the machine can work stably and not easy to be broken.

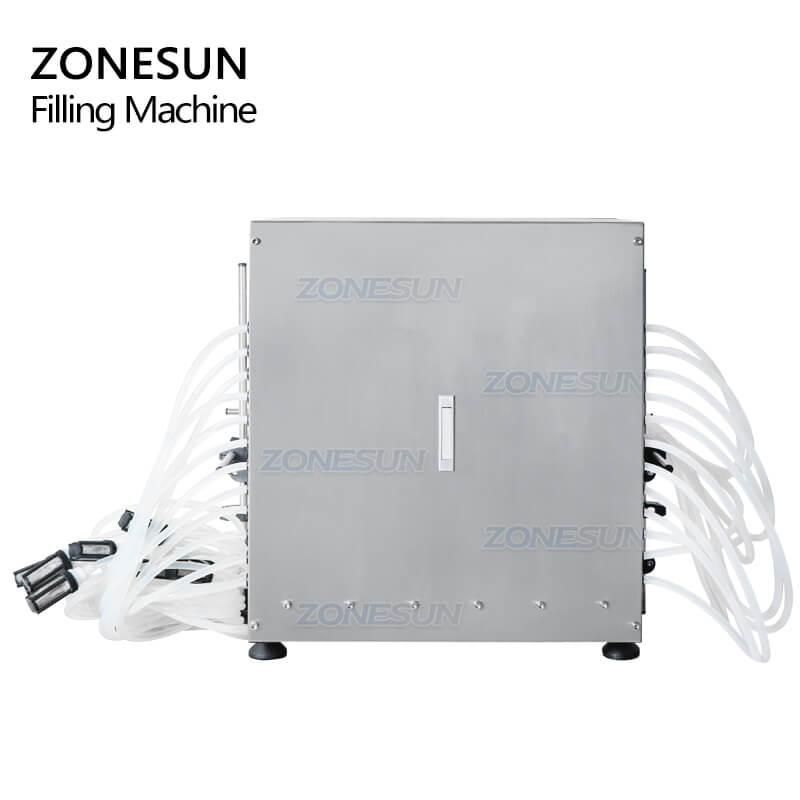

Details of ZS-DPYT12P Liquid Filling Machine

Drawer type design makes it more convenient to check and maintain the machine machine,enhances the user experience

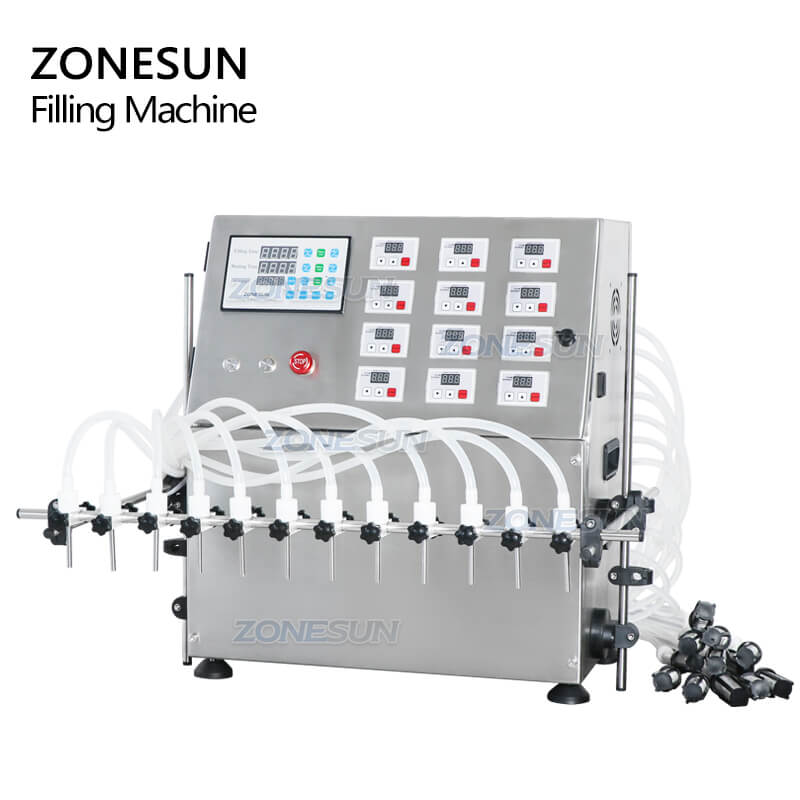

Real Shot of ZS-DPYT12P Liquid Filling Machine
