ZONESUN ZS-CPYT2 0.2-1.5ml Ceramic Plunger Pump Eye Drops Perfume Small Glass Vial Liquid Bottle Filling Machine
Regular price
$3,549.00 USD
Regular price
Sale price
$3,549.00 USD
Save $-3,549 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Description

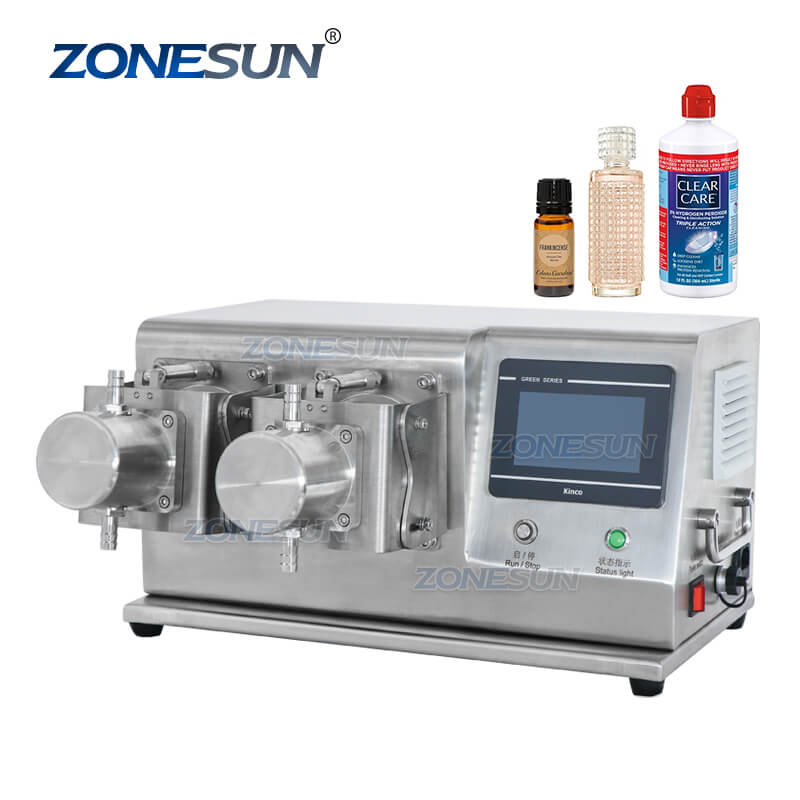

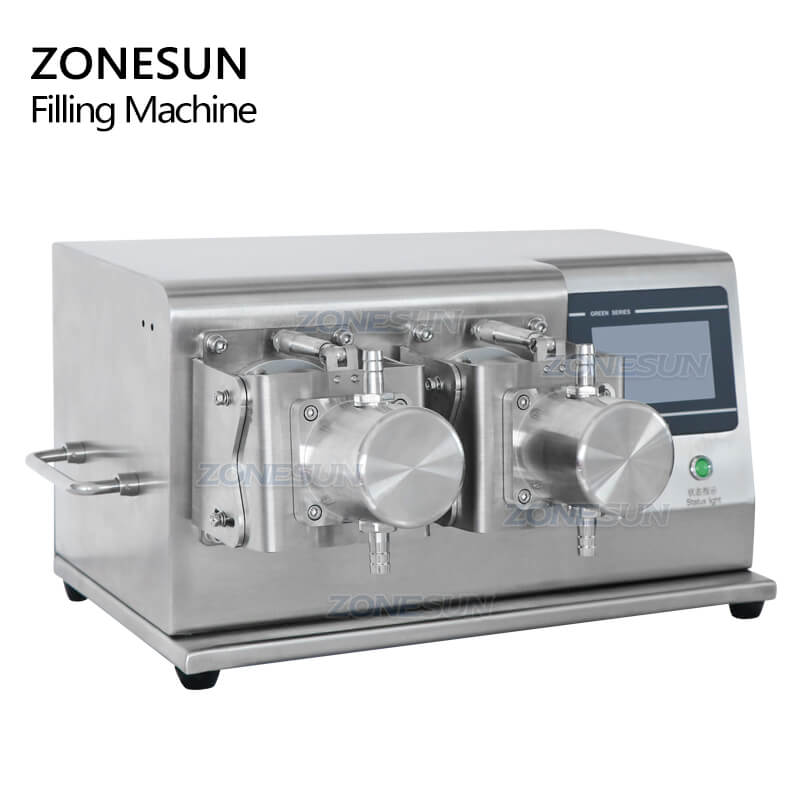

The Ceramic Plunger Pump Filling Machine fills small-volume liquid products through two ceramic plunger pump filling heads, covering a filling range of 0.2 ml to 25 ml at accuracy within ±0.5%. Two filling heads run simultaneously. Filling height adjusts to match different container formats and filling heads configure to match production requirements without replacing the core pump mechanism. SUS304 stainless steel frame, compact footprint. Fits lab benches and tight production lines alike. Suited to small-volume dosing: cosmetics, pharmaceuticals, lab work, anywhere accuracy matters more than throughput and space is limited.
Ceramic Plunger Pump Filling Machine Parameter
- Machine Model: ZS-CPYT2
- Power Supply: 110/220V, 50 Hz, 400 W
- Filling Range: 0.2-1.5 ml/0.3-2.8 ml/0.6-6 ml/1-12 ml/2-25 ml
- Filling Pump: Ceramic Plunger Pump
- Filling Accuracy: ± 0.5 %
- Machine Body Material: SUS304
- Machine Size: About 703*373*365 mm (L*W*H)
- Package Size: About 690*440*440 mm (L*W*H)
- Package Weight: About 36 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

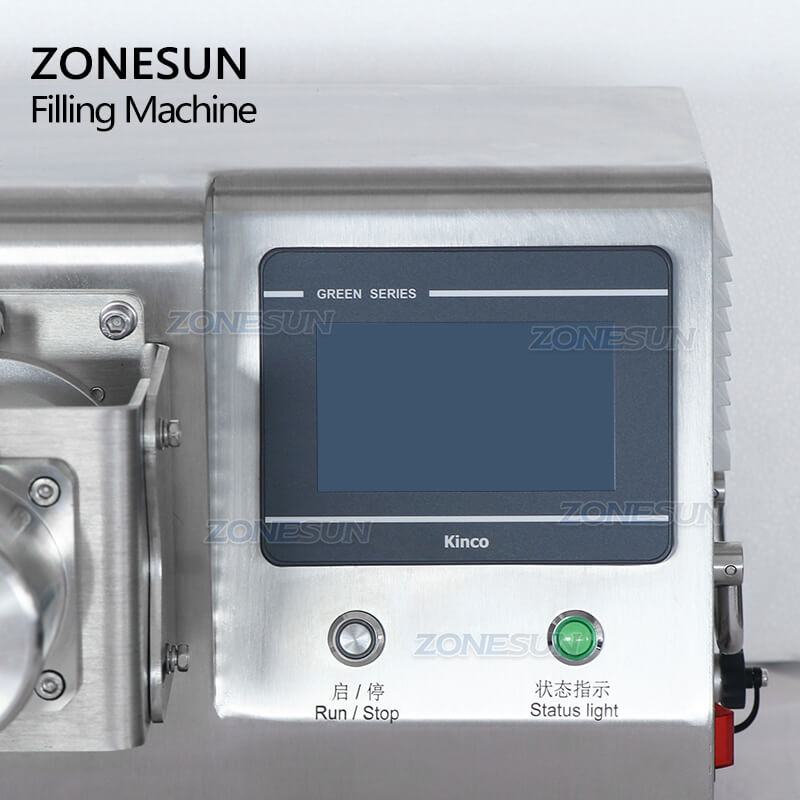

Touchscreen Control Panel
The touchscreen control panel allows operators to set filling parameters and monitor machine status conveniently. The intuitive interface simplifies operation and adjustment for different filling requirements.
The touchscreen control panel allows operators to set filling parameters and monitor machine status conveniently. The intuitive interface simplifies operation and adjustment for different filling requirements.

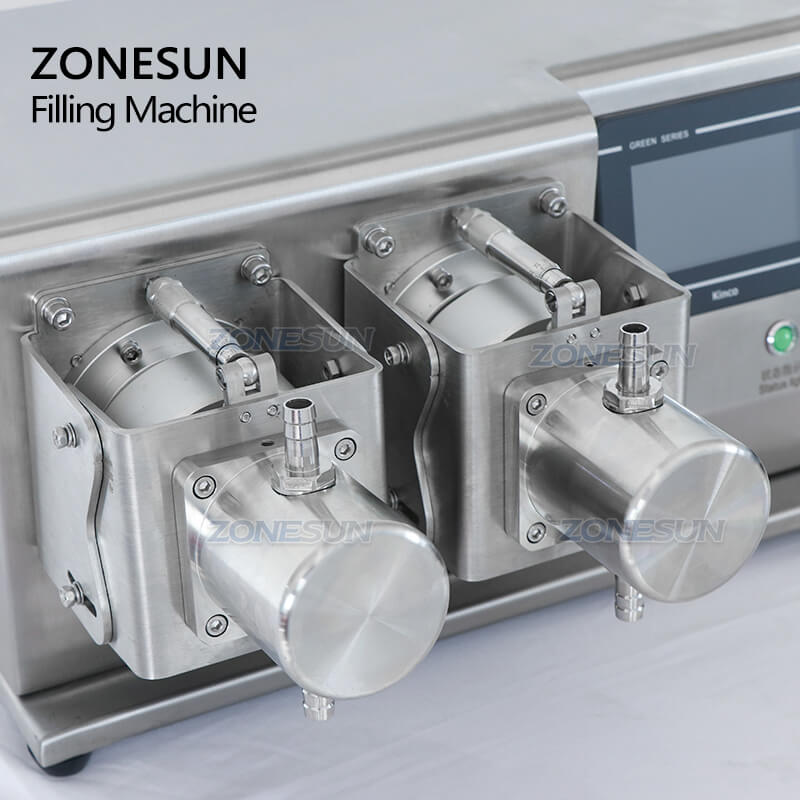

Ceramic Plunger Pump
Equipped with ceramic plunger pumps, the machine provides accurate dosing with filling accuracy up to ±0.5%. The ceramic material offers good wear resistance and corrosion resistance, making it suitable for small-volume liquid filling applications.
Equipped with ceramic plunger pumps, the machine provides accurate dosing with filling accuracy up to ±0.5%. The ceramic material offers good wear resistance and corrosion resistance, making it suitable for small-volume liquid filling applications.
Adjustable Filling Heads
The filling heads can be adjusted according to different container heights and filling requirements. Multiple filling heads can be customized to improve filling efficiency for various production needs.
The filling heads can be adjusted according to different container heights and filling requirements. Multiple filling heads can be customized to improve filling efficiency for various production needs.
Pedal Switch Control
The pedal switch allows operators to start and stop the filling process manually, providing convenient control during production and testing. It is suitable for small-batch filling operations.
The pedal switch allows operators to start and stop the filling process manually, providing convenient control during production and testing. It is suitable for small-batch filling operations.
