ZS-AFC1P Rotary Automatic Essential Oil Eye Drops Liquid Glue Filler Glass Small Bottle Vial Reagent Filling And Capping Machine

SKU: 00100300063-0003

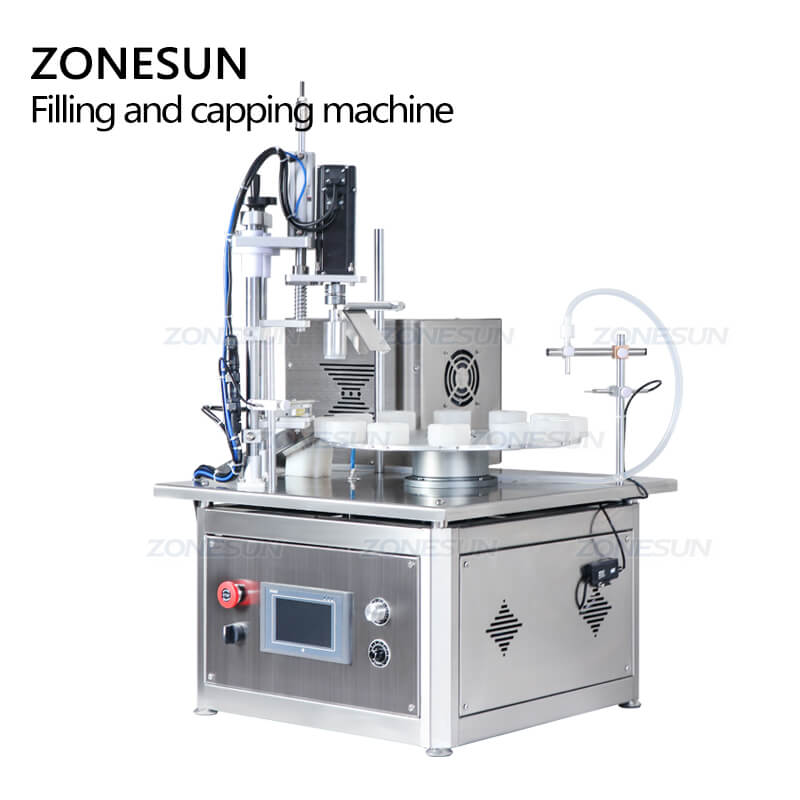

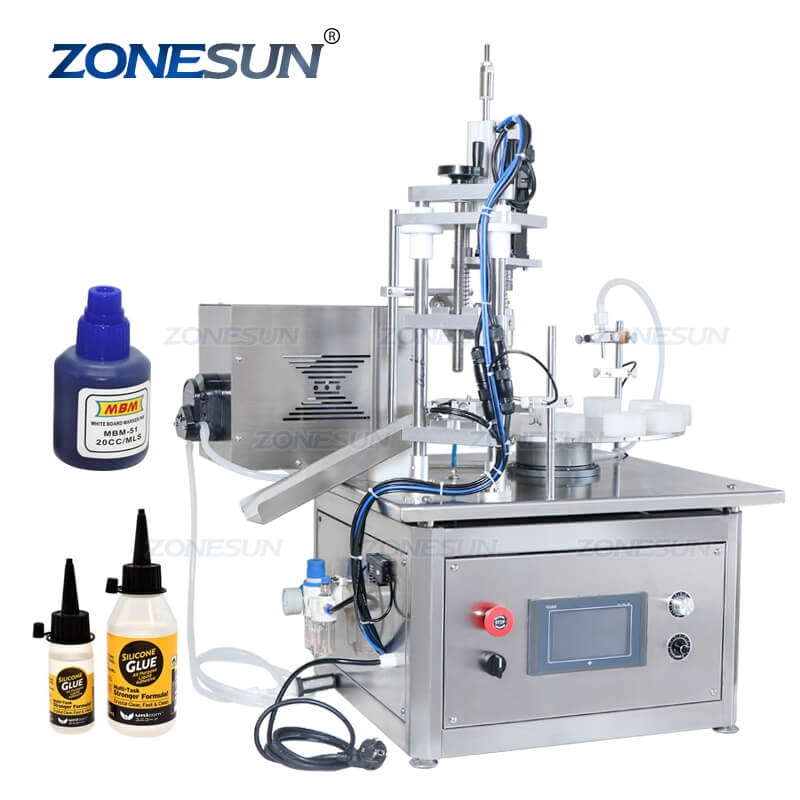

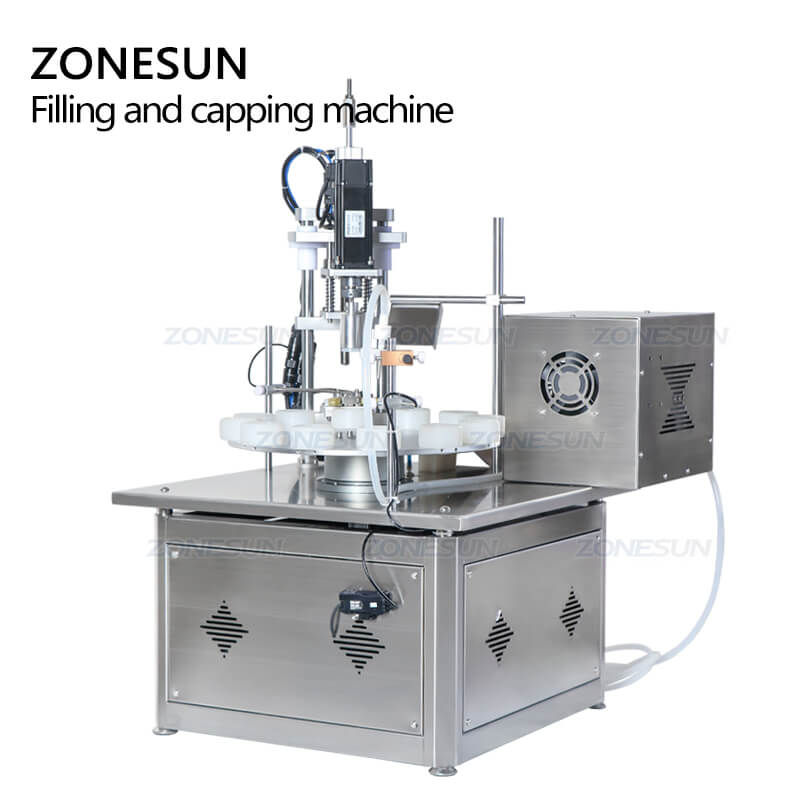

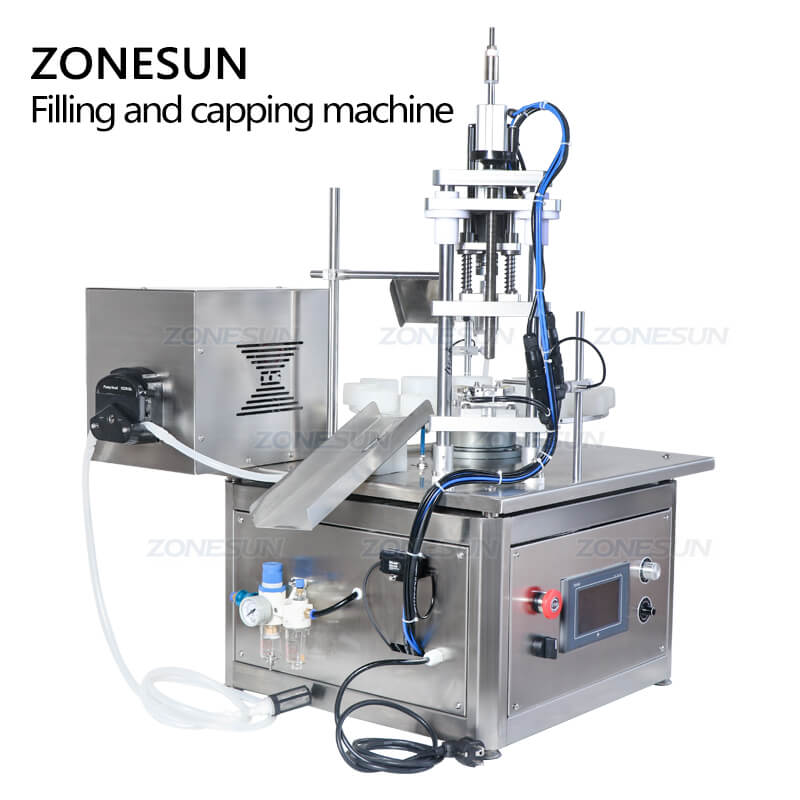

Small Bottle Filling Capping Machine
Filling Nozzle of Small Bottle Filling Capping Machine
Pump of Small Bottle Filling Capping Machine
Small Bottle Filling Capping Machine
Small Bottle Filling Capping Machine
Small Bottle Filling Capping Machine
Small Bottle Filling Capping Machine

ZS-AFC1P Rotary Automatic Essential Oil Eye Drops Liquid Glue Filler Glass Small Bottle Vial Reagent Filling And Capping Machine

SKU: 00100300063-0003
Size
Regular price $4,099.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

This automatic machine is with function of filling and capping,the small machine body can help you save working space.It is equipped with peristaltic pump which can fill liquid without passing through pump.Multiple filling nozzles can be customized according to your operation needs.

Parameter

Machine model:ZS-AFC1P
Voltage:110/220V
Machine power:500W
Filling Pump:Peristaltic Pump
Bottle diameter:10-40mm
Filling range:≤100ml
Bottle height:≤120mm(Can customize for higher bottles)
Cap diameter:Customize
Size of filling nozzle:OD 6mm
Working speed:20-50bottles/min(depends on liquid and bottle size)
Machine size:About 510*510*970mm
Machine weight:About 69kg
Package size:About 860*715*1030mm
Package weight:About 95.5kg

Peristaltic Pump Filling Capping MachineApplication of Peristaltic Pump Filling Capping MachineMachine Part of Peristaltic Pump Filling Capping Machine

Operation Panel of Peristaltic Pump Filling Capping Machine

Designed with touch screen control panel,it is more convenient to adjust working parameter of filling and capping function.It is no need to train operator,operation is easier and can reduce production error greatly.

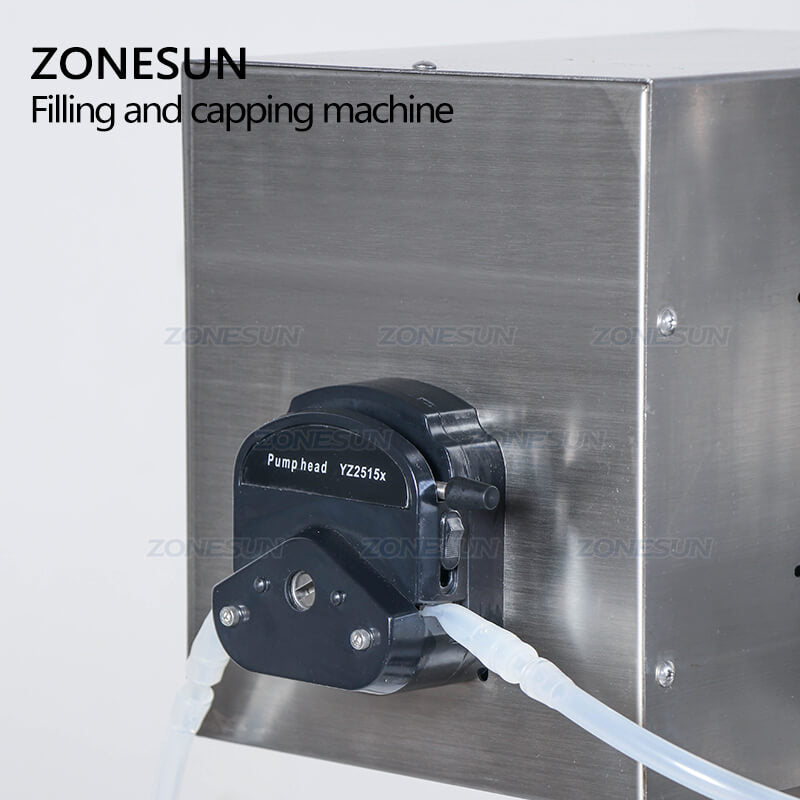

Pump of Small Bottle Filling Capping Machine

Equipped with peristaltic pump,It will fill liquid without passing through pump,ensures the liquid quality.It is also easier to change filling hose if you need to fill liquid with different colors/fragrance.

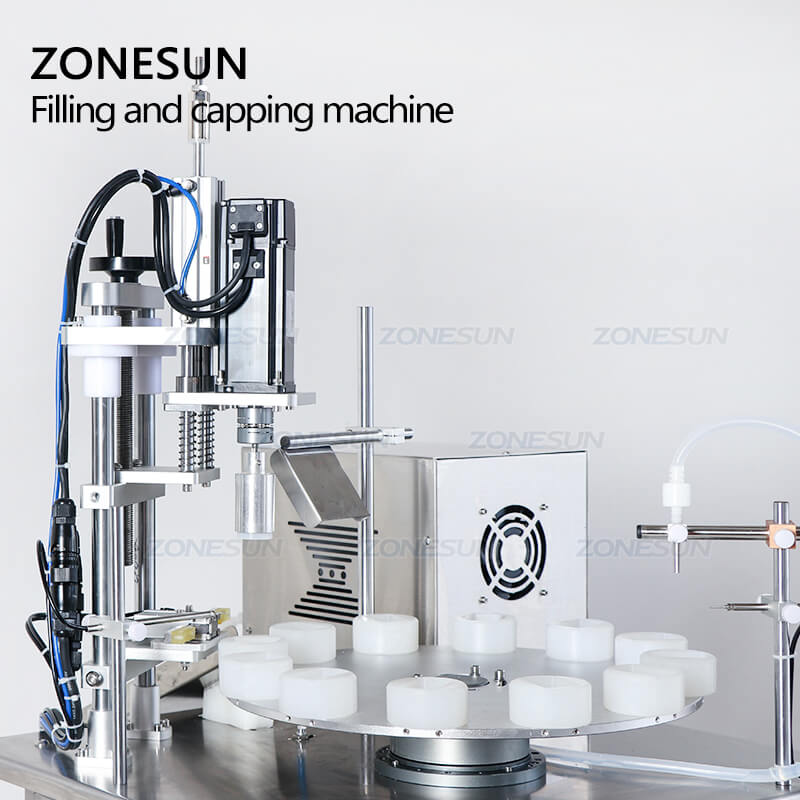

Rotary Dish of Small Bottle Filling Capping Machine

The rotary plate is with fixing mold to fix bottles and prevent from the bottle fall down during filling or capping work.These are customized according to bottle sizes.

Electric Eye of Small Bottle Filling Capping Machine

The filling nozzle is with anti-dripping design, and the smaller filling nozzle make the liquid will not easy to be splashed,these can improve filling accuracy.High quality electric eyes can be used to detecting passing by bottles and control the machine to work or not.The sensitivity of the electric eye can be adjusted according to the adjusting part.

Outlet of Small Bottle Filling Capping Machine

After capping,bottles will be pushed out and buffer plate can help to collect finish products,save time and reduce production process and time.

Small Bottle Filling Capping MachineSmall Bottle Filling Capping Machine
