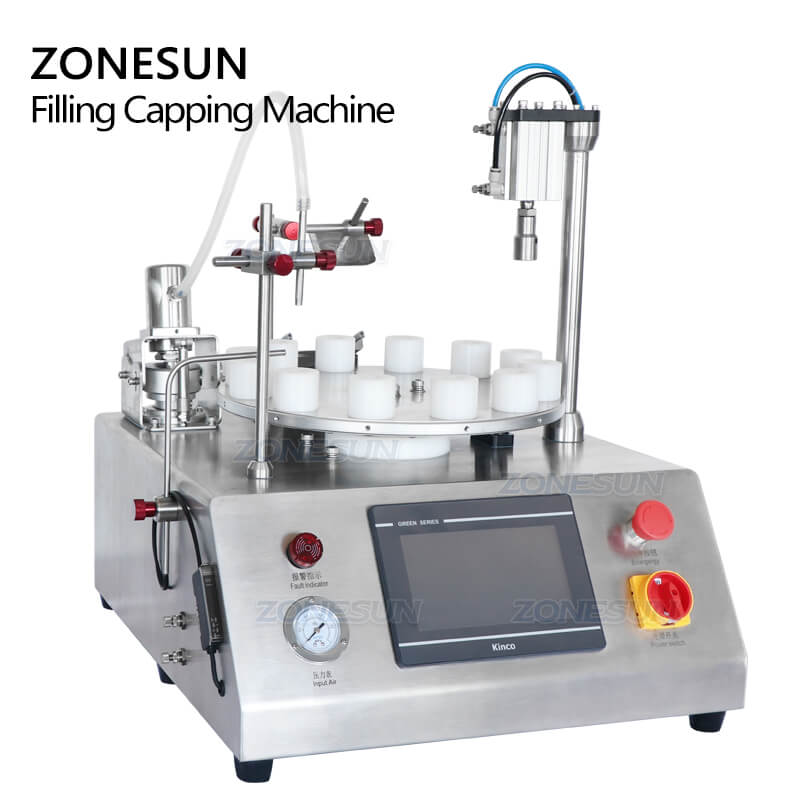

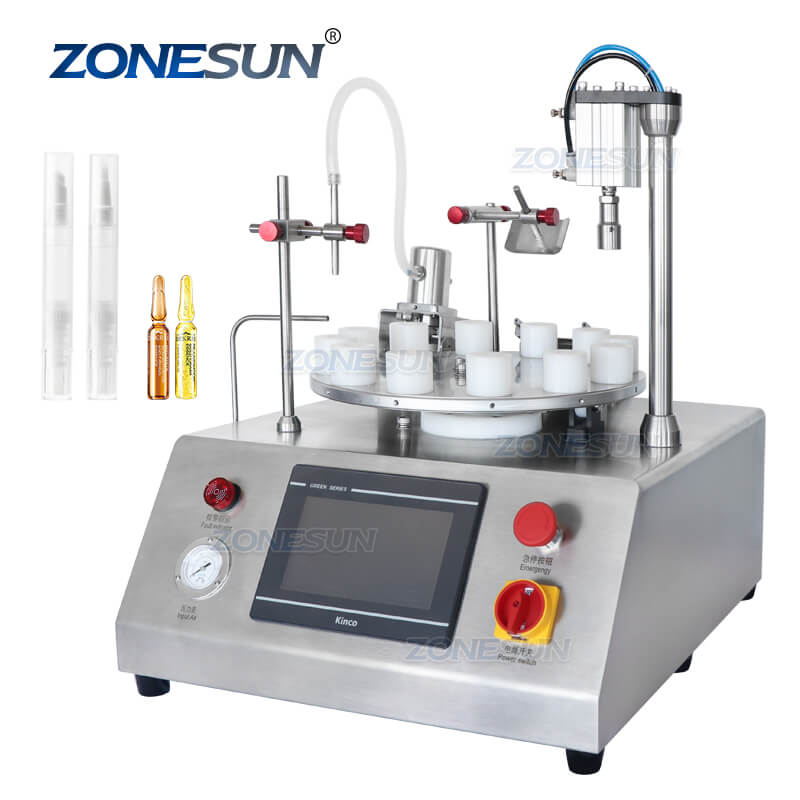

ZS-AFC1CP Automatic Small Bottle Glass Vial Eye Drops Essential Oil Rotary Monoblock Filling Capping Machine

SKU: 00100500013-0219
Ceramic Pump Filling Capping Machine
Operation Panel of Ceramic Pump Filling Capping Machine
Filling Nozzle of Ceramic Pump Filling Capping Machine
Details of Ceramic Pump Filling Capping Machine
Ceramic Pump Filling Capping Machine
Ceramic Pump Filling Capping Machine

ZS-AFC1CP Automatic Small Bottle Glass Vial Eye Drops Essential Oil Rotary Monoblock Filling Capping Machine

SKU: 00100500013-0219
Filling Range
Voltage
Regular price $6,749.00
/
Only 99999 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

This machine is in small design but with filling and capping function,helps you save working space.It is equipped with high quality ceramics plunger pump which can fill liquid precisely.It is widely used in chemical,cosmetics industries.

Parameter

Machine model:ZS-AFC1CP
Machine voltage:110-220V 50-60HZ
Filling accuracy:About 0.25%
Filling range:0.2-1.5ml/0.3-2.8ml/0.6-6ml/1-12ml/2-25ml
Suitable bottle diameter:10-50mm
Working speed:0-45 bottles/min
Air pressure:0.4-0.6MPa
Machine size:About500*550*580mm

Ceramic Pump Filling Capping MachineApplication of Ceramic Pump Filling Capping MachineDetails of Ceramic Pump Filling Capping Machine

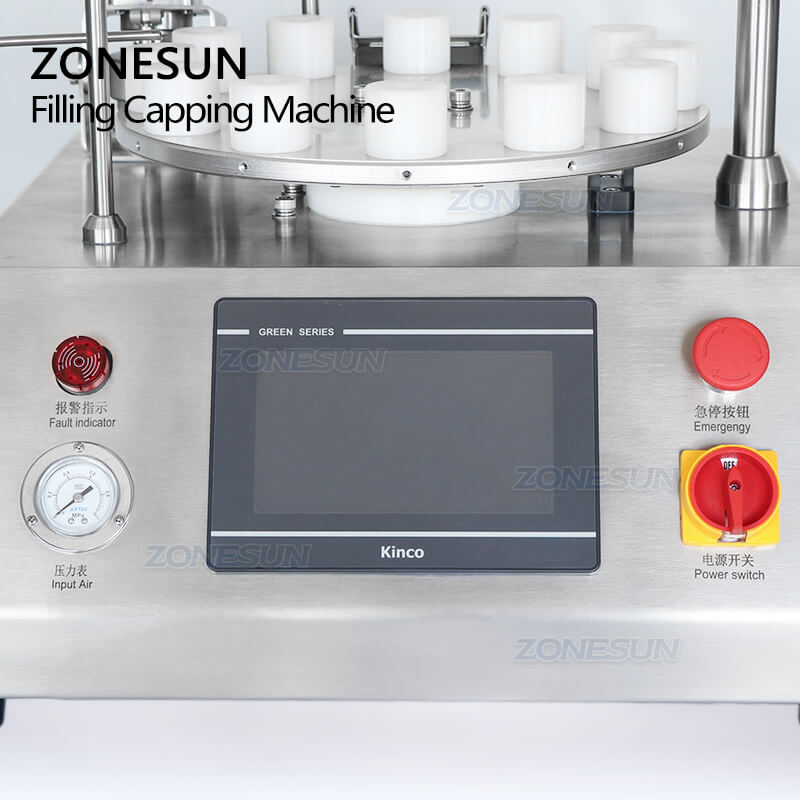

Operation Panel of Ceramic Pump Filling Capping Machine

Equipped with touch screen control panel,this makes the machine is more convenient to test and adjust working parameter.Different kinds of language can be customized according to operation need.

Rotary Plate of Ceramic Pump Filling Capping Machine

The bottle fixing mold can hold bottles and ensures the bottle can be placed well during filling and capping.This rotary plate should be customized according to bottle diameter

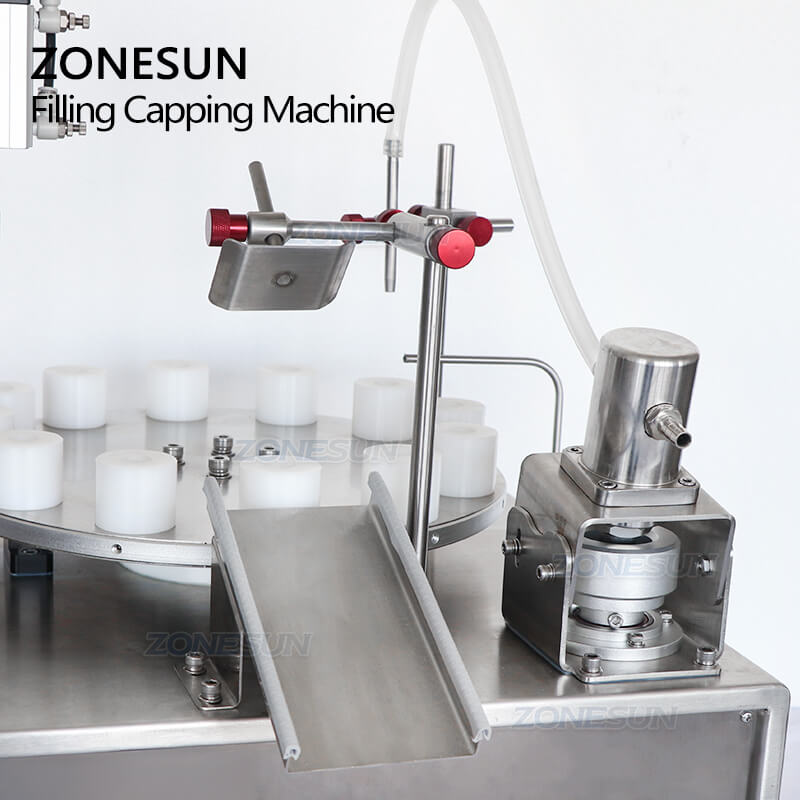

Ceramic Pump

Equipped with high precision ceramic plunger pump,it is suitable for small volume filling like essential oil,facial essence etc.Different filling range can be chosen according to production need.

Electric Eye of Ceramic Pump Filling Capping Machine

The electric eye can detect passing by bottles and control the machine to start work,improves working accuracy.Multiple filling nozzle can be customized according to operation need.

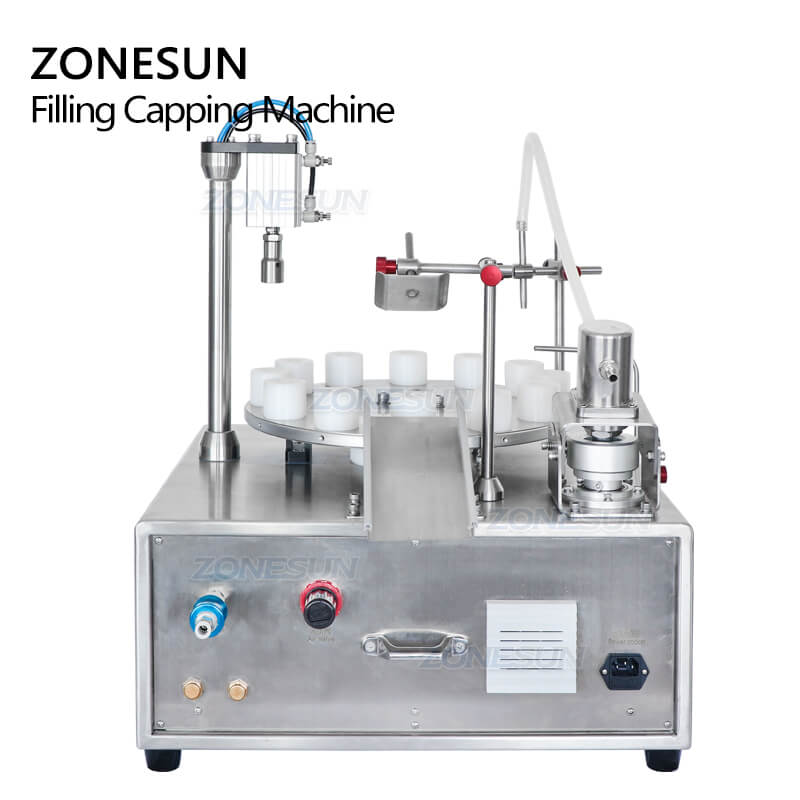

Details of Ceramic Pump Filling Capping Machine

The machine is designed with outlet for sorting bottles after capping,reduce production labor and can save working time.
