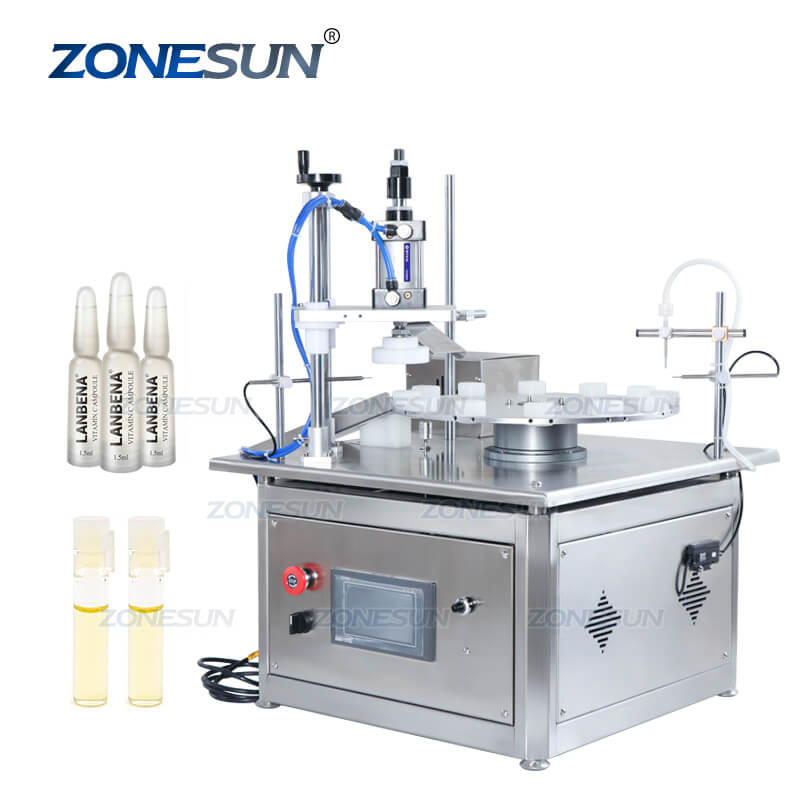

ZS-AFC1C Rotary Automatic Perfume Mini Tester Liquid Glass Small Bottle Vial Monoblock Filling Pressing Capping Machine

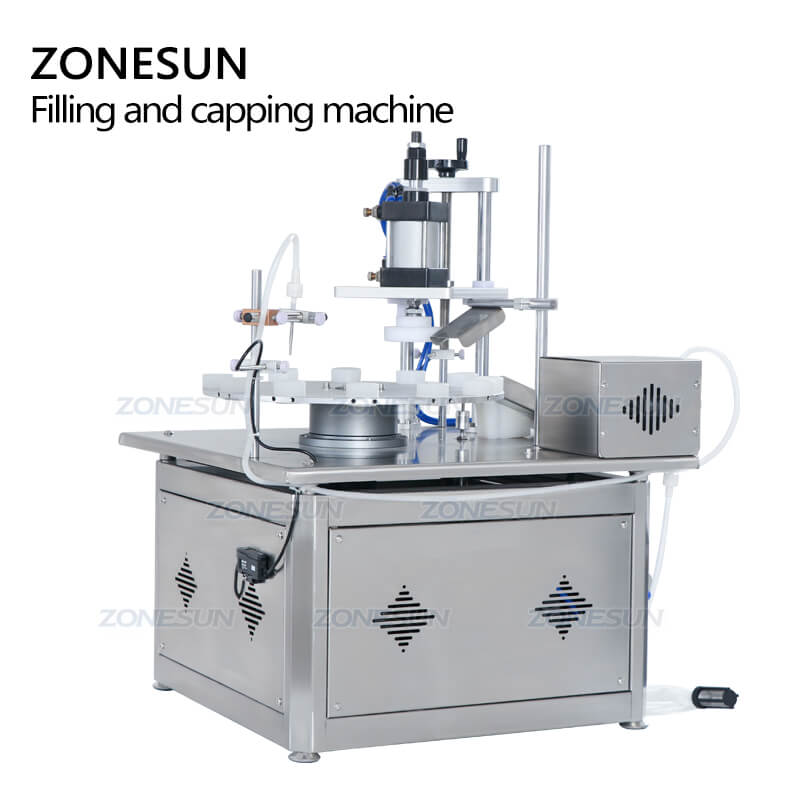

Small Liquid Filling Capping Machine
Filling Nozzle of Small Liquid Filling Capping Machine
Pressing Head of Small Liquid Filling Capping Machine

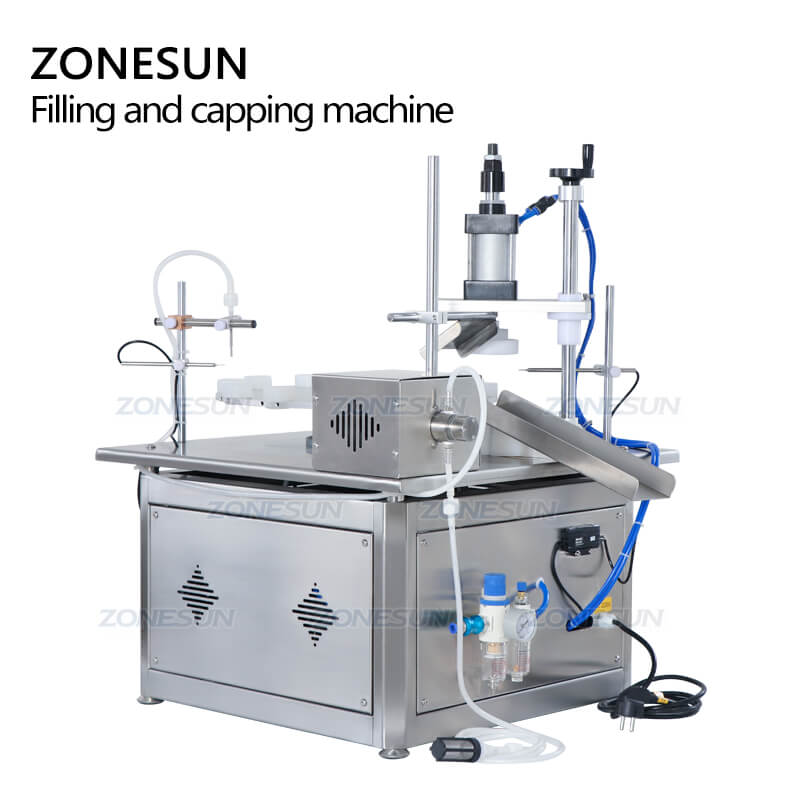

Small Liquid Filling Capping Machine
Small Liquid Filling Capping Machine
Small Liquid Filling Capping Machine

ZS-AFC1C Rotary Automatic Perfume Mini Tester Liquid Glass Small Bottle Vial Monoblock Filling Pressing Capping Machine

Size
Regular price $4,099.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This rotary filling and capping machine is in small design which is more convenient to carry and save production space.It is equipped with high quality magnetic pump and can fill low viscosity liquid accurately.This machine is widely used in chemical industries.

Parameter

Machine model:ZS-AFC1C
Voltage:110/220V
Filling pump:Magnetic pump
Machine power:500W
Bottle diameter:10-40mm
Filling range:≤100ml
Bottle height:≤120mm(Can customize for higher bottles)
Cap diameter:Customize
Size of filling nozzle:OD 2mm
Working speed:20-50bottles/min(depends on liquid and bottle size)
Machine size:About 580*580*800mm
Machine weight:About 52kg
Package size:About 800*670*990mm
Package weight:About 77kg

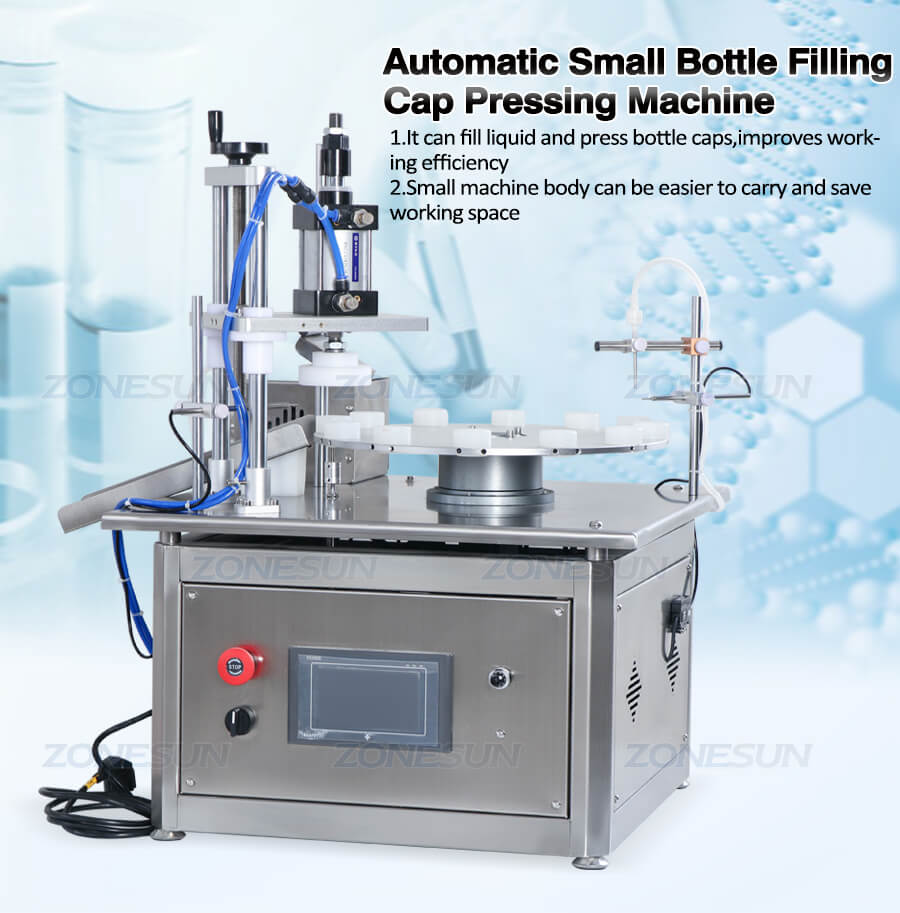

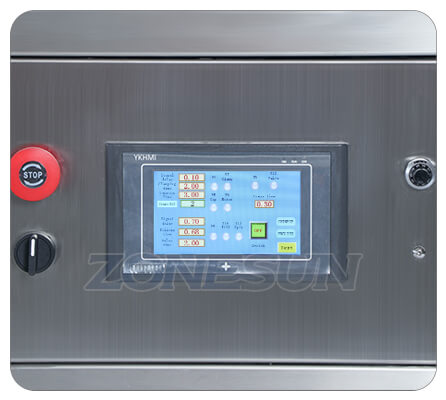

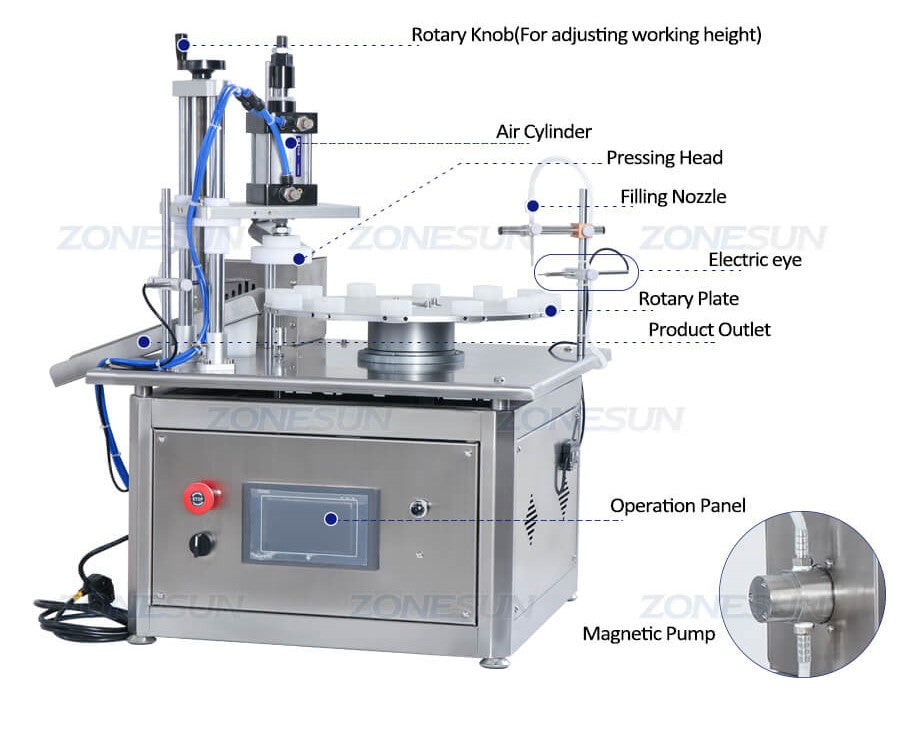

Small Bottle Filling Capping MachineApplication of Small Bottle Filling Capping MachineDetails of Small Bottle Filling Capping MachineOperation Panel of Small Bottle Filling Capping Machine

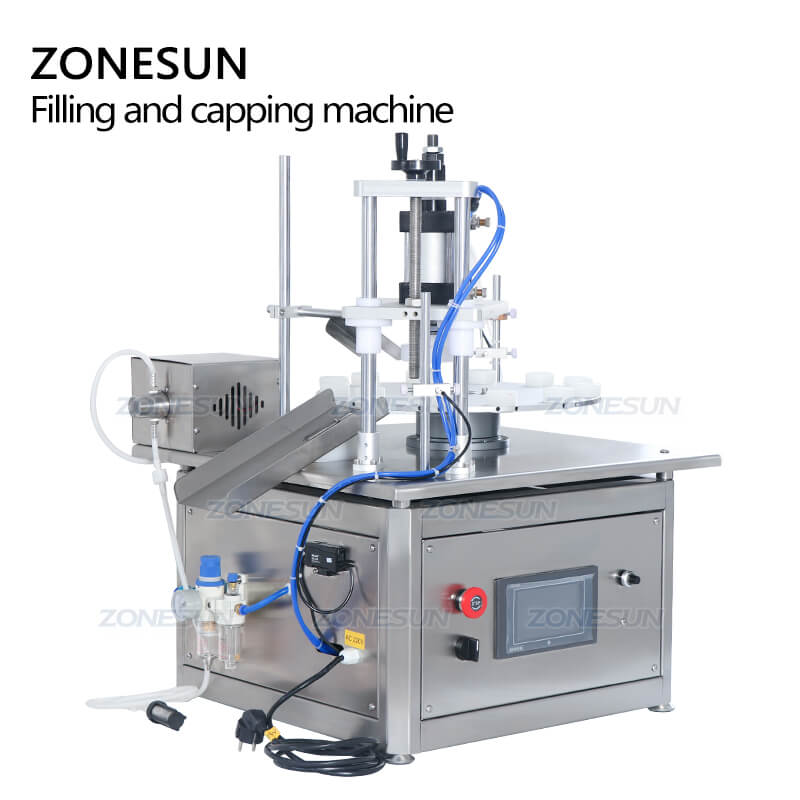

Equipped with touch screen control panel,this is more convenient to adjust the working parameter like filling time,pressing time.

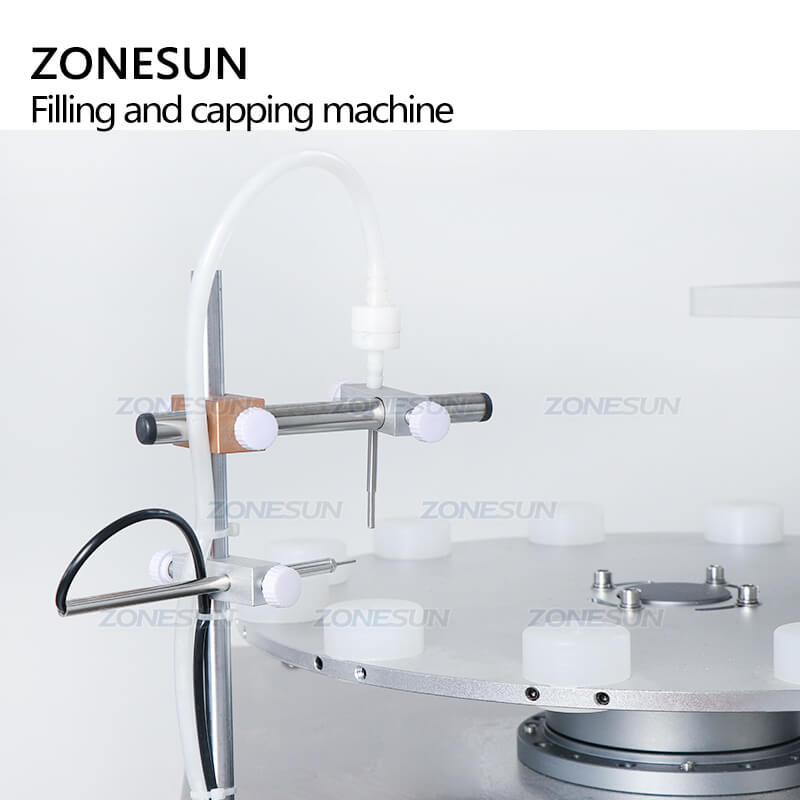

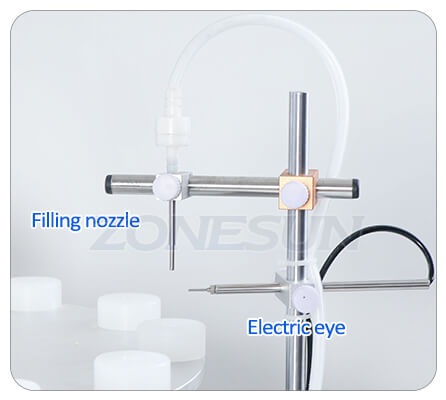

Filling Nozzle of Small Bottle Filling Capping Machine

The filling nozzle can be customized according to bottle opening size,ensures that the liquid will not spread out during filling.Multiple filling nozzle can be customized as well.This machine is equipped with high quality electric eye to detect bottles and control the automated work.

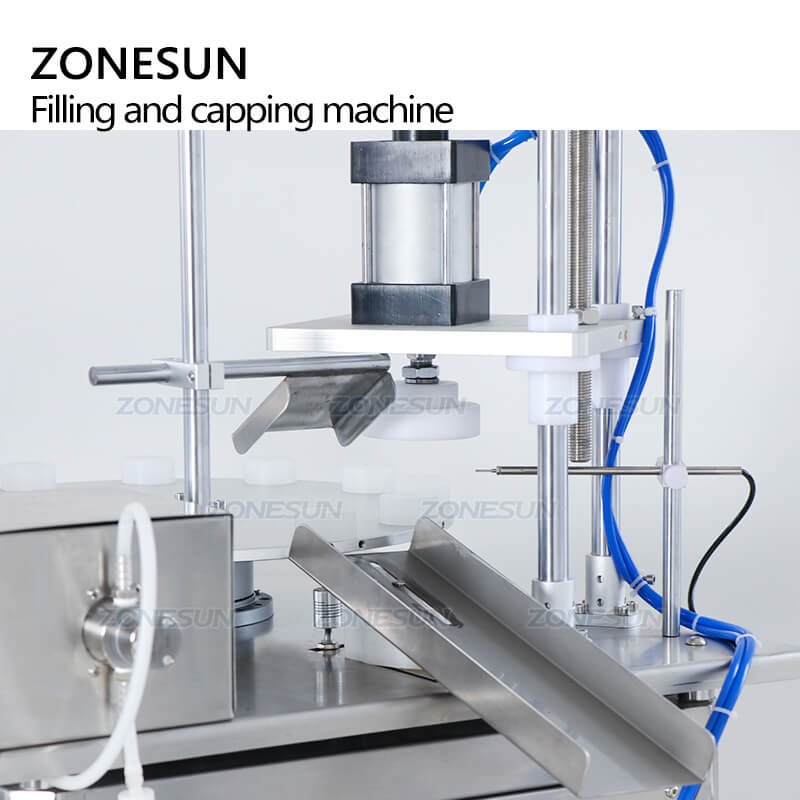

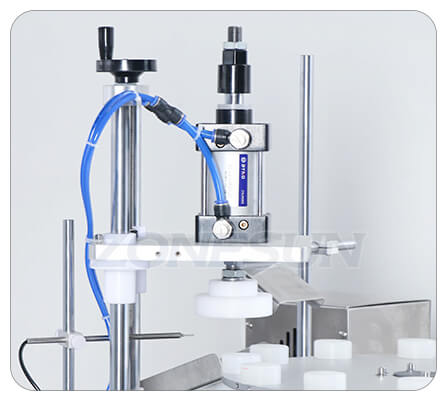

Pressing Head of Small Bottle Filling Capping Machine

The air cylinder makes the machine is with large power to press bottle caps,it should be customized according to cap size.The black rotary knob can be used to adjust the working height according to bottle size.

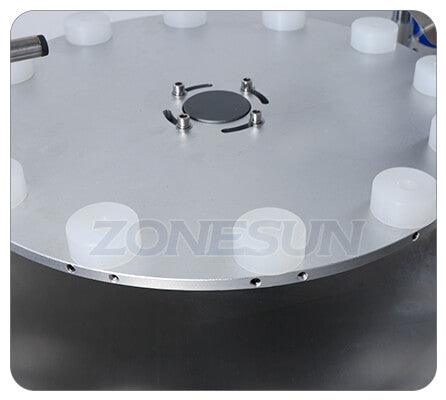

Rotary Plate of Small Filling Capping Machine

The rotary plate is customized according to bottle size,it is designed for fixing bottles during working,improve filling and capping accuracy.

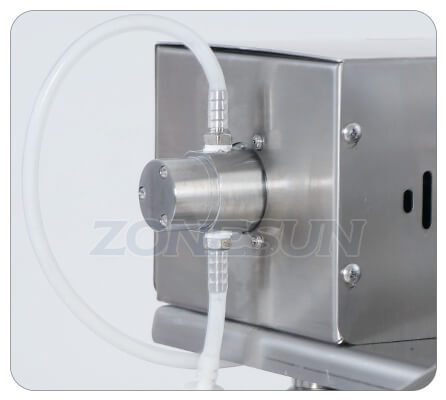

Magnetic Pump of Small Filling Capping Machine

The machine is equipped with 316 stainless steel magnetic pump,which is suitable for filling corrosive liquid and can fill liquid accurately.

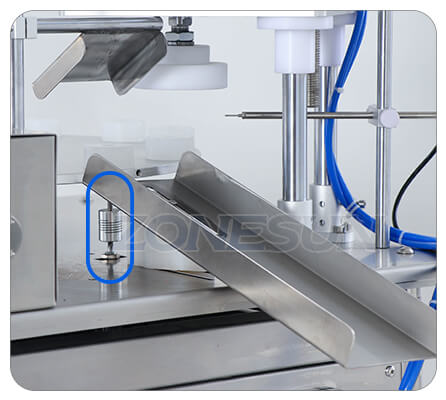

Details of Small Filling Capping Machine

After capping,bottles will be pushed out and buffer plate can help to collect finish products,save time and reduce production process and time.

Real Shot of Small Filling Capping MachineReal Shot of Small Filling Capping Machine
