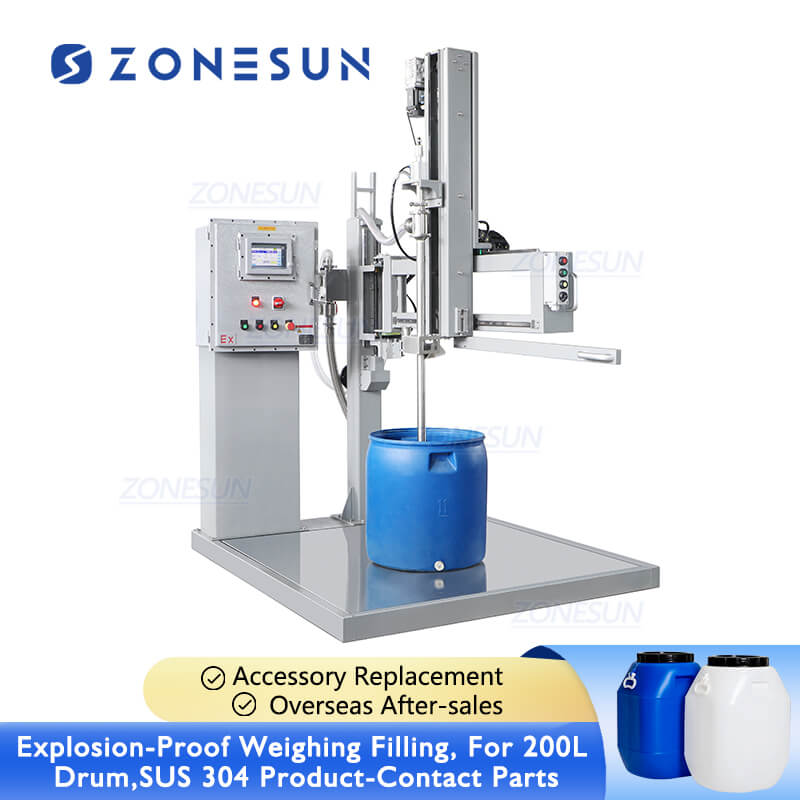

ZONESUN ZS-YTEXW2 Semi-Automatic Explosion-Proof IBC Tank Weighing Filling Machine for 200L Drums and Chemical Liquids
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

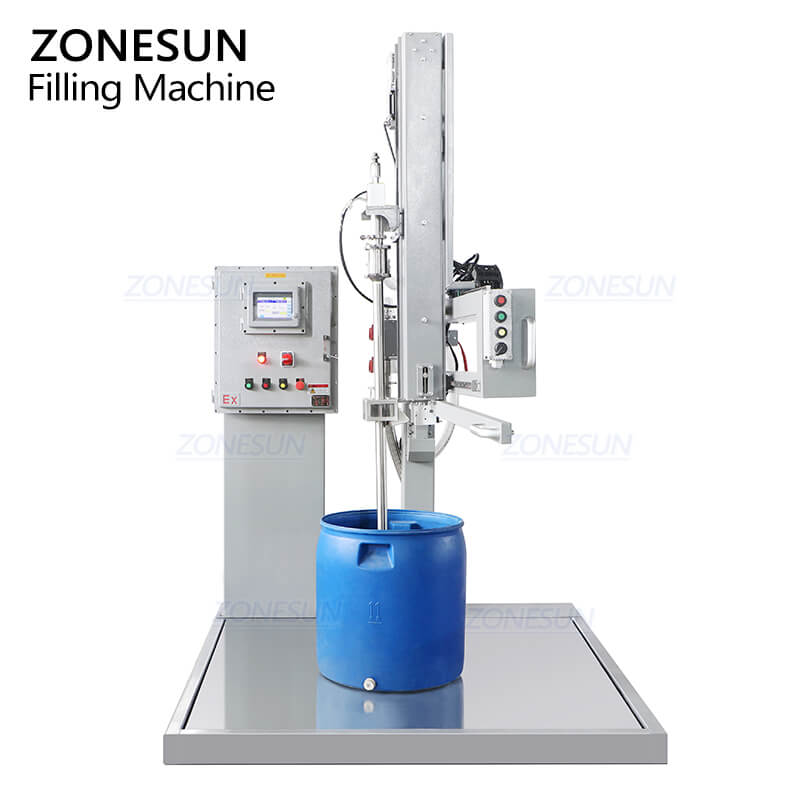

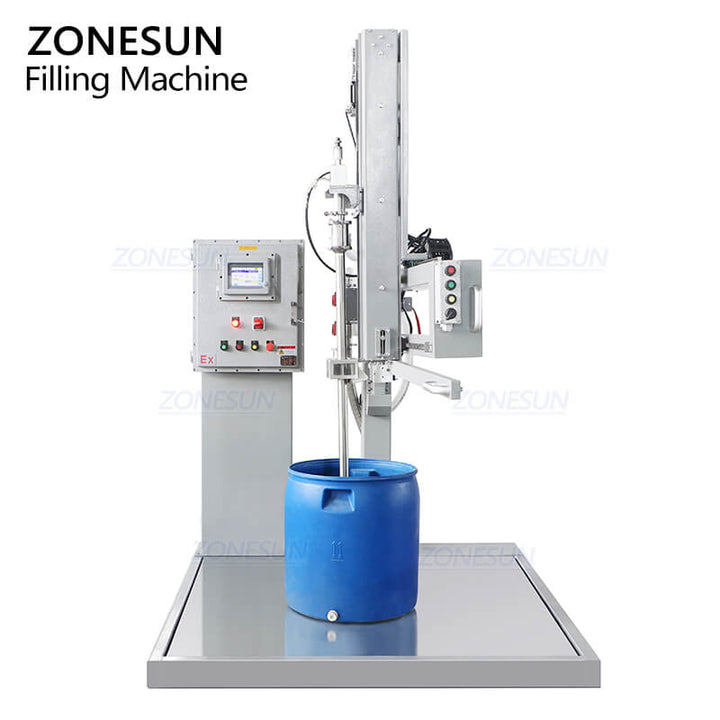

The ZONESUN ZS-YTEXW2 explosion-proof IBC tank weighing filling machine is designed for quantitative filling of industrial liquids into IBC tanks and 25L & 200L drums. An integrated weighing platform monitors the filling weight in real time, while fast and slow two-stage filling helps balance output and accuracy. The operator manually moves the filling arm to align the lance with the container opening. The lance descends during filling to reduce splashing and foaming, then stops and rises automatically when the preset weight is reached. A drip tray collects residual drops after filling. Product-contact parts are commonly made of SUS304 with PTFE seals. The machine is suitable for coatings, solvents, resins, lubricants and similar flowable liquids. The feeding pump is selected separately according to the actual material and is not included as standard.
Explosion-Proof IBC Tank Weighing Filling Machine Parameter
- Machine Model: ZS-YTEXW2
- Machine Voltage: Single-phase 220 V (Customizable)
- Machine Power: 3 kW
- Measuring Method: Weighing Filling
- Feeding Method: External Feeding Pump
- Feeding Pump: Selected Separately; Not Included As Standard
- Filling Speed: 25-35 Containers/Hour
- Filling Accuracy: ±0.1%-0.3%
- Product-Contact Material: SUS304 Stainless Steel
- Safety Configuration: Explosion-Proof Electrical Configuration
- Package Size: About 2370*860*1440 mm
- Package Weight: About 774 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Detail

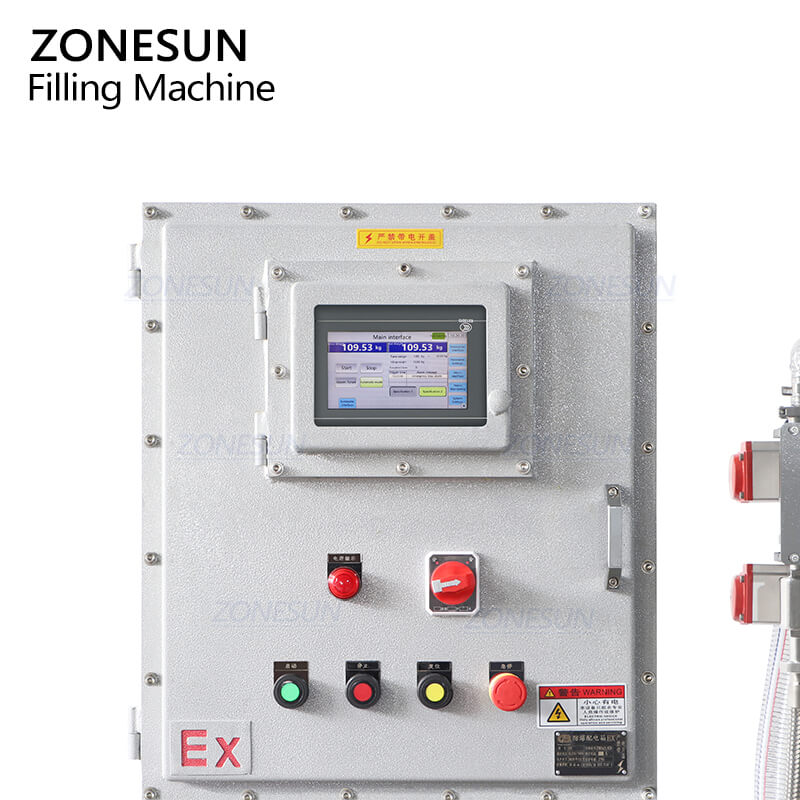

Centralizes filling weight, speed and operating controls. The explosion-proof configuration is suitable for designated hazardous production areas.

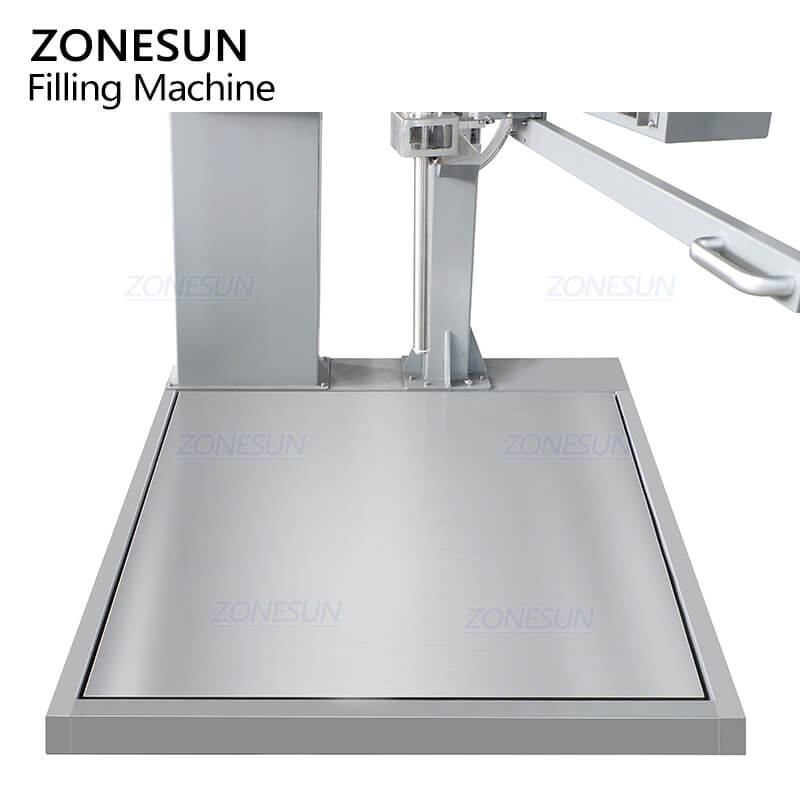

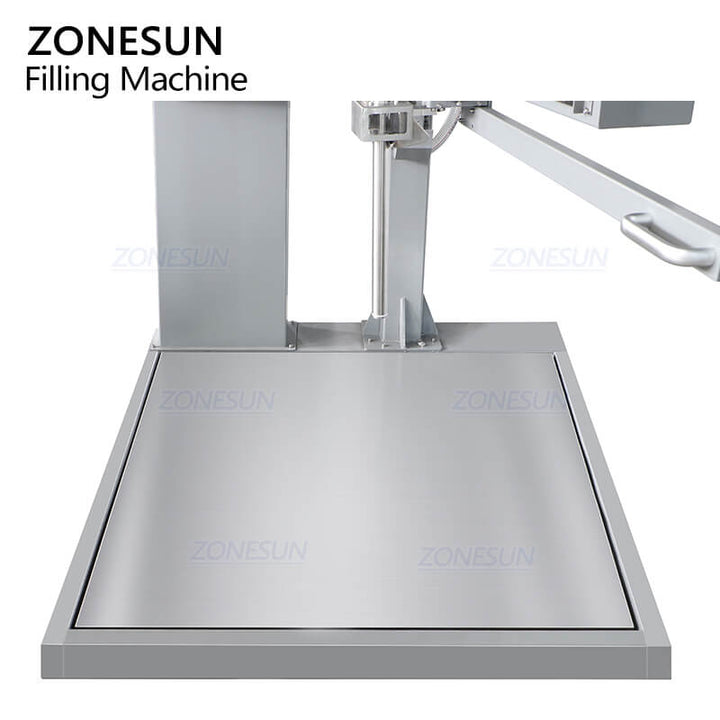

Continuously measures the container weight and controls quantitative filling. Automatic tare removes the weight of the empty container or pallet.

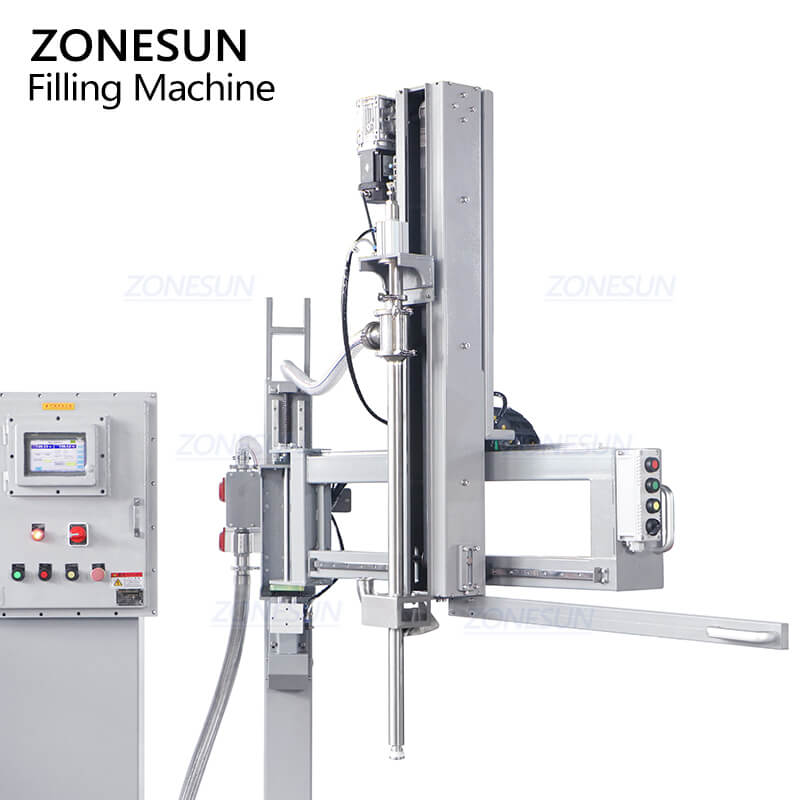

Allows operators to manually align the filling lance with different drum and IBC openings. Its flexible movement simplifies container positioning.

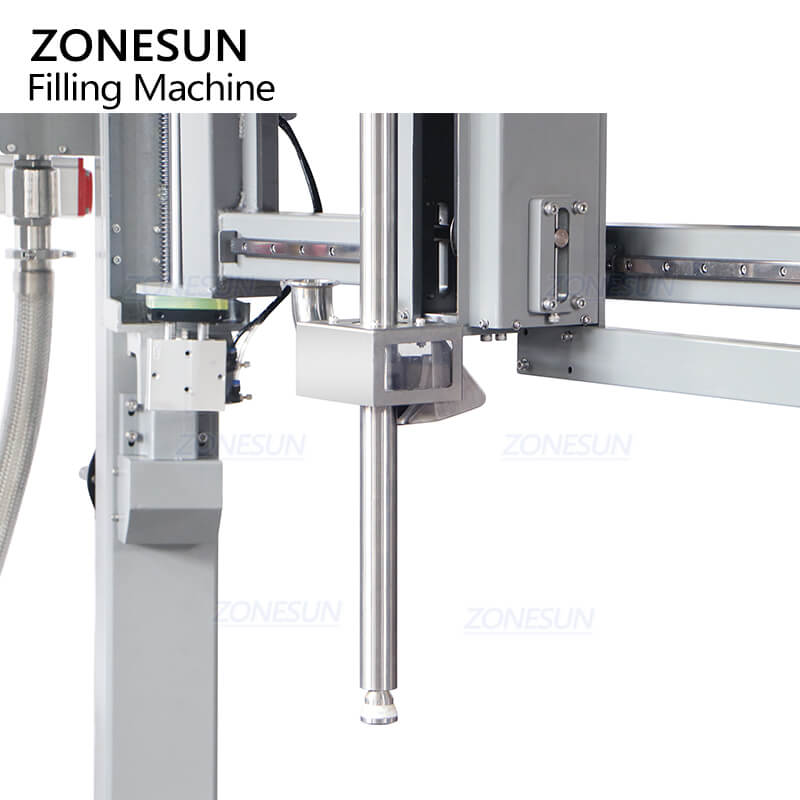

Descends into the container to reduce splashing and foaming, switching from fast to slow filling near the target weight before stopping and rising automatically.

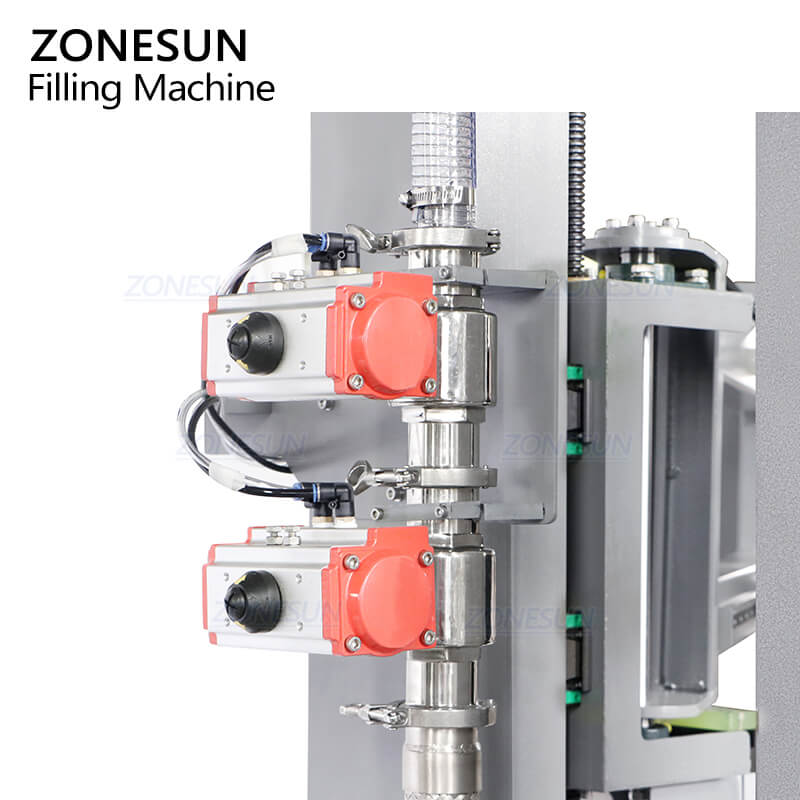

Product-contact parts are commonly made of SUS304 stainless steel with PTFE seals. Material compatibility should be confirmed for corrosive or special liquids.
FAQ of Explosion-Proof IBC Tank Weighing Filling Machine
Q1. Is the feeding pump included?
No. The feeding pump is selected separately according to the liquid and is not included as standard.
Q2. Which feeding pump should I choose?
It depends on the liquid viscosity, flowability, corrosiveness, feeding distance and required output.
Q3. Can it fill high-viscosity liquids?
Possibly. The pump, pipe diameter and filling valve must be selected according to the actual viscosity.
Q4. What information is required before ordering?
Please provide the liquid, viscosity, density, container dimensions, opening position, target weight and required output.
