ZONESUN ZS-VTMP6D Automatic 6 Heads Magnetic Pump Skin Toner Body Mist Eyedrops Care Solution Solvent Liquid Filler Filling Machine

Voltage
Price
Regular price $4,799.00 USD
Regular price Sale price $4,799.00 USD
Save $-4,799 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

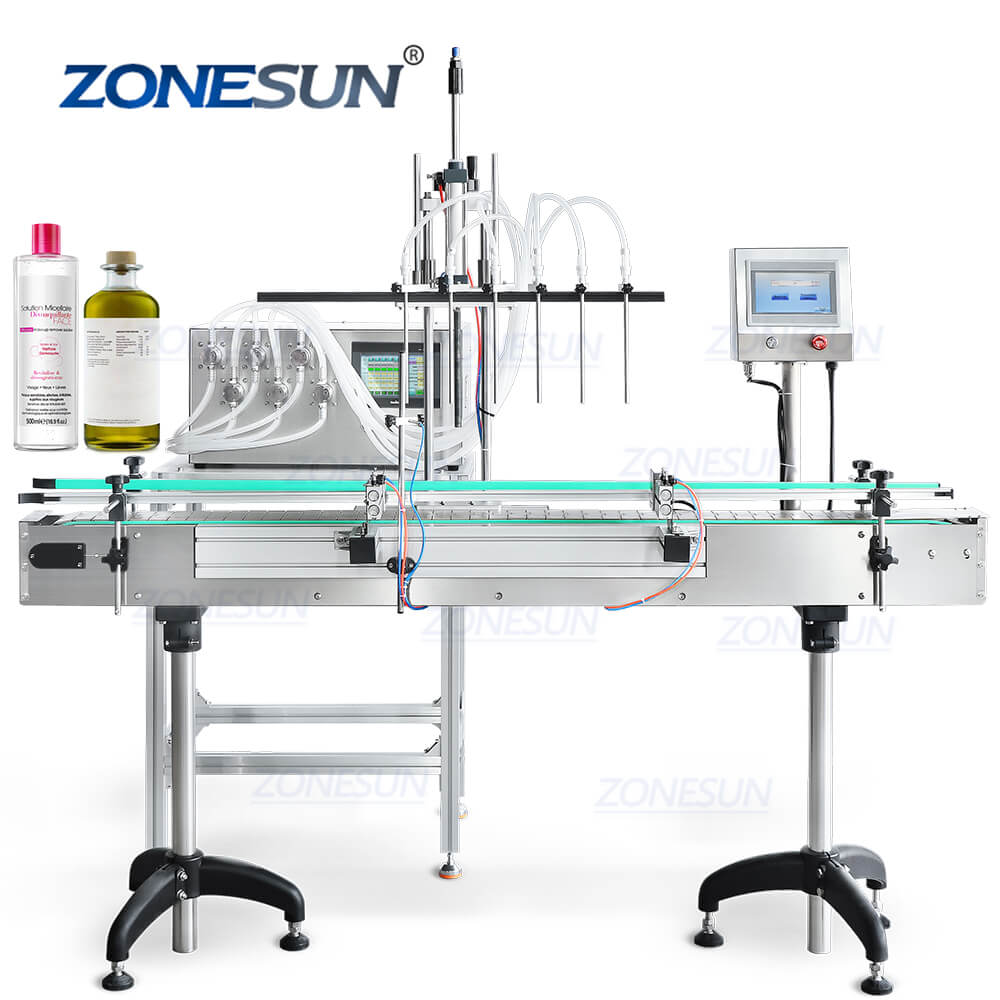

This machine is consist of a 6 heads filling machine and automatic conveyor belt, it can realize the automated filling work to improve working effiency.Set filling volume by PLC touch screen control panel, this machine is easier to operate. It is suitable for skincare products, cosmetics, and daily chemical industries.

Parameter

  • Machine model:ZS-VTMP6D
  • Voltage:110/220V 50-60HZ 1350W
  • Max flow rate:6000ml/min
  • Filling pump:Magnetic pump
  • Working speed:About 12-30 bottles/min
  • Filling range:5-3000ml(recommend)
  • Filling nozzle size:OD6 & 8 mm
  • Suitable bottle height:About 5-40cm
  • Suitable bottle diameter:≤100mm
  • Package size:About 1990*560*540mm+720*560*380mm
  • Package weight:About 118kg+42kg

automatic liquid filler

application of automatic liquid filler

magnetic pump liquid filler

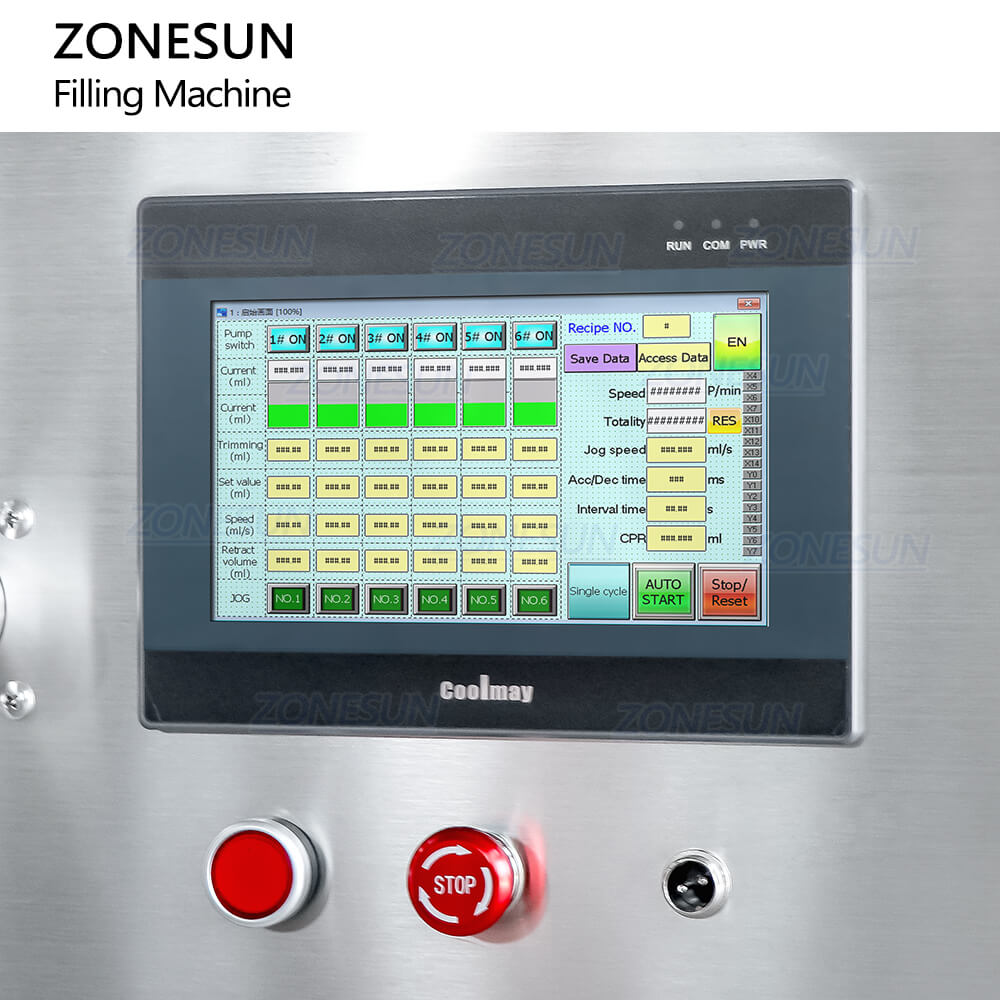

control panel of automatic liquid filler

Quantitative filling, operator can enter certain number by control panel to set filling volume.This is more convenient to debug and operate the machine.

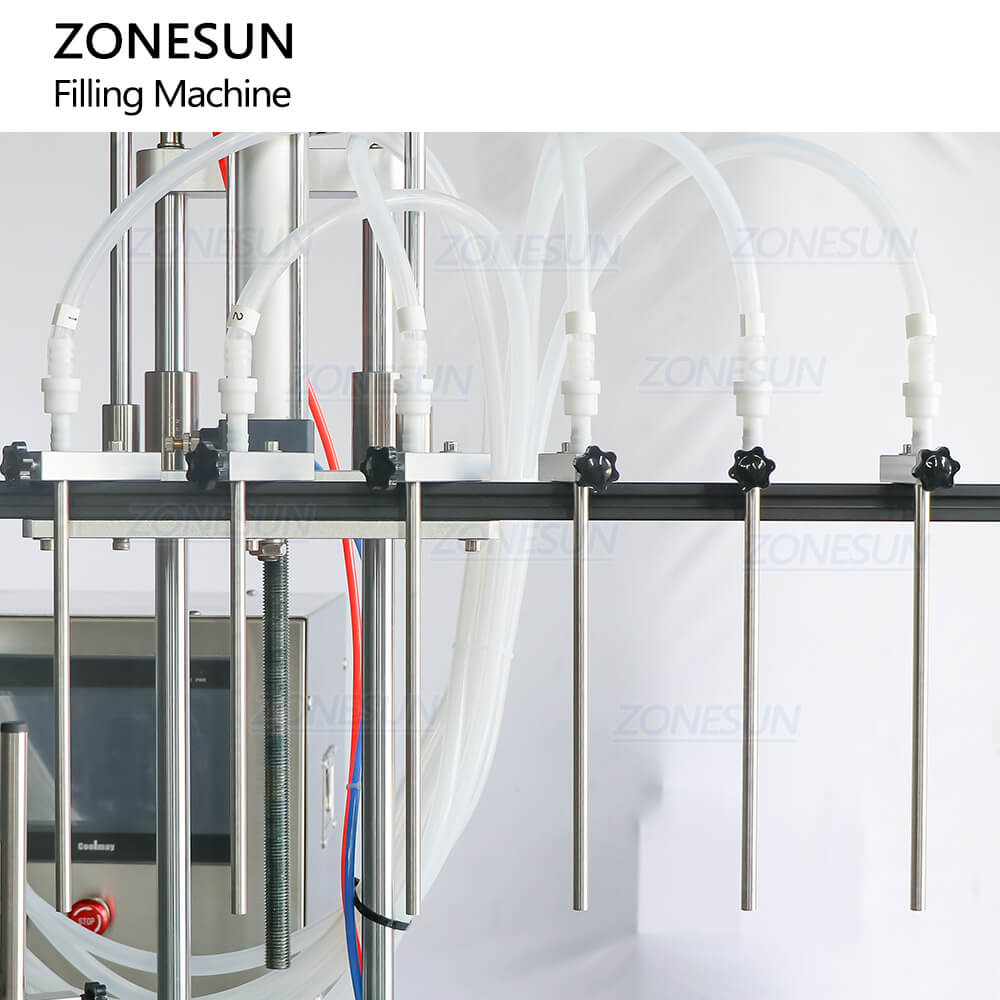

filling nozzle of automatic liquid filler

The quantity of filling nozzles can be customized as production need.Working height can be adjusted according to bottle size.

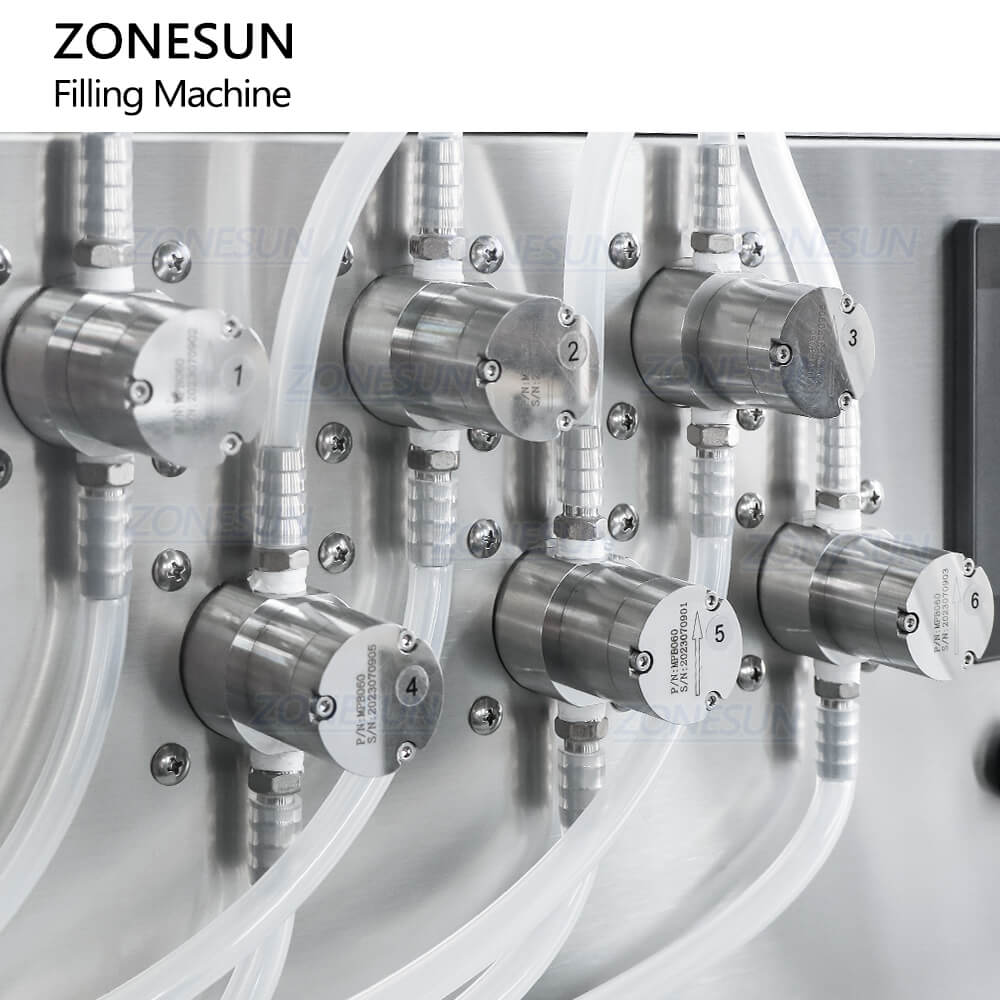

magnetic pump of automatic liquid filler

Equipped with 316 stainless steel magnetic pump. It is suitable for the weakly corrosive liquid, this kind of filling pump has higher filling accuracy, it is the ideal choice for filling low viscosity liquid

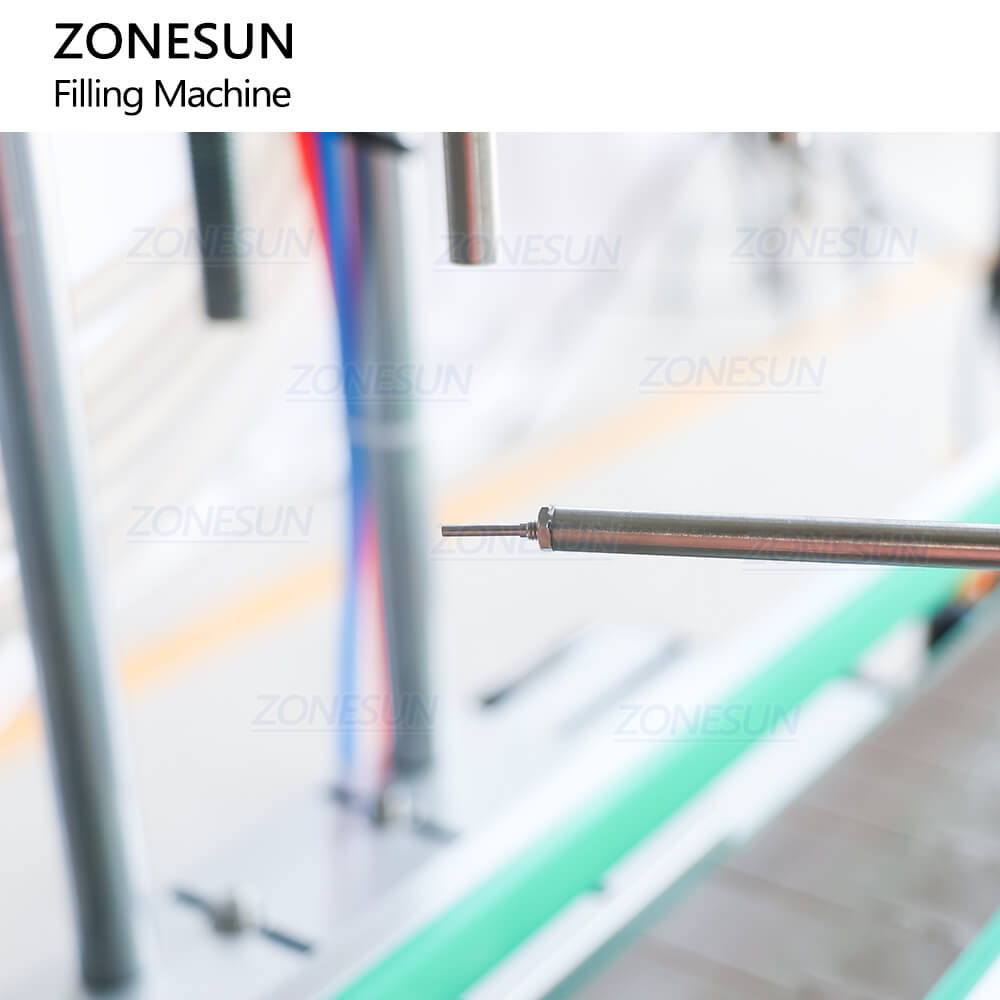

electric eye of automatic liquid filler

The electric eye can detect passing by bottles and send signal to the system to control machines work automatically. The sensitivity of electric eye can be adjusted as production need and improves working accuracy.

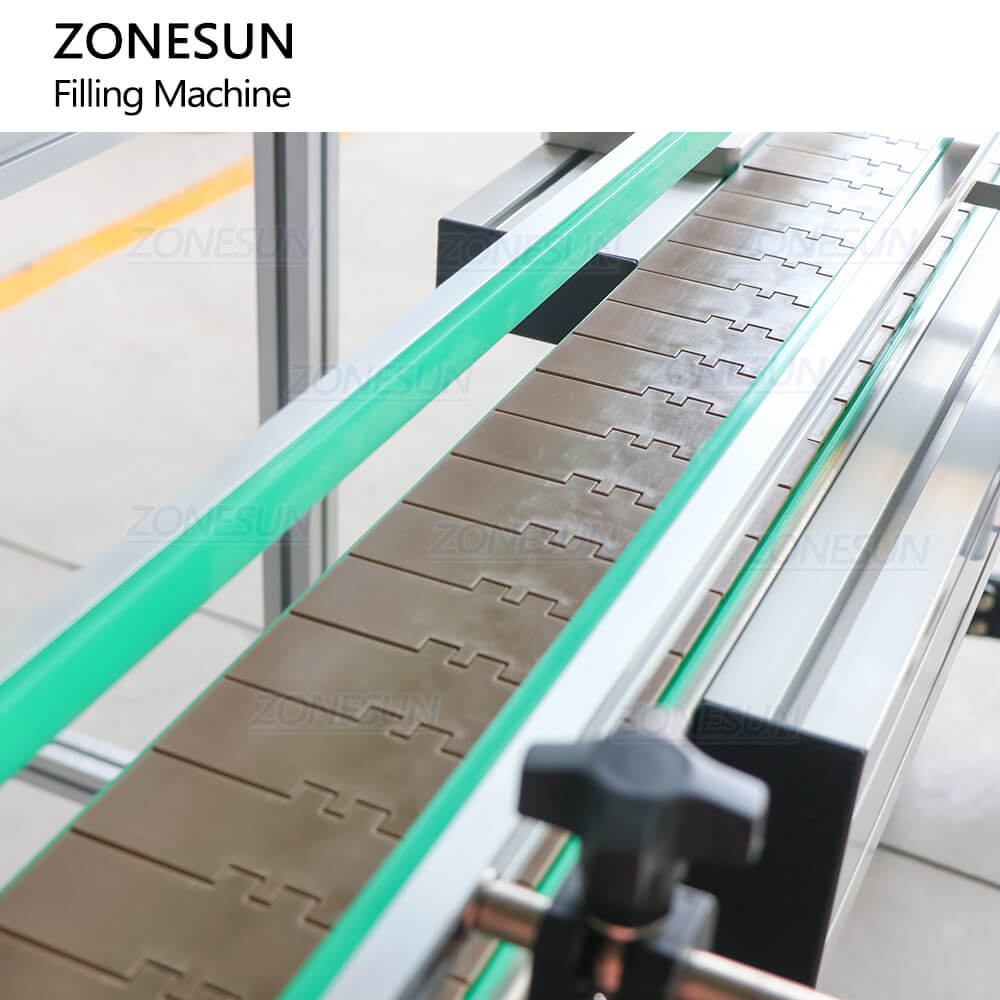

conveyor of automatic liquid filler

With chain conveyor, this has larger weight capacity, and can convey product smoothly.The width of conveyor can be customized as production need

6 heads automatic liquid filler
