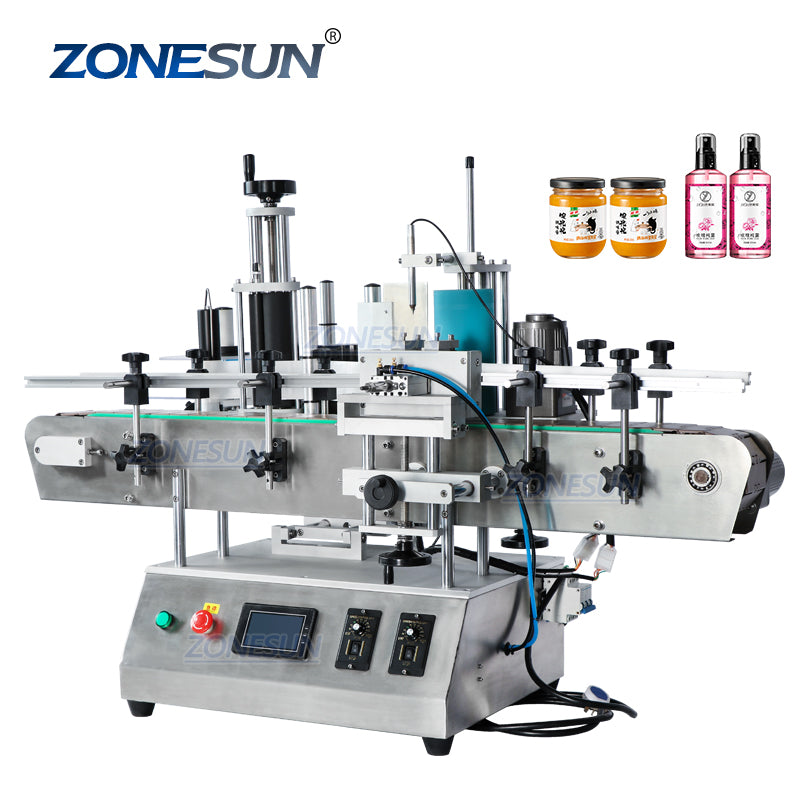

ZS-TB500A Double Side Round Bottle Label Applicator Positioning Labeling Machine

Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine

ZS-TB500A Double Side Round Bottle Label Applicator Positioning Labeling Machine

Regular price $2,299.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

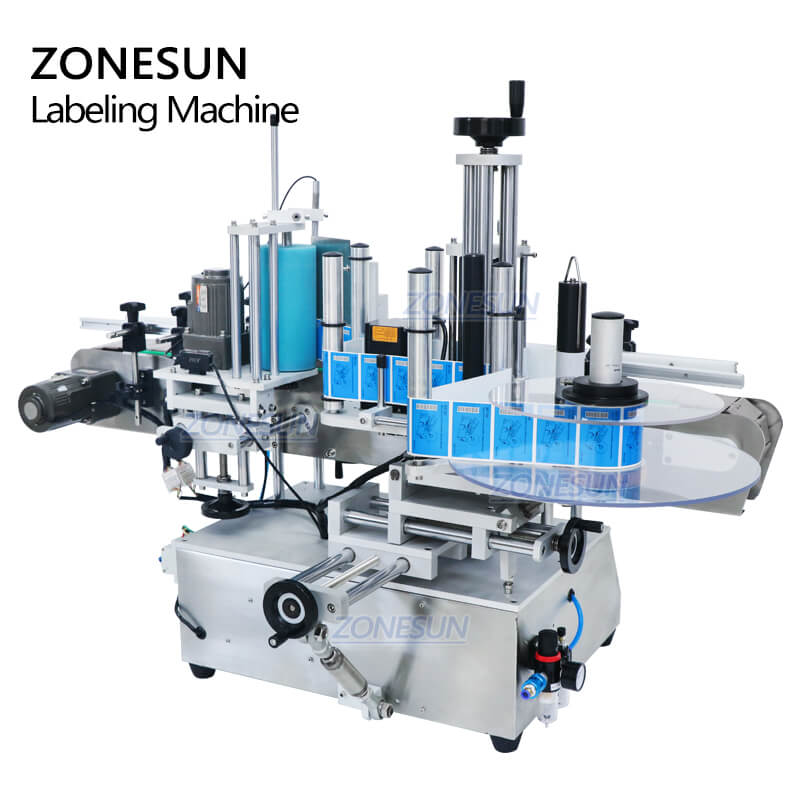

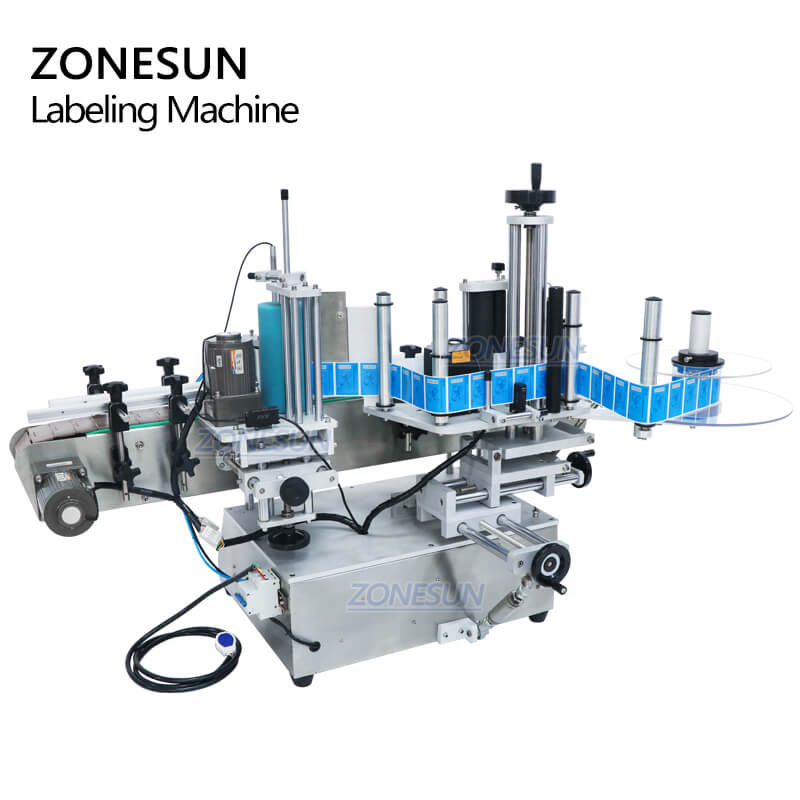

This round bottle labeling machine can be used for double side labeling.The desktop type labeling machine can save working space,but it can work automatically and accurately after you adjust and test working data.It is widely used to label round bottles like wine

Attention

The shipping way of this machine is sea transportation, only to the seaport, not delivery to home / factory address and without tax , if you need more information or want to change shipping method , please contact with us , we can help you to check that.

Parameter

Machine model:ZS-TB500
Voltage:110V-60HZ/220V-50HZ
Working speed:20-60 bottles/min
Suitable labeling Size:15-140mm(W)x25-300mm(L)
Roll inside diameter(mm):Φ75mm
Roll outside diameter(mm):Φ250mm
Suitable bottle diameter:About 30-100mm
Conveyor size:About 1310*100mm
Machine size:About 1240*750*950mm
Package size:About 1460*700*960mm
Package weight:About 125.5kg

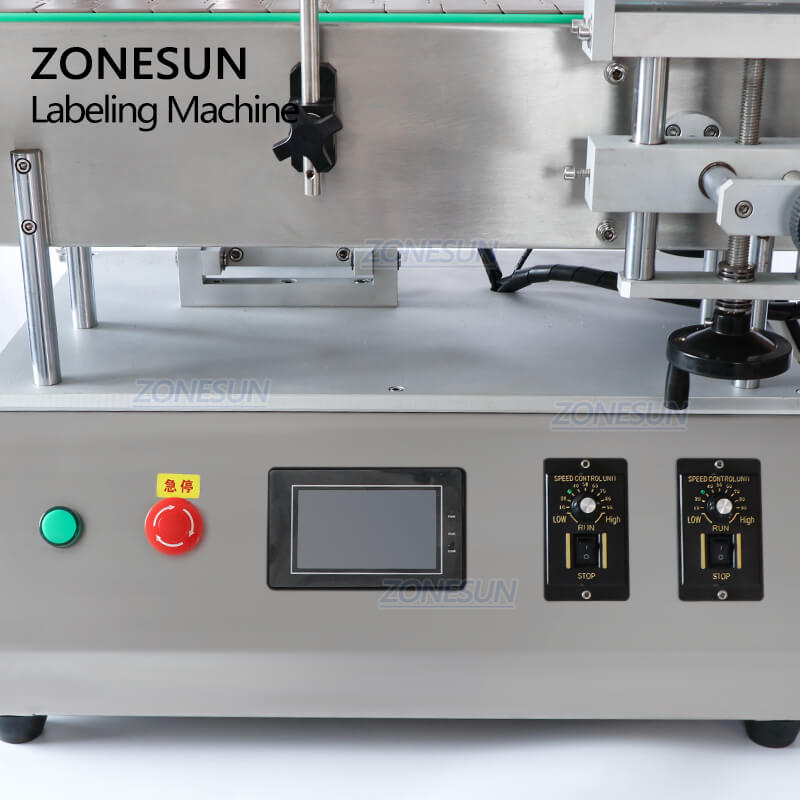

Intelligent operation panel can help you control the machine easily.It can be set into English version,the working data like counting functions,delay time can be controlled by this panel.Beside two black rotary knobs can be used to control working speed

The feeding inlet can be adjusted according to bottle diameter.This machine is suitable for φ≤100mm bottles.The working speed of the conveyor can be adjusted as operators’ need.This help to improve working efficiency.

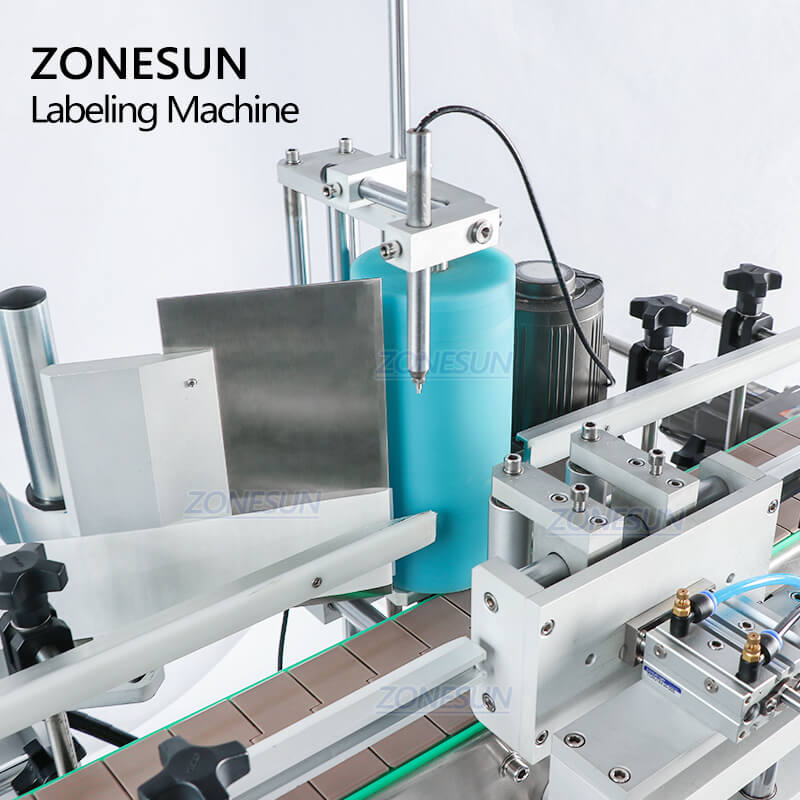

The bottle will be detected by this sensor once they pass by the sensor.Reduce labeling error and ensure the labeling working efficiency.

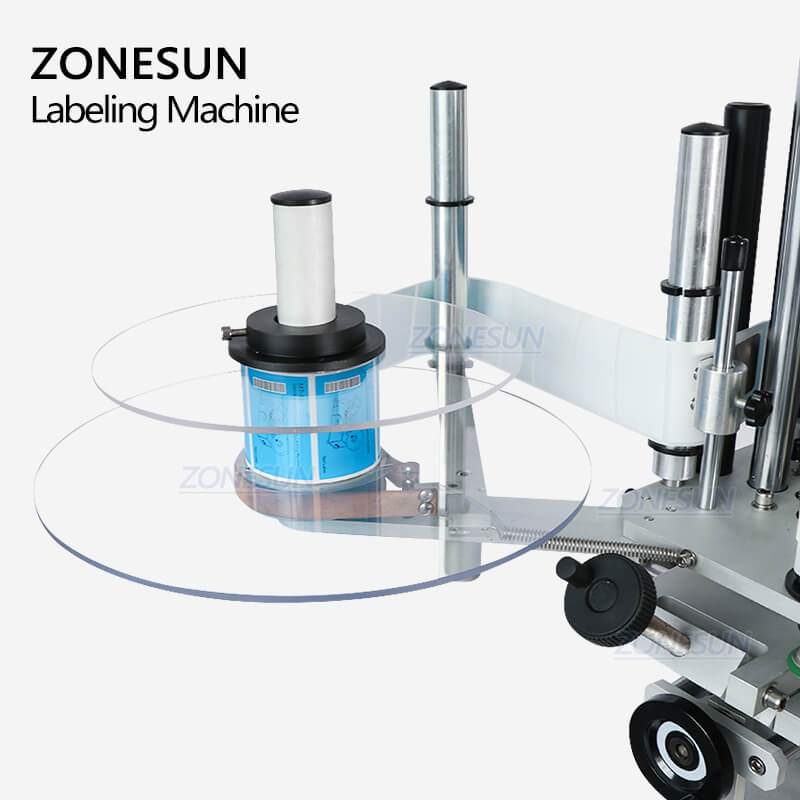

With label sensor and adjusting components,these ensure the sensitivity and accuracy,prevent from missing or wasting label stickers,improve labeling quality

These three labeling wheels make bottles rotating and then finish labeling,ensure that there is no bubbles under labels.Ensure the labeling effect.This is suitable for double side labeling.

The upgrade variable-speed motor makes the machine work stably and improve labeling speed,ensures the labeling accuracy at the same time.

Rotary knobs can be used to controlled the position of the labeling wheel,label separating blade and winding bar,ensure the labeling accuracy and improve labeling quality.
