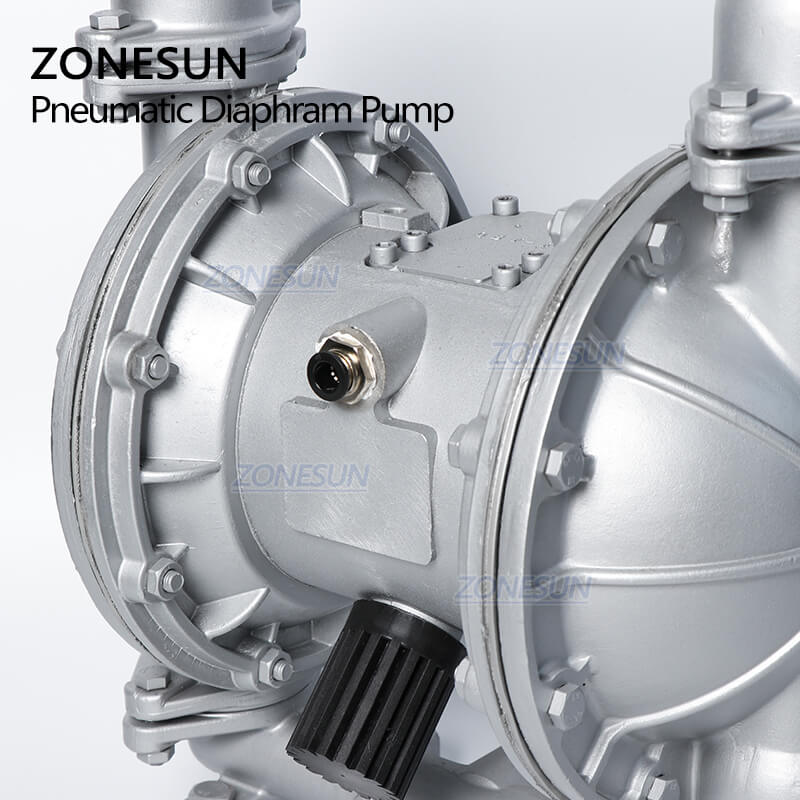

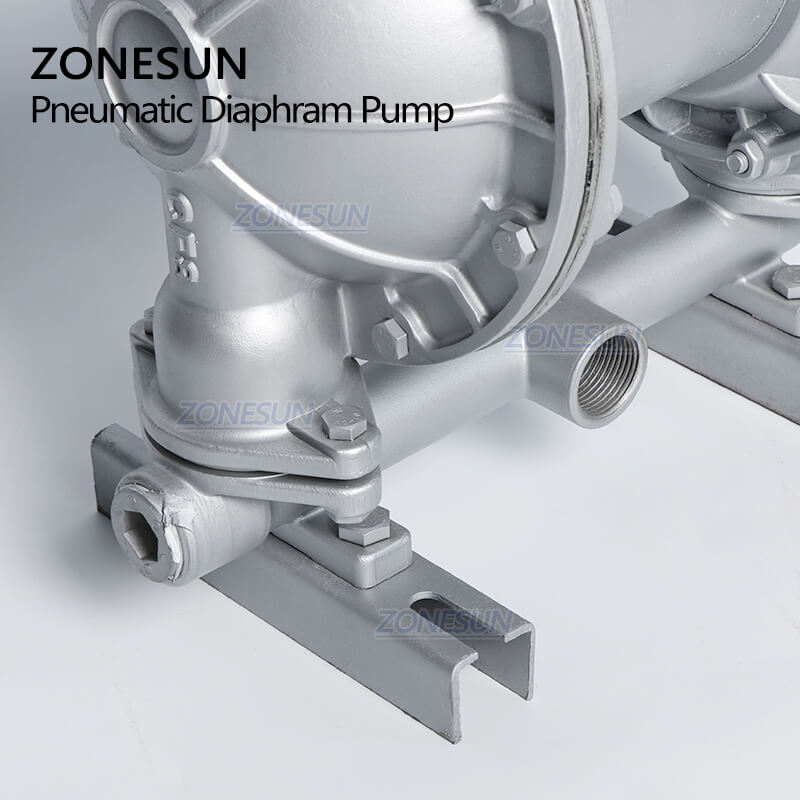

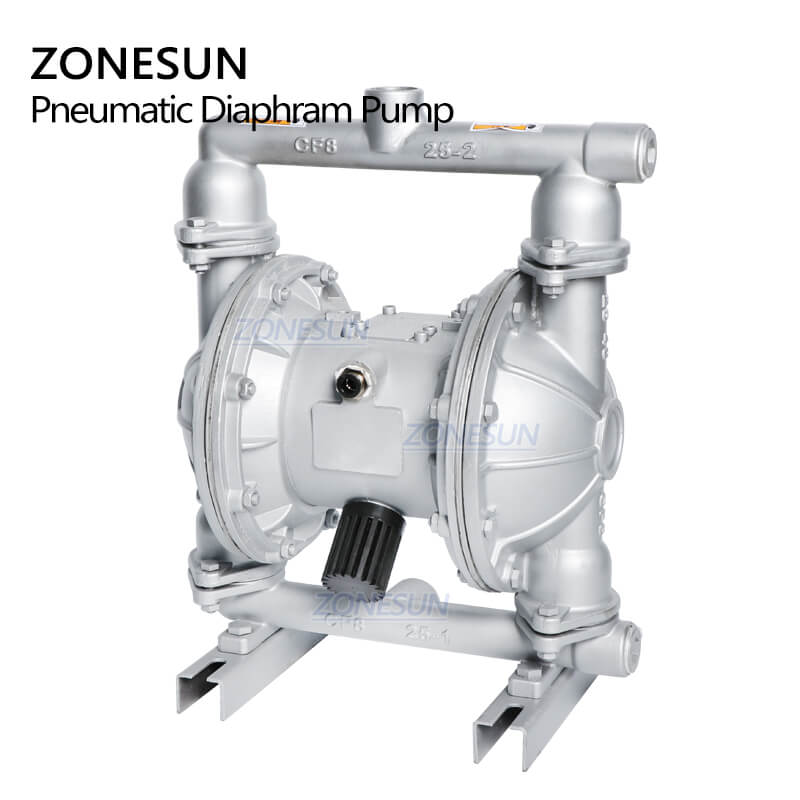

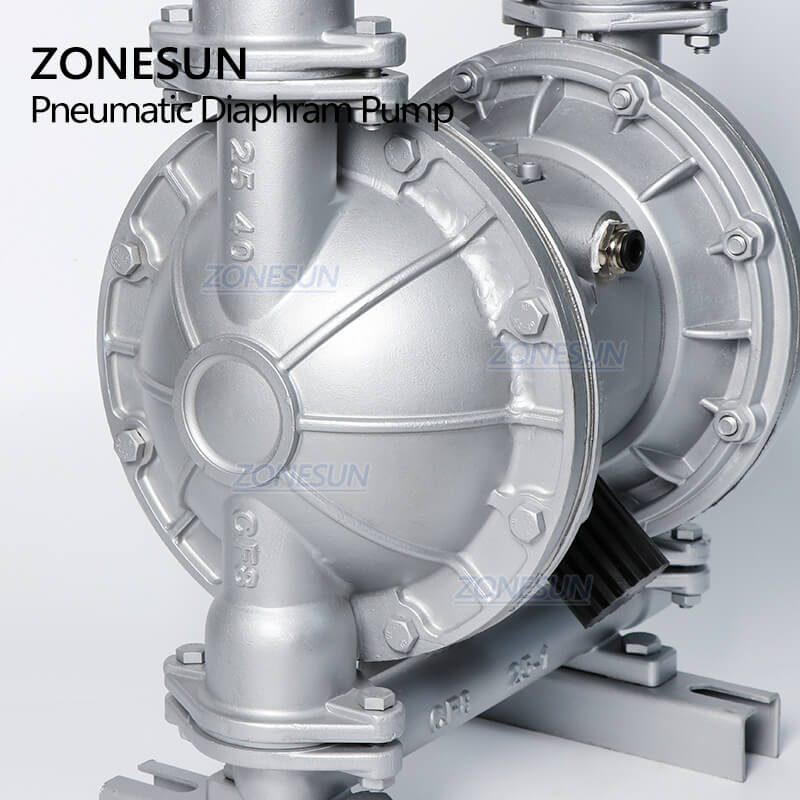

ZS-QBY-K25 China Mini Air Operated Pneumatic Pumps Diaphragm Water Pump

Pneumatic Pumps Diaphragm Water Pump
Pneumatic Pumps Diaphragm Water Pump
Pneumatic Pumps Diaphragm Water Pump
Pneumatic Pumps Diaphragm Water Pump
Pneumatic Pumps Diaphragm Water Pump
Pneumatic Pumps Diaphragm Water Pump

ZS-QBY-K25 China Mini Air Operated Pneumatic Pumps Diaphragm Water Pump

Regular price $699.99 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

Description:

This pneumatic diaphragm pump can be used as a front-step transmission device of the solid and liquid separation equipment,it can pump paste like peanut butter,tomato slurry,chocolate,etc.It can be install in different methods with different equipment to realize different function.
The compression air enters the air distrbution valve from(E) shown as the diagram,let the diaphragm piece move towards the right direction.And the suction force in (A) chamber lets the medium flow into from (C) entrance push out the ball valve(2) to enter (A) chamber,the ball valve(4)will be locked due to the suction force;The medium in (B) chamber will be pressed,push out the ball valve(3)to flow out from the exit(D) .Meanwhile,let the ball valve (1)close, prevent backflow . Such movement in circles will let the medium uninterruptedly suck from (C) entrance and drain from (D)exit.

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
