ZONESUN ZS-MPYT900 Compact Tabletop Magnetic Pump Liquid Filling Machine With Diving Nozzle for Essential Oils and Makeup Remover
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

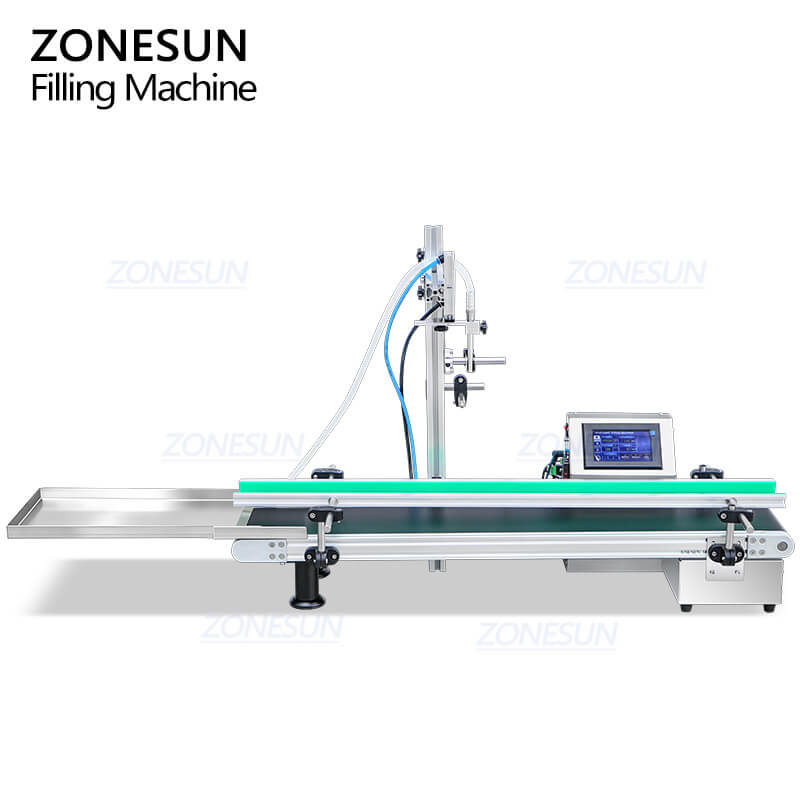

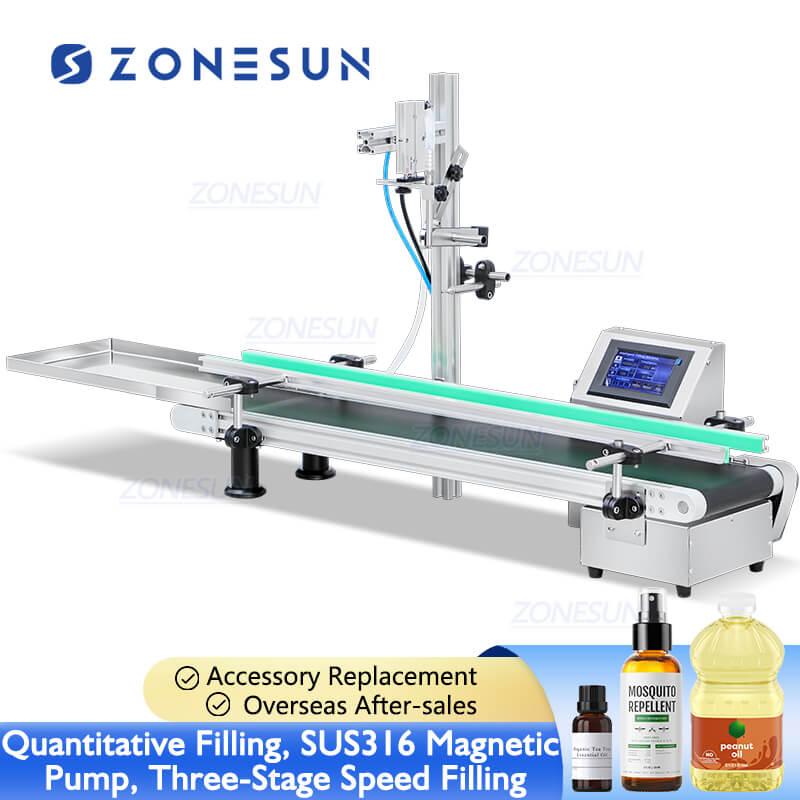

The ZS-MPYT900 magnetic pump liquid filling machine fills serums, essential oils, massage oils, and makeup removers into bottles from 10–1000 mL using a SUS316 6 L magnetic pump. Direct volume input and calibration adjust the set volume for liquids with different densities. Three-stage filling uses a slow start and end with a faster middle stage. The pneumatic lifting filling nozzle has a 50 mm stroke and can be positioned closer to the bottle base for foamy liquids, helping reduce foaming during filling. An anti-drip groove helps keep the filling area clean. Three user parameter sets can be stored and recalled. The machine supports no-bottle-no-fill operation, task-based counts, and automatic stop at the preset count. Filling-head quantity can be customized. The 15 kg conveyor transfers bottles through the filling area.
Magnetic Pump Liquid Filling Machine Parameter
- Machine Model: ZS-MPYT900
- Filling Range: 10–1000 mL
- Standard Pump: SUS316 Magnetic Pump, 6 L/min,
- Standard Pump Max. Flow: 6.0 L/min
- Filling Head Quantity: 1 (Customizable for 2 heads)
- Filling Stand Height: Adjustable From 0–200 mm
- Suitable Bottle Height: ≤150 mm
- Pneumatic Lifting Nozzle Stroke: 50 mm
- Filling Nozzles: φ6 mm and φ9 mm, one each
- Compatible Bottle Opening: Inner Diameter Above 12 mm
- Air Pressure: 0.4–0.6 MPa
- Conveyor Capacity: Max. 15 kg
- Conveyor Dimensions: Total Length 1.2 m; Belt Width 150 mm; Height 140 mm
- Optional Filling Pump: 3.0 L/min Diaphragm Pump, 1.5 L/min Heat-Resistant Diaphragm Pump, 0.7 L/min or 2.4 L/min Peristaltic Pump
- Machine Dimensions: About 1250*400*600 mm
- Machine Weight: About 15.6 kg
- Package Size: About 990*360*220 mm
- Package Weight: About 19.4 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Detail

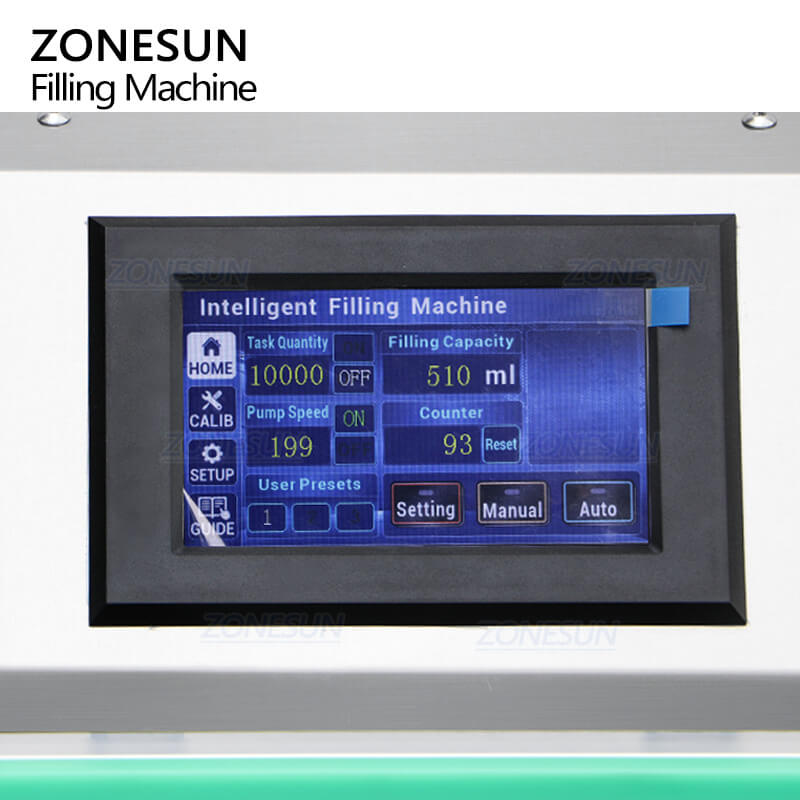

The touchscreen allows direct filling-volume input without time conversion. It stores and recalls three user parameter sets.

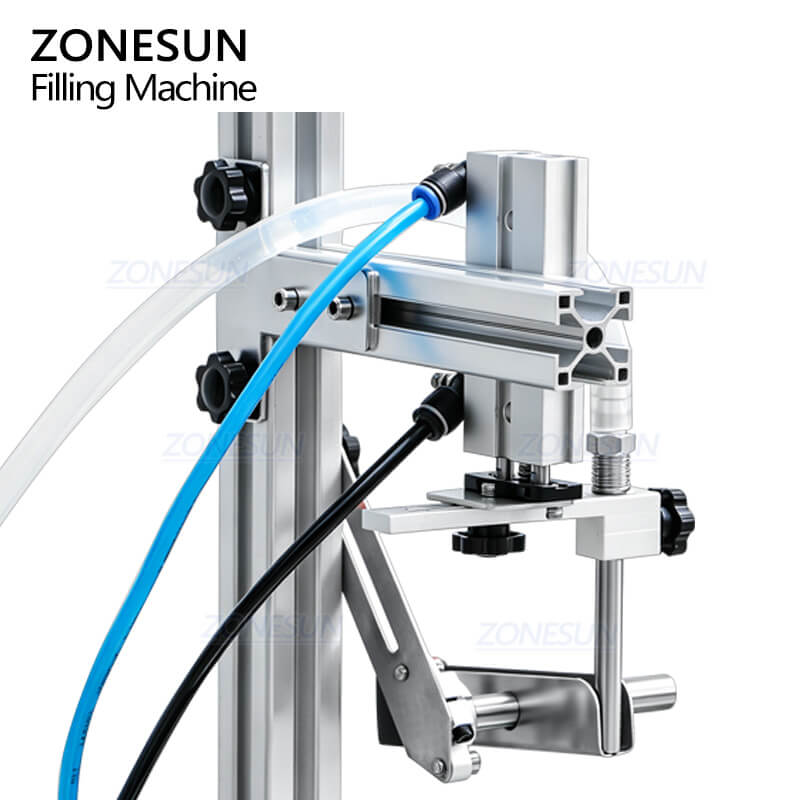

The pneumatic lifting nozzle adjusts its filling position for different bottle heights. An anti-drip groove helps keep the filling area clean.
The photoelectric sensor detects bottle presence for no-bottle-no-fill operation. The system also supports production counting and preset task counts.

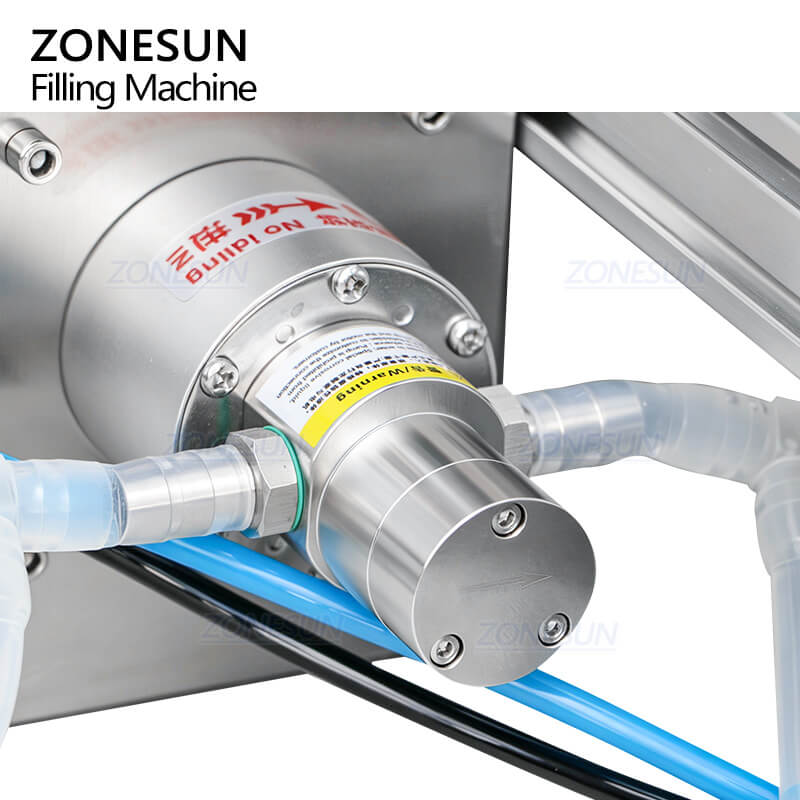

The standard SUS316 magnetic pump handles serums, essential oils, and massage oils. Other pump types can be selected according to the liquid.

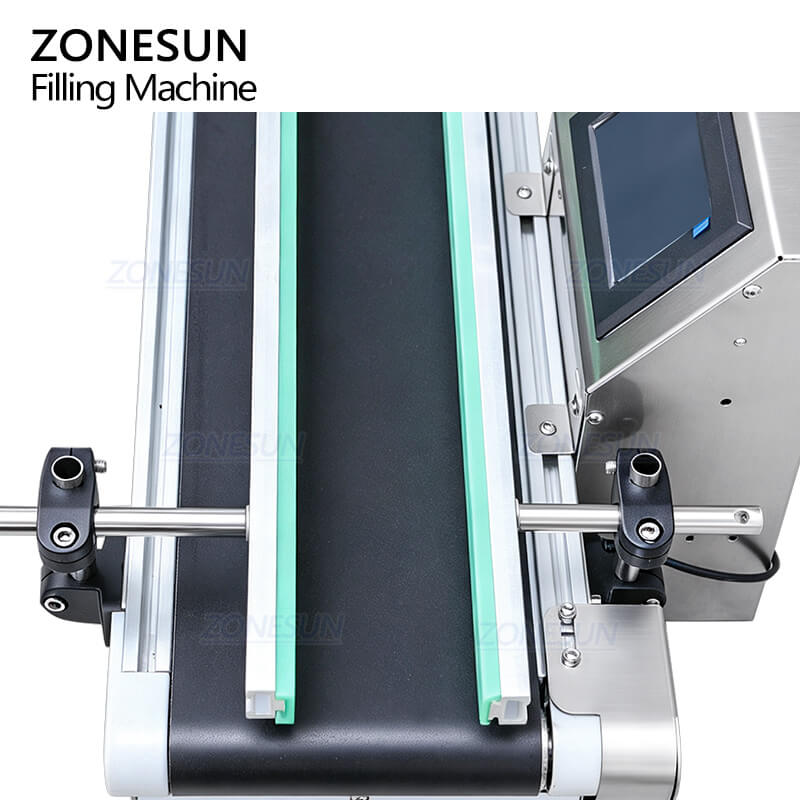

The conveyor transfers bottles through the filling area for continuous filling. The conveyor supports a maximum load of 15 kg.
FAQ
Q1. How do I select the right pump configuration for my liquid?
The standard SUS316 magnetic pump is specified for serums, essential oils, massage oils, and similar liquids. Optional diaphragm, peristaltic, and self-priming pumps have different flow capacities, temperature limits, and corrosion suitability. Please provide the actual liquid and processing temperature for pump selection confirmation.
Q2. How can I check bottle and nozzle compatibility before configuration?
The standard filling nozzles are 6 mm and 9 mm, and the stated bottle-opening requirement is an inner diameter above 12 mm. Please provide bottle samples or drawings to confirm the required nozzle and filling position.
Q3. How should I prepare three recurring product specifications?
The controller can store three parameter sets for repeat production. Before saving each set, confirm the target volume and complete calibration with the corresponding liquid when density differs.
Q4. What should be validated before setting the three-stage filling speed?
The three-stage profile uses slow filling at the start and end with a faster middle stage. Test the actual liquid, target filling volume, bottle shape, and required production rhythm before finalizing the speed settings.
Q5. How do I plan the required filling-head quantity and bottle transfer setup?
The filling-head quantity can be customized according to the target output and bottle arrangement. Confirm the required output, bottle layout, and whether the 15 kg conveyor capacity is suitable for the intended process.
Q6. What information should I provide before ordering?
Please provide the liquid sample, target filling volume, bottle sample or dimensions, bottle-opening size, required output, and operating temperature. This information helps confirm the pump, nozzle, lifting position, filling-head quantity, and conveyor configuration.
