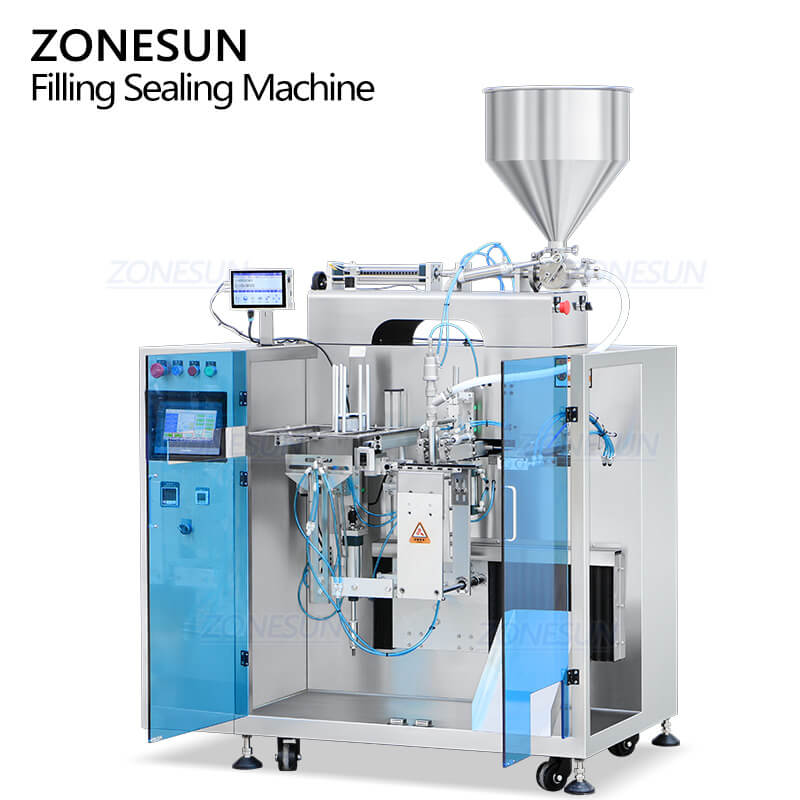

ZONESUN ZS-AFS09P Automatic Premade Pouch Paste Filling Sealing Machine for Sauces Honey and Cosmetic Creams
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
The ZONESUN ZS-AFS09P is an automatic premade pouch paste filling sealing machine for viscous liquids and pastes. The machine automatically feeds, opens, fills, seals, and discharges premade pouches. The piston filling system meters viscous materials into opened pouches. The hopper can be configured with heating or agitation according to material requirements. The machine handles flat pouches, stand-up pouches, and certain zipper pouches when sealing is away from the zipper or when the zipper is pre-opened. No-pouch-no-fill control is included. Date printing and coding can be added, with editable QR codes, barcodes, and dates; different coding colors are available. Safety guards and door interlocks can also be customized.
Parameter of Premade Pouch Paste Filling Sealing Machine
- Machine Model: ZS-AFS09P
- Packaging Speed: 5–30 bags/min
- Maximum Filling Volume: Depends on material
- Power Consumption: 4 kW
- Filling Range: 5-50 ml (Customizable)
- Air Consumption: 0.1 m³/min
- Power Supply: 220 VAC
- Operating Temperature: 5–35°C
- Relative Humidity: ≤85%
- Machine Dimensions: 1300 × 700 × 1300 mm
- Net Weight: 280kg
- Package Size: About 1420 × 1010 × 1590 mm
- Package Weight: About 320kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Detail

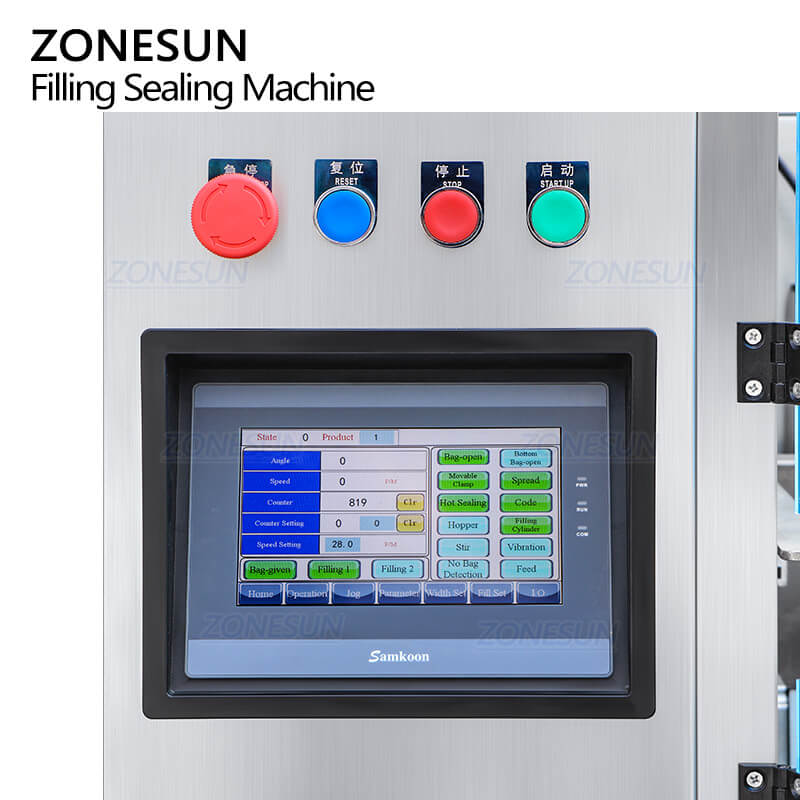

Touchscreen Control Panel

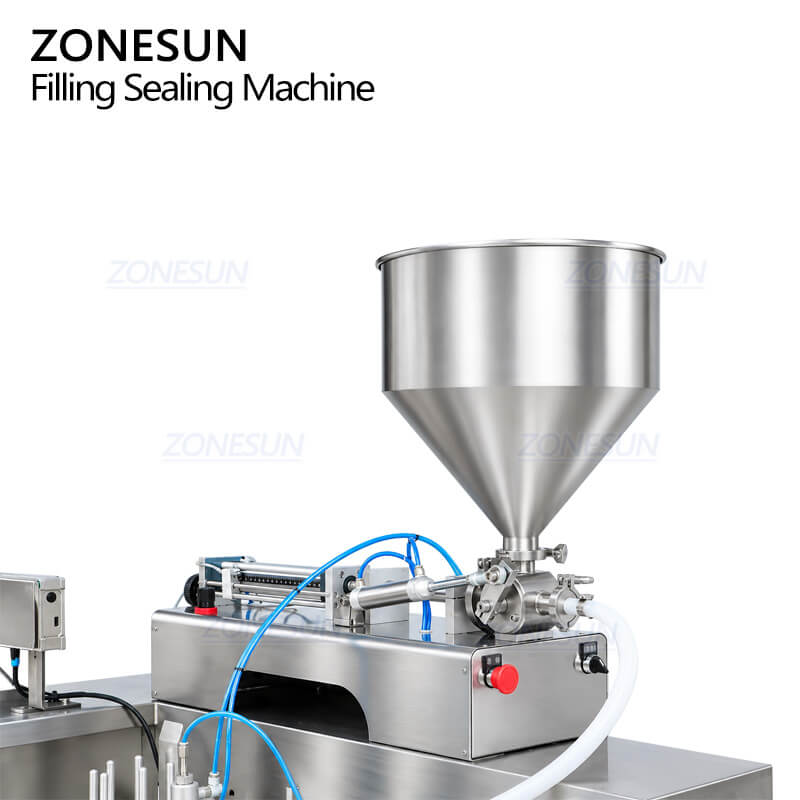

Piston Filling System

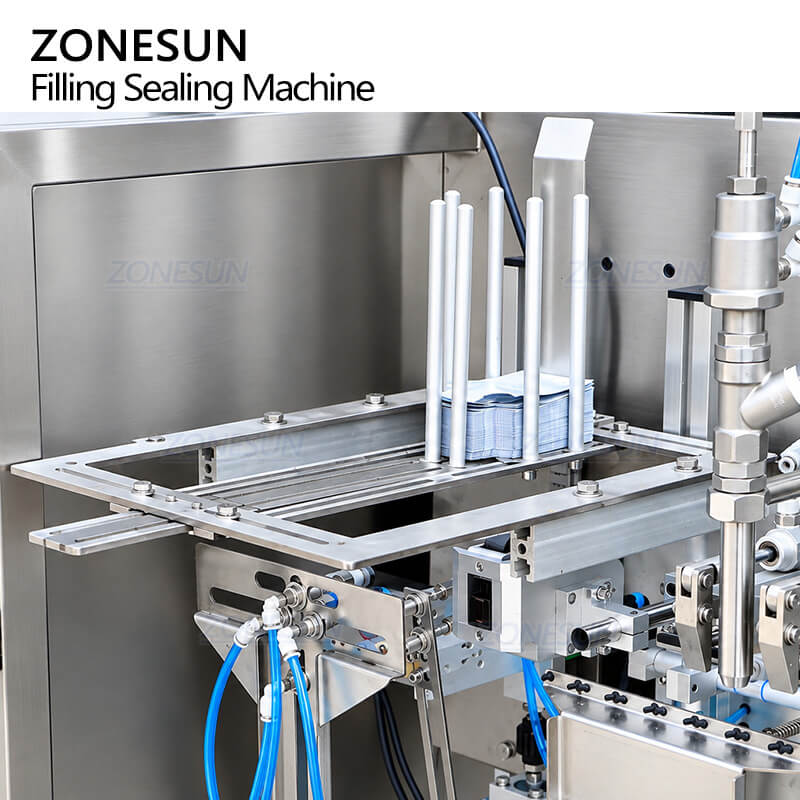

Pouch Feeding & Opening Structure
Pouch Feeding & Opening Structure

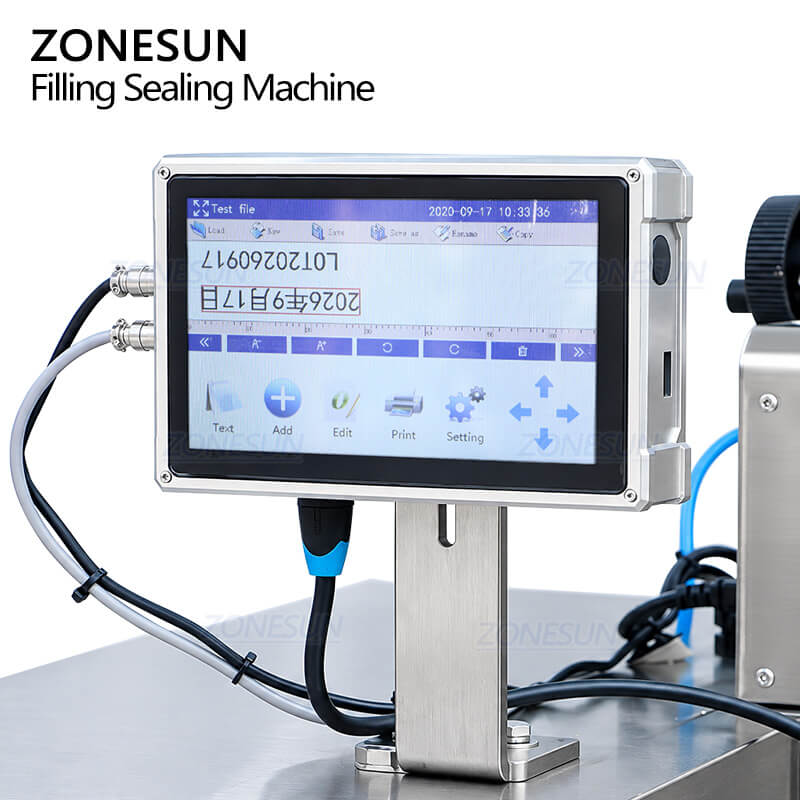

Optional Coding Interface
Electrical Control Cabinet
FAQ
Q1. When should I select hopper heating or agitation?
Hopper heating can be selected when a product needs temperature support to maintain suitable flow conditions. Agitation can be selected when a product requires continuous mixing during filling; the actual configuration depends on material behavior.
Q2. Can the machine run stand-up pouches and zipper pouches?
The machine supports flat pouches and stand-up pouches. Some zipper pouches can also be used when sealing is completed away from the zipper or when the zipper is pre-opened.
Q3. What affects the actual packaging speed?
The reference speed is 5–30 bags per minute. Actual output depends on product viscosity, filling volume, pouch dimensions, pouch-opening stability, and sealing time.
Q4. Can I print QR codes, barcodes, and dates on the pouch?
Yes. An optional coding system can be configured for editable QR codes, barcodes, dates, and other identification content. Different coding colors can be selected according to production requirements.
Q5. What information is needed before selecting the machine?
Please provide the actual material sample, required filling volume, pouch type and dimensions, target output, and whether heating or agitation is required. These details are needed to confirm the piston filling configuration and pouch handling process.
Customized Project Example
Premade Pouch Inverted Bottom Filling and Coding Project
A customized premade pouch packing system combining inverted pouch handling, bottom filling, bottom sealing and inline code printing for small-volume liquid products.
Reference project — final setup subject to confirmed pouch samplesProject Configuration
| Machine type | Automatic premade pouch packing machine |
|---|---|
| Coding system | Equipped with an inline coding machine |
| Production speed | Approximately 20–30 pouches/min, depending on the product, filling volume and pouch conditions |
| Material-contact parts | SUS304 stainless steel |
| Hopper capacity | 30 L |
| Filling pump | Pneumatic piston pump |
|---|---|
| Filling range | 5–50 ml |
| Filling method | The pouch is inverted, filled through its open bottom, and then bottom-sealed after filling |
| Applicable packaging | Premade pouches within the supported adjustable size range |
| Product-contact material | SUS304 stainless steel |
| Adjustable pouch width | 70–200 mm |
|---|---|
| Adjustable pouch length | 80–310 mm |
| Current sample size | 70 mm × 110 mm |
| Future pouch formats | The machine can be adjusted for other pouch sizes within the specified range |
| Final machine setup | To be confirmed according to the finalized production pouch |
