ZONESUN ZS-AFC2 Automatic Monoblock Rotary Alcohol Spray Bottle Lens Solution Cleaner Filling Capping Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Product Overview

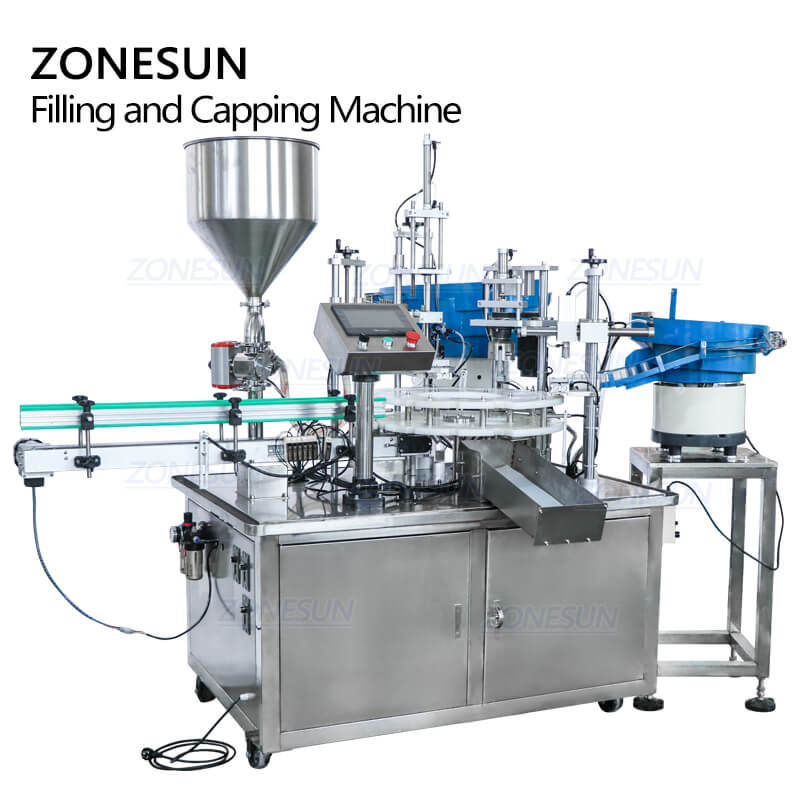

The ZS-AFC2 Automatic Spray Bottle Filling Capping Machine brings bottle feeding, liquid filling, cap handling, and capping into one compact rotary system. Built for small bottles and liquid products like alcohol sprays, lotions, cleaners, essential oils, similar formulations all fit.
Bottles move continuously through the rotary plate. Positioned there for filling, then capping, in sequence. That integrated layout cuts the need for several standalone machines, keeping the whole footprint compact and the operation straightforward.
The filling system configures around product characteristics and the required range. Capping adapts too, matched to bottle and cap specifications. Bottle-contact and product-contact parts customize further still, depending on what the application actually demands.
Automatic Spray Bottle Filling Capping Machine Parameter
- Model: ZS-AFC2
- Voltage: 110/220 V, 50-60 HZ
- Filling Material: Liquid or Paste
- Filling Rate: Depends Filling Material (Contact us for precise data)
- Bottle Diameter: Not limited, can customized
- Bottle Caps: Not limited, can customized
- Working Speed: About 30 bottles/min
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Detail
Simple Operation Panel
Independent Multi-Head Filling Heads
Flexible Cap Feeding and Capping System
Starwheel Positioning System
Automatic Component Sorting and Feeding
Automatic Finished Bottle Collection
Frequently Asked Questions
What type of machine is this?
The ZS-AFC2 is an automatic monoblock rotary liquid filling and capping machine. Bottle positioning, liquid filling, cap feeding, cap placement, capping — one compact system, all five together.
What products can this machine fill?
A wide range of liquids: alcohol sprays, lotions, essential oils, liquid cleaners, pharmaceutical liquids, other low- to medium-viscosity formulations. The filling system configures around whatever the product needs.
Can the filling volume be customized?
Yes. Configuration follows filling volume, product characteristics, production requirements — final setup gets confirmed against the actual product and bottle in question.
How many filling nozzles does the machine have?
Multiple, configurable. Number of heads and arrangement adjust to match production capacity and bottle size.
Can each filling nozzle be adjusted separately?
Yes. Independent control across nozzles. Filling speed adjusts too, product by product.
Can the machine handle different bottle sizes?
Customizable for different specifications. Starwheel, filling nozzles, bottle positioning components, capping system — all selected around bottle diameter, shape, neck size, whatever the dimensions call for.
Can one machine handle multiple bottle shapes?
Generally, the starwheel and bottle-handling components lock around one specific size and shape — that's what keeps positioning stable. Multiple formats usually mean change parts, or a separate customized configuration.
What types of caps can the machine handle?
The capping system configures around cap type, dimensions, bottle neck specs. Cap samples or detailed measurements help determine the right setup.
Does the machine automatically feed caps?
Yes. A vibratory bowl feeder sorts and supplies spray heads, outer caps, whatever's needed — automatically, station by station. Manual handling drops out of the process.
How does the machine position bottles?
A rotary starwheel indexing system transfers and positions bottles at each station. Customized to bottle dimensions, it keeps positioning stable throughout.
Does the filling nozzle have an anti-drip function?
Nozzles can include an anti-drip design — less dripping after filling, cleaner process overall. Exact structure depends on the product.
Is the machine fully automatic?
Yes. Bottle handling, liquid filling, cap feeding, cap placement, capping — automated, integrated. Finished bottles move on to the collection conveyor from there.
Can the machine be customized?
Yes. Filling system, number of filling heads, starwheel, cap feeder, capping mechanism, bottle collection system — all configurable, built around the specific application.
