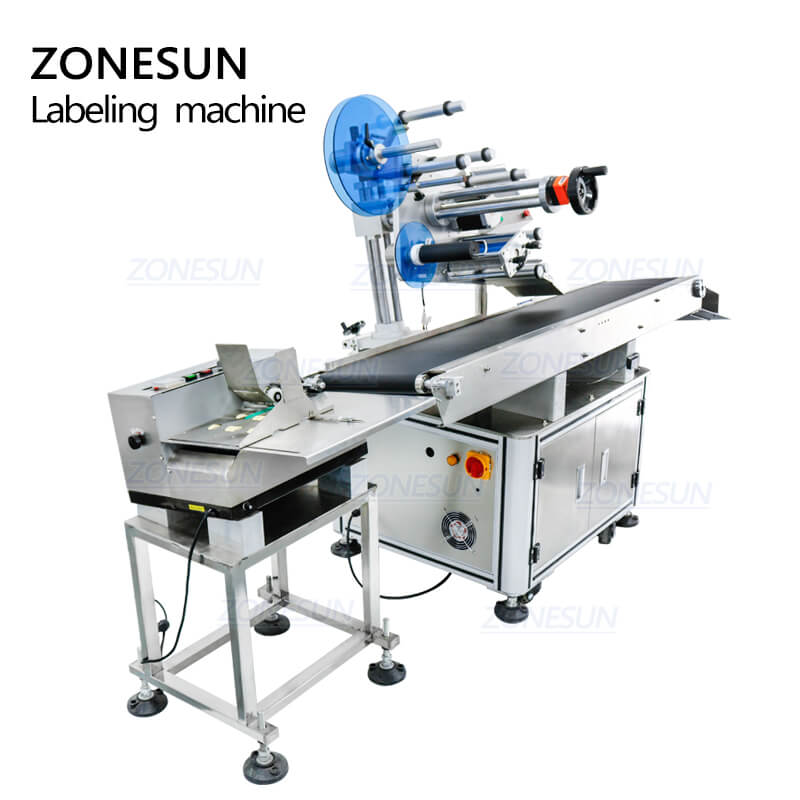

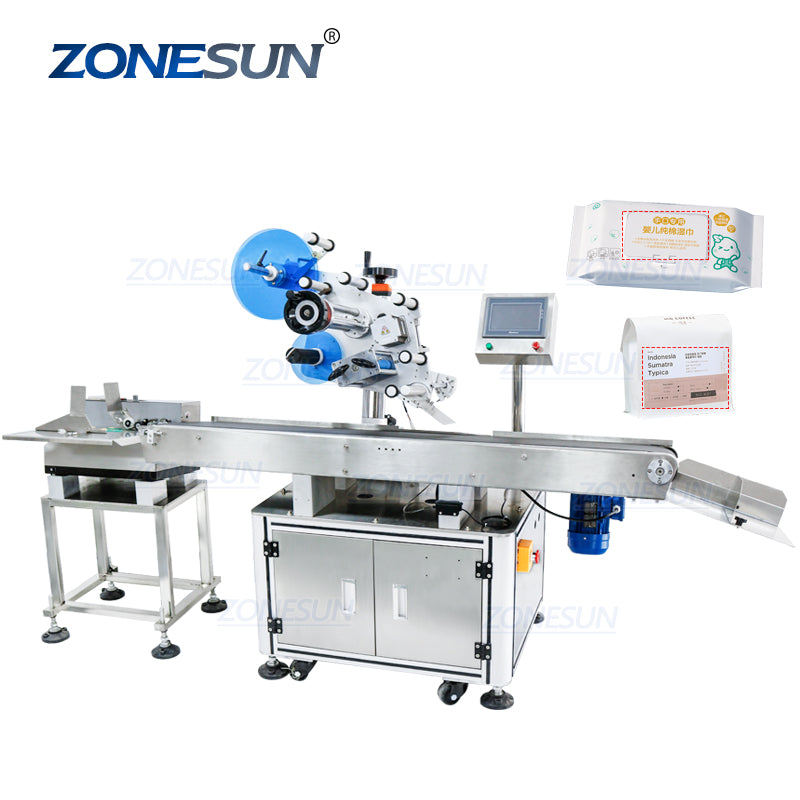

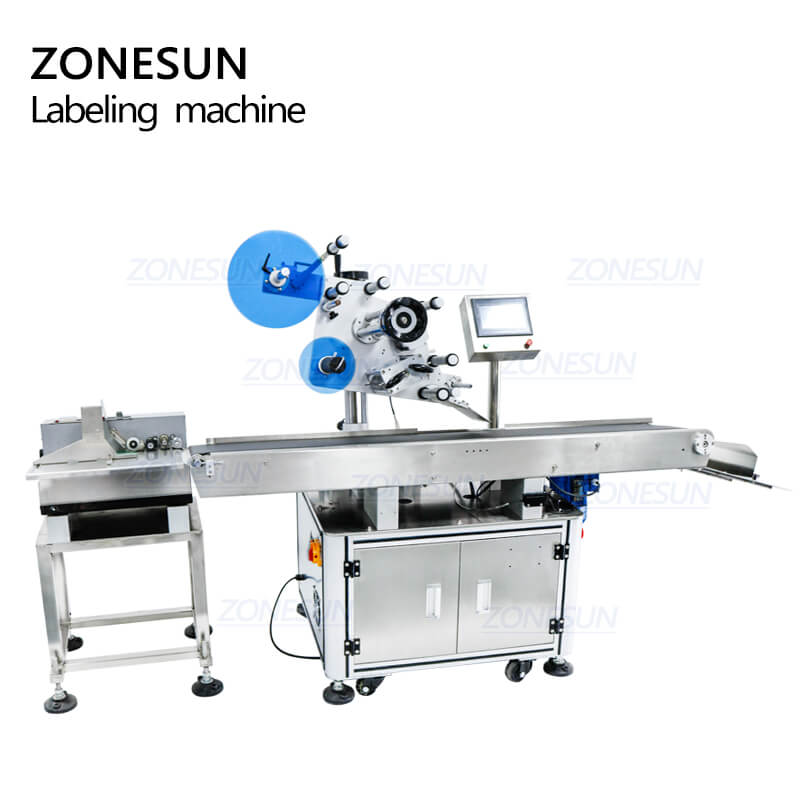

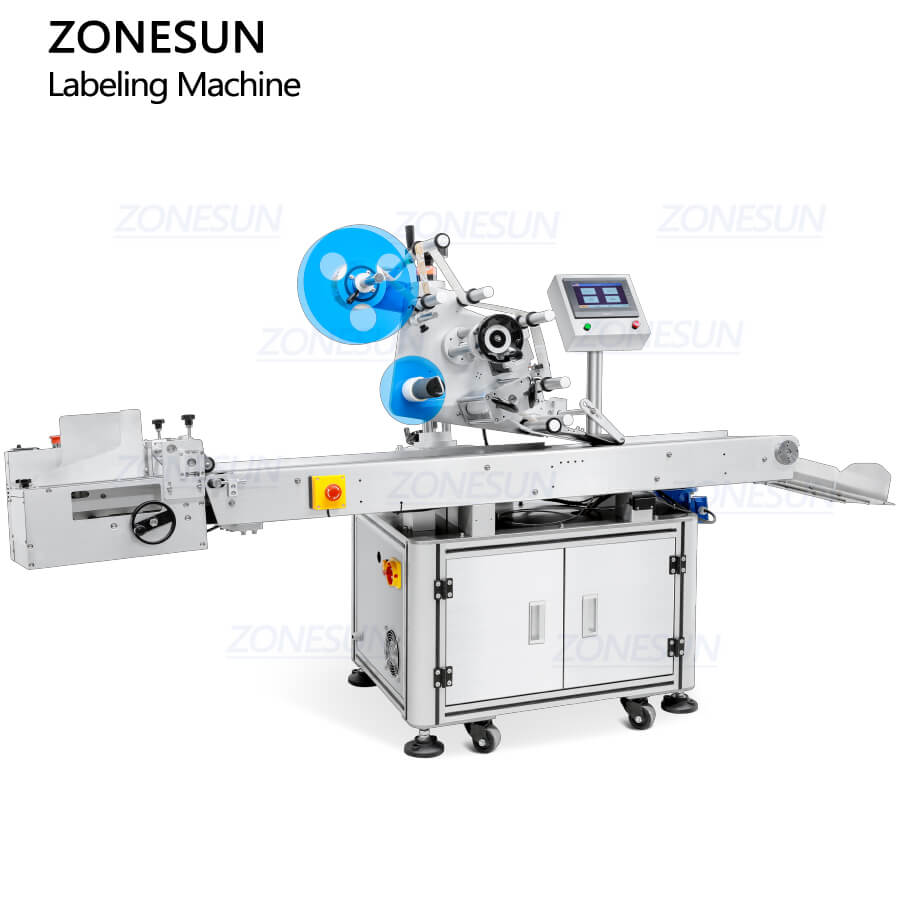

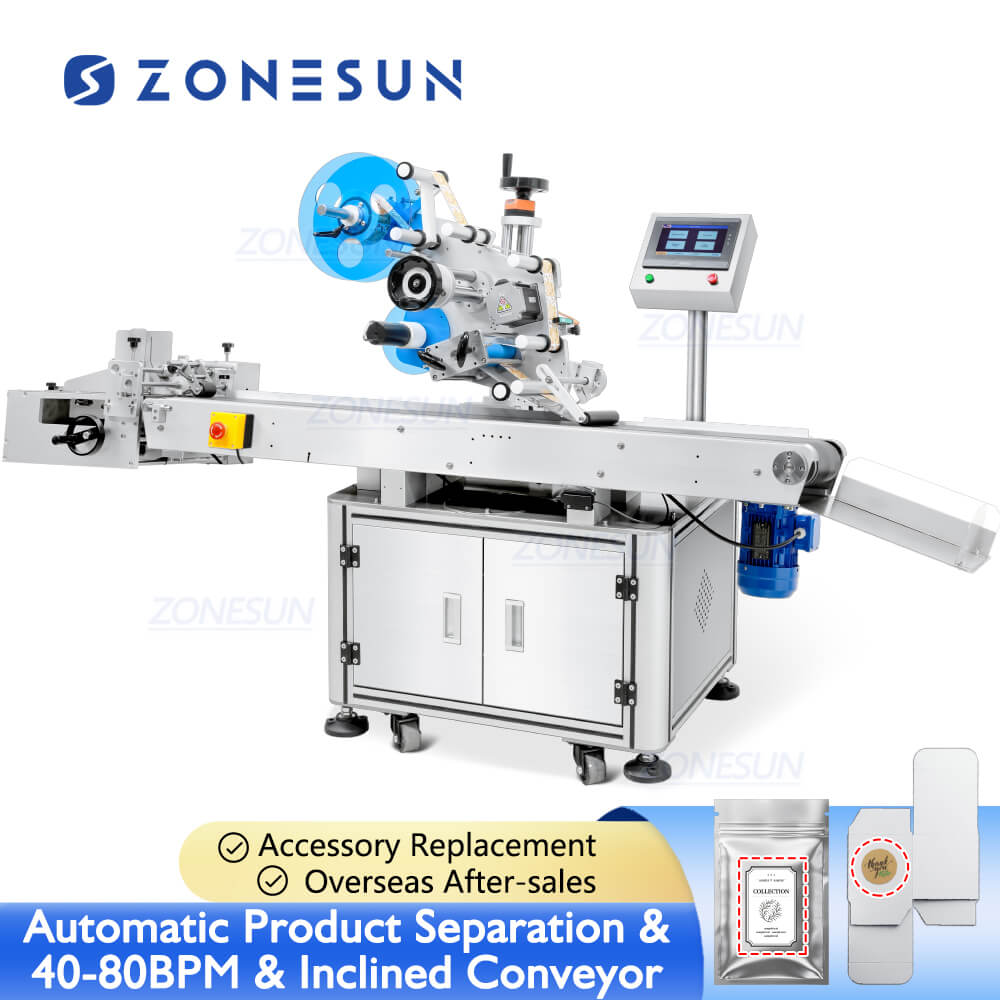

ZONESUN ZS-TB832 Automatic Sticker Adhesive Food Paper Book Plastic Film Flat Labeling Machine

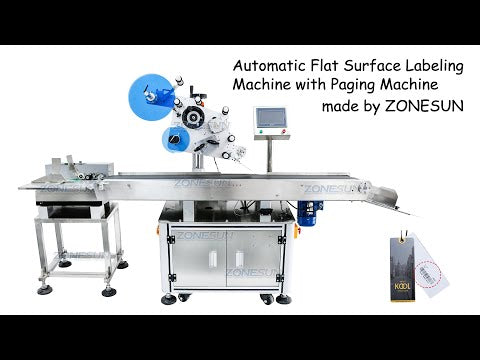

This automatic top side labeling machine is designed for applying top-side labels on hang tags, pouches, and flat cards at speeds of 40–80 bpm. Equipped with a paging system, it automatically separates stacked products for continuous labeling. The inclined inboard conveyor design uses gravity to guide products inward, ensuring high label placement accuracy.

Automatic Top Side Labeling Machine Parameter

• Machine Model: ZS-TB832 Labeling Machine

• Power Supply: 110V/220V 50-60HZ 820W

• Labeling Accuracy: ±1.0 mm( Based on product and label size )

• Labeling Speed: 40-120 Pieces/min ( Based on product size )

• Suitable Product Size: 40-300 mm*40-200 mm*0.2-5 mm( L*W*H )

• Suitable Label Size: 6-300 mm*15-130 mm ( L*W )

• Label Roll ID: φ76 mm

• Label Roll OD: φ300 mm

• Machine Size: About 2440*830*1350 mm ( L*W*H )

• Machine Weight: About 224 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

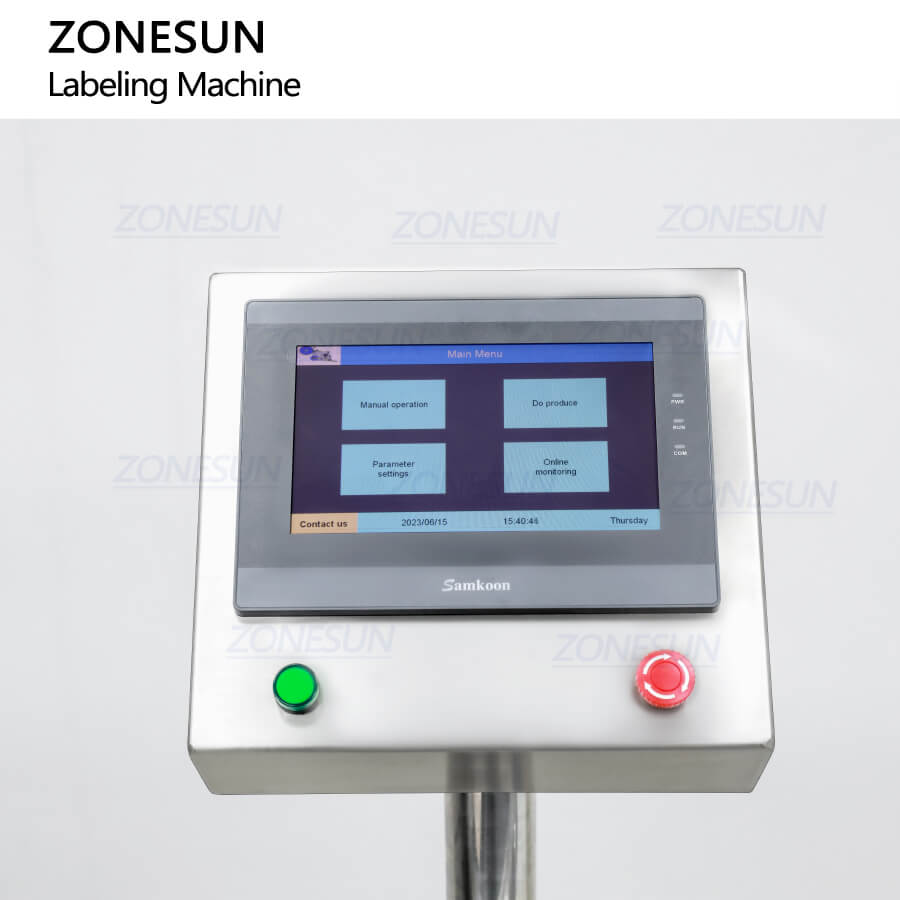

Control Panel
Provides intuitive operation with easy parameter settings for speed, improves working efficiency.

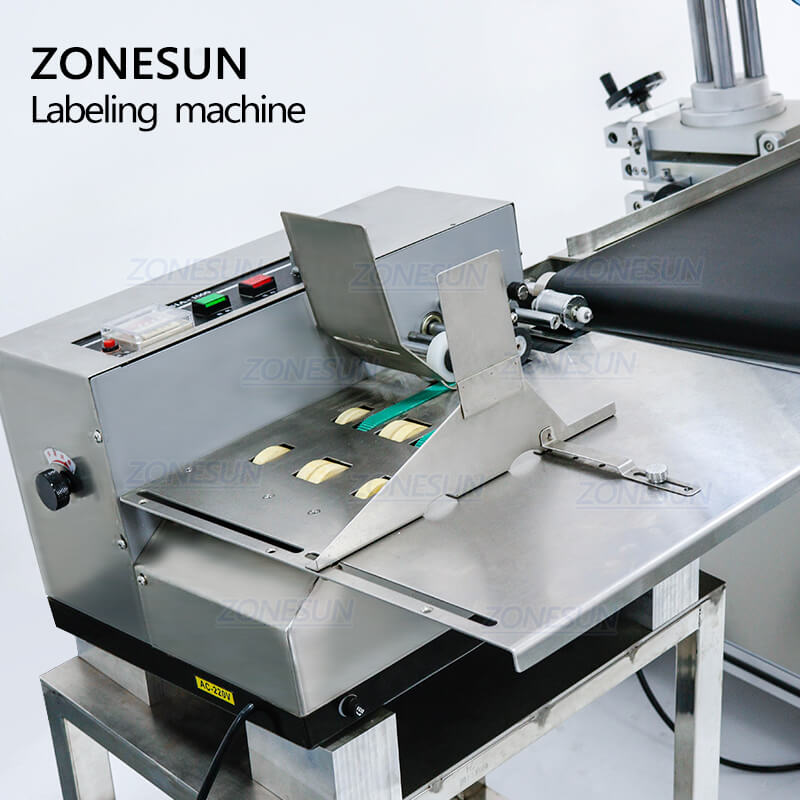

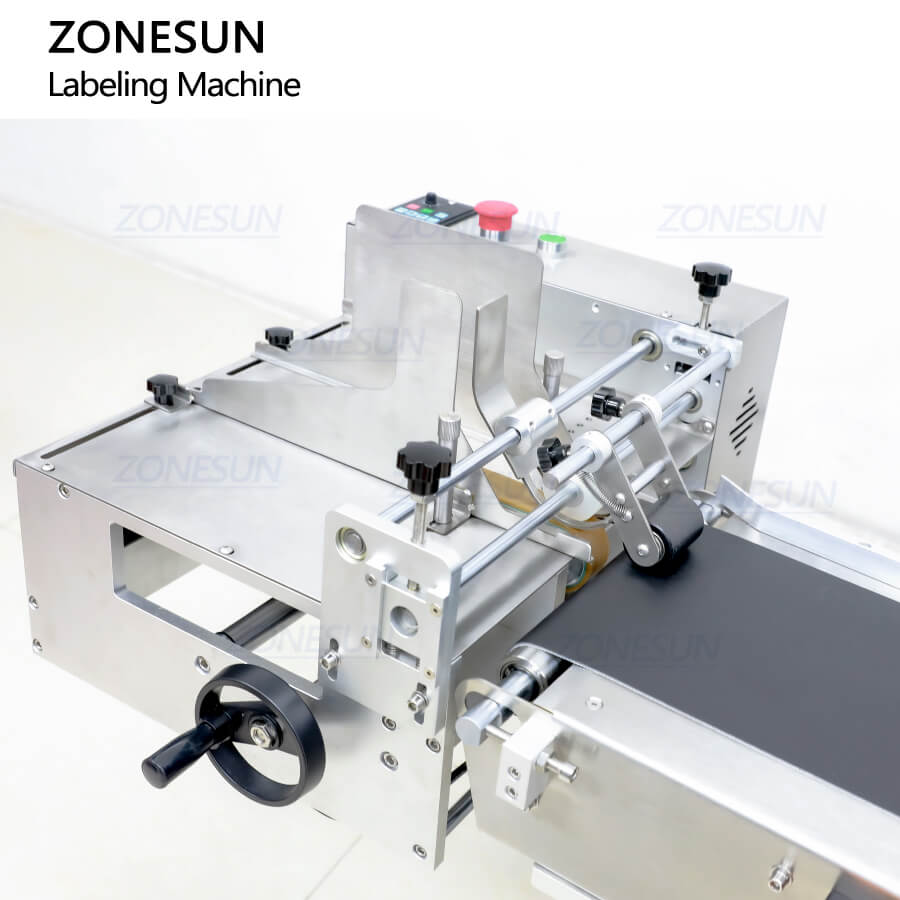

Paging System
Automatically feeds and separates stacked items to ensure smooth and consistent supply.

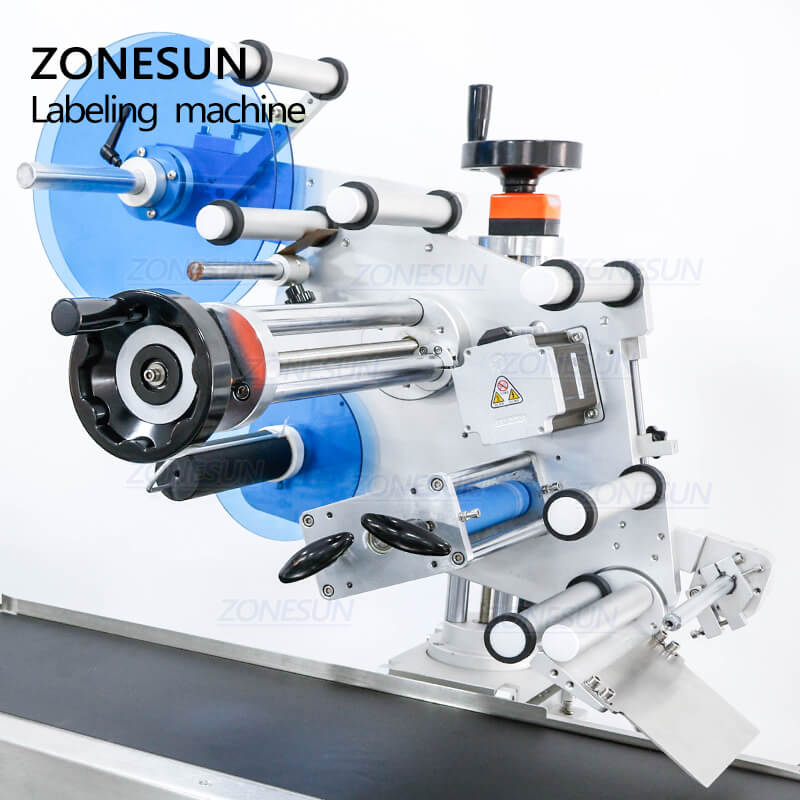

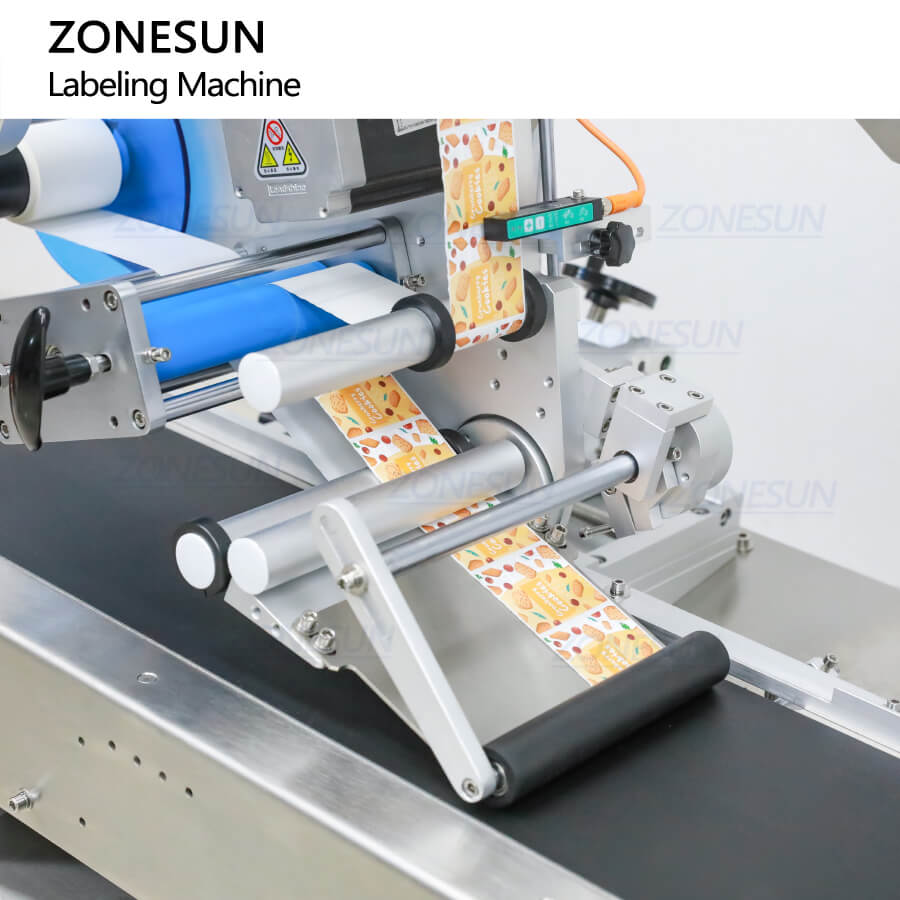

Labeling Structure
It delivers precise label application to flat product surfaces, has consistent adhesion at high speeds.

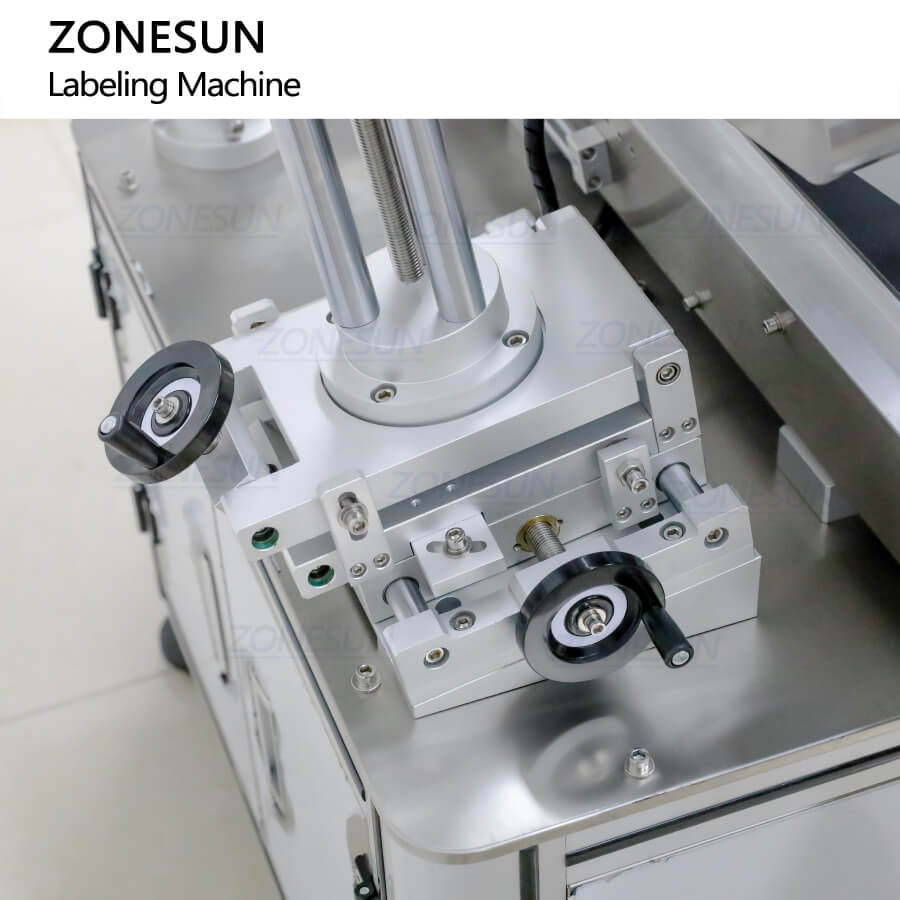

Adjustable Rotary Knob
Enable fine-tuning of the labeling assembly’s position in multiple directions, accommodating various product dimensions.

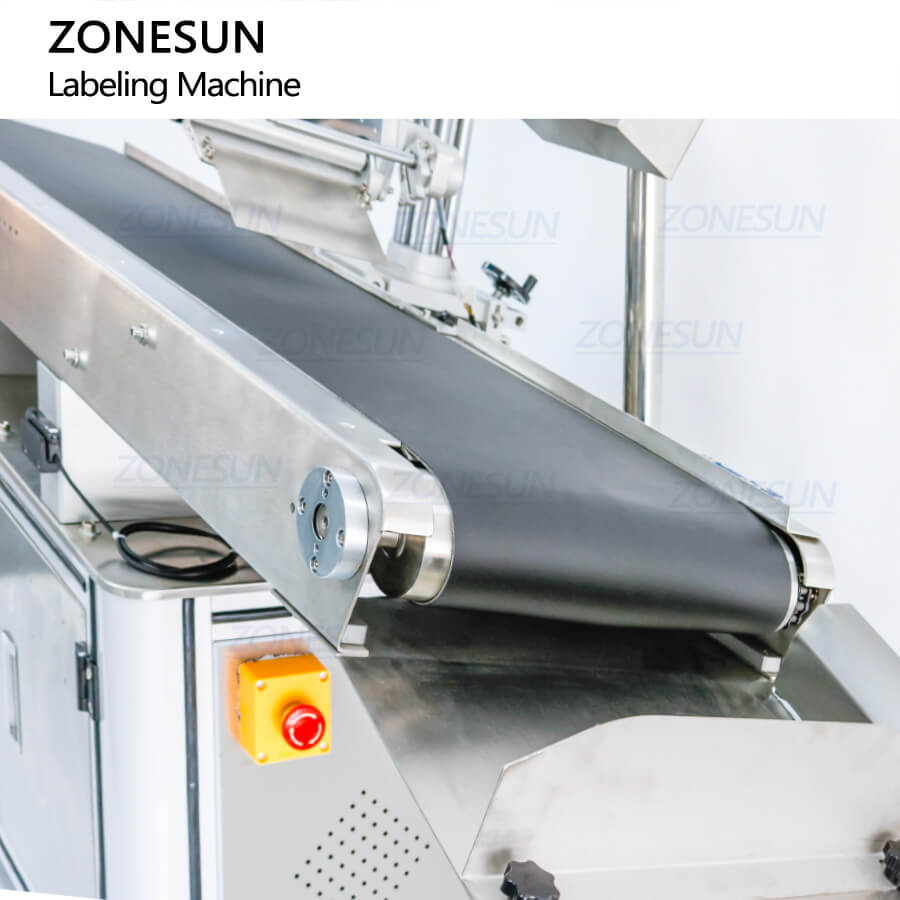

Inclined Conveyor
Products naturally lean inward during transport, increasing stability and improving label placement accuracy.
