ZS-TB806 Semi Automatic Double Size Flat Bottle Labeling Machine For Hand Sanitizer Sticker Water

Regular price $6,499.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

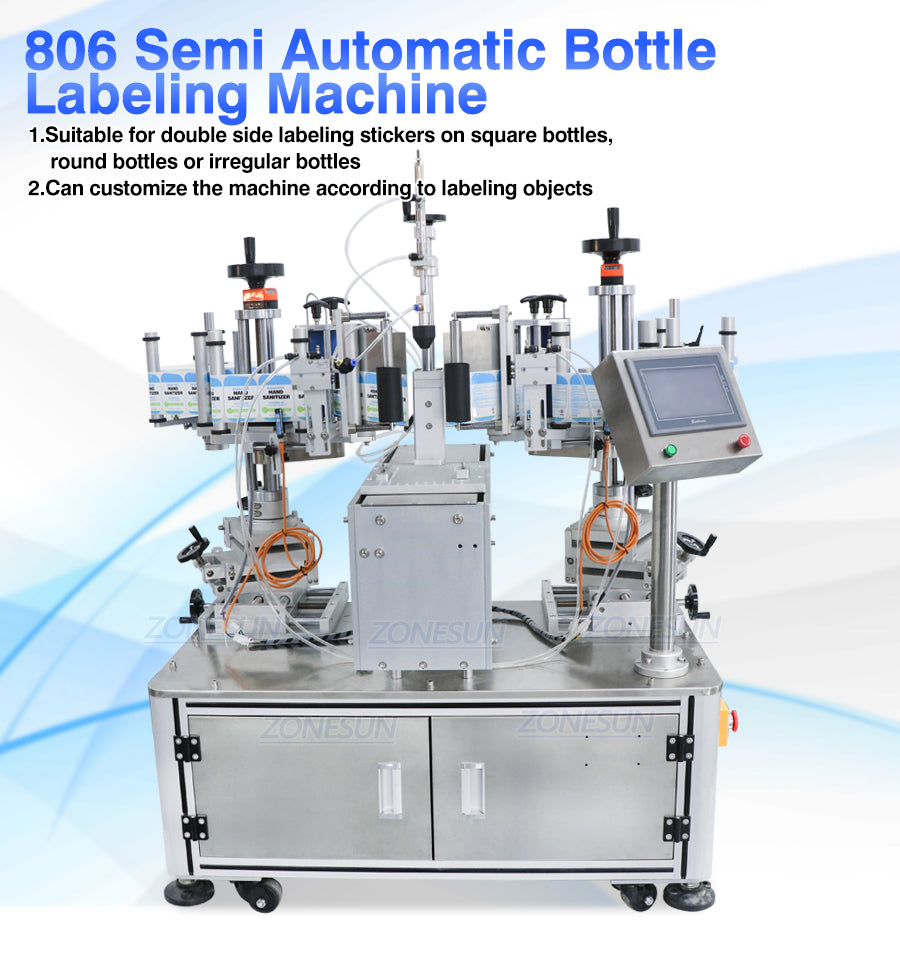

This machine is suitable for double side labeling stickers on square bottles or round bottles.It is also suitable for irregular surface like concave labeling objects or oval bottles.It can be equipped with date coder to help you code production date or number.

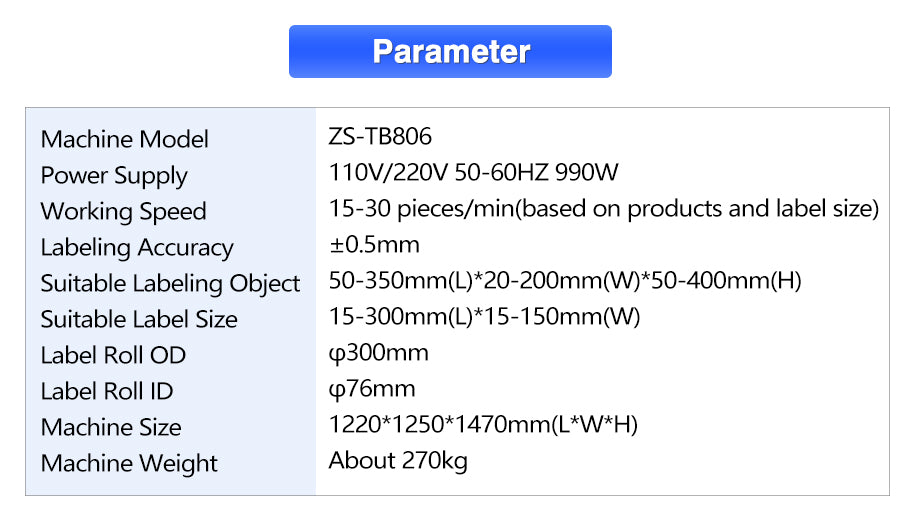

Parameter
Machine Model:ZS-TB806
Power Supply:110V/220V 50-60HZ 990W
Working Speed:15 -30 pieces/min(based on products and label size)
Labeling Accuracy:±0.5mm
Suitable Labeling Object:50-350mm(L)*20-200mm(W)*50-400mm(H)

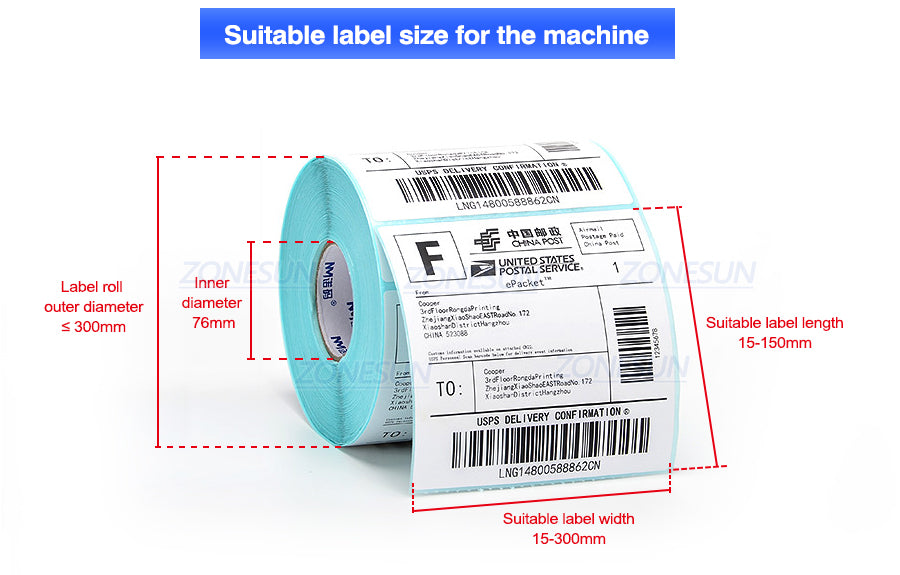

Suitable Label Size:15- 300mm(L)*15-150mm(W)
Label Roll OD:φ300mm
Label Roll ID:φρ76mm
Machine Size:1220* 1250* 1470mm(L*W*H)
Machine Weight:About 270kg

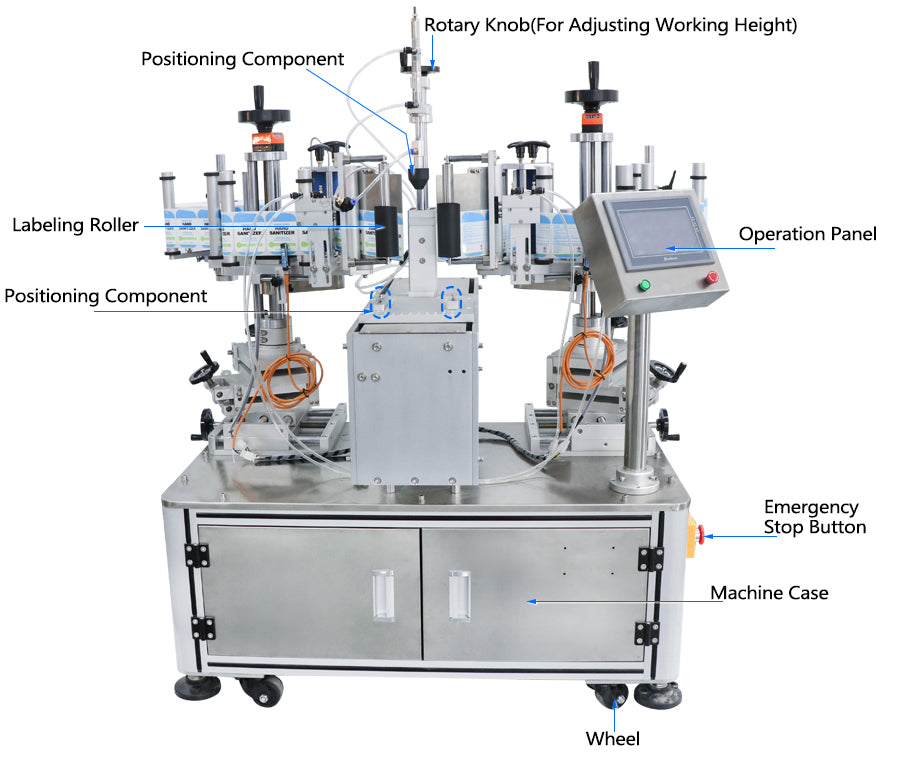

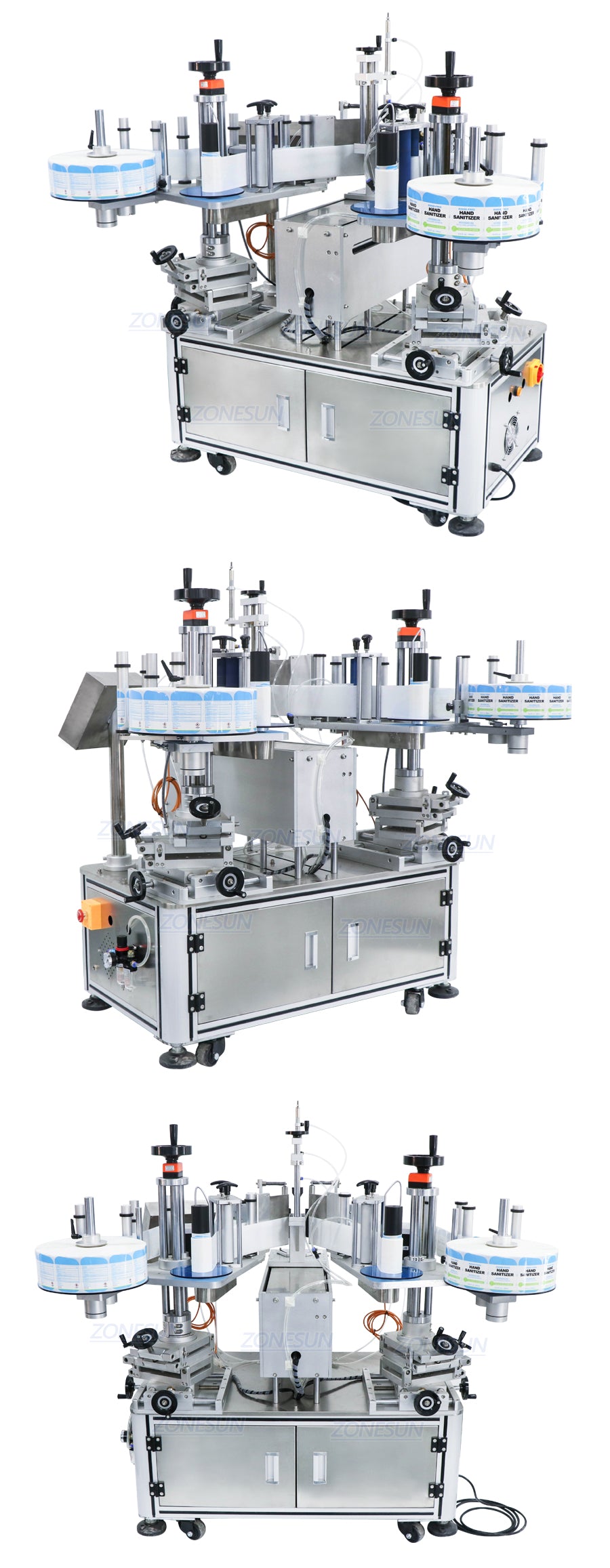

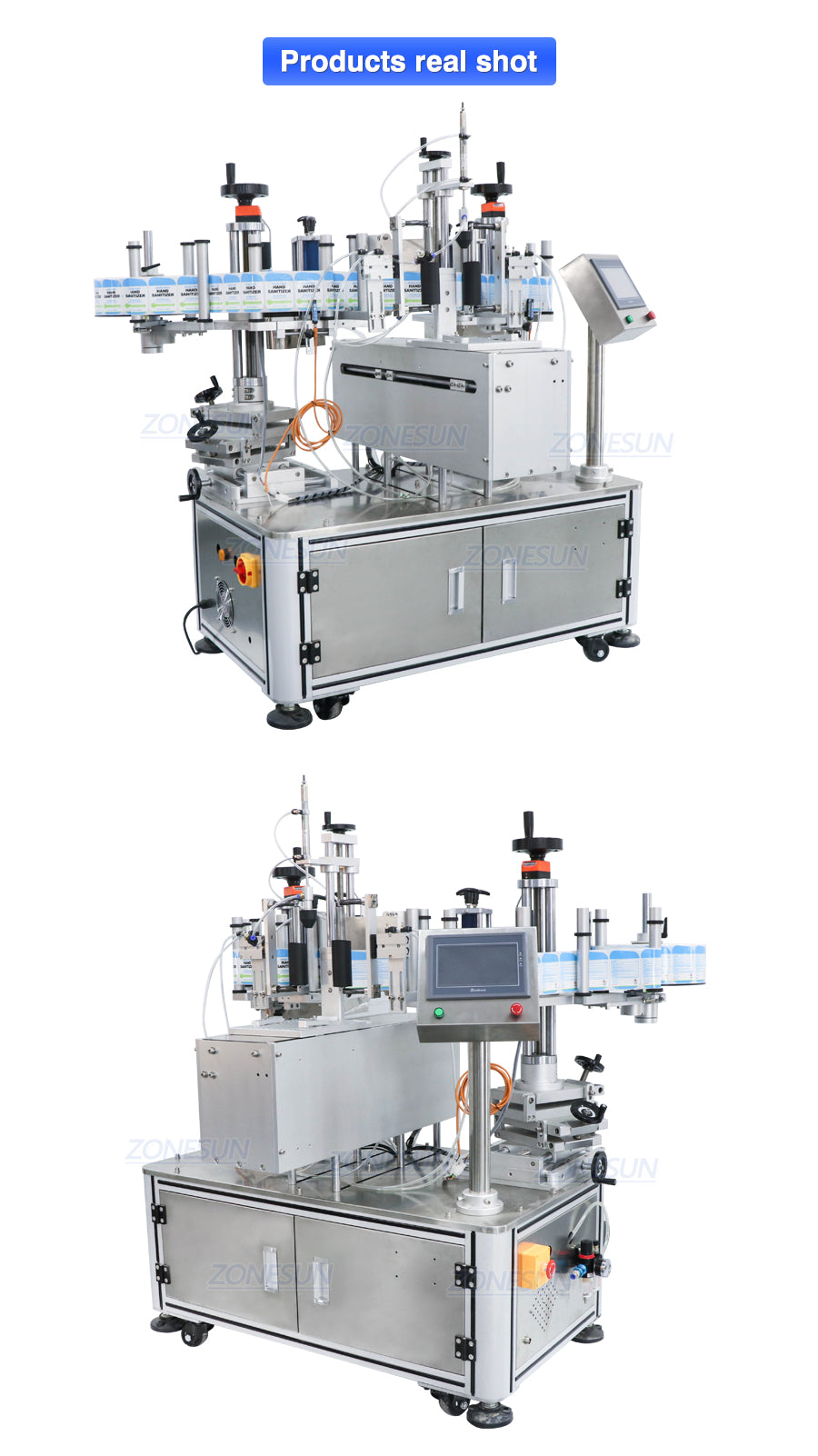

Semi-automatic Double Side Labeling MachineApplication of Semi-automatic Double Side Labeling MachineDetails of Semi-automatic Double Side Labeling MachineLabel Sticker Size of Semi-automatic Double Side Labeling Machine

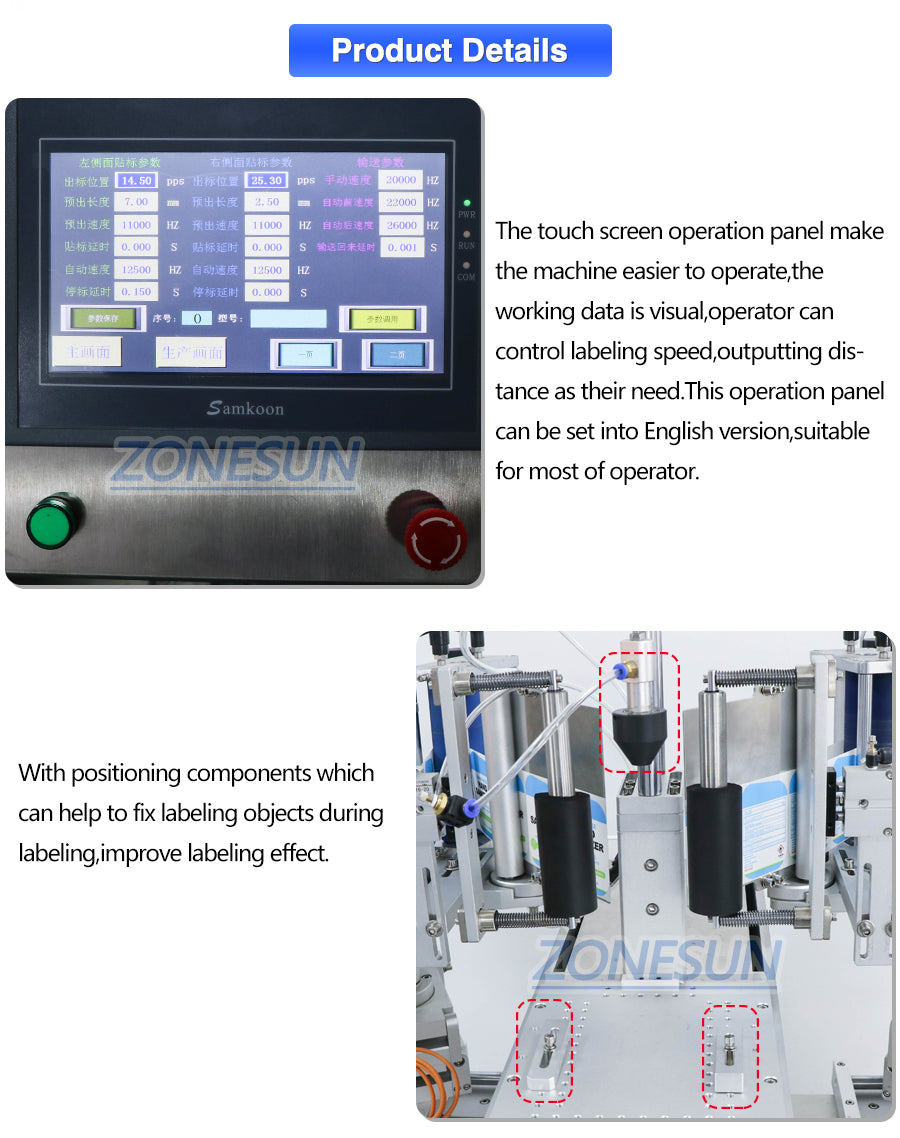

Operation Panel of Semi-automatic Double Side Labeling Machine

The touch screen operation panel make the machine easier to operate,the working data is visual,operator can control labeling speed,outputting distance as their need.This operation panel can be set into English version,suitable for most of operator.

Positioning component of Semi-automatic Double Side Labeling Machine

With positioning components which can help to fix labeling objects during labeling,improve labeling effect.

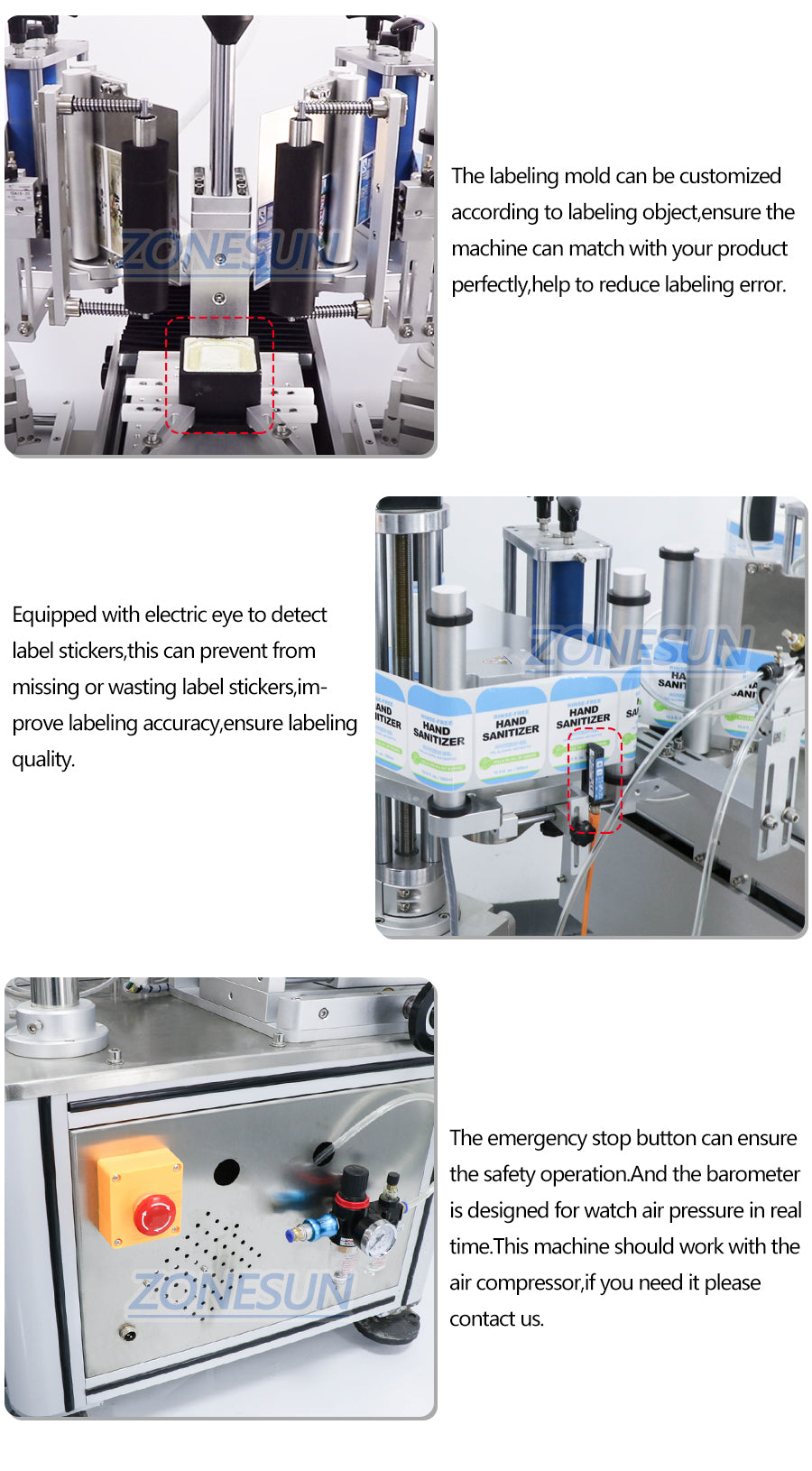

Fixing Mold of Semi-automatic Double Side Labeling Machine

The labeling mold can be customized according to labeling object,ensure the machine can match with your product perfectly,help to reduce labeling error.

Electric Eye of Semi-automatic Bottle Labeling Machine

Equipped with electric eye to detect label stickers,this can prevent from missing or wasting label stickers,improve labeling accuracy,ensure labeling quality.

Oil-Water Separator of Semi-automatic Double Side Labeling Machine

The emergency stop button can ensure the safety operation.And the barometer is designed for watch air pressure in real time.This machine should work with the air compressor,if you need it please contact us.
