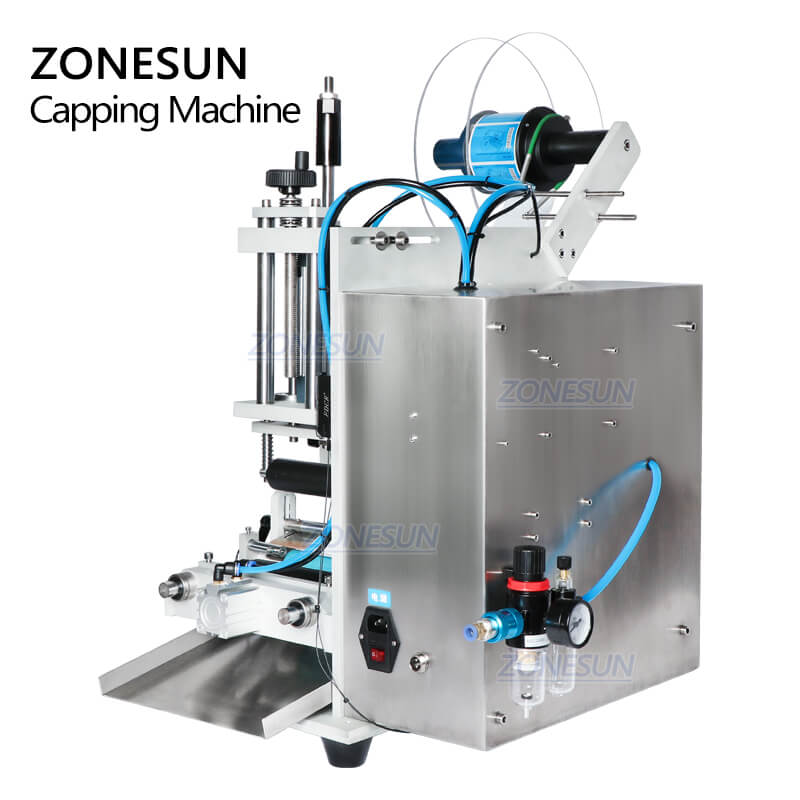

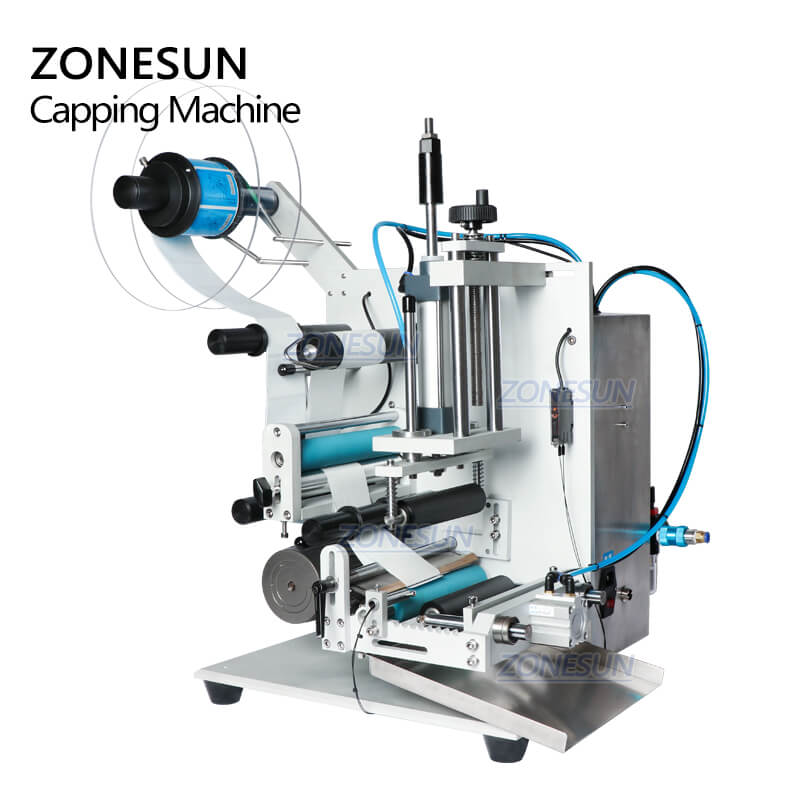

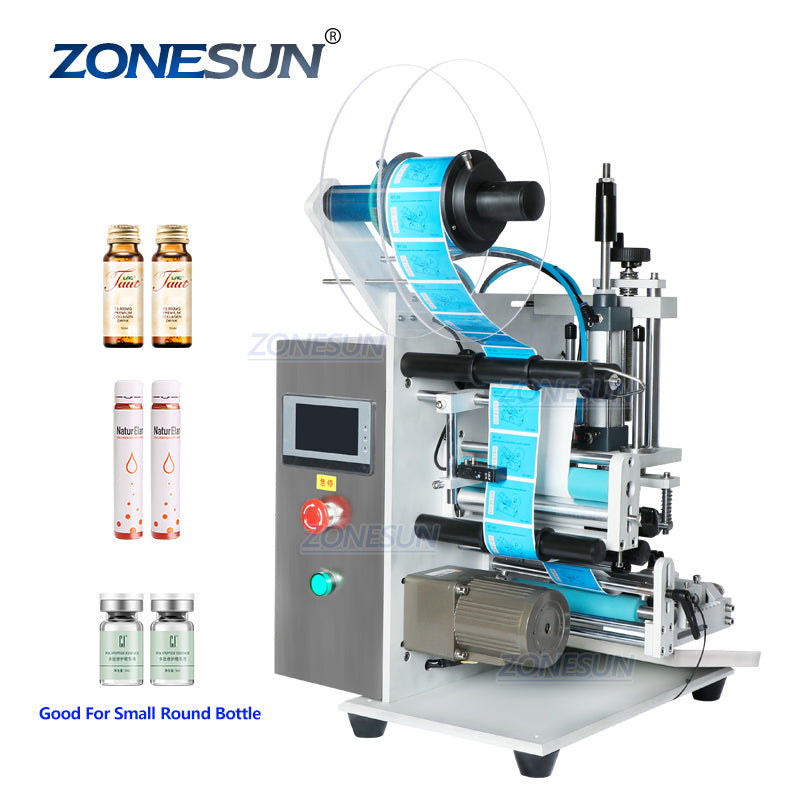

This semi automatic labeling machine is suitable for single side and double side labeling,it is designed for small things like reagent bottles,vial,pen etc.It can be equipped with date coder to print production date or batch number.

Parameter

Power Supply:110V/220V 50-60HZ 45W
Working Speed:15-35 pcs/min
Working Speed:±1mm
Air Pressure:0.4-0.6MPa
Labeling Object Diameter:As shown in the table
Labeling Object Height:As shown in the table
Suitable Label Size:As shown in the table
Label Roll OD:Φ220mm
Label Roll ID:Φ75mm
Size of Air Compressor Connector:OD 8mm
Machine Size:About 410*475*720mm
Machine Weight:About 32kg
Package Size:About 540*460*760mm
Package Weight:About 46kg

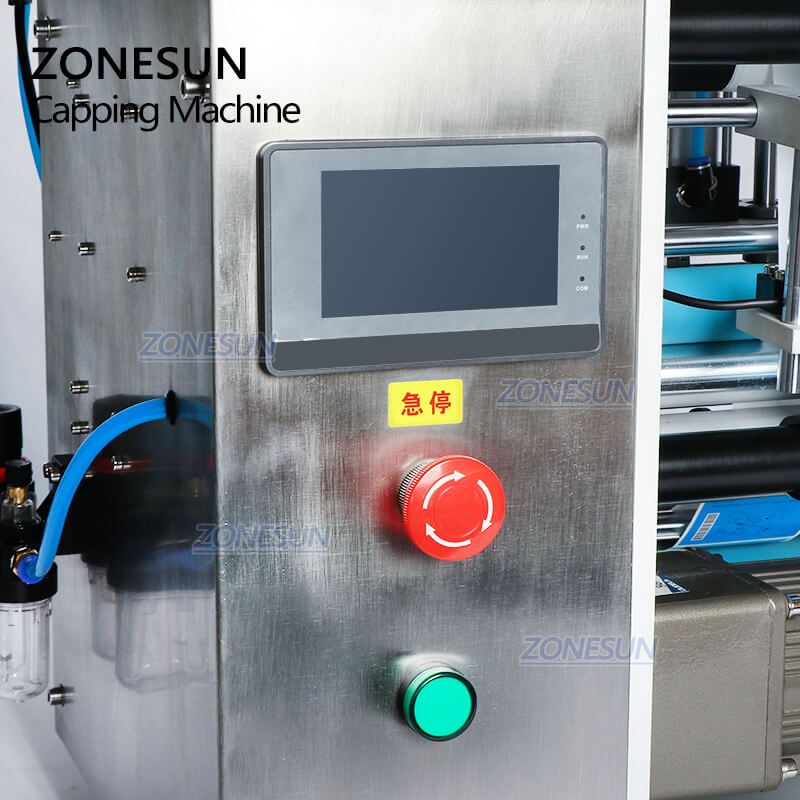

With touch screen control panel,it is easy to adjust parameter,make it more accurate to label stickers,this can improve labeling quality.Can be set into English version or Chinese Version

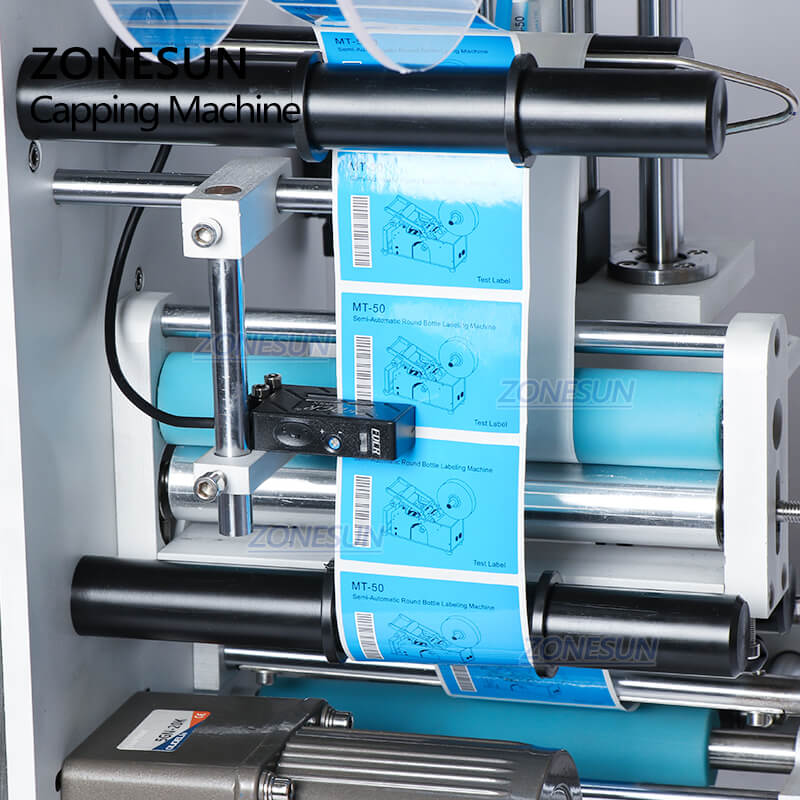

With label senor which can prevent from missing or wasting labels,ensure the labeling accuracy.Please ensure the label roll will pass through the gap of the sensor when you wind the label roll.

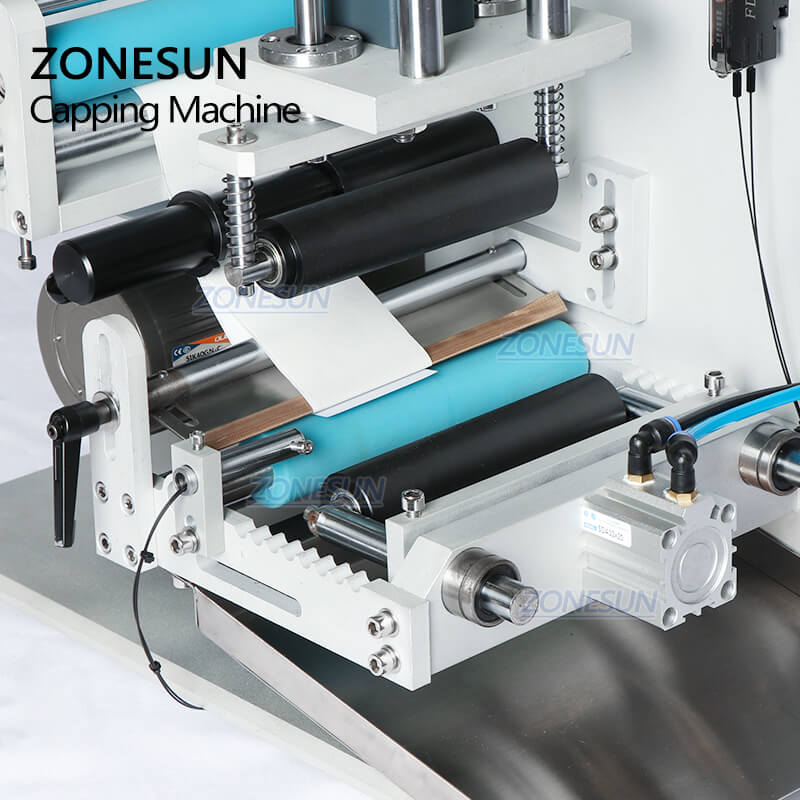

The labeling width and working height can be adjusted according to labeling object,make it suitable for different kinds of products.It is good for single side and double side labeling.

The sensor can be used to detect labeling object,it will not labeling stickers if no bottles is detected,this ensures the labeling accuracy.

The ZS-TB100S2 is with discharging tray, the machine can discharge products automatically after labeling,this can improve your working efficiency.The automatic discharging function can be turn off if you don’t need it or you want to label stickers on larger diameter products.

This machine can be controlled by pedal switch or work automatically,operator can choose the suitable working mode according to operation need.

The high quality motor can ensure the machine work stably,make the machine work for a long time.
