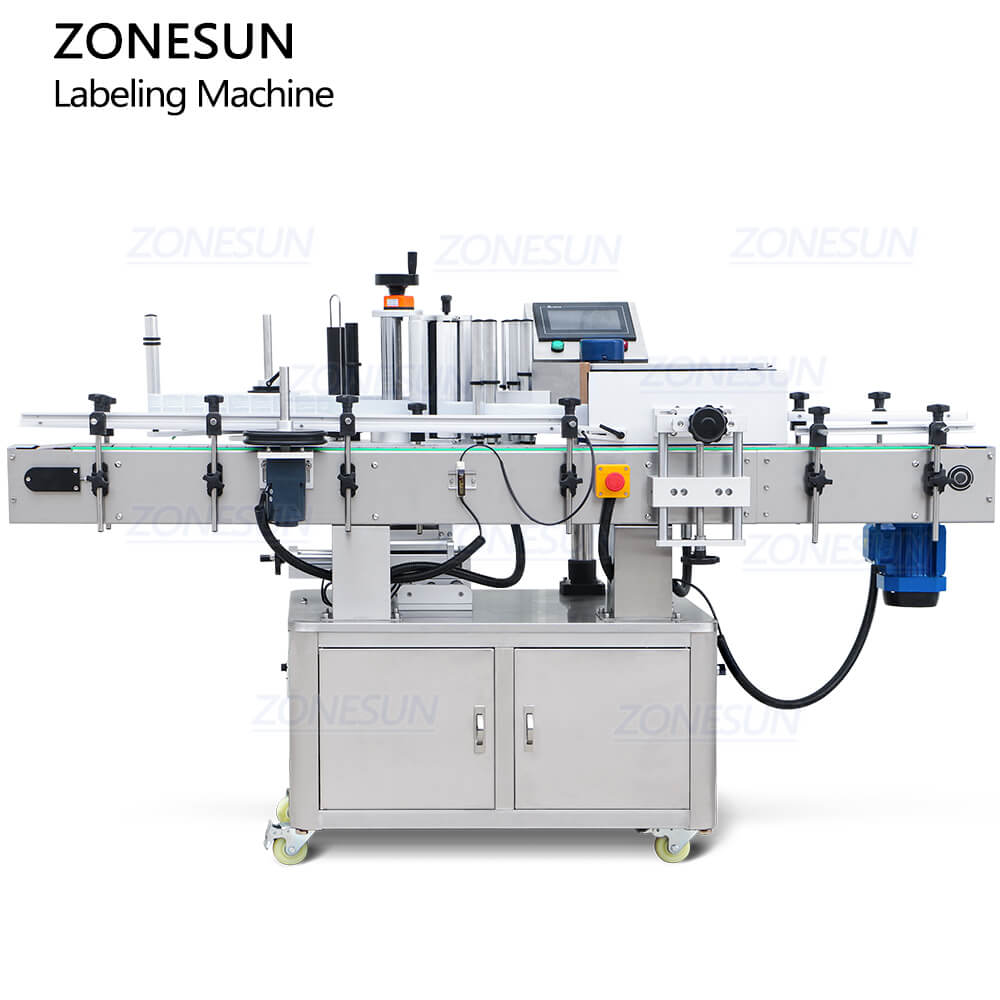

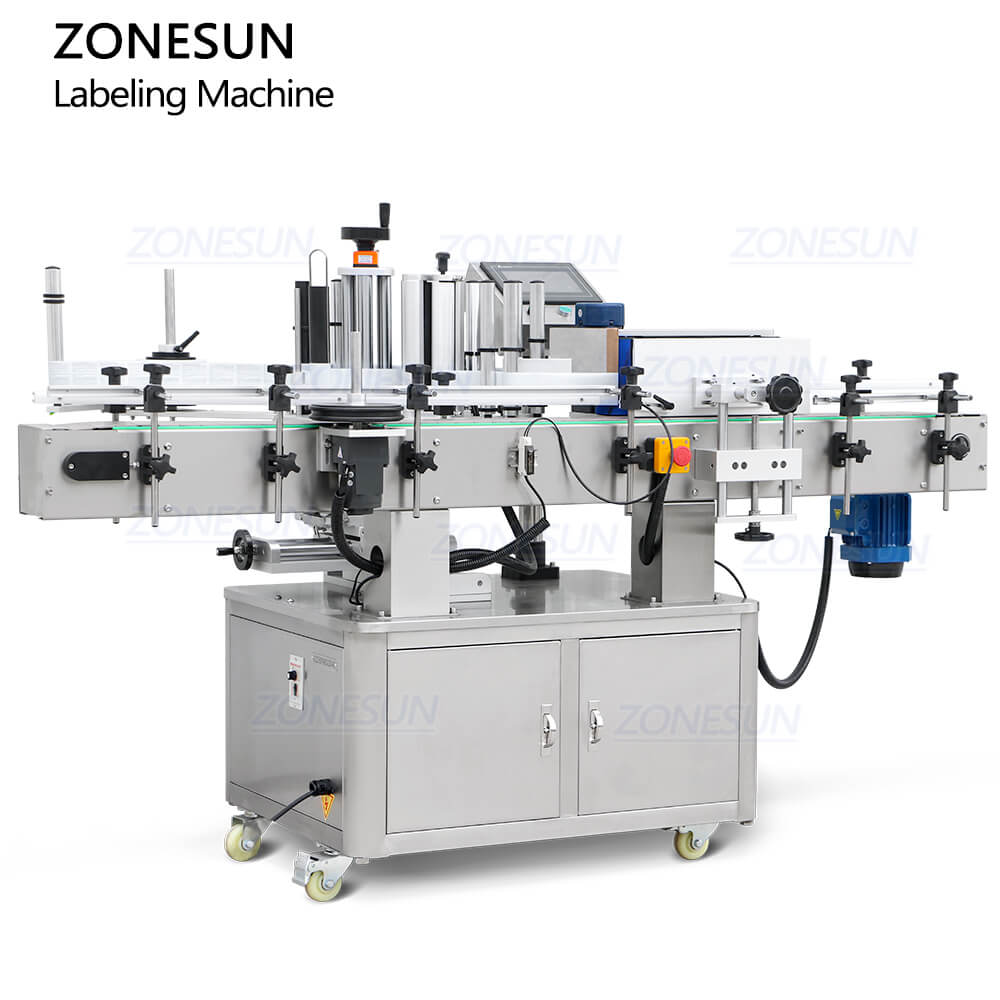

Automatic Round Bottle Labeling Machine
Labeling Structure of Automatic Round Bottle Labeling Machine
Conveyor Belt of Automatic Round Bottle Labeling Machine
Label Winding Structure of Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine

ZS-TB200 Automatic Glass Jar Can Wine Bottle Labeler Round Bottle Labeling Machine

SKU: 01200400010-0002
Voltage
Regular price $4,099.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

This full automatic round bottle labeling machine is designed for single side label.It can transfer the bottle, separate stickers and label them on bottles precisely.Equipping with date printer to print production date is also available.Auto labeling machine help you improve working efficiency.

Parameter

Model:ZS-TB200
Voltage:110/220V 50-60HZ
Power :1100W

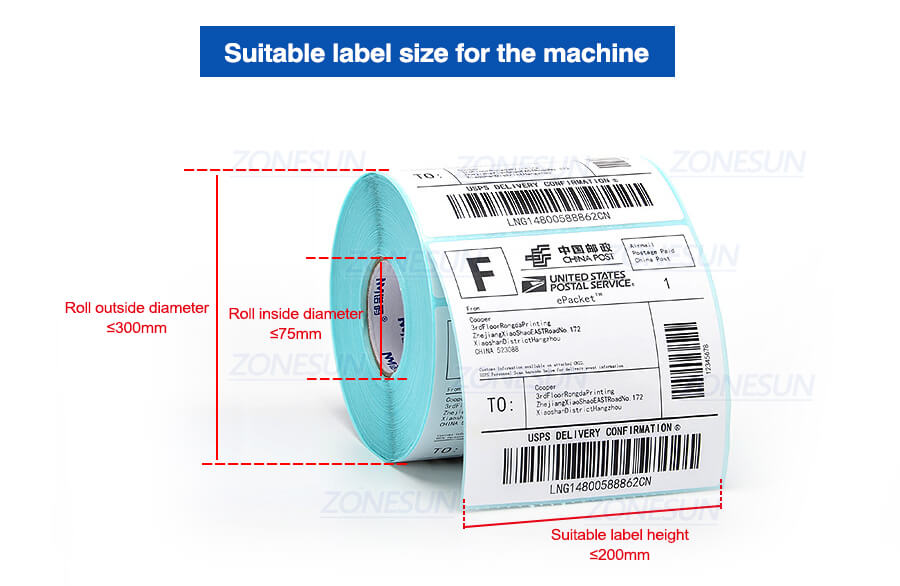

Label length :30~300MM
Label width :30~150MM
Suitable bottle diameter:φ20~120mm
Outside diameter of standard roll:φ280MM
Inside diameter of standard roll :φ76MM
Labeling accuracy :±1.0MM
Conveying speed :16m/min
Marking speed :5~19m/min
Labeling speed:30~160 PCS/min
Dimensions :About 2000*900*1500mm
Machine Weight:About 250KG

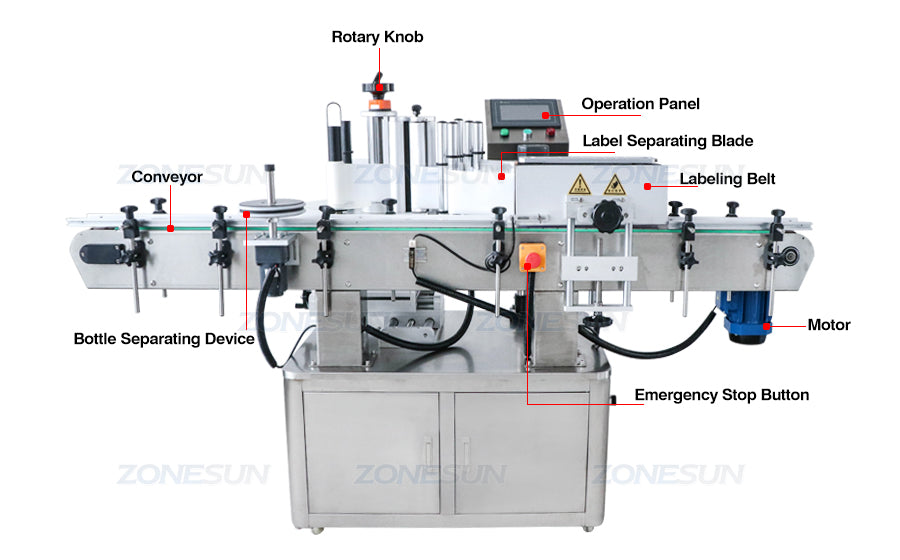

Automatic Round Bottle Labeling Machine

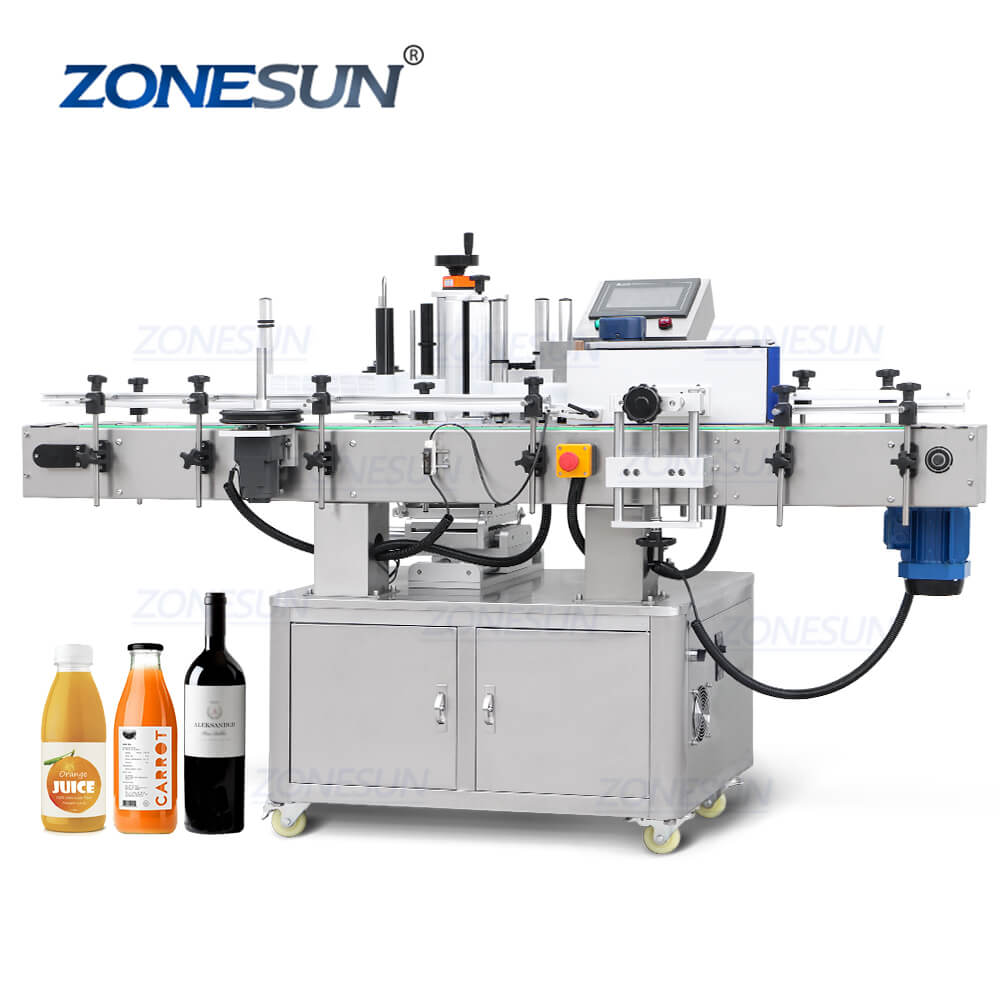

Application of Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine

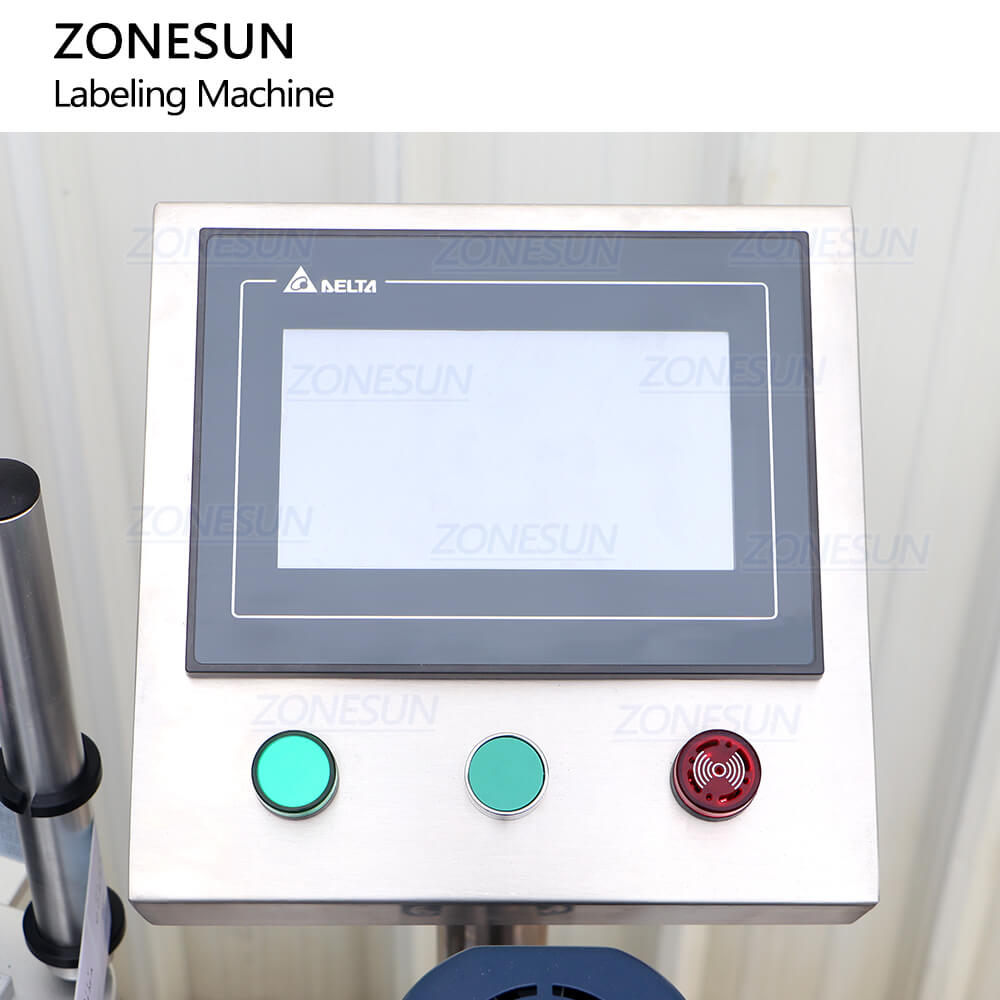

Operation Panel of Automatic Round Bottle Labeling Machine

Simple operation panel can be used to adjust and control working data,easy to operate and reduce working error greatly.

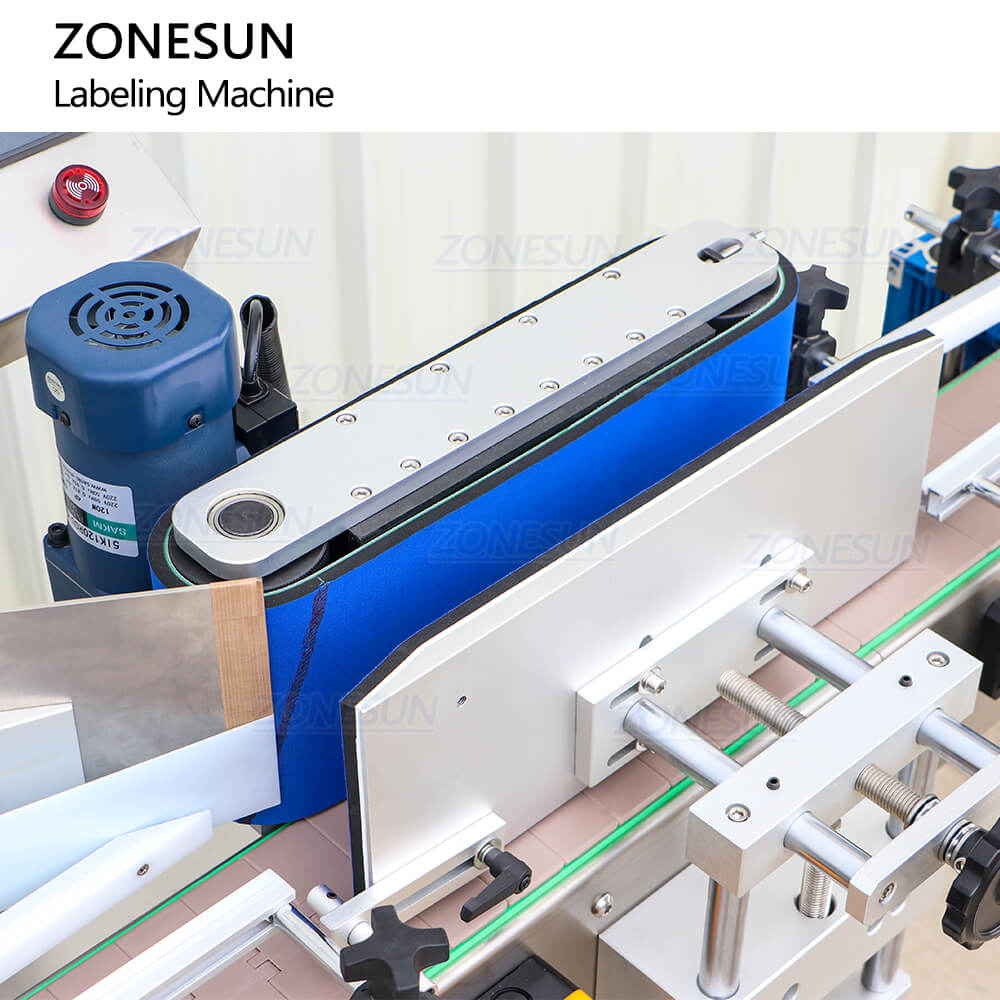

Labeling Structure of Automatic Round Bottle Labeling Machine

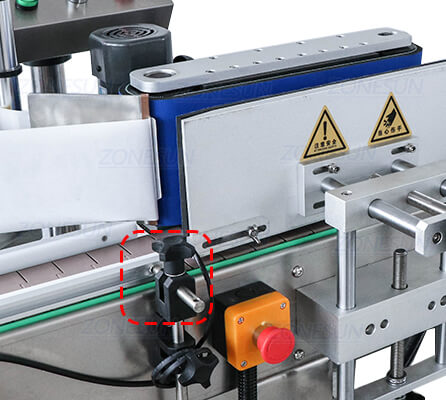

Electric eye can detect round bottles once they are transferred.It will not work unless the round bottle is detected.This prevents from missing bottles and wasting labels.
Adjusting Component of Automatic Round Bottle Labeling Machine
This adjusting part is used to adjust the sensitivity of the electric eye,ensure the efficient work.

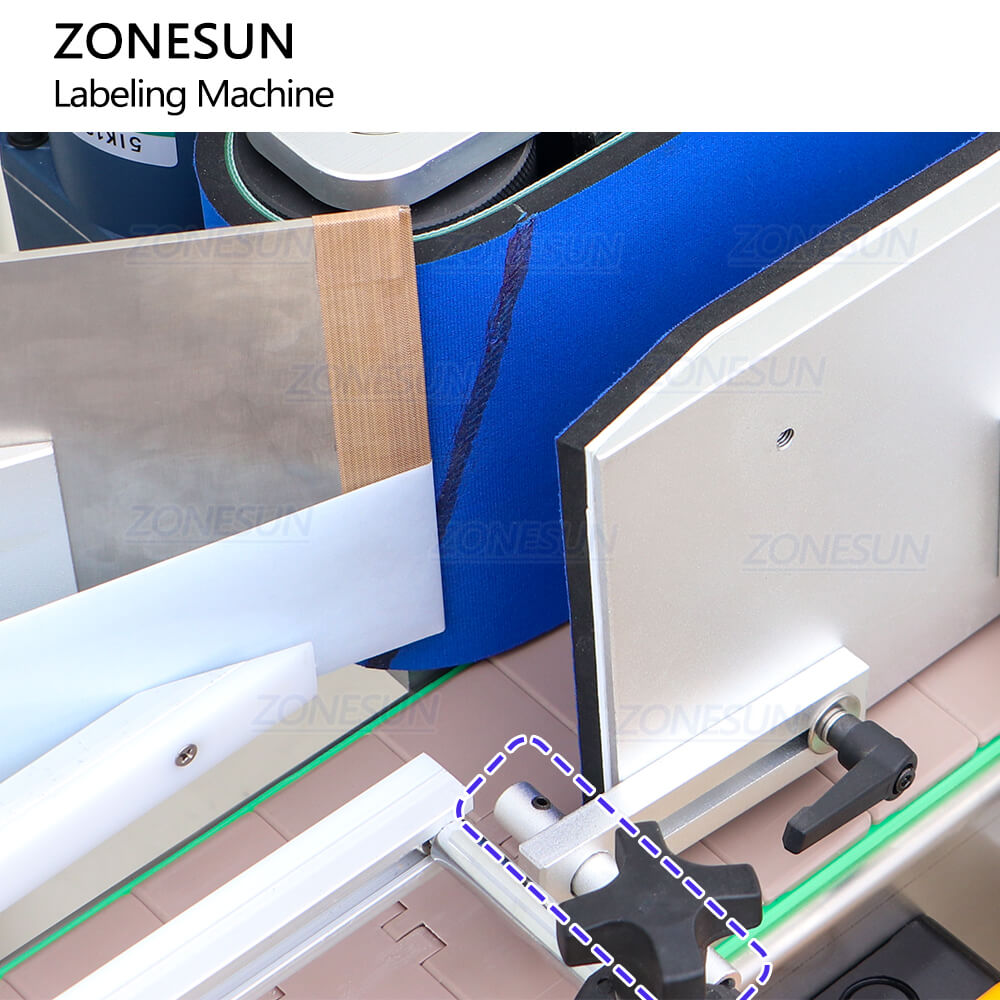

Label Separating Blade of Automatic Round Bottle Labeling Machine
Label bar helps to adjust the labeling position while the label separating blade can separate labels well ,these all help to improve the working quality.

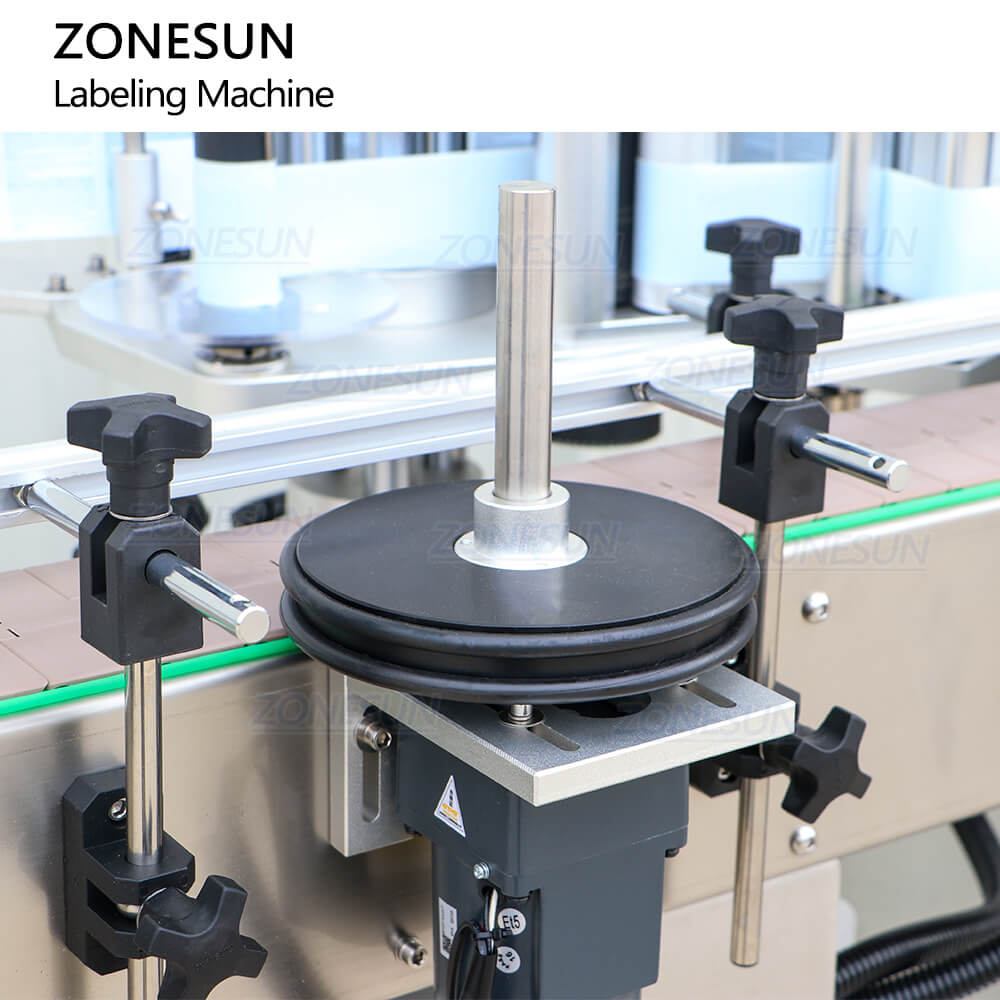

Separating Wheels of Automatic Round Bottle Labeling Machine
Bottle separating device can separate passing through bottles,help to control the bottle distance.
Conveyor Belt of Automatic Round Bottle Labeling Machine
The conveyor is used to transfer round bottles.The working speed is adjustable,operator can adjust the speed according to their need.The width of feeding inlet can be adjusted according to bottle diameter
Large Motor of Automatic Round Bottle Labeling Machine
Powerful motor make the machine work stably and low noise.It ensure the longer working time.
