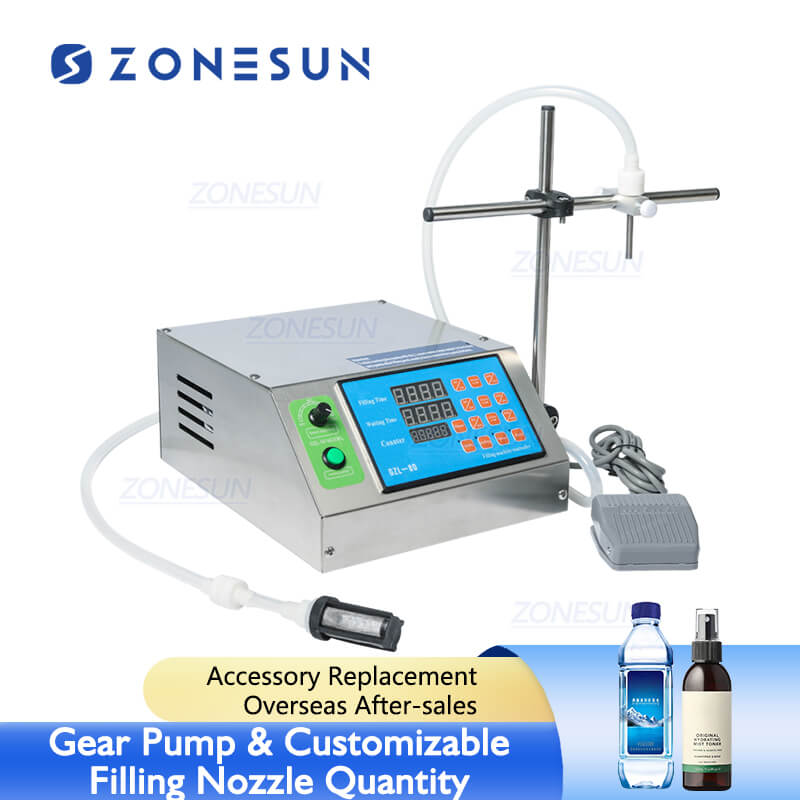

ZONESUN ZS-YTGP1 Gear Pump Bottle Water Filler Semi-automatic Liquid Vial Desk-top Filling Machine for Juice Beverage Drink Oil Perfume
Regular price
$112.99 USD
Regular price
Sale price
$112.99 USD
Save $-112.99 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
The filling machine features a compact design and is controlled by a microcomputer, allowing it to fill liquids based on preset time and speed settings. It can accurately fill low viscosity liquid includes soy sauce, oil, cosmetic serum. The digital control panel ensures simple and user-friendly operation.
Parameter
- Machine model: ZS-YTGP1
- Machine Voltage: AC 110/220V
- Power Supply: 40W
- Max Flow Rate: 3L/min
- Recommend filling range: 10-200ml
- Filling Nozzle Size: OD 4mm/6mm
- Max Suck Distance: 1.2 meter
- Memory Function Out of Power: Available
- Package Size: 310x370x180 (mm)
- Package Weight: 4.7 kg

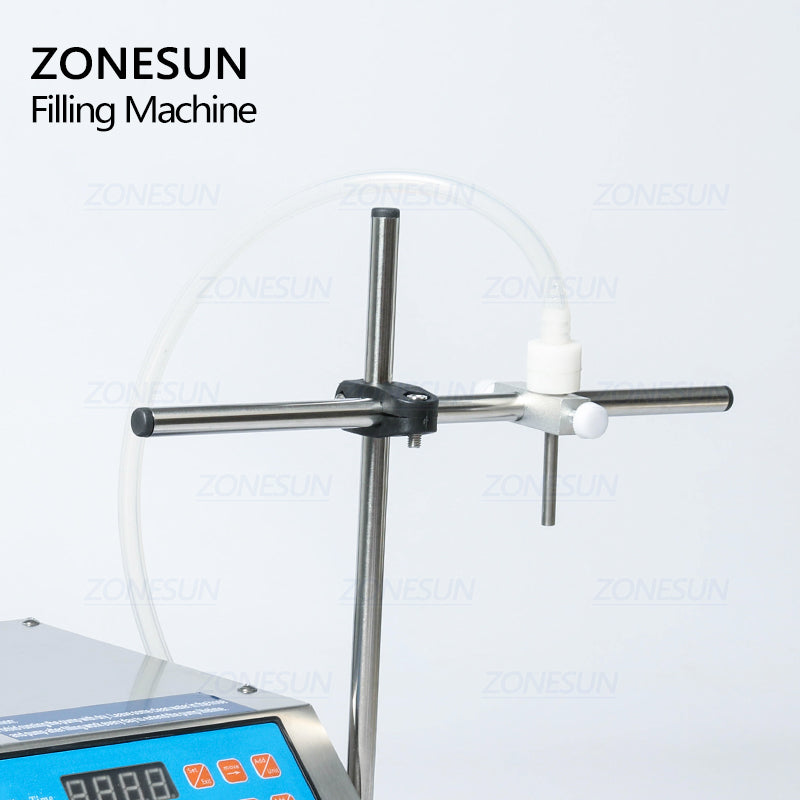

Filling Nozzle
With anti-dripping design, can fill liquid accurately, OD 4mm and 6mm will be sent together, customer can choose the suitable one as their need.
With anti-dripping design, can fill liquid accurately, OD 4mm and 6mm will be sent together, customer can choose the suitable one as their need.

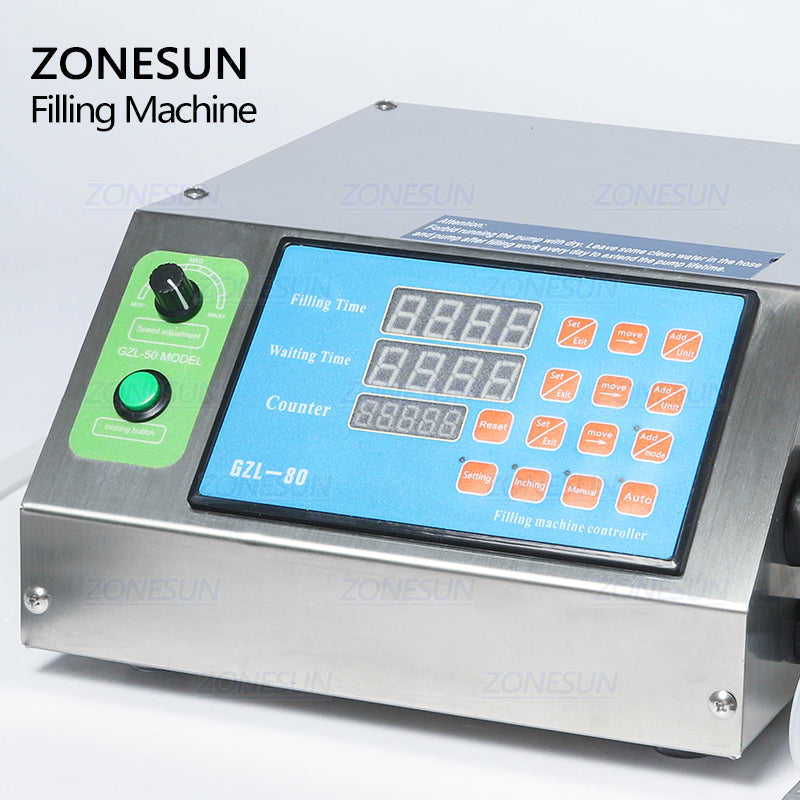

Simple Control Panel
With LCD, make working data visual, can control filling time and speed easily.
With LCD, make working data visual, can control filling time and speed easily.

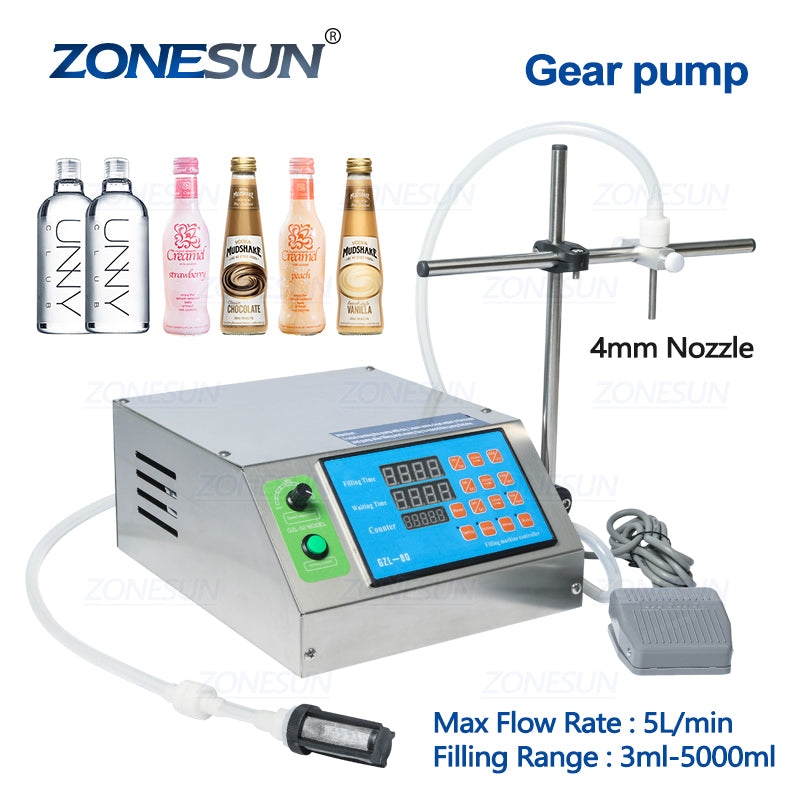

Filling Pump
Equipped with gear pump, fill liquid faster and accurately, it can also be used to fill high temperature like hot cocoa (max temperature :95 degree)
Equipped with gear pump, fill liquid faster and accurately, it can also be used to fill high temperature like hot cocoa (max temperature :95 degree)

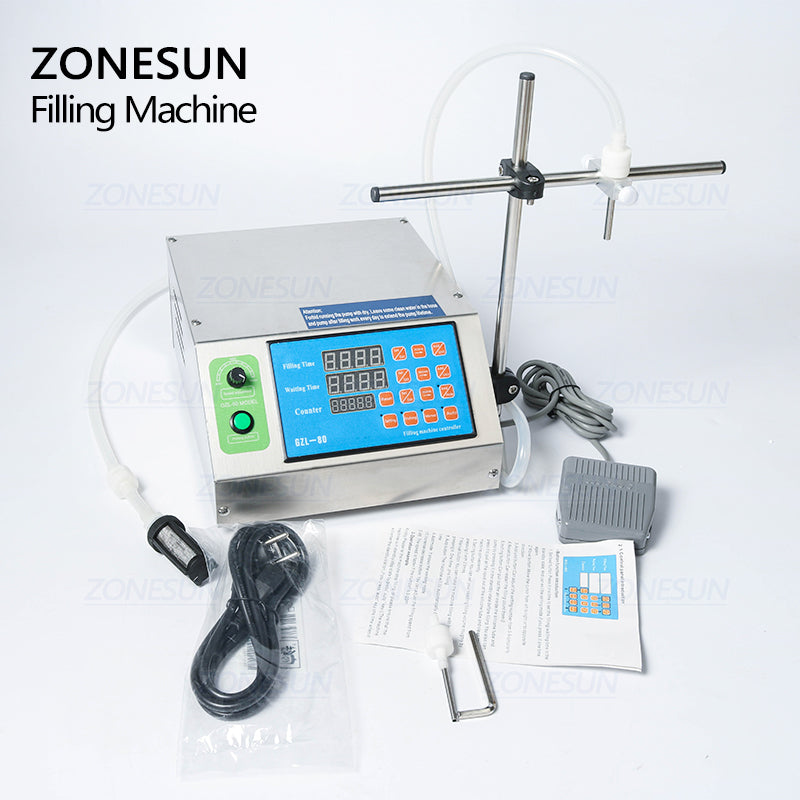

Pedal Switch and Filter
The pedal switch allows manual control during testing, while the machine runs automatically once parameters are set. The filter removes impurities to ensure product quality.
The pedal switch allows manual control during testing, while the machine runs automatically once parameters are set. The filter removes impurities to ensure product quality.
