ZONESUN Full Automatic Desktop Perfume Water Liquid Filling Machine With Conveyor

SKU: 00100200070-0009
ZS-DTDP5-4 Dekstop Liquid Filling Machine
Filling Nozzle of ZS-DTDP5-4 Dekstop Liquid Filling Machine
Electric Eye of ZS-DTDP5-4 Dekstop Liquid Filling Machine
ZS-DTDP5-4 Dekstop Liquid Filling Machine
ZS-DTDP5-4 Dekstop Liquid Filling Machine
ZS-DTDP5-4 Dekstop Liquid Filling Machine

ZONESUN Full Automatic Desktop Perfume Water Liquid Filling Machine With Conveyor

SKU: 00100200070-0009
Size
Regular price $1,349.99
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments



Click Video Link For Video

Introduction

Desktop full automatic machine is very efficient with high cost performance. It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc. Diaphragm pump machine are widely used on milk, water, wine, juice filling etc.

Parameter

Voltage:110V/220V(optional)
Power:300W
Conveyor Length:1200mm
Conveyor Width:200mm
Conveyor Loading Capacity:Within 5kg
Filling Speed:5L/min (each nozzle)
Optimum Flling Range:20ml- 5L (single bottle)
Suitable Bottle Diameter:Within 200mm
Machine Weight:About 38kg

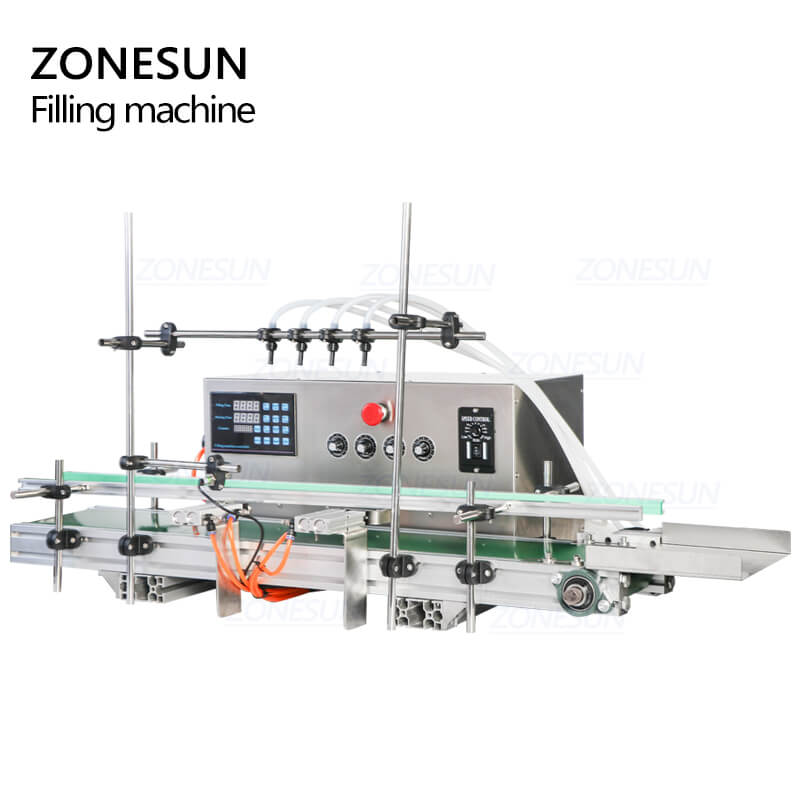

ZS-DTDP5-4 Automatic Liquid Filling Machine

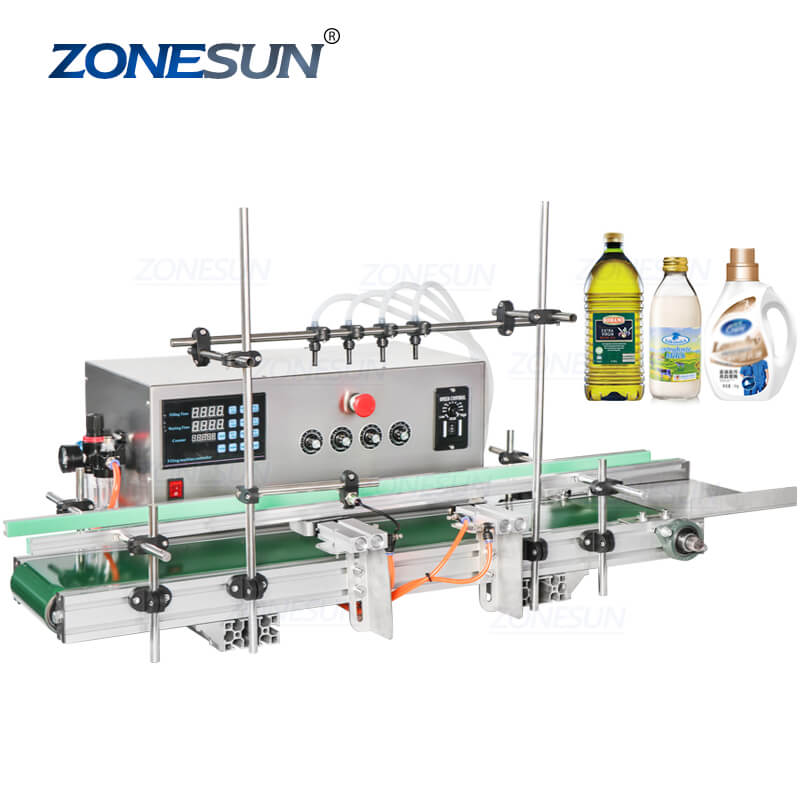

Application of ZS-DTDP5-4 Automatic Liquid Filling MachineOperation Panel of ZS-DTDP5-4 Automatic Liquid Filling Machine

Through operating the panel, the filling time and waiting time can be controlled as needed. And it can automatically count the filled bottles.Besides, the operator can choose manual or automatic mode.Easy to operate.

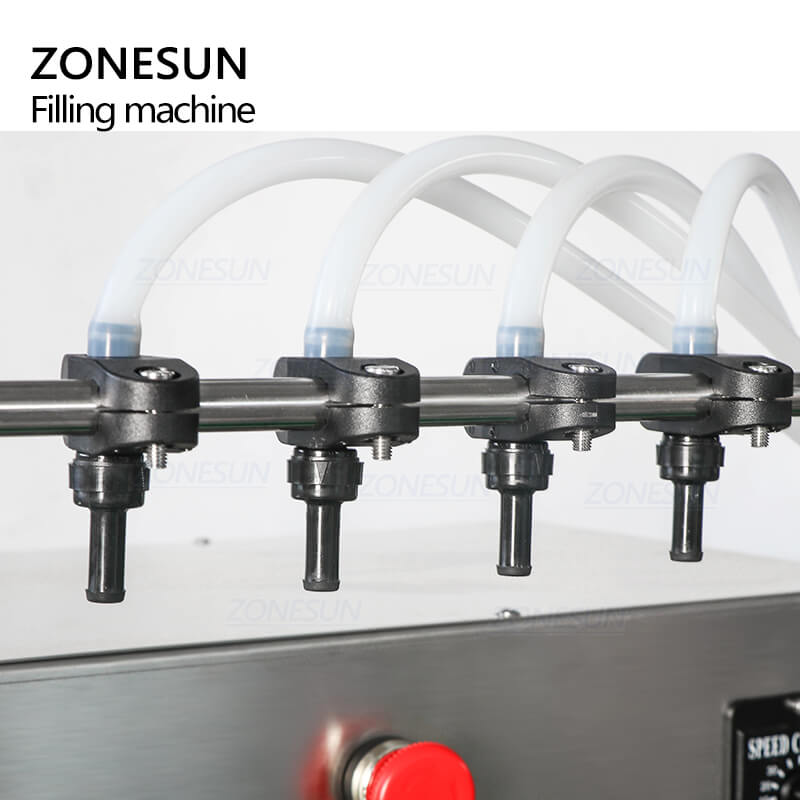

Filling Nozzle of ZS-DTDP5-4 Automatic Liquid Filling Machine

The four filling nozzles can fill liquid at the same time or individually. The filling speed of them can be controlled separately by rotating the knobs. Also, the height of the nozzle can be adjusted according to bottle height. Easy and convenient.

Conveyor Belt of ZS-DTDP5-4 Automatic Liquid Filling Machine

The width of the feed inlet can be adjusted according to the diameters of bottles, which should be within 200mm. This makes it suitable for bottles of different sizes. The speed of the conveyor can be adjusted by rotating the knob. Besides, the conveyor can move positively or negatively.

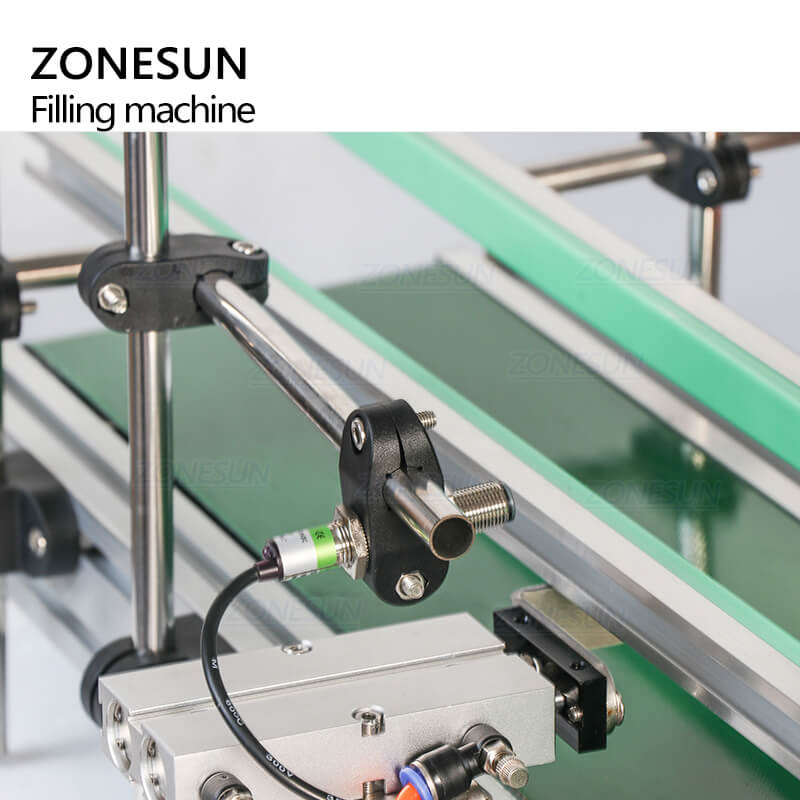

Electric Eye of ZS-DTDP5-4 Automatic Liquid Filling Machine

The electric eye is used to detect bottles, whose sensitivity can be adjusted by operating the sensitivity regulator. Reduce working error.



Oil-water separator of ZS-DTDP5-4 Automatic Liquid Filling Machine

The barometer can help to check the air pressure in real time. Customers can adjust the air pressure as needed.Please notice that the air compressor should be bought separately.

ZS-DTDP5-4 Automatic Liquid Filling MachineZS-DTDP5-4 Automatic Liquid Filling Machine
