Name: SL-130 Automatic Plastic Tin Can Round Glass Bottle Double Side Labeling Machine
Brand: ZONESUN TECHNOLOGY LIMITED
Price: 1449.0 USD
Availability: InStock

Semi-automatic Round Bottle Labeling Machine

Labeling Structure of Bottle Labeling Machine

Voltage

110V

220V

Price

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":43179114954993,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SL-130 Automatic Plastic Tin Can Round Glass Bottle Double Side Labeling Machine - 110V","public_title":"110V","options":["110V"],"price":144900,"weight":75,"compare_at_price":null,"inventory_quantity":999,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43179114987761,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SL-130 Automatic Plastic Tin Can Round Glass Bottle Double Side Labeling Machine - 220V","public_title":"220V","options":["220V"],"price":144900,"weight":75,"compare_at_price":null,"inventory_quantity":999,"inventory_management":"shopify","inventory_policy":"deny","barcode":"00300200032-0002","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

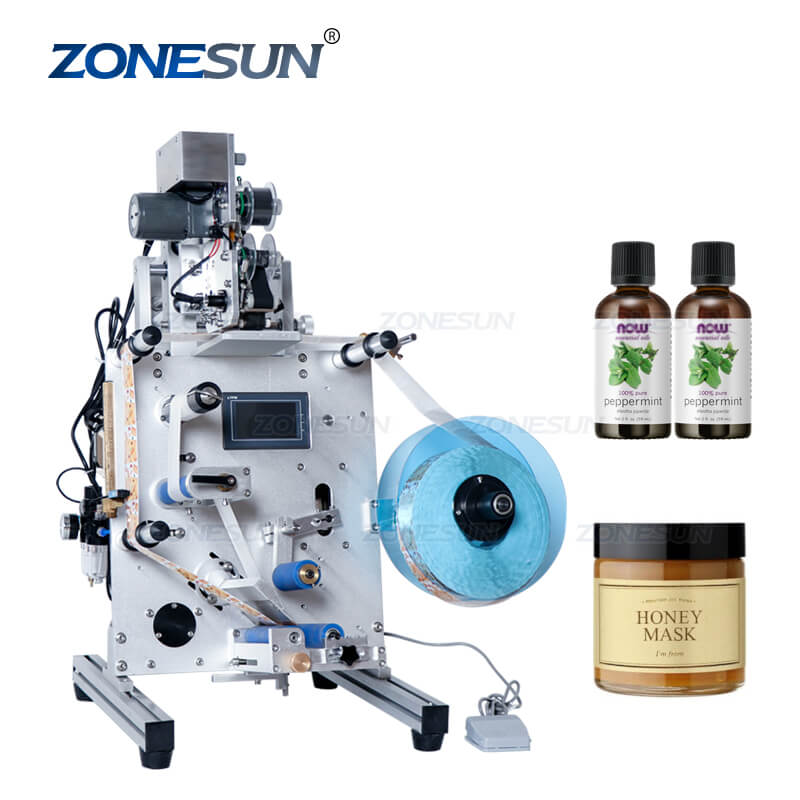

This semi-automatic labeling machine is suitable for labeling stickers on round bottles, includes single side and double sides labeling.It is suitable for food, beverage,cosmetics and daily chemical industries.

Parameter

Machine Model:SL-130
Voltage:220V/110V 50-60Hz
Power:100W
Labeling Speed:About 20-40bottles/min(depend on bottle size)
Suitable Bottle Diameter:15-150mm
Minimum Label Size:26*25mm (W*L)
Maximum Label Size:150*450mm (W*L)
Inner Diameter of Label Roll:φ75mm
Max Outer Diameter of Label Roll:φ275mm
Machine size:About 645*460*875mm
Machine weight:About 42kg

Semi-automatic Bottle Labeling Machine

Application of Semi-automatic Labeling Machine

Machine Details of Semi-automatic Bottle Labeling Machine

Label Sticker of Semi-automatic Bottle Labeling Machine

Control Panel of Semi-automatic Bottle Labeling Machine

With touch screen panel,it's easy to set working parameters and choose working mode.The language of panel can be customized according to customers'need.

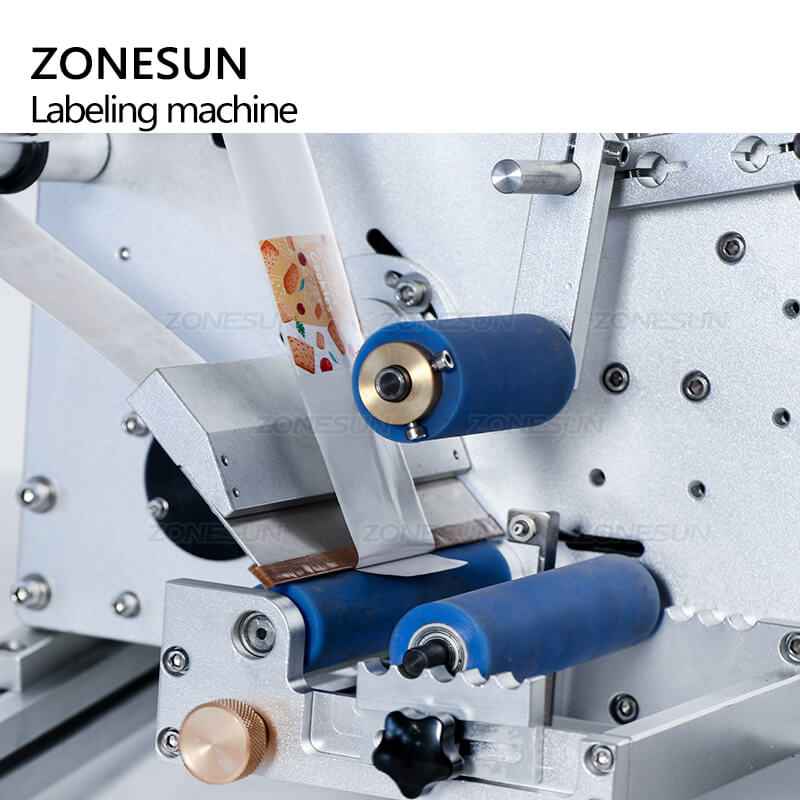

Labeling Head of Semi-automatic Bottle Labeling Machine

With pressing bar to fix bottles during labeling,it can ensure good labeling effect.The electric eye can detect bottles and control machine to run automatically,improving efficiency.

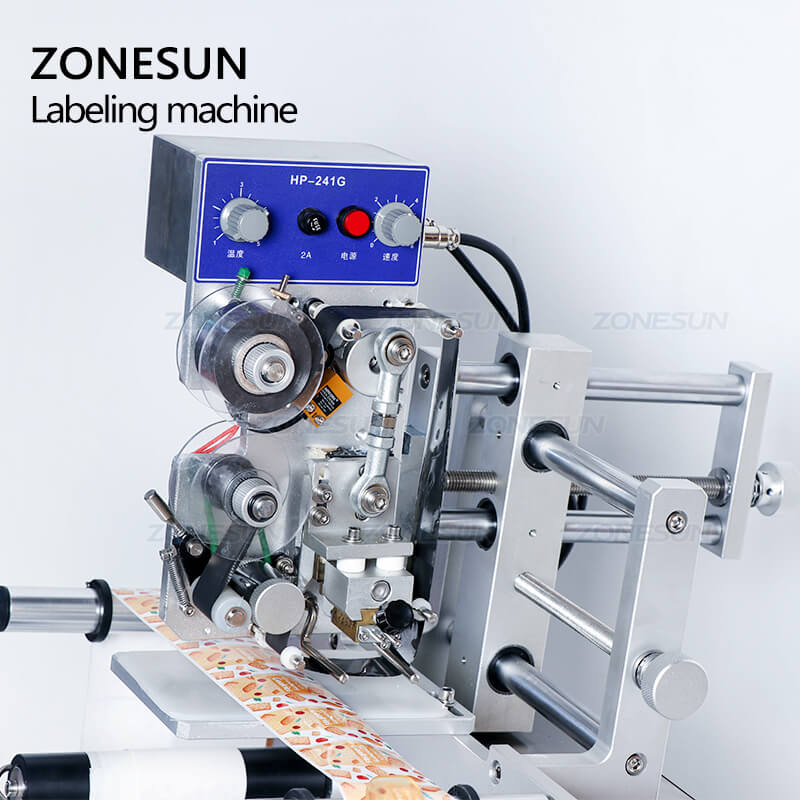

Date Coder of Semi-automatic Bottle Labeling Machine

This machine is equipped with date coder,which can help to print production date or batch on products.There are different colors of ribbon for choosing. Please contact us if you need.

Pedal Switch of Semi-automatic Bottle Labeling Machine

This machine has automatic working mode and manual mode,which can be switched freely.In manual mode,you can press pedal switch to control machine to run.Easy to operate.

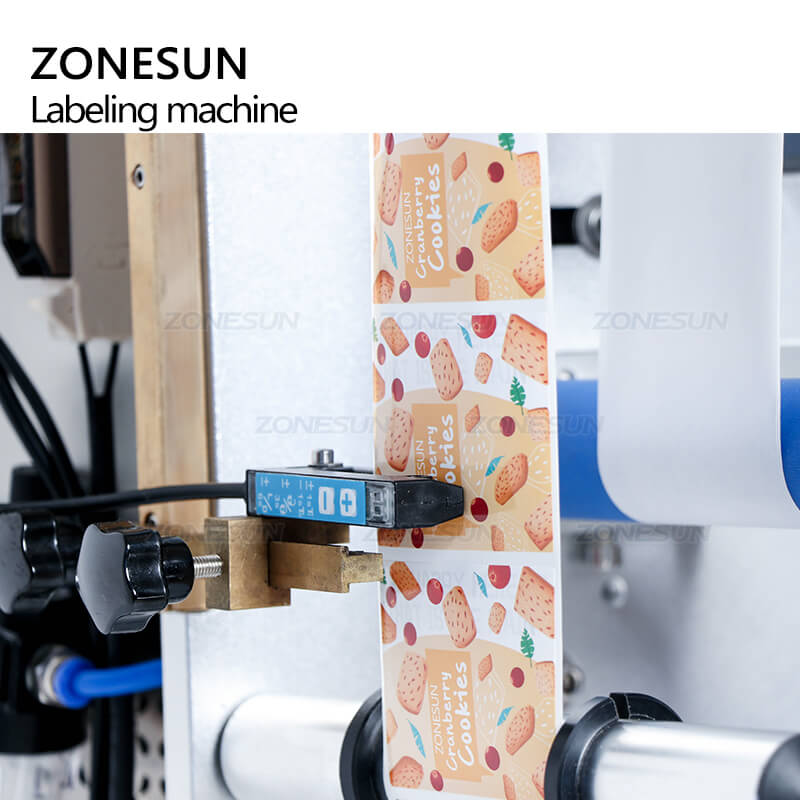

Label Sensor of Semi-automatic Bottle Labeling Machine

The high-quality sensor can detect labels accurately and control machine to output labels automatically.Improve working efficiency.The sensitivity of sensor can be adjusted according to production need.

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
