ZS-AFC15 Rotary Automatic Small Nail Polish Essential Oil Bottle Screw Capper Monoblock Filling Capping Machine

Small Bottle Filling Capping Machine With Sorter
Bottle Sorter of Small Bottle Filling Capping Machine With Sorter
Filling Nozzle of Small Bottle Filling Capping Machine With Sorter
Rotary Plate of Small Bottle Filling Capping Machine With Sorter
Vibratory Bowl Sorter of Small Bottle Filling Capping Machine With Sorter
Peristaltic Pump of Filling Capping Machine
Capping Head of Filling Capping Machine
Essential Oil Bottle Filling Capping Machine

ZS-AFC15 Rotary Automatic Small Nail Polish Essential Oil Bottle Screw Capper Monoblock Filling Capping Machine

Voltage
Regular price $6,499.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

This machine has the function of sorting bottles,filling liquid,tighten bottle caps.It is equipped with peristaltic pump,which fills liquid accurately.It is suitable for essential oil,perfume,eyedrops etc.

Parameter

Product model:ZS-AFC15
Voltage:220V-60Hz
Power:1000W
Filling Pump:Peristaltic Pump
Maximum flow rate:2.4L/min
Working speed:10-35 bottles/min (based on liquid 50ml)
|Working pressure:4-6Kg/MF
Maximum suction lift:2M
Repeat error:±0.5%
Power-off memory:yes
Discharge leakage prevention:yes
Vibration bowl sorter:About 600*600* 1000mm
Machine size:About 1210*830* 1360mm

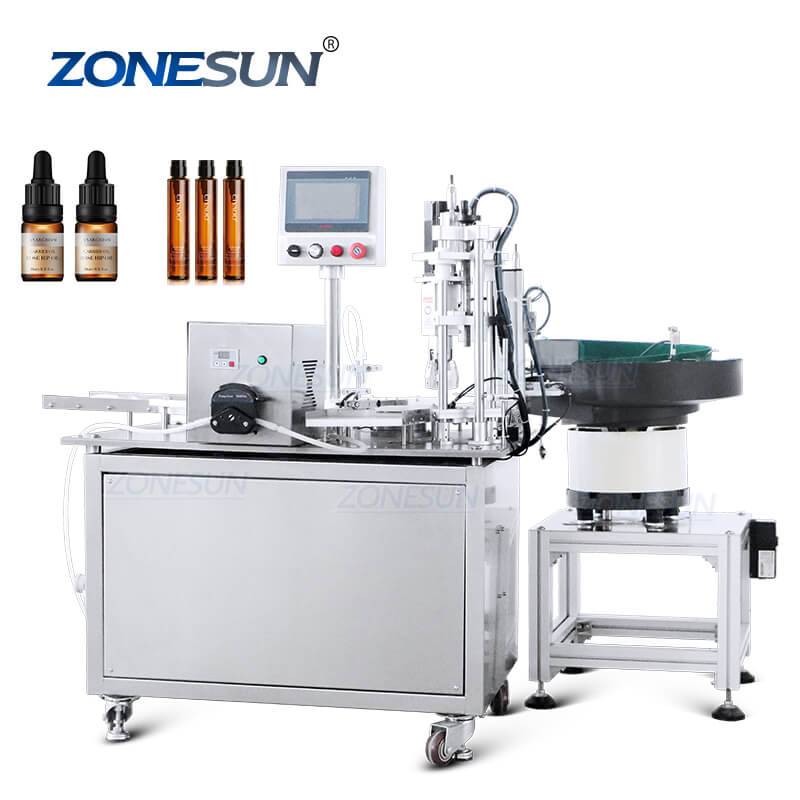

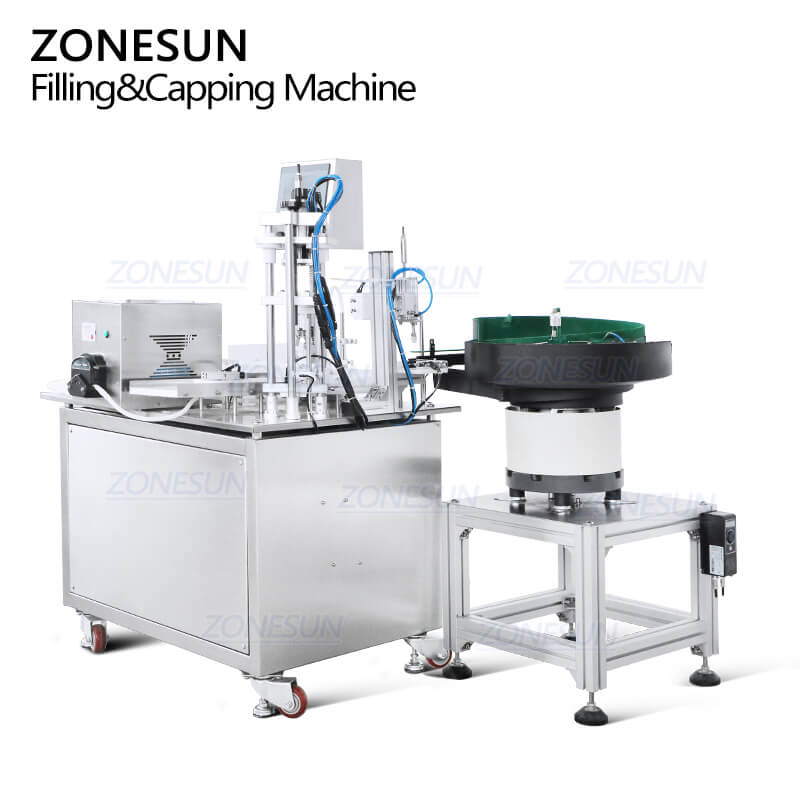

Small Bottle Filling Capping Machine With Sorter

Application of Small Bottle Filling Capping Machine With Sorter

Filling Capping Machine With Sorter

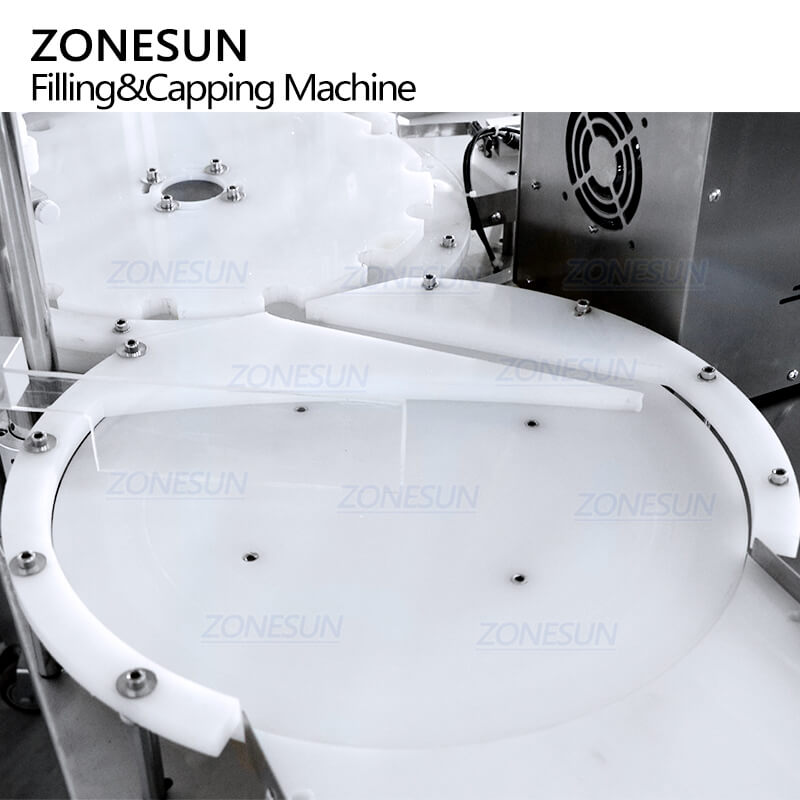

Bottle Sorter of Small Bottle Filling Capping Machine

The bottle sorting structure can make bottles be in order before filling and capping work,it is customized according to bottle size,improves working efficiency.

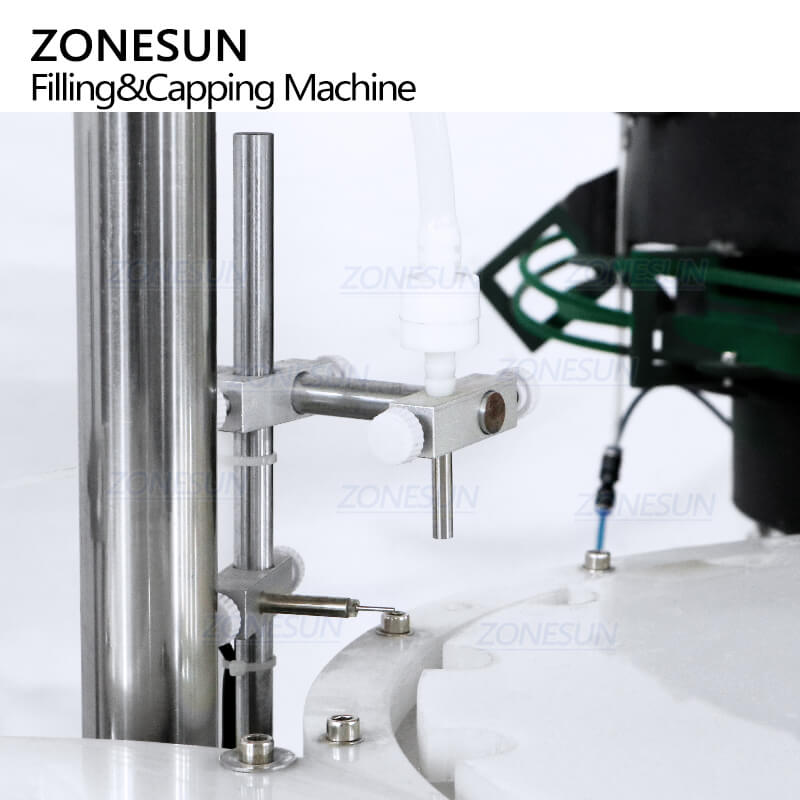

Filling Nozzle of Small Bottle Filling Capping Machine

Multiple filling nozzles can be customized as production need.The filling nozzles size can be changed as sizes of bottle opening mouth,prevent liquid spraying out during filling.

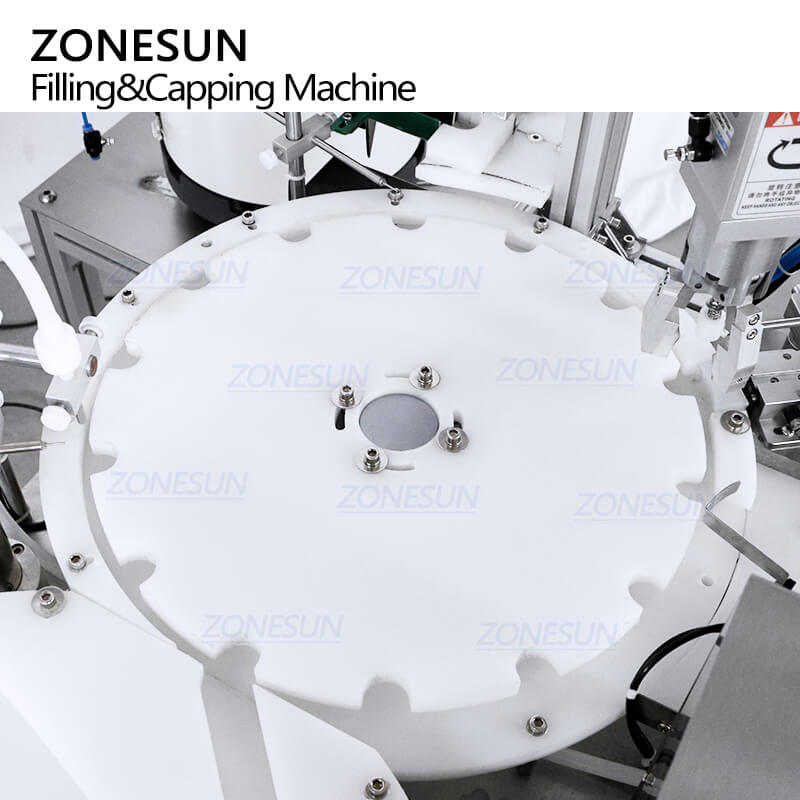

Rotary Plate of Small Bottle Filling Capping Machine

The rotary plate is customized according to bottle size.It can prevent bottles from falling down during transporting.

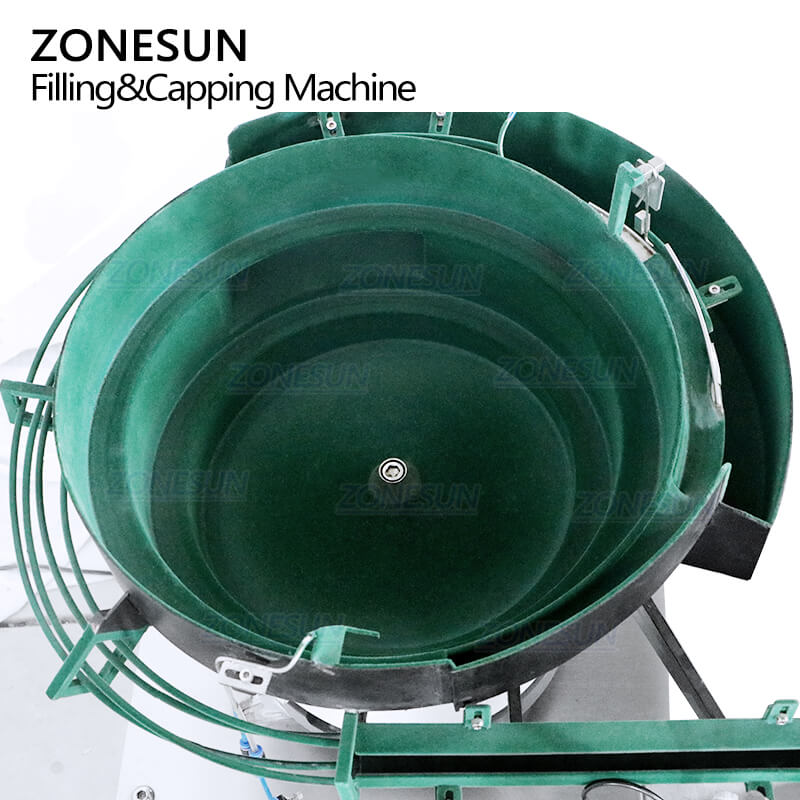

Vibratory Bowl Sorter of Small Bottle Filling Capping Machine

The vibratory bowl sorter is designed for making bottle caps be in order before capping work,this is customized according to cap size,reduce production error.

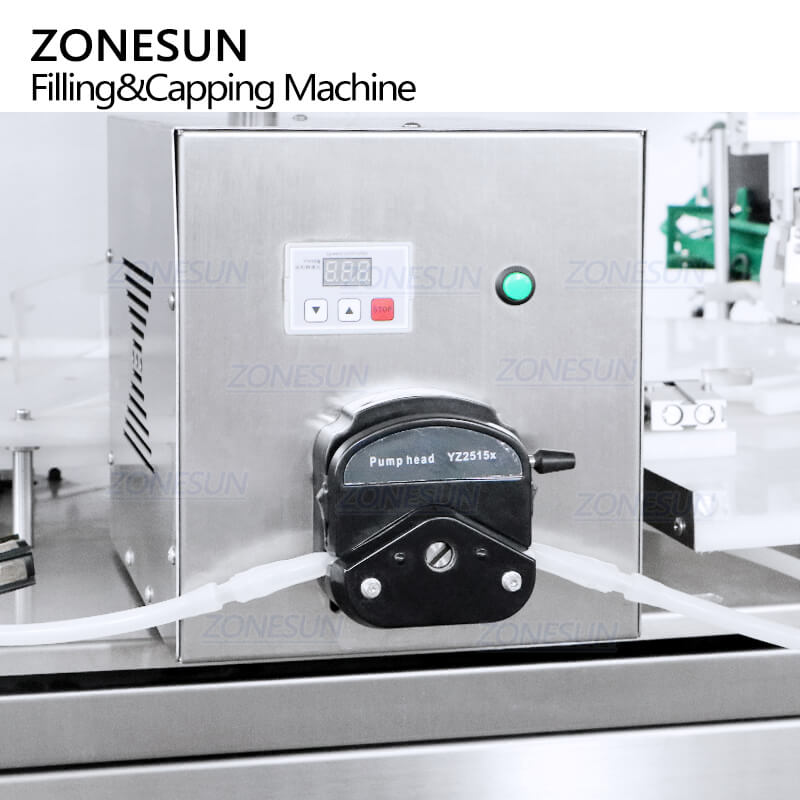

Peristaltic Pump of Small Bottle Filling Capping Machine

Equipped with preristaltic pump,the liquid will not pass through pump during filling,and this kind of filling pump has high filling accuracy.

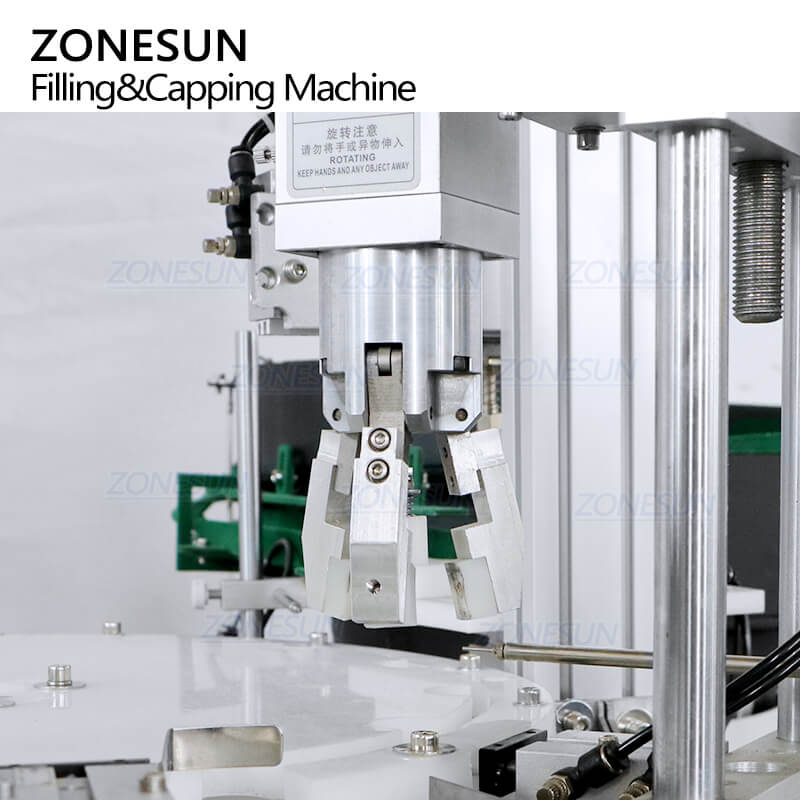

Capping Head of Small Bottle Filling Capping Machine

High quality capping structure,it is good for bottle caps with screw threads like dropper bottles,spray bottles and screw-on bottle caps.

Essential Oil Bottle Filling Capping Machine
