ZS-TB170 Automatic Top Side Book Flat Boxes Plastic Pouch Bag Labeling Machines

SKU:

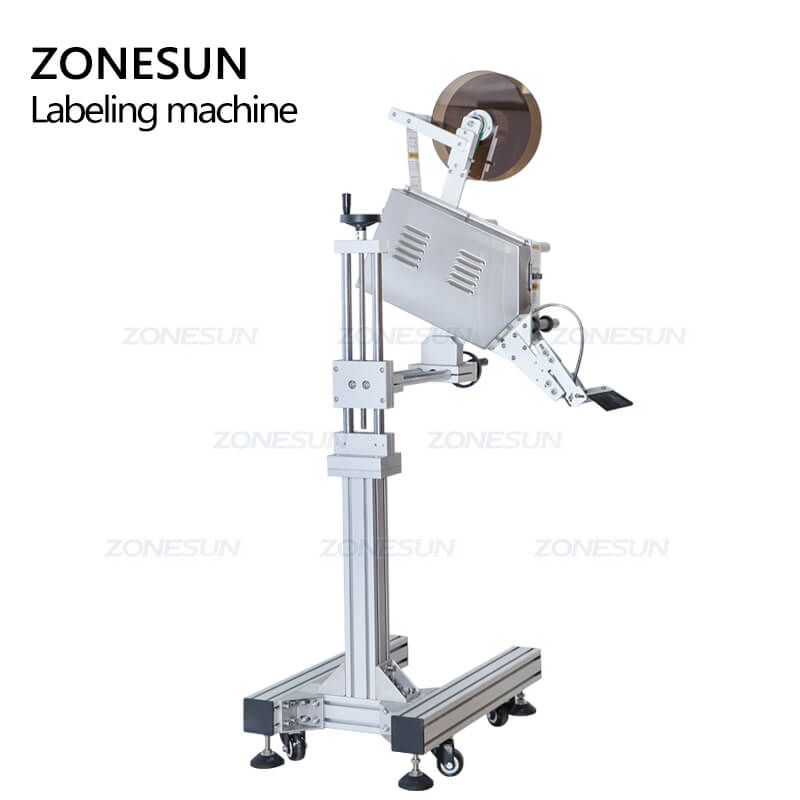

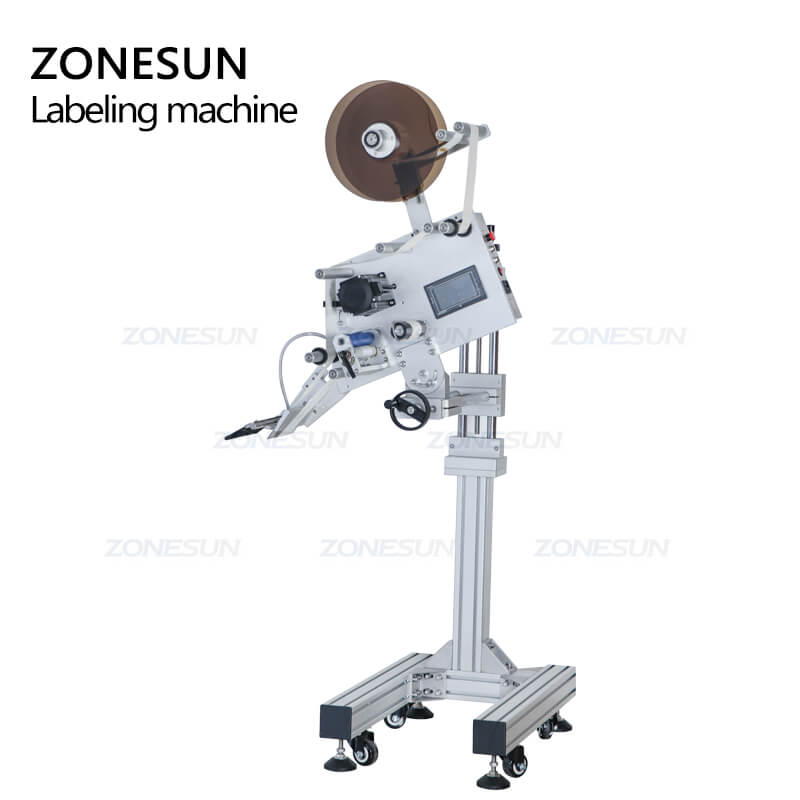

flat surface labeling head

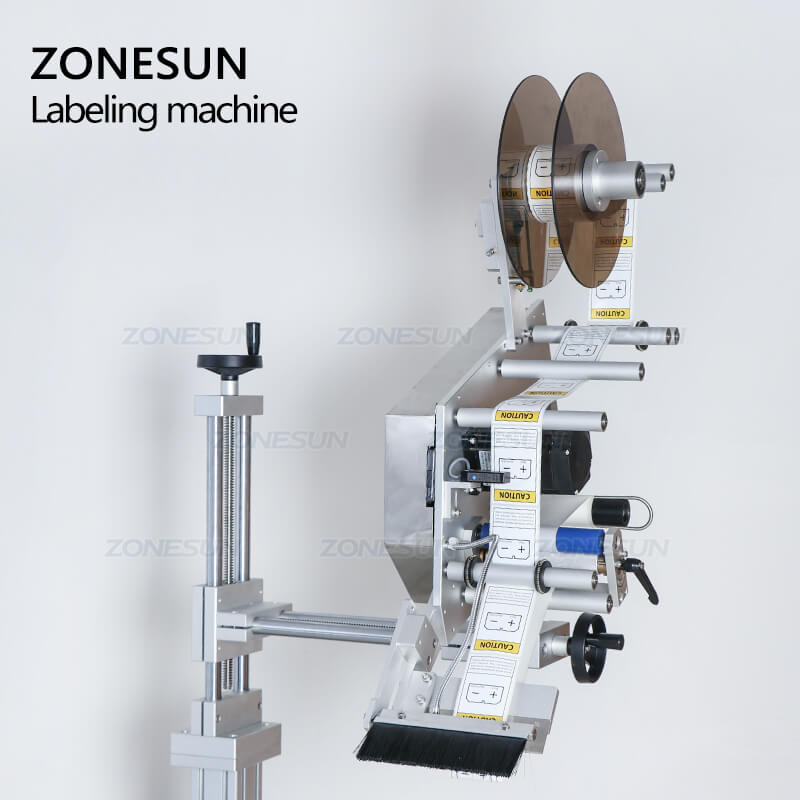

rotary knob of flat surface labeling head

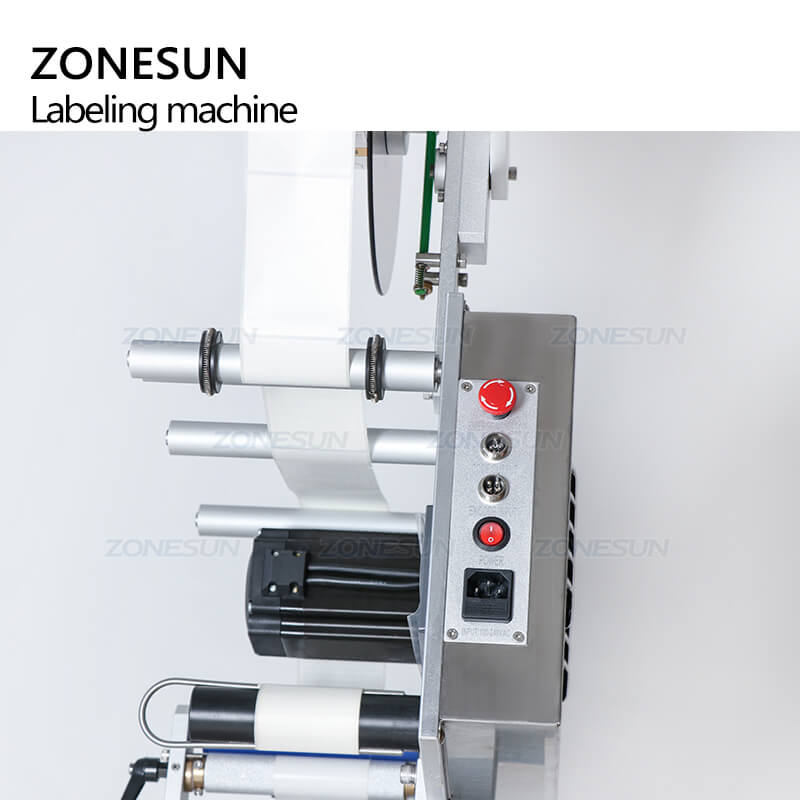

control button of flat surface labeling head

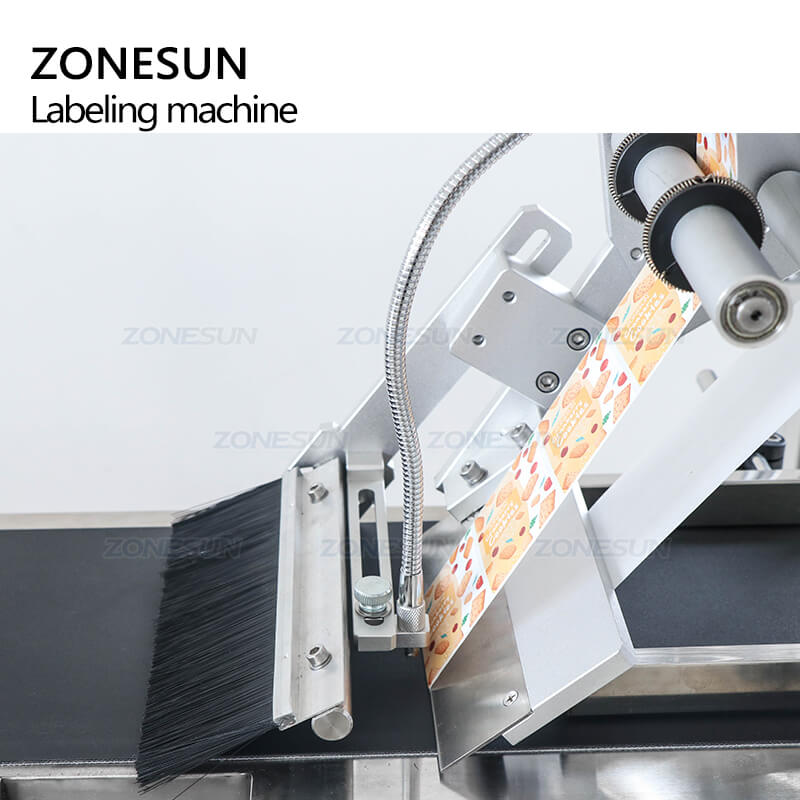

brush of flat surface labeling head
stand up pouch flat surface labeling head
box flat surface labeling head

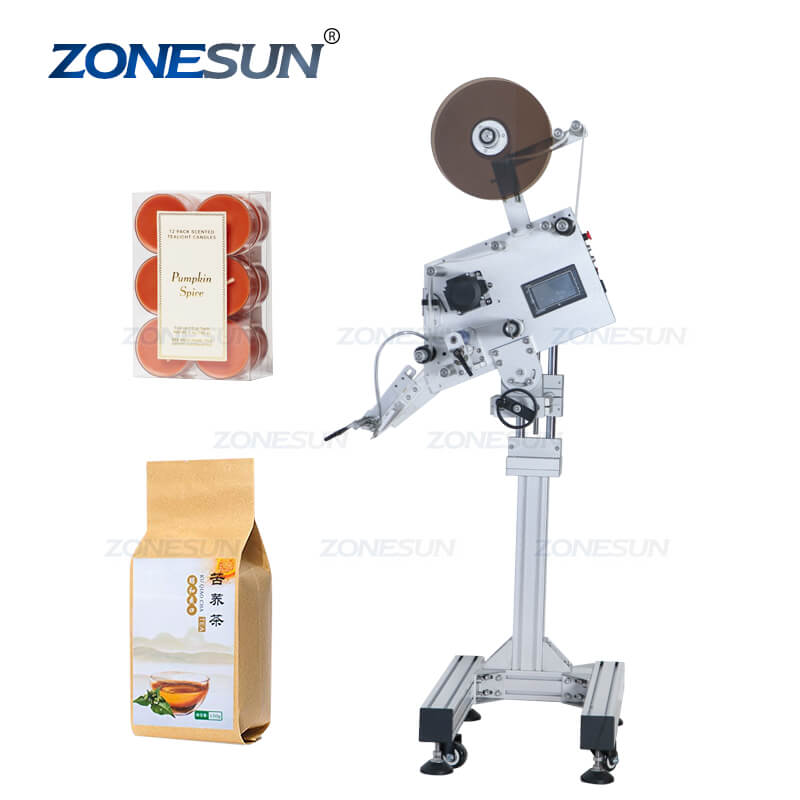

pouch bag flat surface labeling head

ZS-TB170 Automatic Top Side Book Flat Boxes Plastic Pouch Bag Labeling Machines

SKU:
Voltage
Size
Sale price $2,559.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

This one is the assembly labeling machine which can work with the conveyor belt and realize automatic production or work as the single-alone operation machine.It is suitable for labeling stickers on flat surface like book,box,pouch bags.

Parameter
Machine model:ZS-TB170
Machine voltage:110/220V 50*60HZ 1.5KW
Labeling speed:0-300 pieces/min(based on labeling materials and label size)
Label roll size:15-200mm(H)*25-300mm(L)
Labeling accuracy:±1%
Label roll inner diameter:76mm
Label roll outer diameter:350mm
Package size:About 860*650*750mm
Package weight:About 76kg
Machine size:About 660*700*1600mm
Machine weight:About 60kg

Pouch Automatic Top Side Labeling HeadLabel Size of Flat Surface Labeling MachineApplication of Pouch Automatic Top Side Labeling Head

Machine Details of Pouch Automatic Top Side Labeling Head

Operation Panel of Pouch Automatic Top Side Labeling Head

Equipped with touch screen control panel,this is more convenient to adjust working parameter and watch the working status in real time.Different kinds of language can eb customized as operation need,please contact us if you need this.

Label Sensor of Pouch Automatic Top Side Labeling Head

The label sensor can detect label stickers based on transmittance,this can prevent from wasting label stickers.The sensitivity can be adjusted according to operation need,it improves labeling accuracy.

Electric Eye of Pouch Automatic Top Side Labeling Head

Equipped with high quality electric eye,it will detect passing by labeling object like book,box,pouch bags.And the separating plate will separate label stickers and the brush will help to press label stickers and ensure there is no bubble under label stickers

Pouch Automatic Top Side Labeling Head With Conveyor

This machine can be connected to the conveyor belt and realize automated production or work as the single-alone operation machine,this makes the operation more flexible.

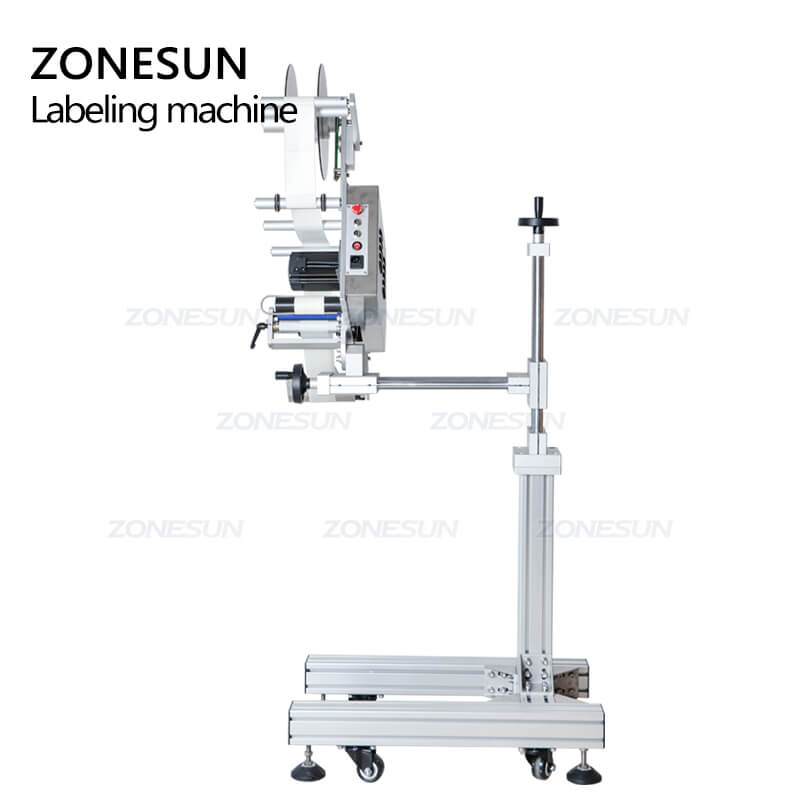

Rotary Knob of Pouch Automatic Top Side Labeling Head

The working height and labeling head position can be adjusted according to label object size,this can improves labeling accuracy.

Pouch Automatic Top Side Labeling Head
