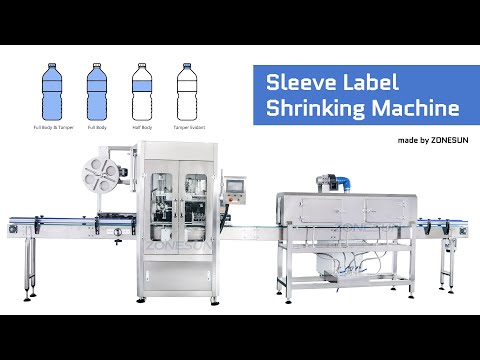

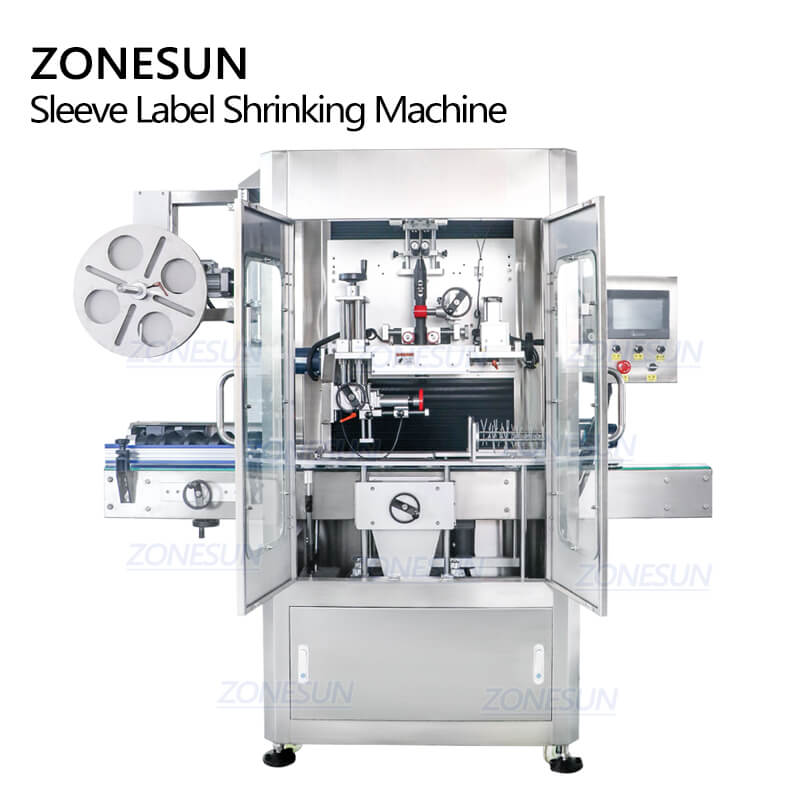

ZONESUN Automatic Cap Mineral Water Beverage Bottle PVC Film Sleeve Label Machine

SKU: ZS-STB150
Sleeve Label Shrinking Machine
Sleeve Label Shrinking Machine
Sleeve Label Shrinking Machine
Sleeve Label Shrinking Machine
Sleeve Label Shrinking Machine
Sleeve Label Shrinking Machine
Sleeve Label Shrinking Machine

ZONESUN Automatic Cap Mineral Water Beverage Bottle PVC Film Sleeve Label Machine

SKU: ZS-STB150
Regular price $12,999.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Description

The sleeve labeling machine is suitable for packaging various bottle types of juice, tea beverages, dairy products, purified water, condiments, sports drinks, etc. This machine has high accuracy of sleeve label position, and it can highlight the bottle and perfect the bottle shape after shrinking. The whole machine adopts stainless steel protective frame cover and aluminum alloy rigid frame, which is stable and does not rust. Suitable for round bottles, square bottles, oval bottles, etc.

Parameter

Sleeve Label Machine

Machine model:ZS-STB150
Bottle diameter range:φ28mm-φ125mm (can be customized)
Bottle height:30mm ~ 280mm (can be customized)
Label length:30mm~250mm (can be customized)
Label thickness:0.03 mm ~ 0.13 mm (PVC, PET, OPS, materials are all available)
Sleeve standard error:+1.5mm
Paper tube inner diameter:5"~10" (can be adjusted)
Machine speed:150 bottles/min (based on label length)
Voltage:220V Single Phase
Power:15KW
Conveyor belt:standard 2M
Machine size:About 2950*10301870mm(L*W*H)
Machine weight:About 464kg



Shrinking Machine

Tunnel length:About 1800mm
Tunnel width:About 395mm
Tunnel height:About 360mm
Suitable bottle diameter:≤80mm
Conveyor height:About 900mm
Machine size:About 3050*480*1330mm(L*W*H)
Machine weight:About 86kg
Package size:About 1905*610*1720mm
Package weight:About 143kg

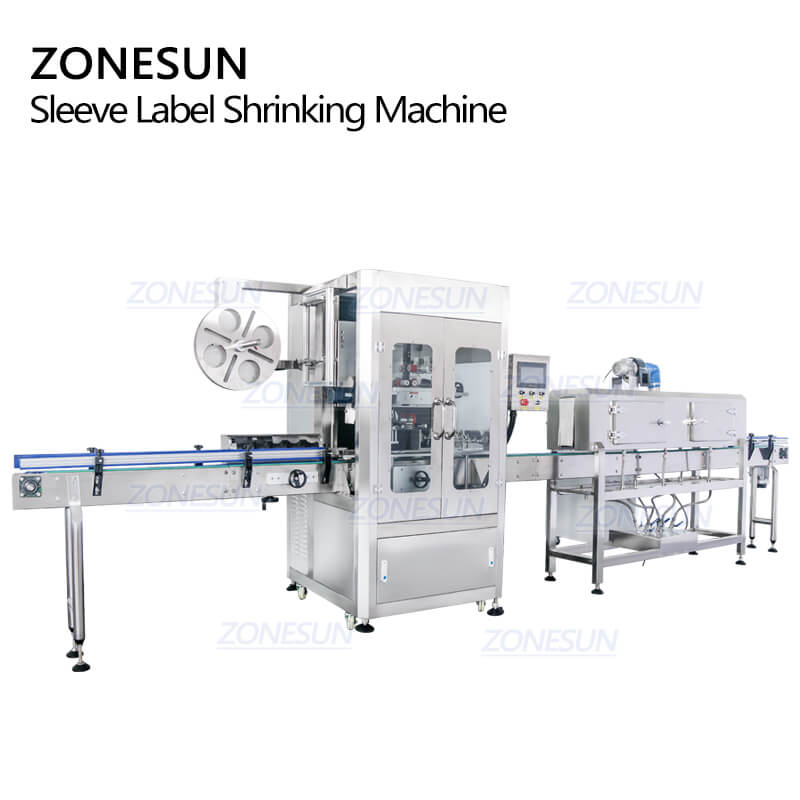

Sleeve Label Shrinking Machine

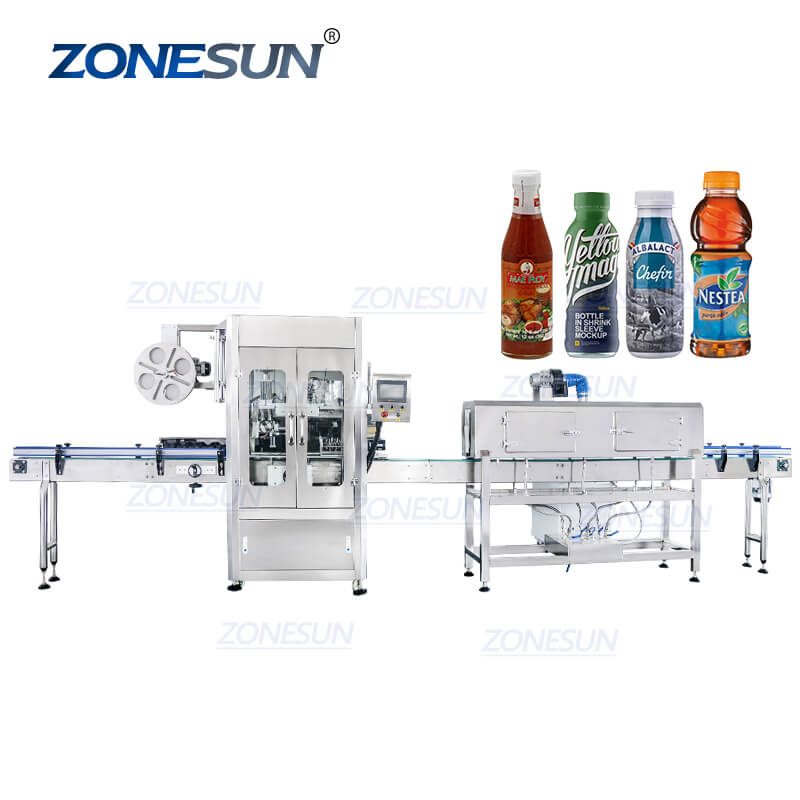

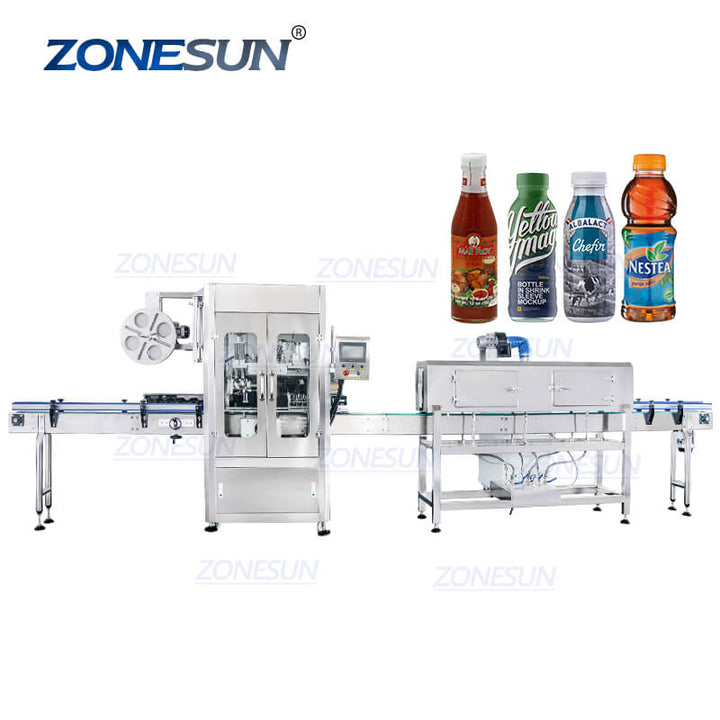

Application of Sleeve Label Shrinking Machine

Dimension of Sleeve Label Shrinking Machine

Operation Panel of Sleeve Label Shrinking Machine

The touch screen control panel makes the working parameter is visual,the precise adjustment can be easily achieved according to operation,ensure the labeling effect,it helps save a lot of time.

Electric Eye of Sleeve Label Shrinking Machine

Equipped with high quality electric eye,It can be used to detect bottles and control the machine to work or not,it realize the automated working and helps to improve working accuracy.

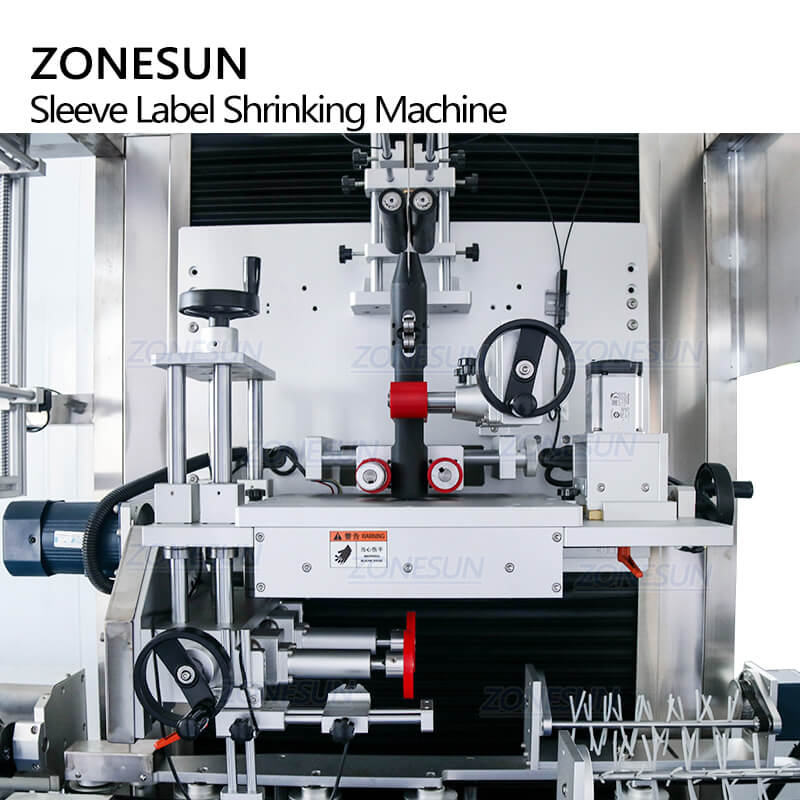

Film Pulling Structure of Sleeve Label Shrinking Machine

Suitable for different shapes of bottles,the label feeding mechanism can automatically work once the system detect bottles.This machine is suitable for 30mm ~280mm  height bottles,and we can customized the machine according to your needs.

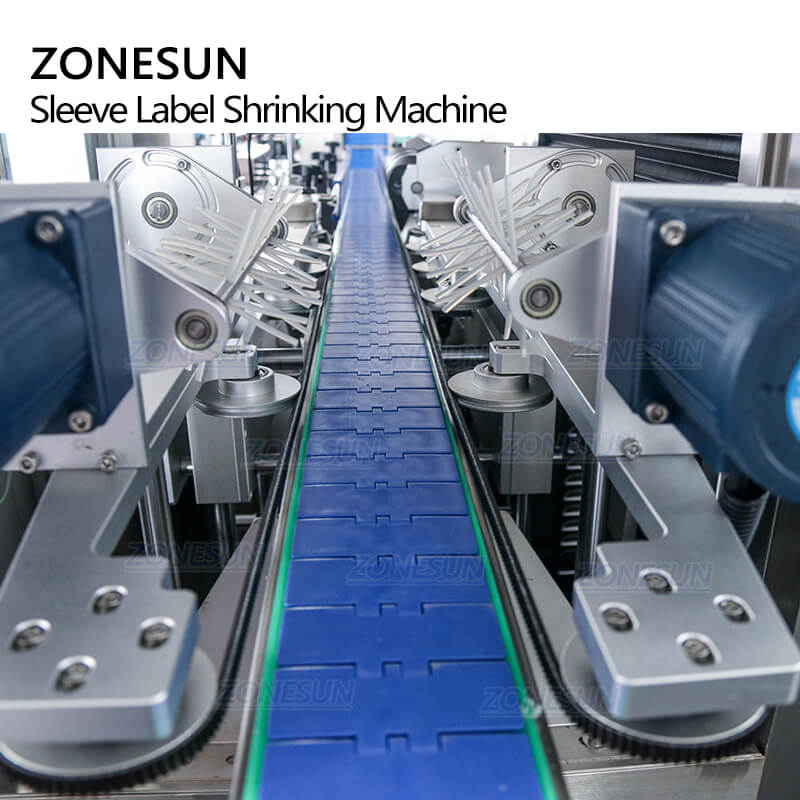

Brush of Sleeve Label Shrinking Machine

The bottle separating component can help to separate bottle and adjust bottles distance,ensure the bottle can be labeled in order,improve the labeling effect.It is also with soft brush which is used to improve the sleeving effect for the next film shrinking process.

Shrinking Tunnel of Sleeve Label Shrinking Machine

The pipe is used to exhaust waste steam and ensures the shrinking quality.The heating tunnel is made of high quality materials,it can ensures the film can be shrunk equably.

Details of  Sleeve Label Shrinking Machine

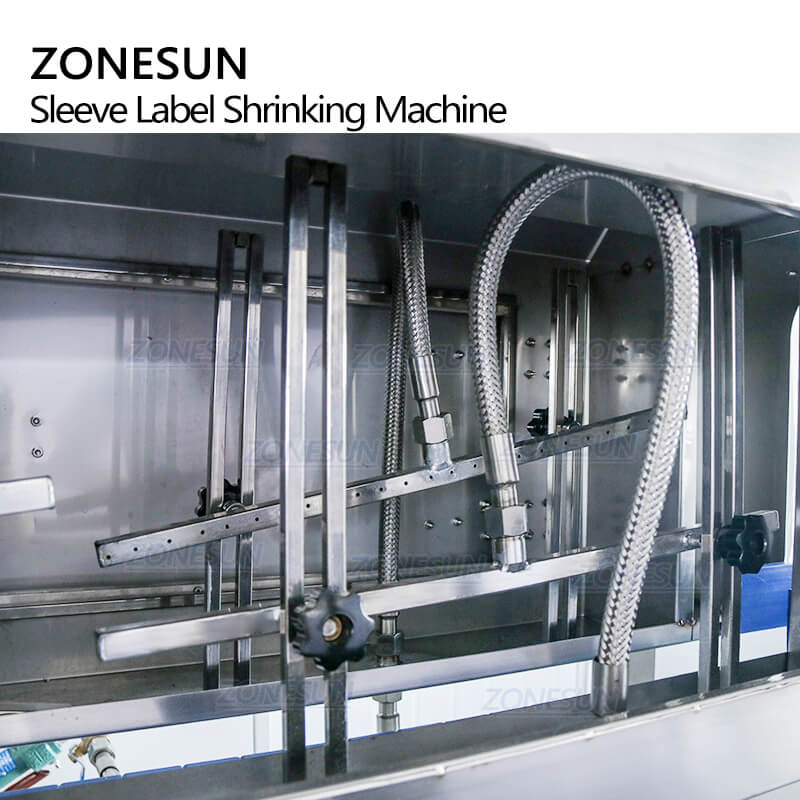

Three-layer air bump hole design,the jet length and direction can be adjusted.It is also with temperature display,this helps you can control the working situation in real time.

Real shot of Sleeve Label Shrinking MachineSteam Generator of Sleeve Label Shrinking Machine

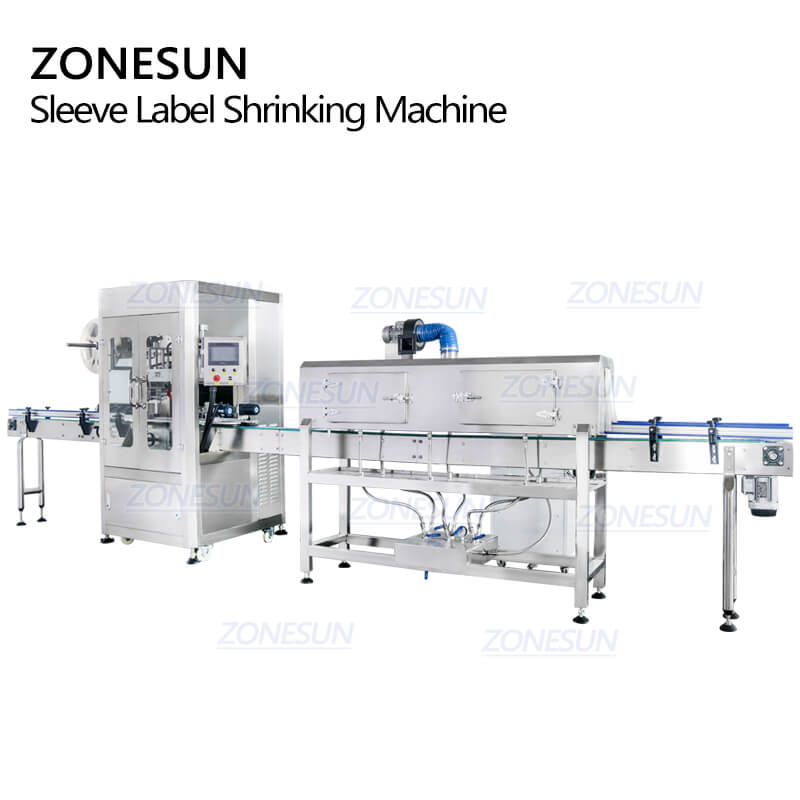

Real shot of Sleeve Label Shrinking Machine
