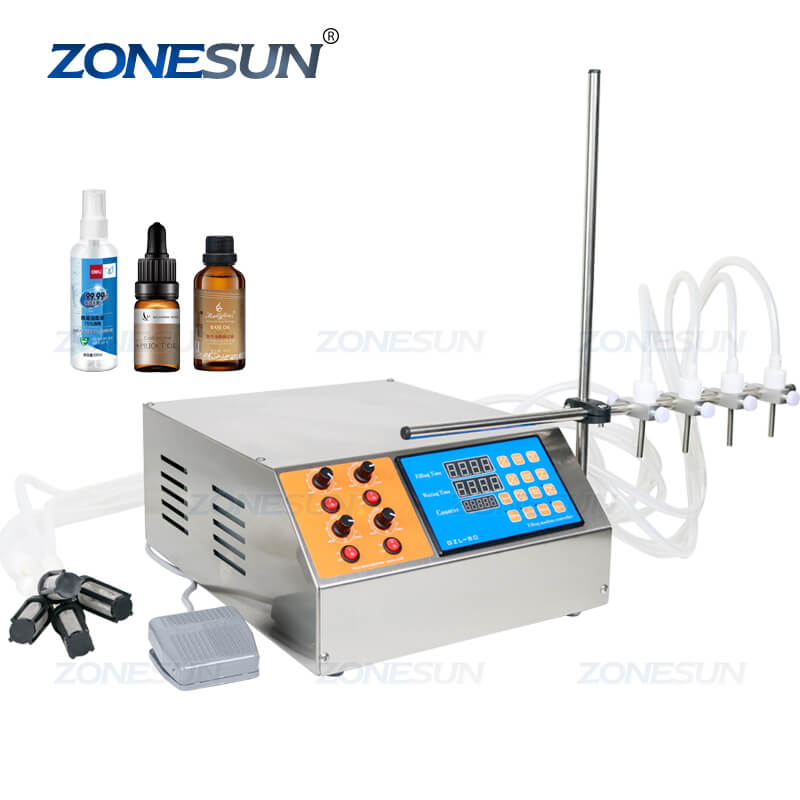

Name: ZONESUN 4 Heads Peristaltic Pump Liquid Filling Machine For Juice Beverage Milk Perfume
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00100300023-0003
Price: 391.99 USD
Availability: InStock

This machine is equipped with peristaltic pump,the liquid will not pass through the pump during working,this makes sure the cleanliness of the liquid.This is designed for filling drink,milk,can help you improve the product quality.

Parameter

Voltage:AC 220V,50Hz
Power:60W
Filling range:0.5ml-50ml/min for each flling head
Max flow rate:650ml/min
Filling accuracy:±1%
Time delay range:0.01S-999.9S
Counting range:1-99999 times
Body material:stainless steel
Anti-dripping function:Available
Memory Function out of power:Available
Interior diameter of flling nozzle:5mm (if you need smaller 3mm, please leave message)
Net weight/Gross weight:About 8.5/9.5kg
Machine size:About 310*400*150mm
Pacakge size:About 415*405*210mm

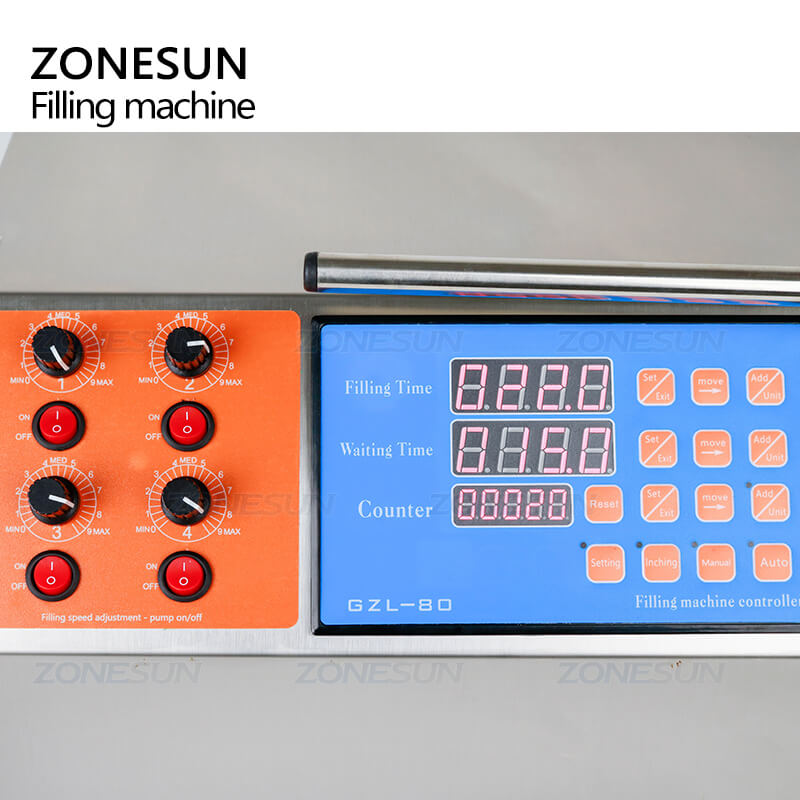

4 heads Peristaltic Pump Filling Machine Application of 4 heads Peristaltic Pump Filling Machine Details of 4 heads Peristaltic Pump Filling Machine Operation Panel of 4 heads Peristaltic Pump Filling Machine

Simple control panel,you can control the filling range by adjusting the filling time and speed.And you can set the auto working mode.This one is also with memory function which helps you improve working efficiency.

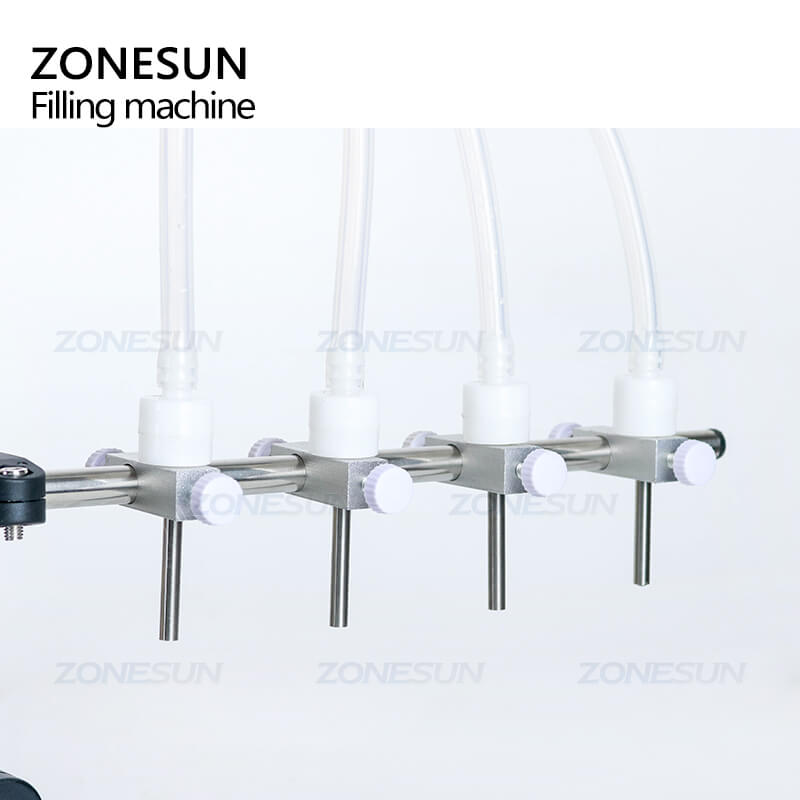

Filling Nozzle of 4 heads Peristaltic Pump Filling Machine

The filling nozzle is with anti-dripping function,each nozzle can be controlled separately.You can use this machine to fill various liquid at the same time.

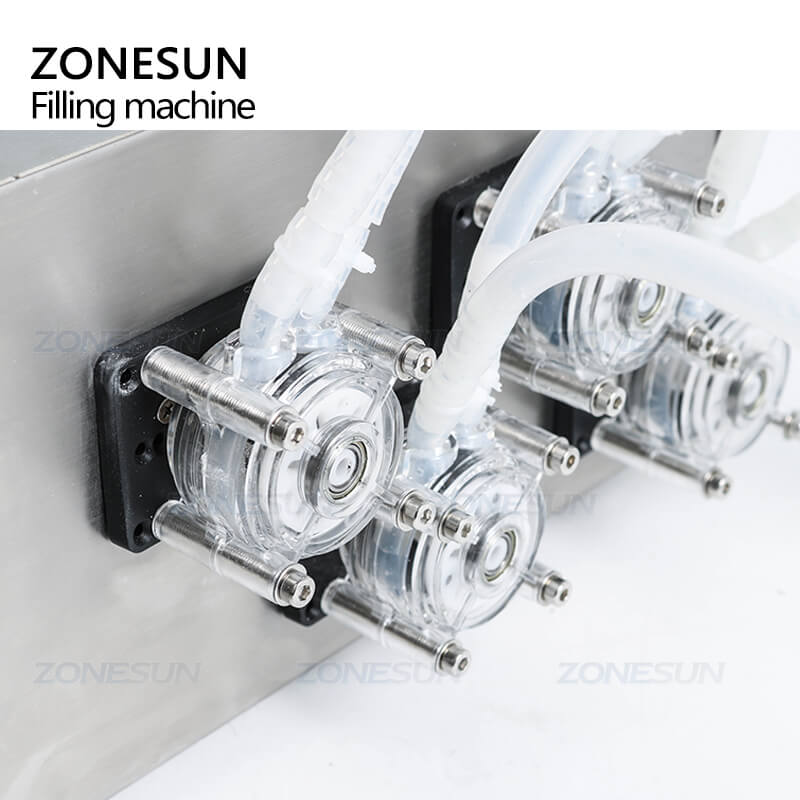

Peristaltic Pump

This machine is equipped with the peristaltic pump,the liquid will not pass through the pump,ensure the production quality.

Pedal Switch

The whole machine is made of stainless steel,durable and can work for a long time.lt can fill liquid by controlling the pedal switch,this is helpful if you need to test the machine oradjust the machine.

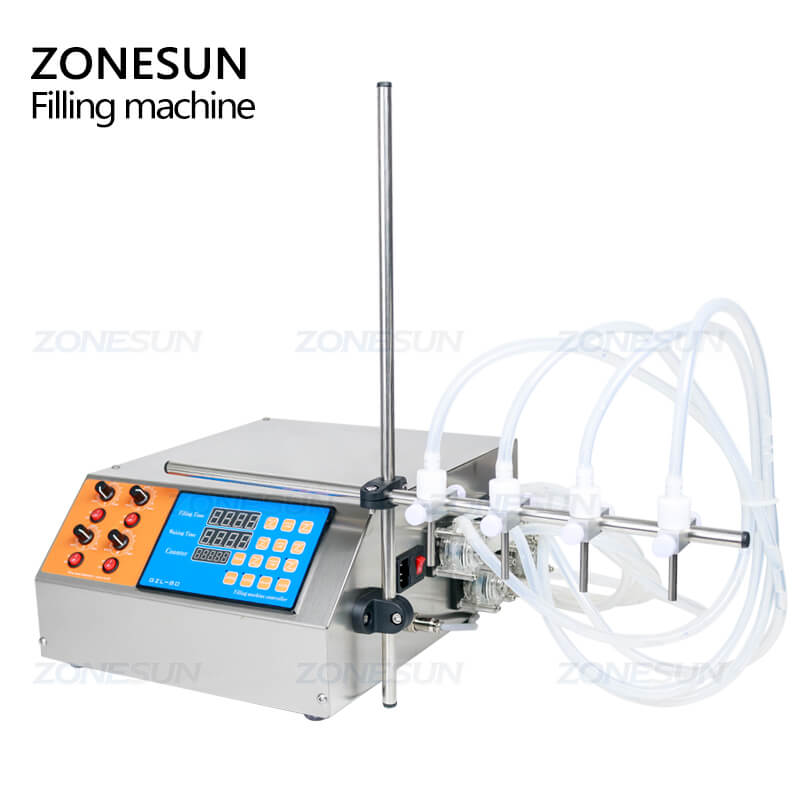

4 heads Peristaltic Pump Filling Machine
